Rockford Fosgate Stage 3 24WRNGLER-STG3

Product Details:

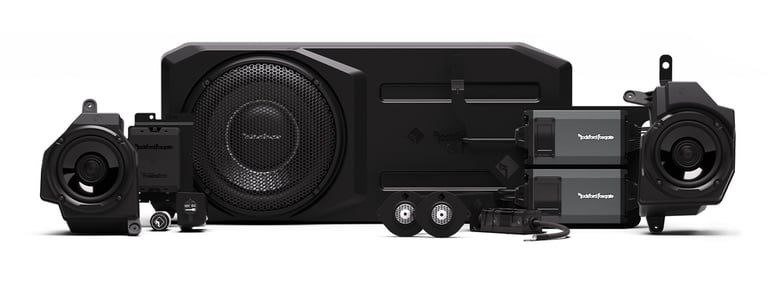

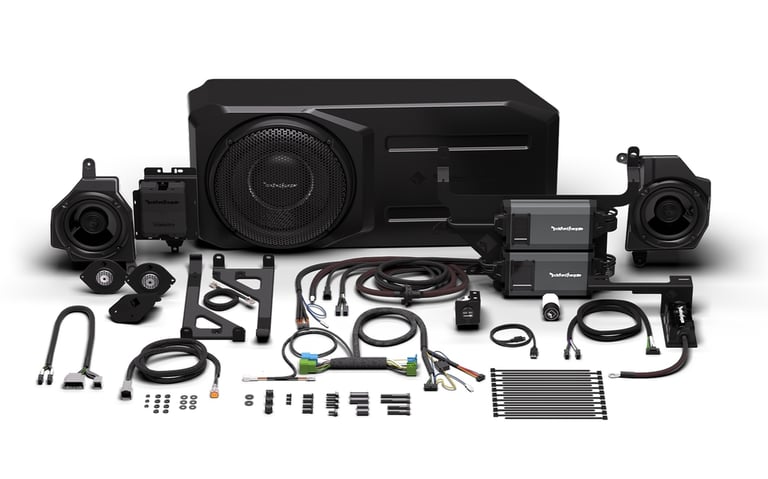

• System includes tweeters, 6.5" speakers with enclosures, 12" subwoofer with enclosure
• Also includes 4-channel amplifier, monoblock amplifier, and DSP
• Includes amplifier installation kit, fuse block, knob, and mounting hardware
• Designed to match and complement the factory fit and finish of your vehicle
• Plug and Play design for easy installation, no drilling or cutting required
• Up to 4x louder than base audio system
• Nearly 2x louder than premium audio system
• Direct bolt into vehicle using OEM mounting holes
• T-harness integration eliminates cutting or splicing wires
• Integrated OEM style enclosures w/ factory connectors
• Minimal cutting (for models that require 12v accessory relocation only)
• Audio integration into OEM CAN-bus system
• DSP recognition with auto-loading Jeep Wrangler specific tune
• Custom bass level control matches OEM dash and controls
• Element Ready enclosures designed to withstand heat, water, and UV rays
• Thermal shock and vibration resistant enclosures
• Slim subwoofer in sealed enclosure retains cargo space
• Durable PE (Poly Ethylene) material with friction welded seams
• Custom Rockford Fosgate duck
• Estimated Installation Time: (6-8) Full hours typical
• Authorized Internet Dealer
• 2 Year Manufacturer's Warranty
• Compatible with select 2024-2026 Wrangler Unlimited and Wrangler and Wrangler (JL)

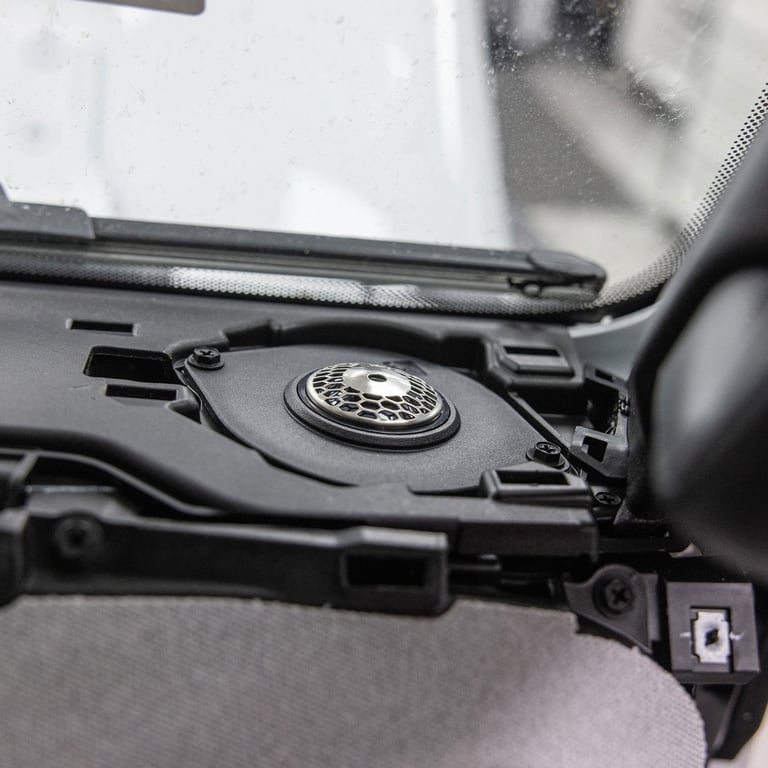

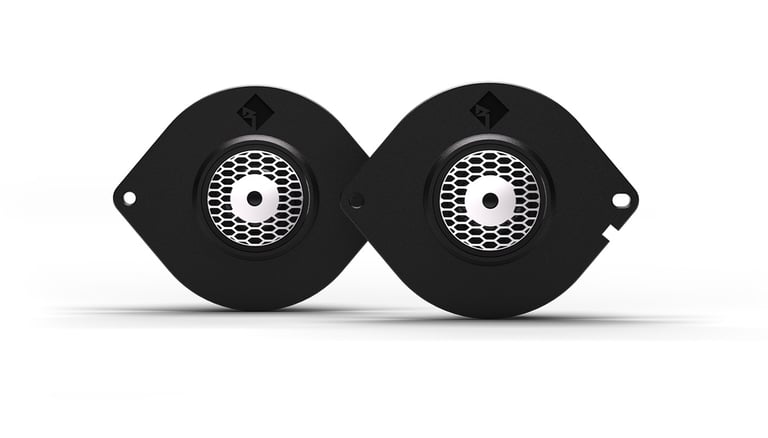

Rockford Fosgate M2-TS 6.5" 1" M2 Series Pro Audio Tweeter with Bezels:

• 1" M2 Series Pro-Audio Marine Add-on Tweeter Kit
• Power Handling:
• Peak: 1600 watts per pair / 800 watts each
• RMS: 400 watts per pair / 200 watts each
• IPX6 rated front and grille with IPX5 frame
• UV-stable ASA plastic frame and grille design
• Aluminum diaphragm material
• Customizable flush or horn-mount options
• Marine grade PEI rubber surround
• Dual clamp tweeter mounting system
• Neodymium magnet motor structure
• Impedance: 4 ohm
• Frequency Response: 1425 - 25000 Hz
• Sensitivity: 97 dB
• MFR #: M2-TS

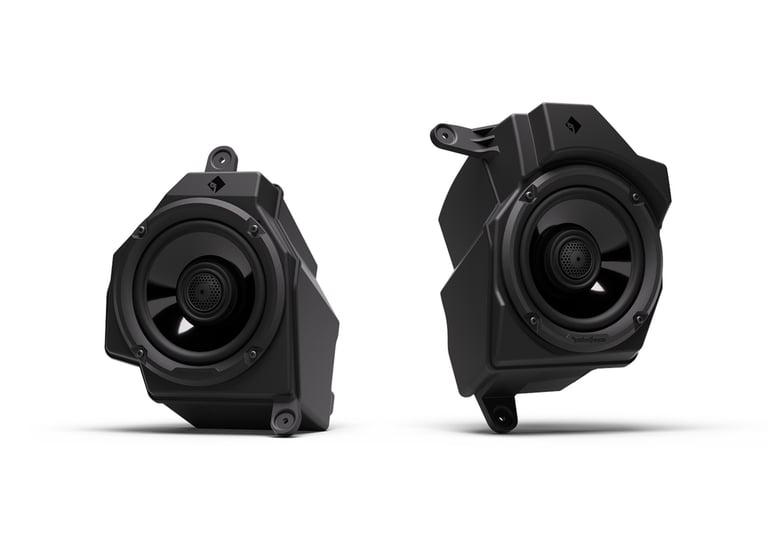

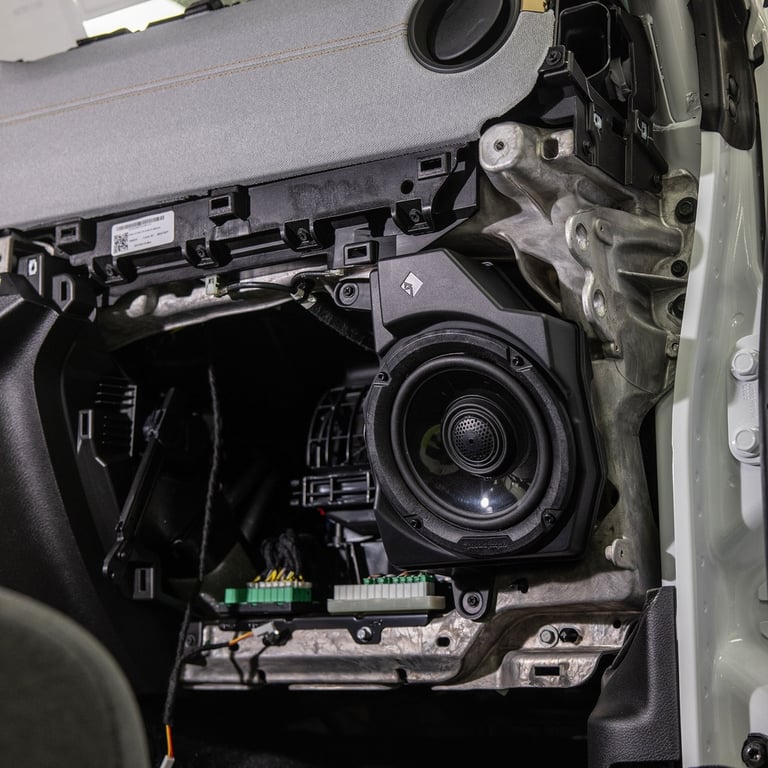

Rockford Fosgate TMS65 6.5" 2-Way Coaxial Front Speakers with Enclosures:

• 6-1/2" 2-way Coaxial Element Ready Speakers
• Power Handling:
• Peak: 300 watts per pair / 150 watts each
• RMS: 150 watts per pair / 75 watts each
• Enclosed in custom-fit speaker enclosure
• Polypropylene-Carbon Fiber Hybrid cone material
• Santoprene Rubber speaker surround
• 1" Metalized Film Dome tweeters
• Neodymium magnet motor structure
• Santoprene rubber front isolation spider
• Ultra-high temperature glass reinforced Polymer frame
• Ultra-efficient Neodymium ring magnet motor
• Impedance: 4 ohm
• Frequency Response: 56 - 20000 Hz
• Sensitivity: 91 dB
• Includes protective speaker grilles
• MFR #: TMS65

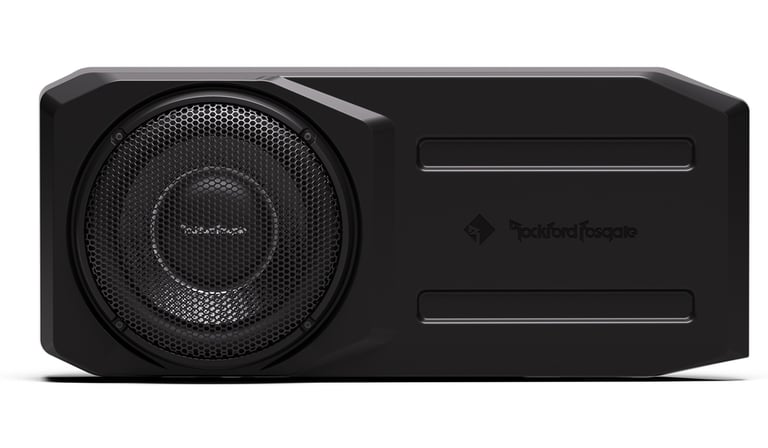

Rockford Fosgate T1S2-12 12" Shallow Subwoofer with Enclosure:

• 12" Single 2-ohm Power Series Subwoofer
• Power Handling:
• Peak: 1200 watts
• RMS: 600 watts
• Enclosed in custom-fit subwoofer enclosure
• Carbon fiber/PMI/Glass Fiber Cone
• Injection molded Injection molded foam Surround
• Cone with aluminum dust cap
• Dual Nomex progressive spiders with integrated lead wires
• Custom insulated push spring 10 AWG terminals
• Detachable die cast aluminum trim ring
• Integrated copper cap heat sinking shorting ring (IDHS)
• Dual wound 2.5" voice coil with interior/exterior windings
• 14.42 oz. Single Stacked Neodymium magnet motor structure
• Resonance Frequency (Fs): 37 Hz
• Sensitivity: 88 dB
• MFR #: T1S2-12

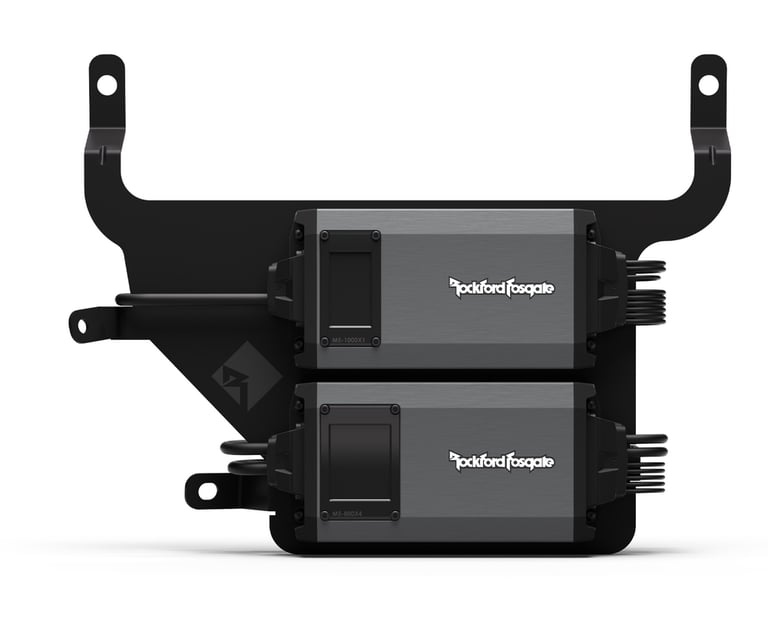

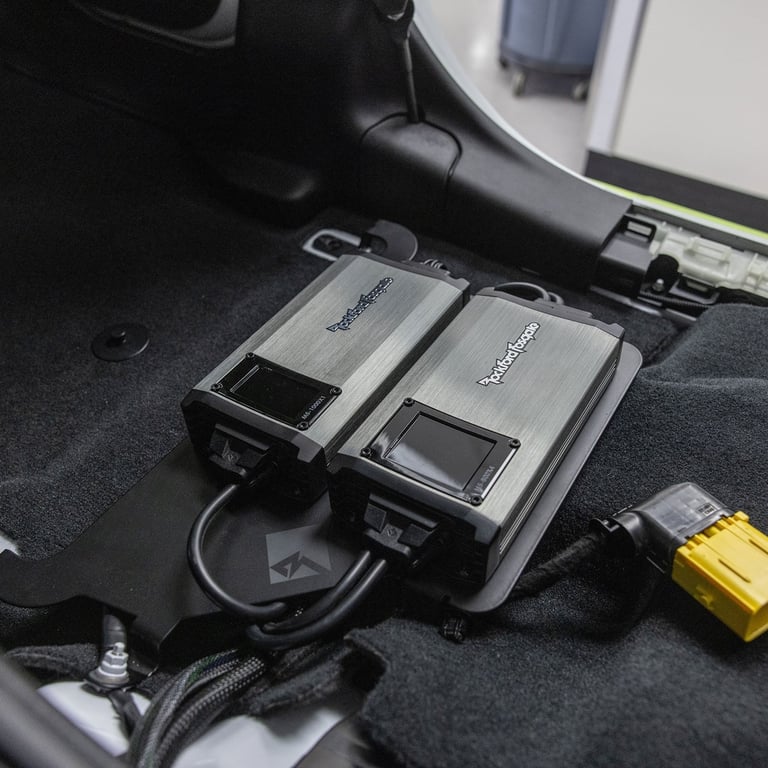

Rockford Fosgate M5-800X4 Jeep Specific Tuned 4-Channel Amplifier:

• M5 Series Class AD 2 ohm Stable 4-Channel Amplifier
• Power Specifications
• 4 ohm: 100 watts x 4 channel
• 2 ohm: 100 watts x 4 channel
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS power output: 400 watts
• Includes Jeep Specific Tune feature
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
• C.L.E.A.N. gain setup system includes clip lights
• Auto remote turn-on feature
• Element Ready chassis and conformal-coated PC boards
• IPX6 water intrusion rating
• Heavy-duty molded connectors protect wiring from water and dirt
• Preset button for instant tuning in Rockford Fosgate UTV audio packages
• Frequency Response: 10 - 50000 Hz
• Total Harmonic Distortion (THD): 0.25%
• Signal to Noise Ratio: 105 dB
• Variable high-pass filter: 50 - 250 Hz
• Variable low-pass filter: 50 - 250 Hz
• Variable Bass Boost: 0 - 18 dB
• MFR #: M5-800X4

Rockford Fosgate M5-1000X1 Jeep Specific Tuned Monoblock Amplifier:

• M5 Series Class BD 1-ohm Stable Monoblock Amplifier
• Power Specifications
• 4 ohm: 500 watts x 1 channel
• 2 ohm: 750 watts x 1 channel
• Total RMS power output: 750 watts
• Includes Jeep Specific Tune feature
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
• Element Ready chassis and conformal-coated PC boards
• Heavy-duty molded connectors protect wiring from water and dirt
• C.L.E.A.N. gain setup system includes clip lights
• Balanced differential inputs eliminate noise picked up by your cables
• Frequency Response: 30 - 245 Hz
• Total Harmonic Distortion (THD): 1%
• Signal to Noise Ratio: 110 dB
• Signal to Noise Ratio: 110 dB
• Subsonic filter: Fixed 30 Hz @ 12 dB Per Octave
• Variable Bass Boost: 0 - 18 dB
• MFR #: M5-1000X1

Other Included Components:

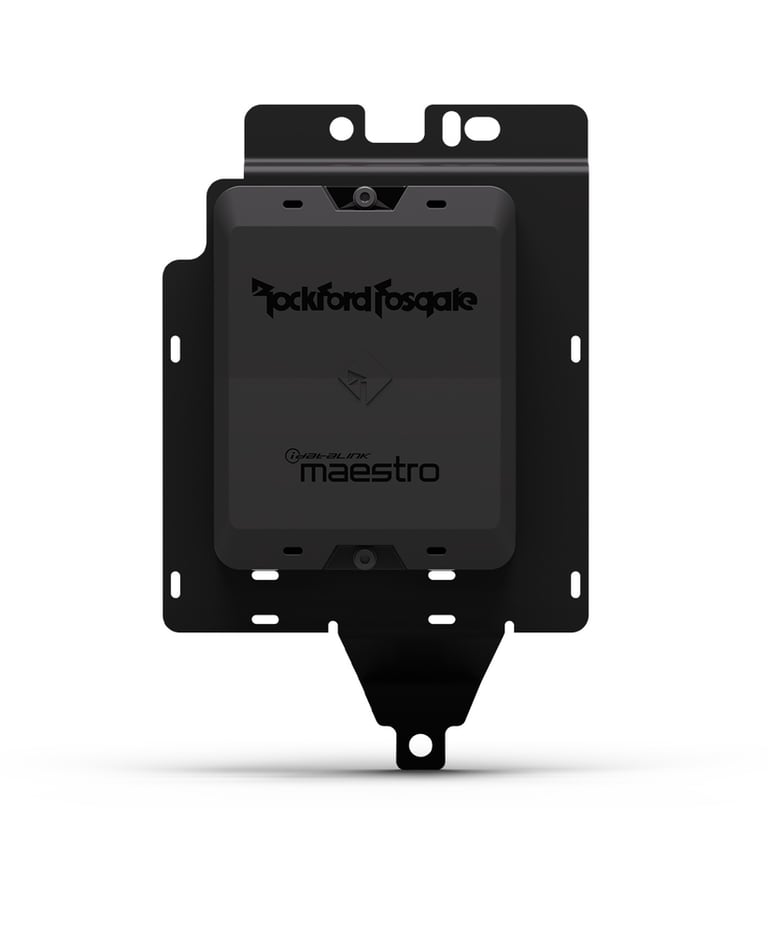

• Rockford Fosgate DSR1 DSP with Jeep Specific Tune

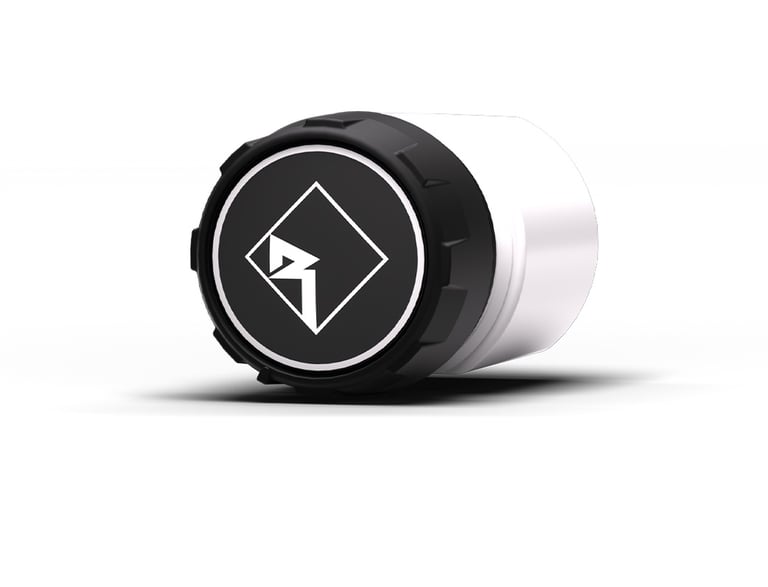

• Rockford Fosgate PLC2 Bass Level Control with Custom Knob
• Complete Wiring Kit with Fuse Block

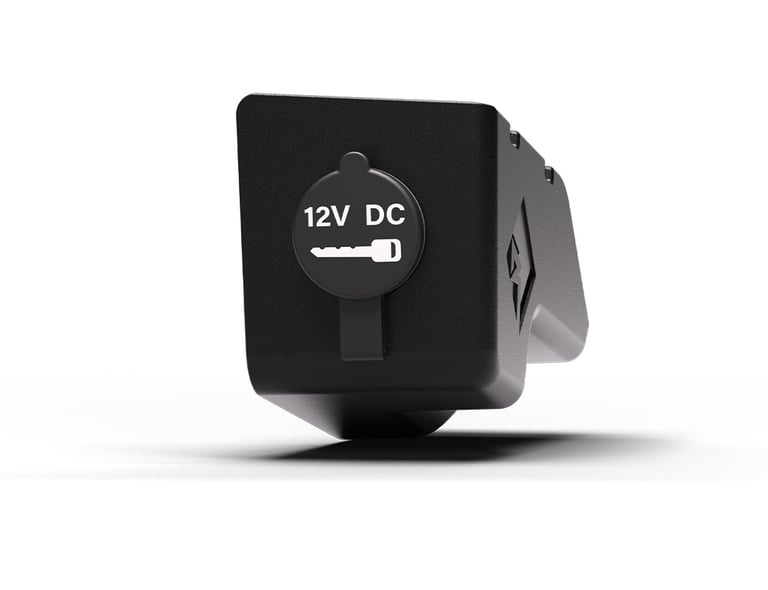

• 12V Relocation Kit
• Custom Rockford Fosgate Duck
