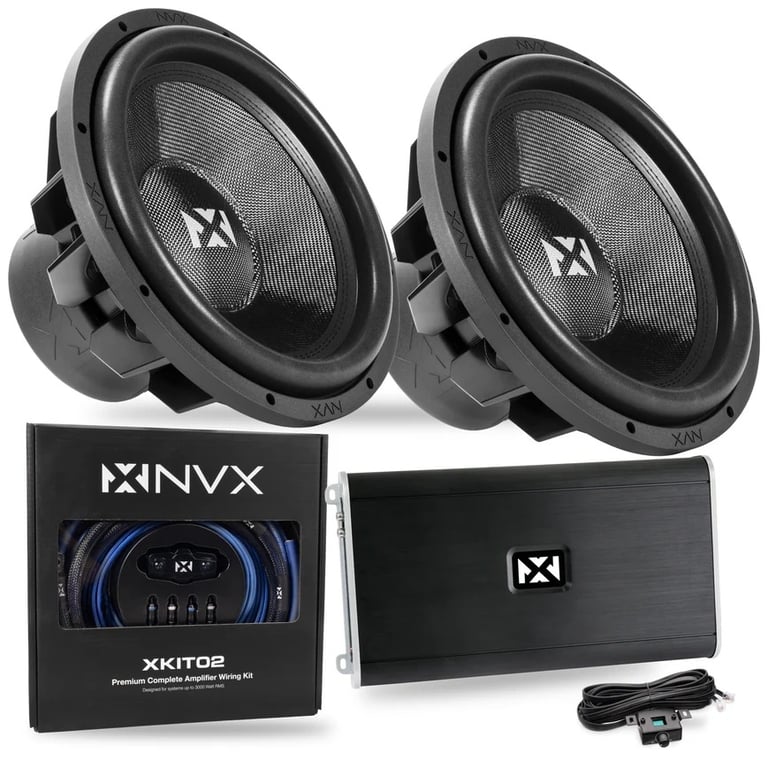

NVX VCW154 + VAD27001 + XKIT02

Product Details:

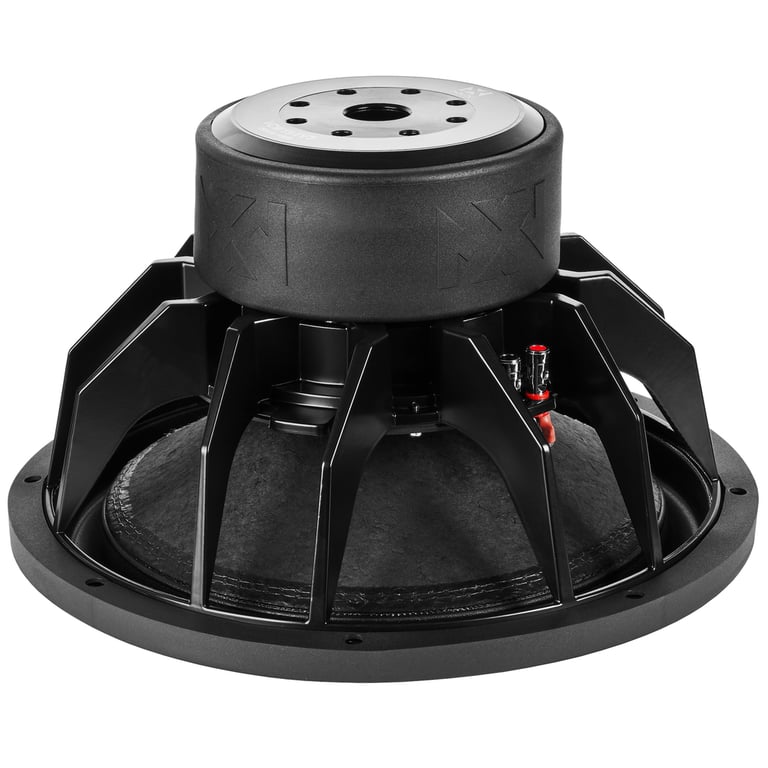

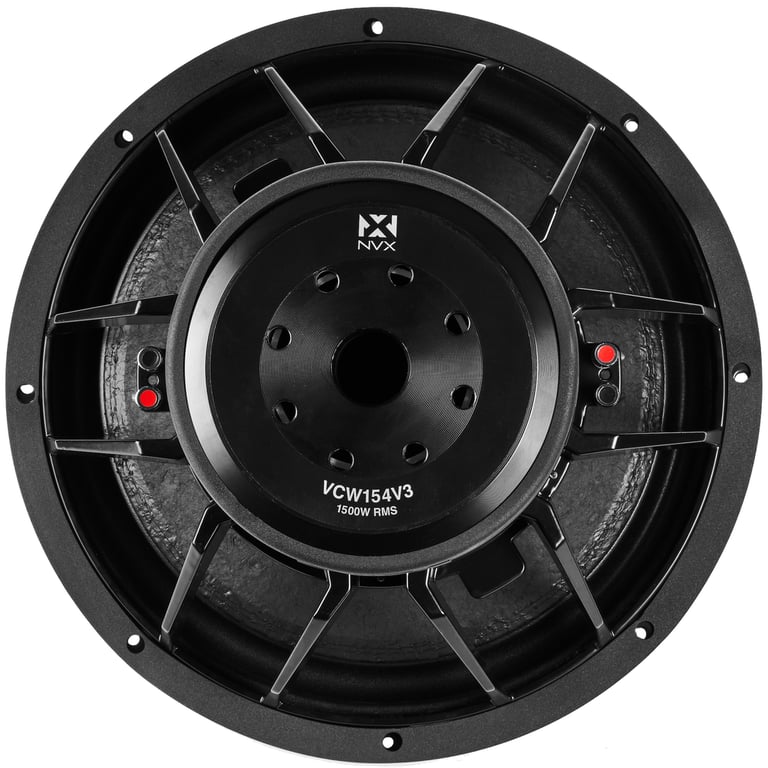

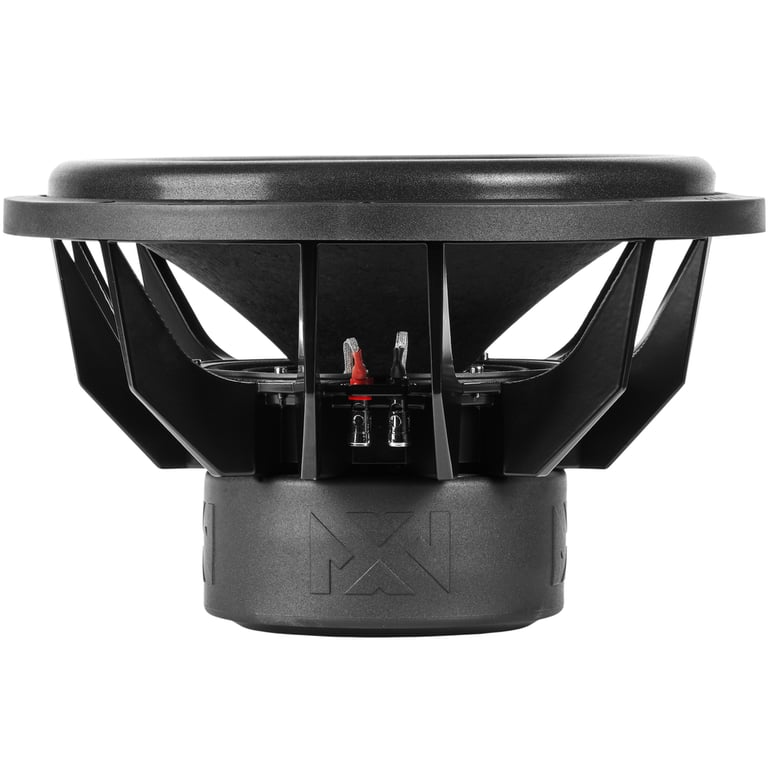

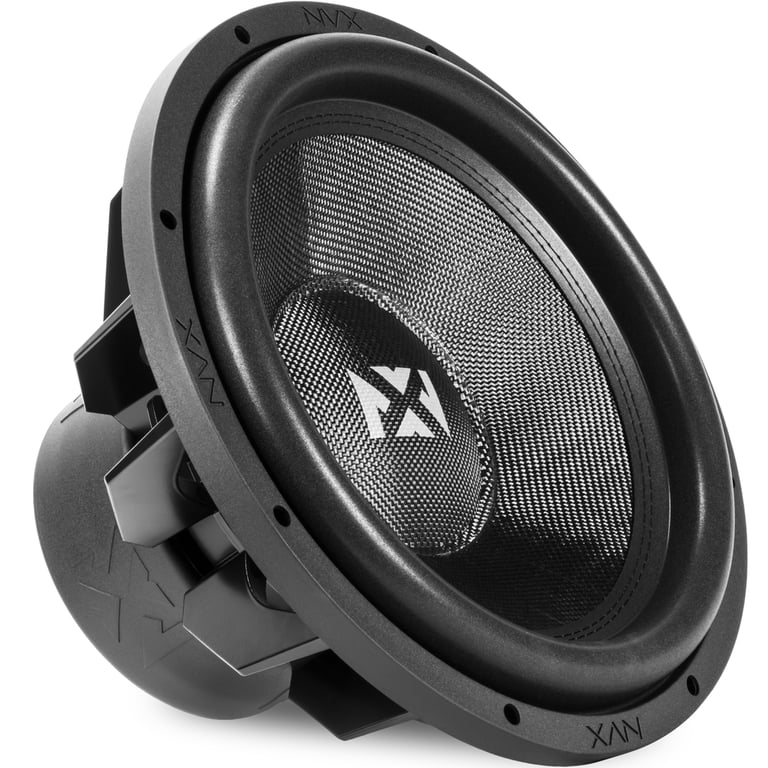

• 15" Dual 4 ohm VC Series Subwoofer
• Power Handling:
• Peak: 3000 watts
• RMS: 1500 watts

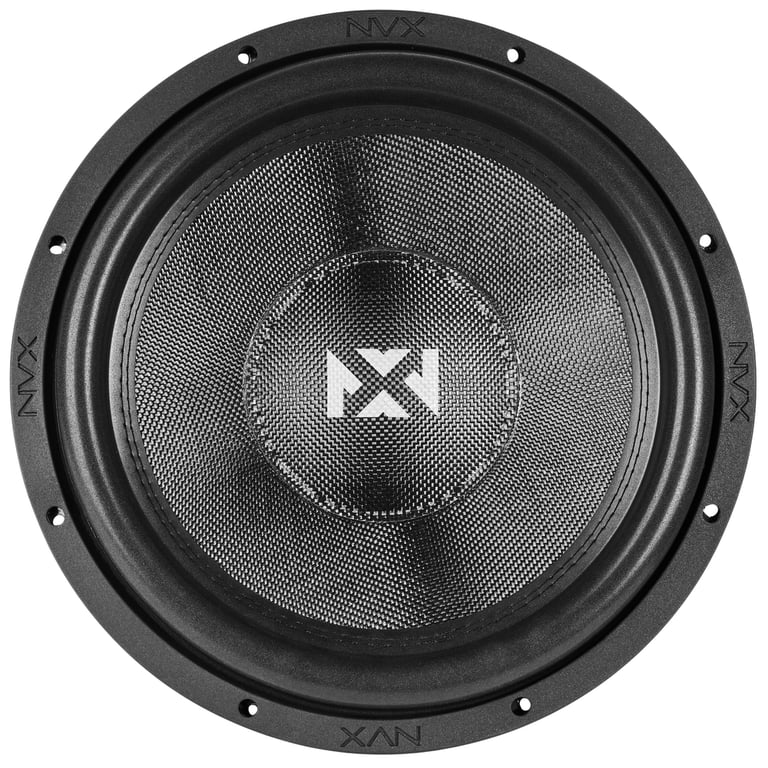

• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Die cast aluminum vented basket
• Dual progressive-roll spiders with integrated flat-braided leads
• 3" 4-Layer High Temperature Black Aluminum Voice coil
• Optimized high-velocity pole vent
• One-piece T-Yoke with integrated gap venting
• 202 oz. Triple Stacked High Energy Y35 Ferrite with protective rubber boot
• 23 mm Xmax (one-way) for massive air movement
• Frequency Response: 20 - 200 Hz
• Resonance Frequency (Fs): 31.30 Hz
• Sensitivity: 88 dB (1W/1m)
• Optimal sealed box volume: 2.00 cubic feet
• Optimal ported box volume: 3.5 cubic feet
• Top-mount depth: 8.19"
• Cutout diameter: 14.21"
• CTA-2031 Compliant
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty



Priced Individually

Product Details:

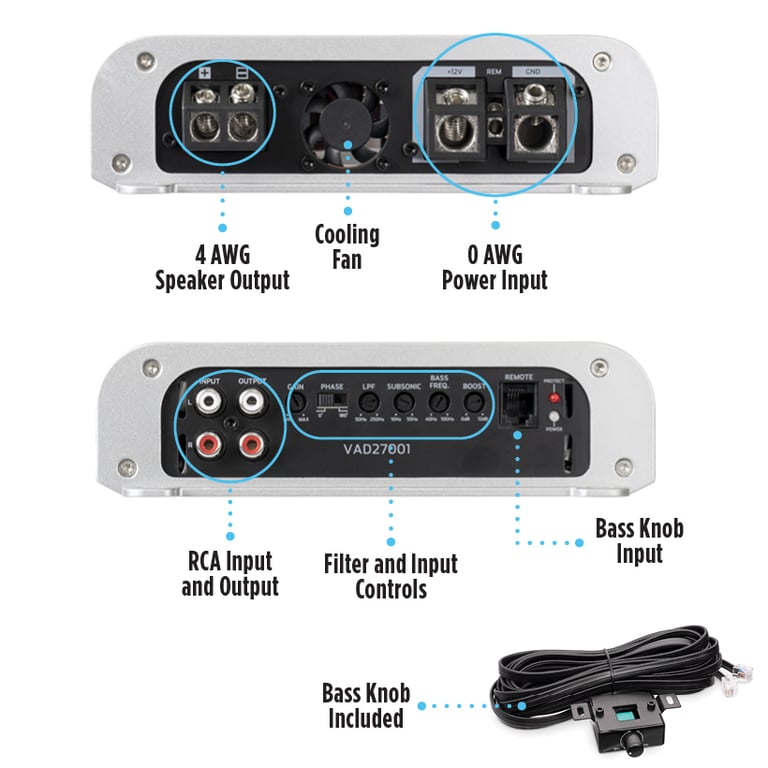

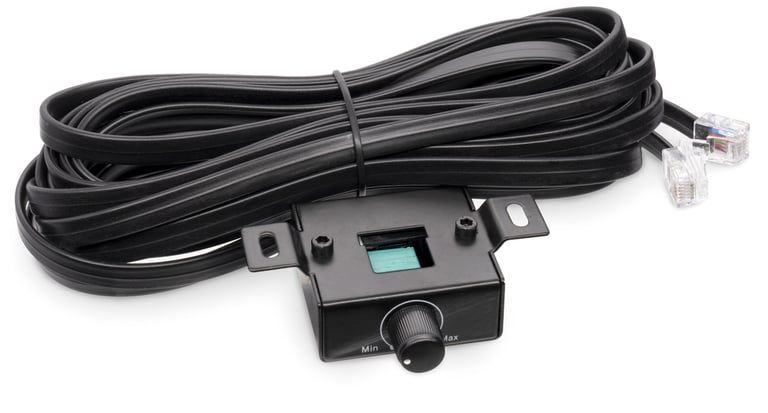

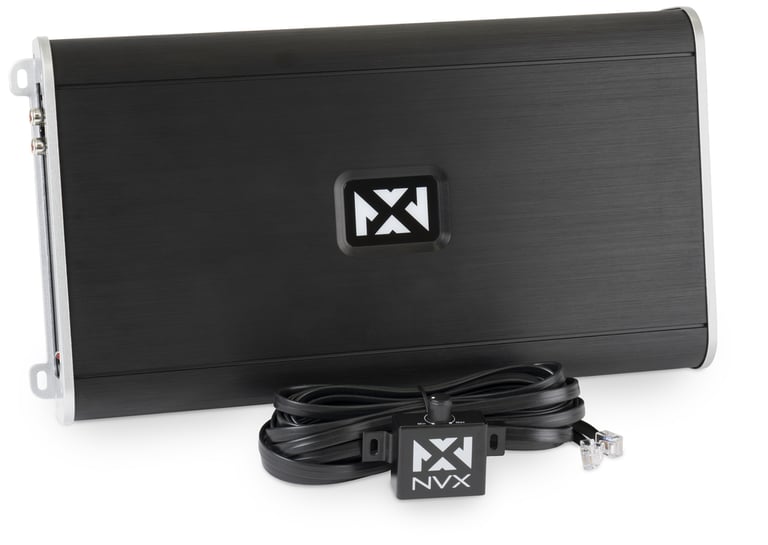

• Marine Certified Class D Monoblock Amplifier with Bass Remote
• CEA-2006 Compliant
• Peak Power Rating: 5400 Watts
• RMS Power Rating:
• 4 ohm: 1250 watts x 1 chan.
• 2 ohm: 1950 watts x 1 chan.
• 1 ohm: 2700 watts x 1 chan.
• LED power (blue) and protect (red) indicators

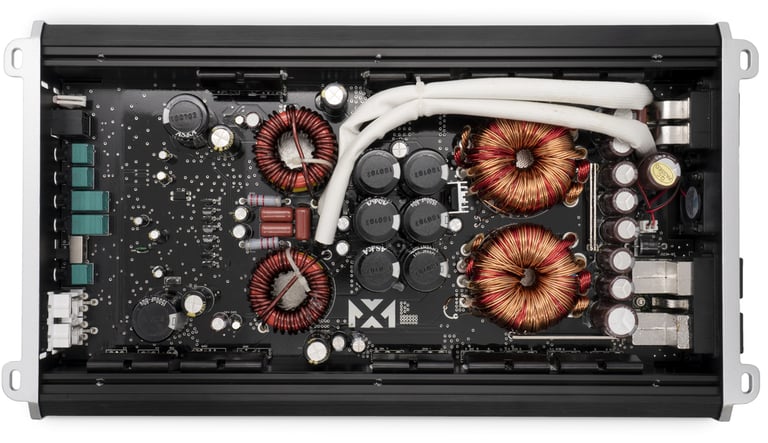

• Conformal Coated Marine grade circuit board
• Heavy duty aluminum alloy heat-sink
• Platinum-plated RCA level inputs
• Platinum-plated screw terminals
• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)

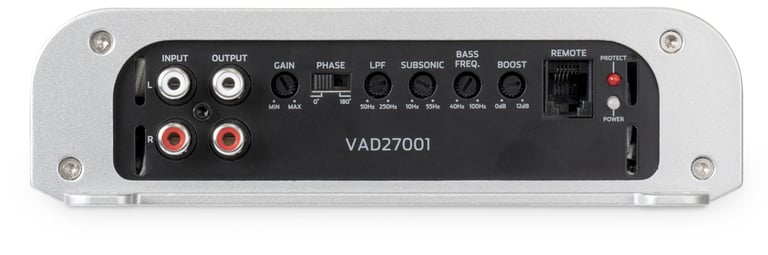

• Variable subsonic filter: 10 - 55 Hz, 12 dB/octave
• Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
• Bass Boost: 0 - +12dB boost @ 45Hz
• Input Sensitivity: 200mV-6V
• Phase: 0-180 Degree Switch
• Total Harmonic Distortion: <0.3%
• Recommended In-line Fuse: 200 - 250A
• Power Wire Gauge: 0 AWG
• Speaker Wire Gauge: 4 AWG

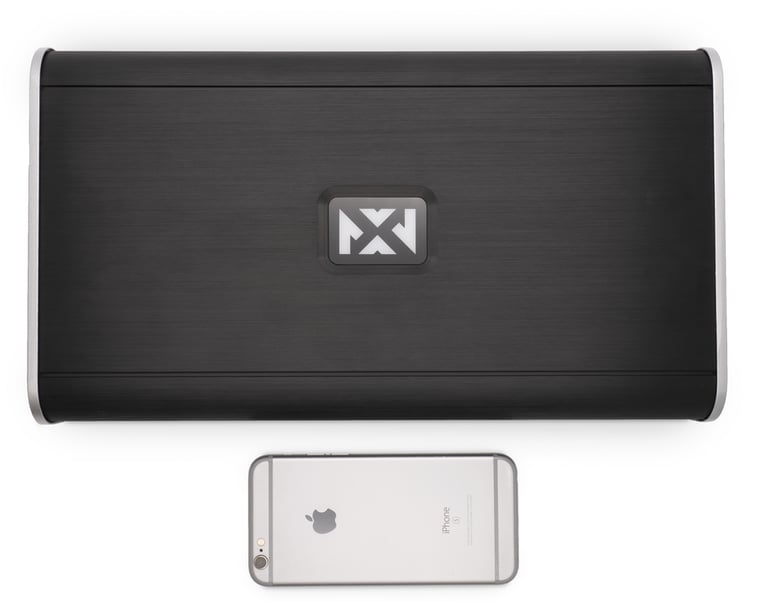

• Dimensions: 12.8"L x 7.2"W x 2.0"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

WARNING: UPGRADE VEHICLE CHARGING SYSTEM

Your warranty is void if you do not have a minimum amp charging system of 200A. Such a charging system can only be achieved with the installation of a High Output Alternator. Failure to upgrade your vehicle's charging system will damage your amplifier due to distortion, short-circuit, or other failure. This may also cause damages to your charging system and/or subwoofer(s).

Product Details:

• 1/0 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 3000 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant
• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

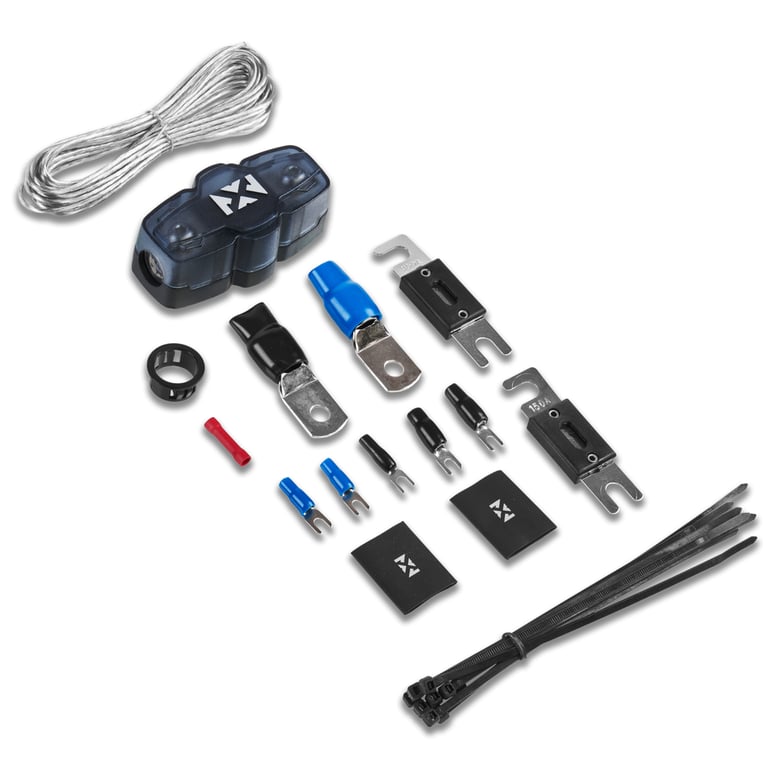

Kit includes:

1. 17 ft. Frosted Blue 1/0 gauge power wire with seamless crimp ring terminal
2. 3 ft. Frosted Black 1/0 gauge ground wire with seamless crimp ring terminal
3. 17 ft. Clear 18 gauge remote lead wire
4. 20 ft. Frosted Black/Blue 12 gauge speaker wire
5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 300 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 1/0 Gauge Nickel Plated ring terminals
9. Four 12 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Two Heat Shrink tubes with the NVX logo
12. Ten 6" Black zip ties
