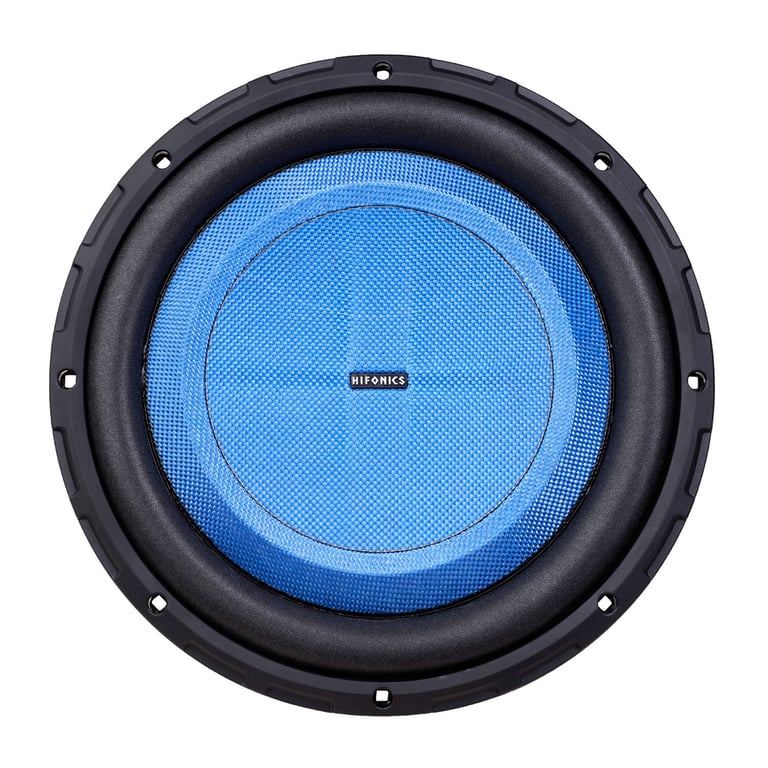

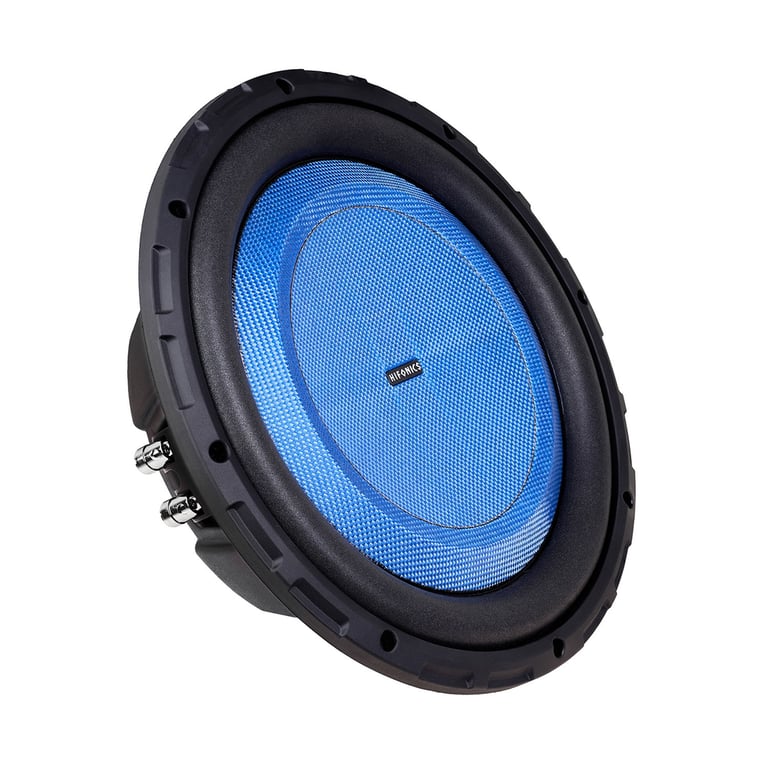

Hifonics Elite 12" (HEW12D4S)

600W Peak (300W RMS) 12" Hifonics Elite Series Dual 4-ohm Subwoofer

Hifonics
Shop all Hifonics
highlight-star-icon

• Peak Power: 600 watts
• RMS Power: 300 watts
• Impedance: Dual 4 ohm
• Woven Fiber Cone
• UV Treated Foam Surround
• Mount depth: 3.17"
• Sensitivity: 85 dB

Learn more about the hew12d4s
Universal fit Icon

Universal – fits most vehicles.

Similar items | Update vehicle | Vehicle store
List price $169.99
Thanks , You Pay:
-12%

$149.99

 with warranty
Starting at $14/mo or 4 payments of $38 Buy now, pay later and installment payment plans are offered by Afterpay and Affirm. Learn more

Heads up

Your vehicle can use this product in multiple locations. Only a quantity of one can be selected from the product page. You will have the option to adjust the quantity within your cart.

shipping truck icon Free shipping in USA. Provide zip for delivery date.
Dollar Icon
VIP Product Get $15.00 in rewards to spend later
Quantity
In Stock
Brand new

Buy it now

SMW12D4 main
NVX NVX SMW12D4 800W Peak (400W RMS) 12" S-Series Shallow-Mount Dual 4-ohm Car Subwoofer

(7)

$109.99 $131.99
Sponsored

Acima Logo

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Extend logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Hassle-free immediate replacement within minutes!
  • Easy online claims 24/7
  • Covers product breakdowns and failures
Swoosh Icon Icon of Swoosh

For over 25 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award winning icon
Award-Winning Service
Shipping icon
FREE Shipping Orders $49+
60 days return policy icon
60-Day Easy Returns
lowest price guarantee icon
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Loading...
iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

ZS653 main

Hifonics ZS653

600W Peak (100W RMS) 6.5" Zeus Series 3-way 4-ohm Coaxial Car Speakers

14

Current Promotions (1 offer)


Get a Free roll of Belva 16 Gauge Speaker Wire. Simply click the "Add Both to Cart" button and you will see your savings at checkout. This offer cannot be combined with any other coupons or offers.

Hifonics Elite 12" (HEW12D4S)

100% off


Priced separately $162 98

Promo Savings of $12 99

Total price:

$149 99

Description


Hifonics brand icon

Authorized dealer

Product Details:

  • 12" Dual 4 ohm Hifonics Elite Series Shallow Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts

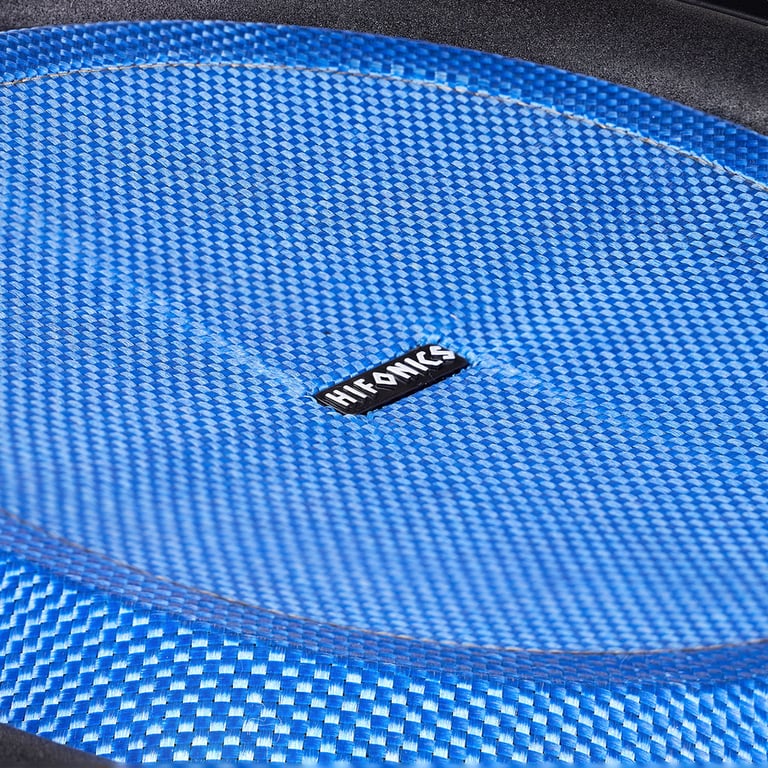

  • Woven Fiber Cone
  • UV Treated Foam Surround
  • 3" High Temperature Aluminum voice coil on aluminum former
  • Double Stacked magnet motor structure

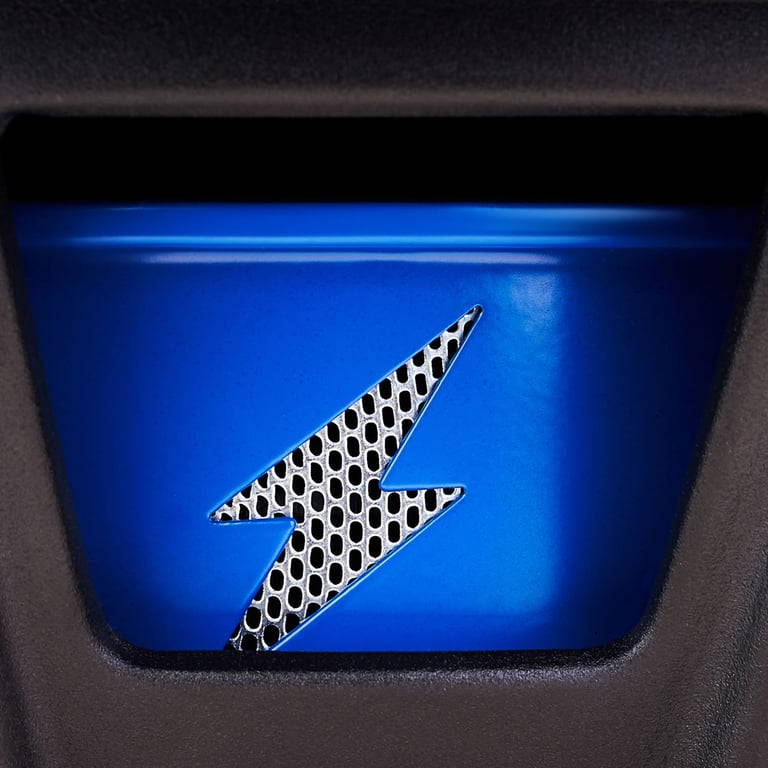

  • Vented high energy motor assembly with heavy duty magnets

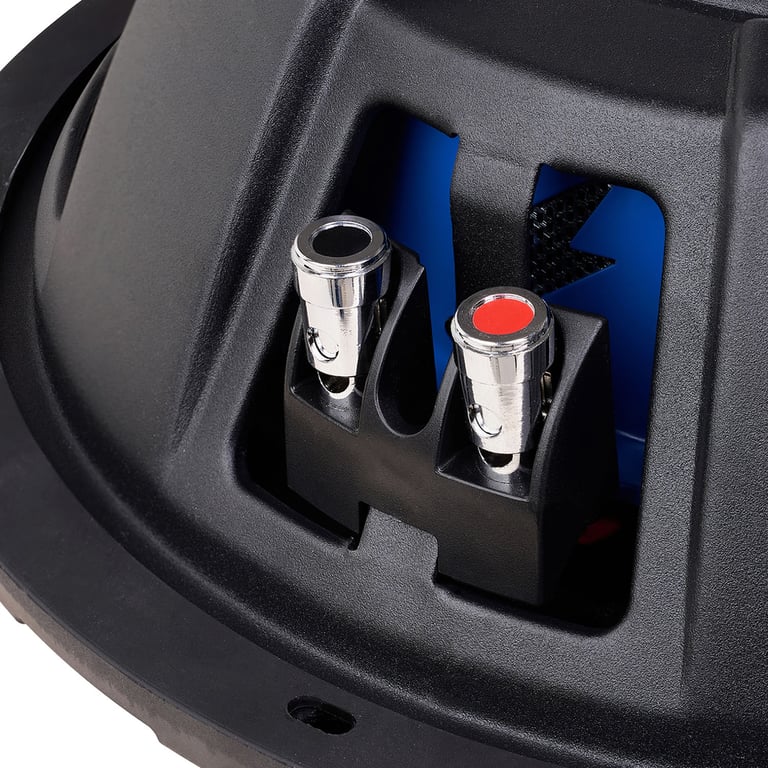

  • Push and insert style terminals for easy installation
  • Specialized dual poly cotton spider with double centering

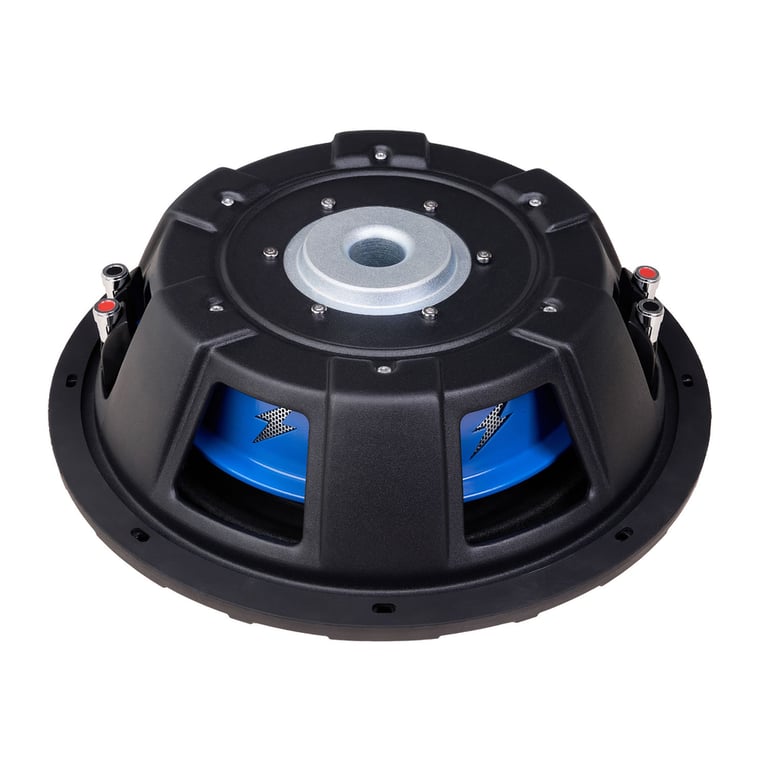

  • Heavy duty aluminum die-cast basket allows back venting
  • Exchanges heat with cool air for more power handling
  • Handles more power with minimum distortion
  • 9 mm Xmax
  • Resonance Frequency (Fs): 31 Hz
  • Sensitivity: 85 dB
  • Recommended sealed box volume: 0.75 cubic feet

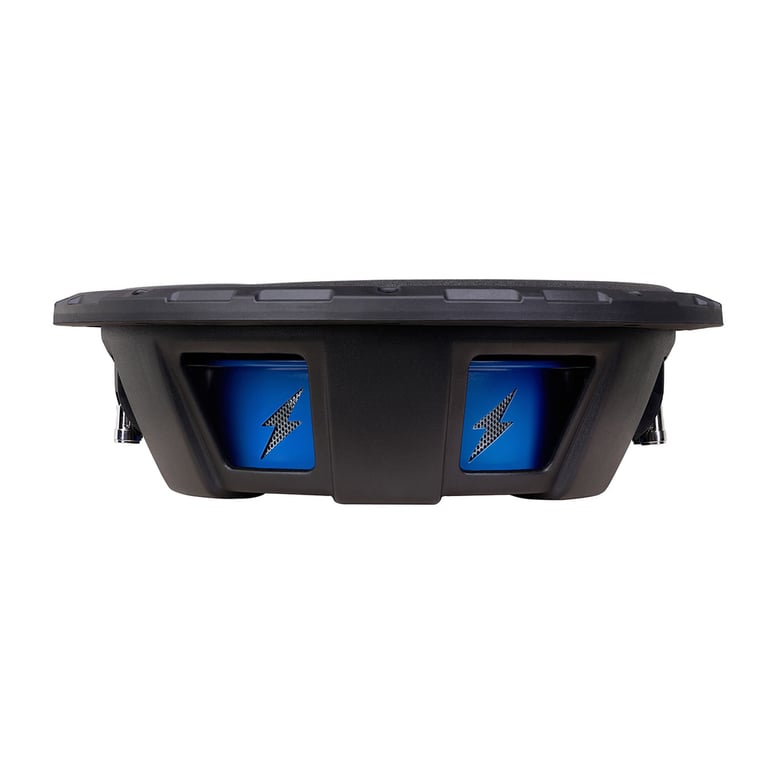

  • Top-mount depth: 3.17"
  • Cutout diameter: 3.17"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Hifonics Elite 12" (HEW12D4S) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Hifonics Elite 12" (HEW12D4S) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Hifonics Elite 12" (HEW12D4S) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Hifonics Elite 12" (HEW12D4S) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
Hifonics Elite Series
Subwoofer Size
12"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Material
Aluminum
Voice Coil Diameter
3"
Sensitivity
85 dB
Xmax (millimeters)
9 mm
Subwoofer Design
Round / Circle
Main Cone Color
Blue
Woofer Composition
Woven Fiber
Woofer Surround
UV Treated Foam
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Optimum Sealed Box Volume
0.75 cubic feet
Top-Mount Depth (Mounting Depth)
3.17"
Cutout Diameter
3.17"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
31 Hz
Equivalent Compliance (Vas)
82.11 liters
Total Speaker Q Value (Qts)
0.89
Electrical Q Value (Qes)
1.02
Electrical Resistance of Voice Coil (Re)
7.19 ohm
Mechanical Q Value (Qms)
7.32
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HEW12D4S

Weight:

8.25lbs

Internal SKU:

hew12d4s

Internal Product ID:

225071
