DS18 VOC8LD-PK

Product Features:

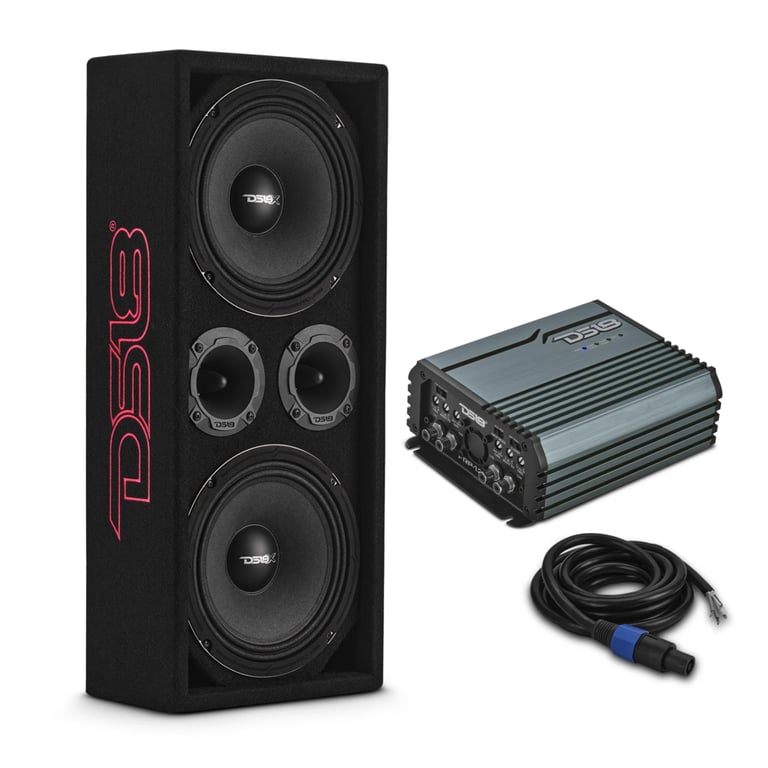

• Dual 8" Loaded Vented Speaker Enclosure and Amplifier Package
• Package includes enclosure, two 8" speakers, two 3.8" tweeters, and amplifier

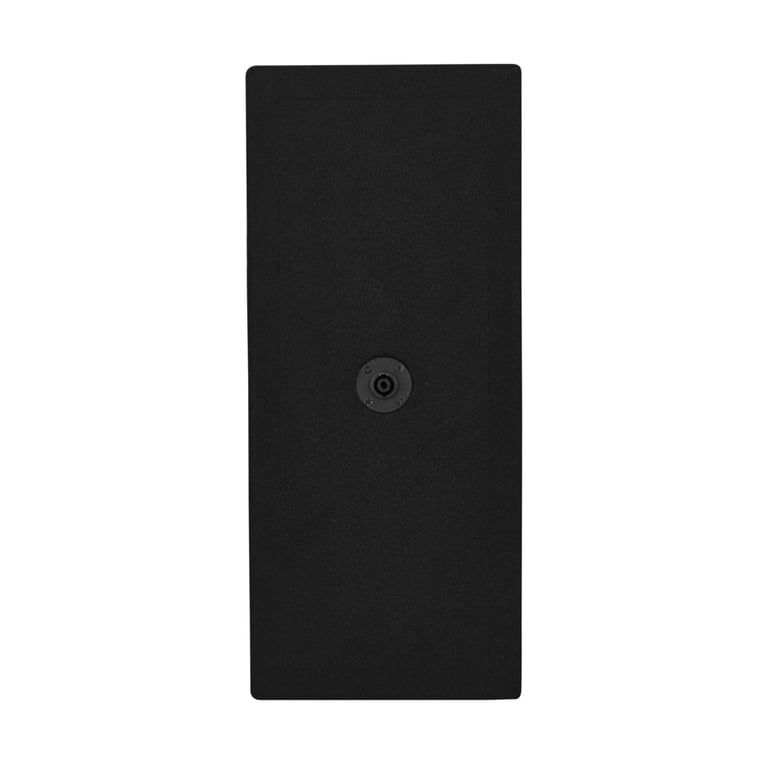

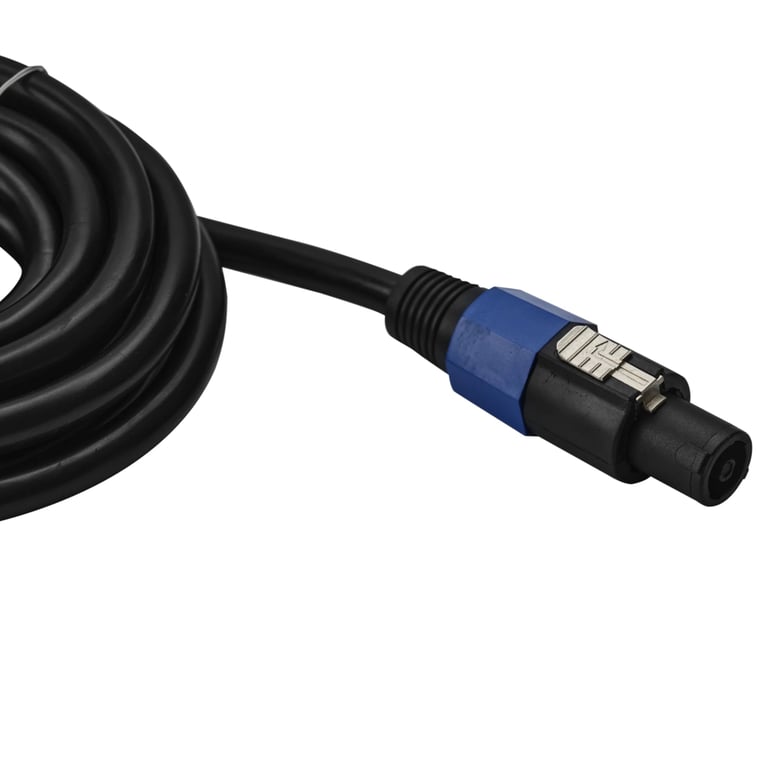

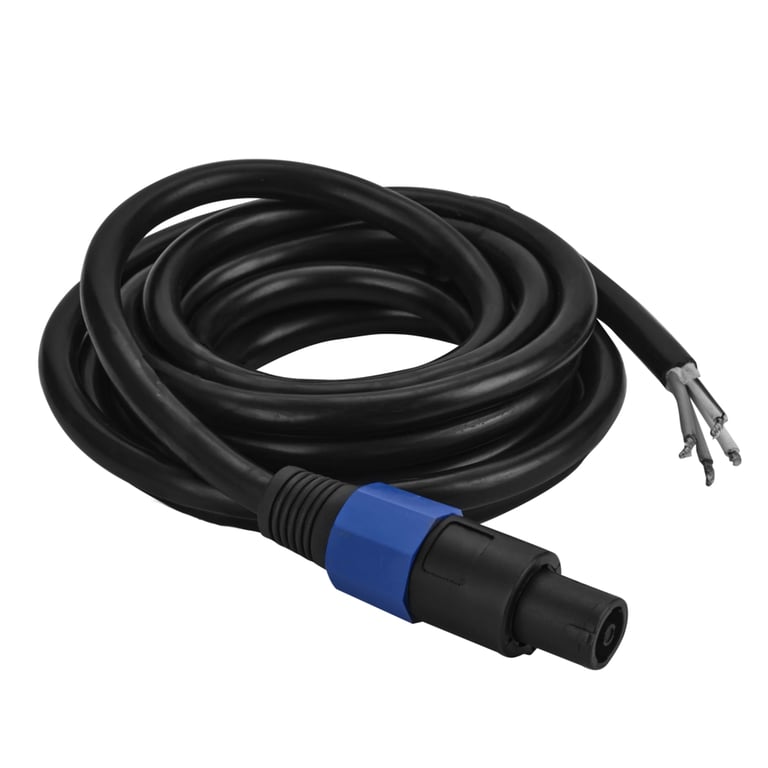

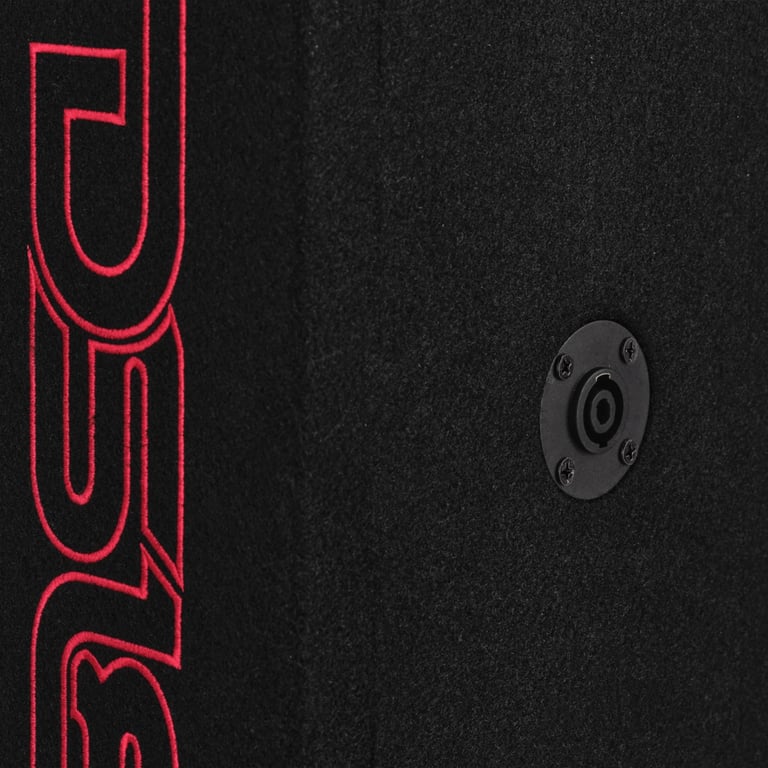

• Speakon terminal with included 12 feet OFC 4-conductor speakon cable
• Quick-connect setup for instant install and playability
• Enclosure Dimensions: 9.5" L x 5.25" W x 22.25" H
• Authorized Internet Dealer
• 2 Year Manufacturer's Warranty

DS18 PRO-X8M Speaker Specifications:

• 8" Mid-range Car Speaker
• Power Handling:
• Peak: 1100 watts per pair / 550 watts each
• RMS: 550 watts per pair / 275 watts each
• Non-Pressed Paper cone material
• Cloth speaker surround
• 1.5" CCAW voice coil on Kapton former
• 30 oz. Ferrite magnet motor structure
• Glossy red steel basket material
• Impedance: 8 ohm
• Frequency Response: 80 - 13000 Hz
• Sensitivity: 97 dB
• Recommended Hi-Pass Crossover: 120Hz
• MFR #: PRO-X8M

DS18 PRO-TWX2 Tweeter Specifications:

• 3.78" Pro-Audio Super Bullet Tweeters
• Power Handling:
• Peak: 480 watts per pair / 240 watts each
• RMS: 240 watts per pair / 120 watts each
• 3.8" Aluminum diaphragm material
• Aluminum bullet material
• Ferrite magnet motor structure
• Throat Size: 1"
• Impedance: 4 ohm
• Sensitivity: 103.5 dB
• Frequency Response: 3500 - 20000 Hz
• Recommended Hi-Pass Crossover: 3500 Hz
• MFR #: PRO-TWX2

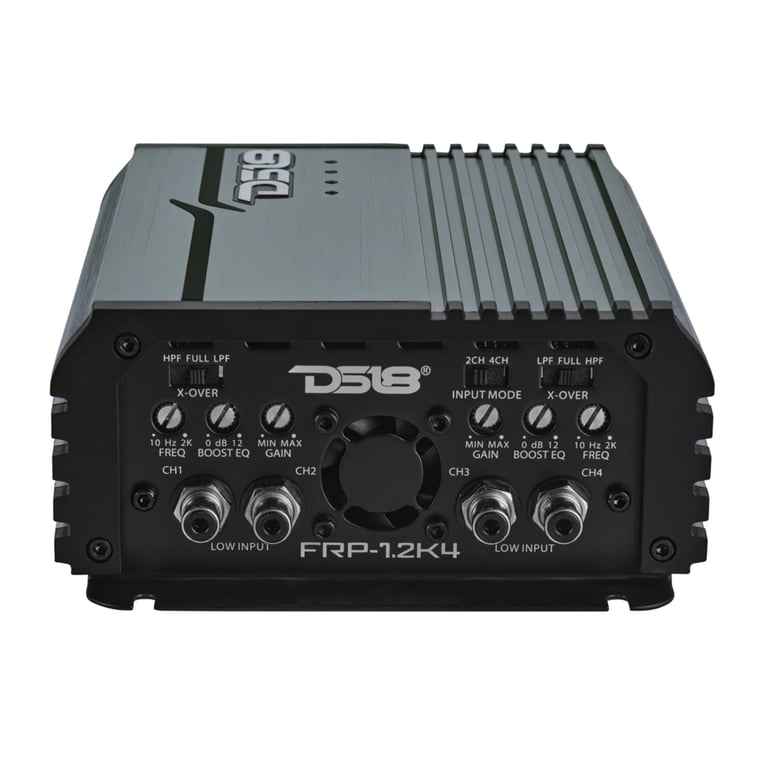

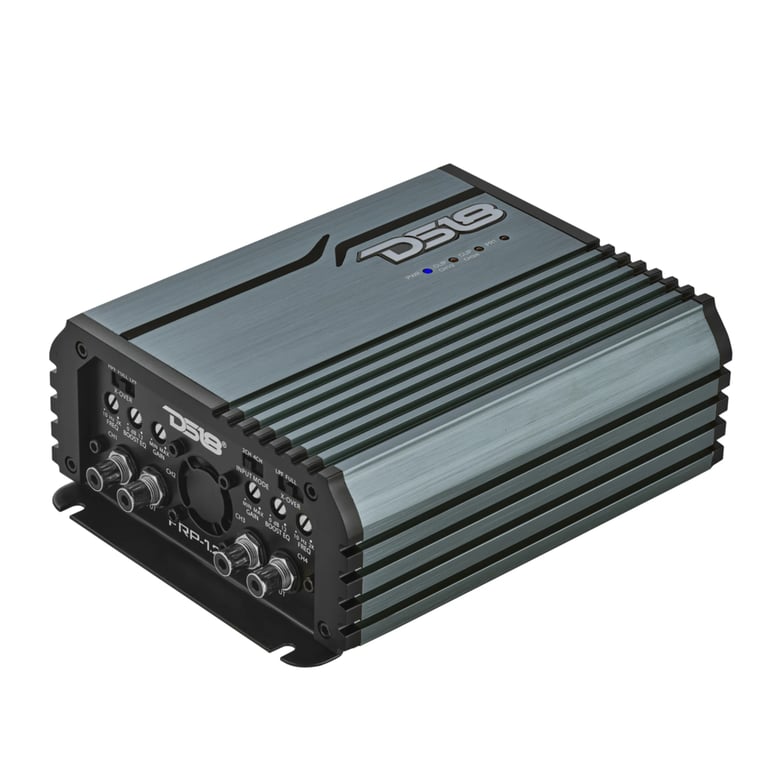

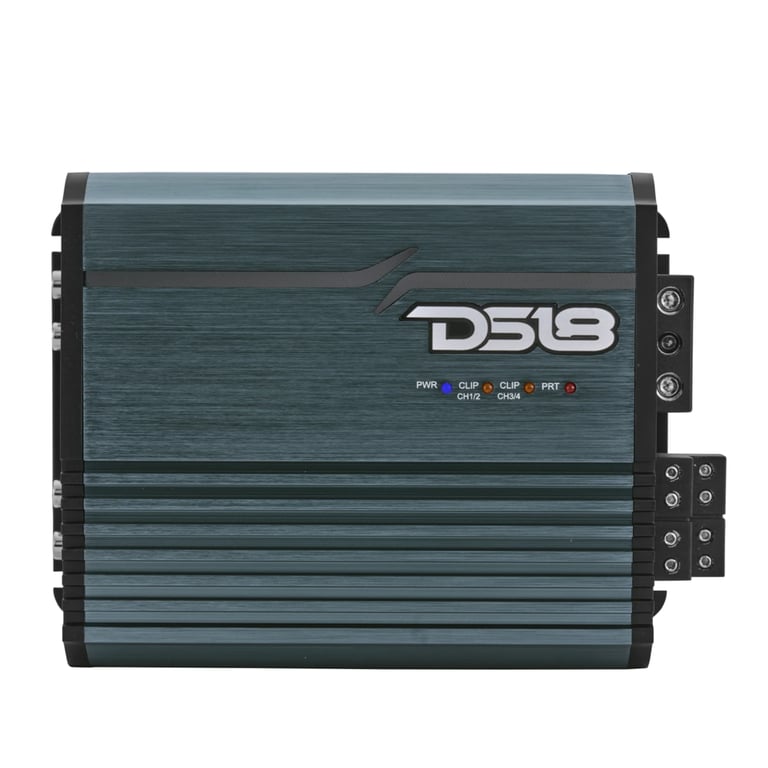

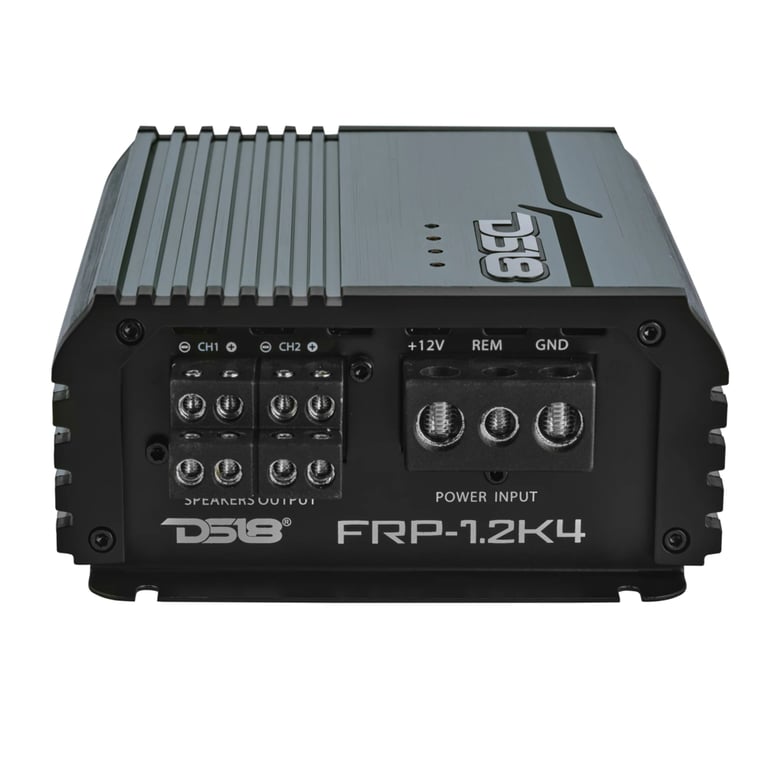

DS18 FRP-1.2K4/TI Amplifier Specifications:

• FRP Series Class D 1 ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohm: 120 watts x 4 channel
• 2 ohm: 200 watts x 4 channel
• 1 ohm: 300 watts x 4 channel
• Bridged: 350 watts x 2 channel @ 4 ohm
• Bridged: 500 watts x 2 channel @ 2 ohm
• Power, protect, clipping LED status indicator
• Includes built-in smart cooling fan
• Thermal, overload, DC output, short circuit, voltage, clipping protection

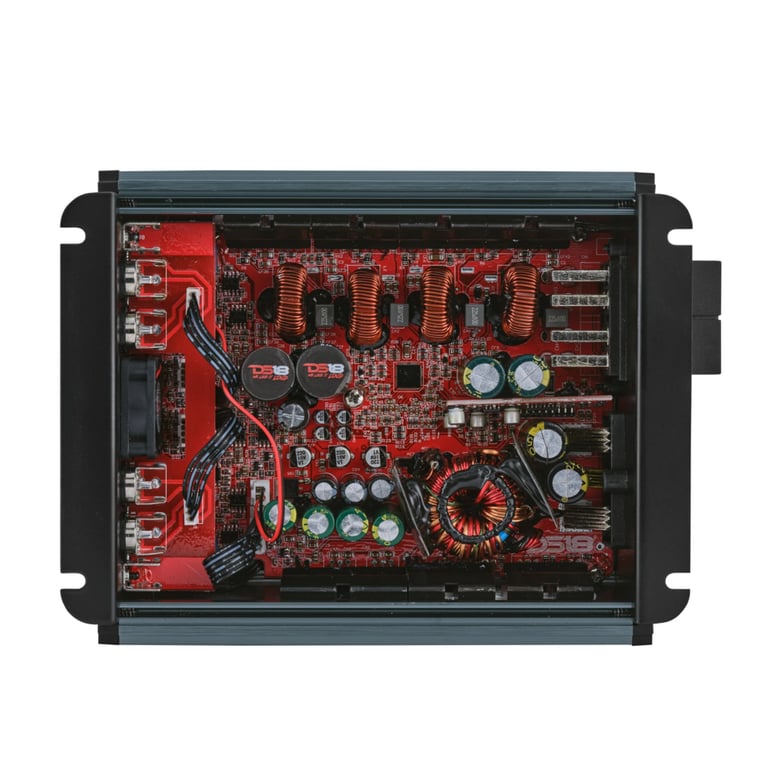

• Stable and reliable 4-layer traces PCB design
• Surface mount component technology
• Passed quality control verification via audio precision instruments
• Metal knobs with click steps
• Frequency Response: 10 - 20000 Hz
• Signal to Noise Ratio: 90 dB
• Low-Pass Crossover: 10 - 2000 Hz
• High-Pass Crossover: 10 - 2000 Hz
• Bass Boost: 0 - 12 dB
• Low Level Input Sensitivity: 0.4 - 6 volts
• Fuse Rating: 140A
• MFR #: FRP-1.2K4/TI

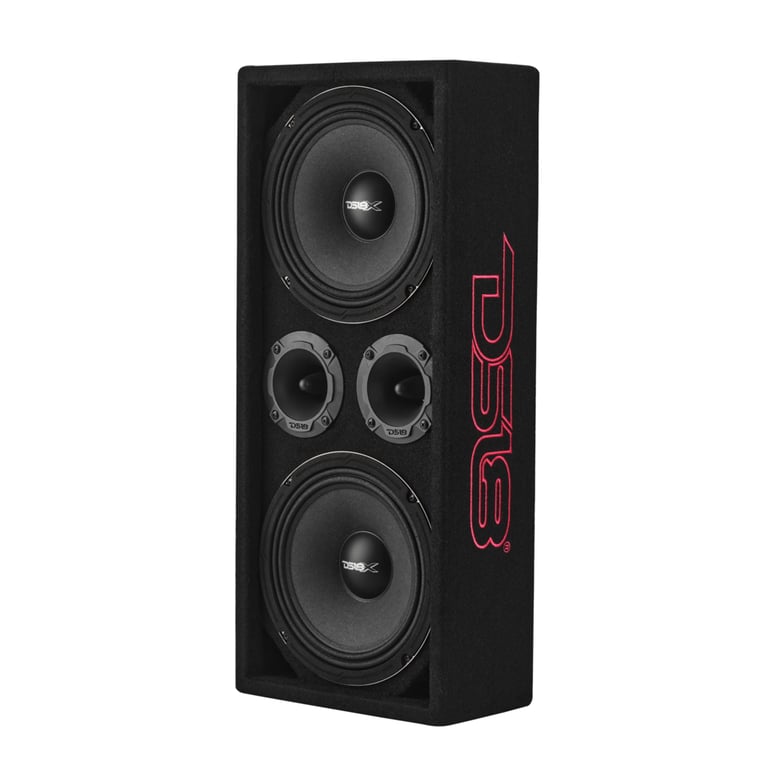

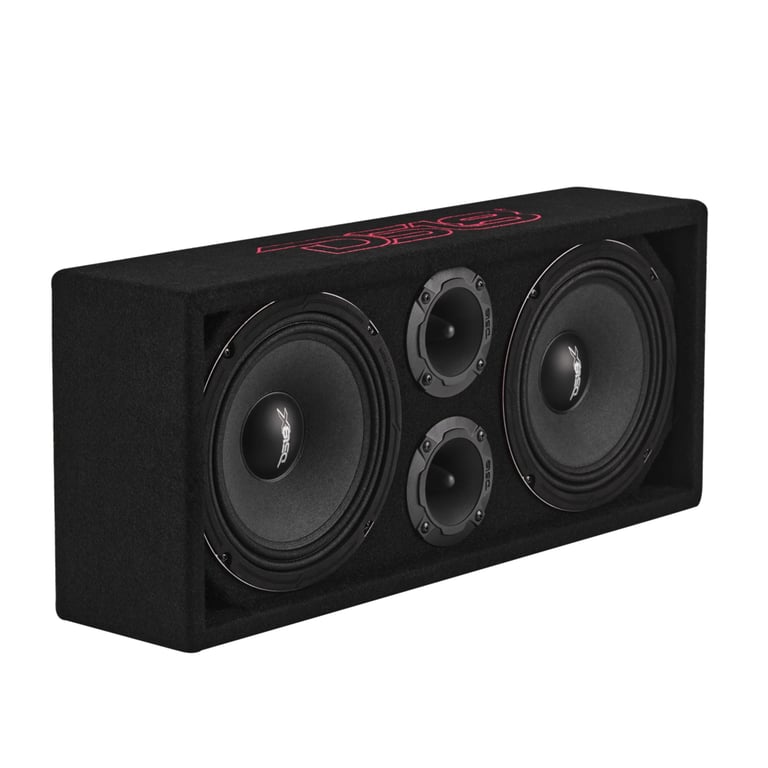

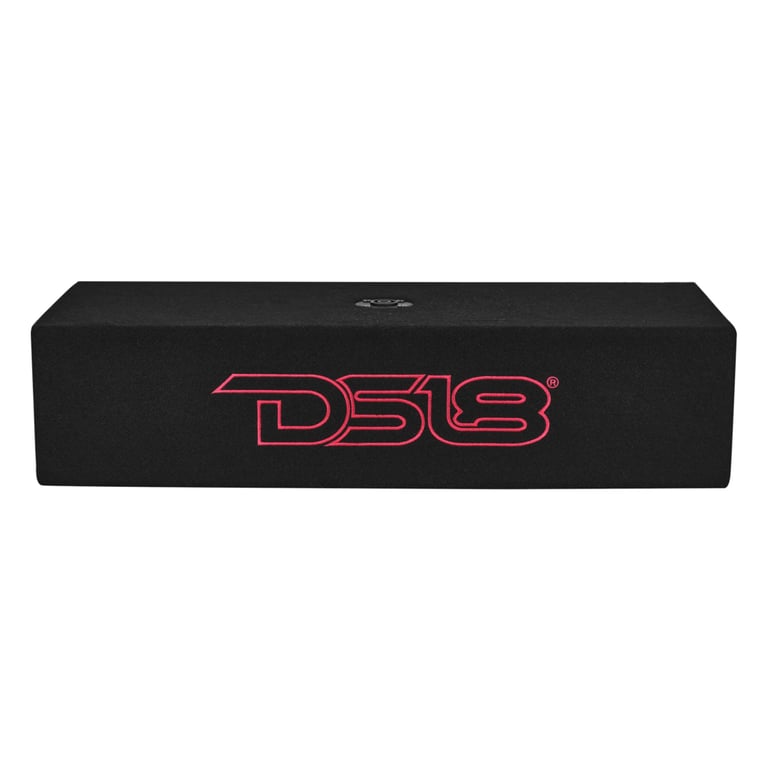

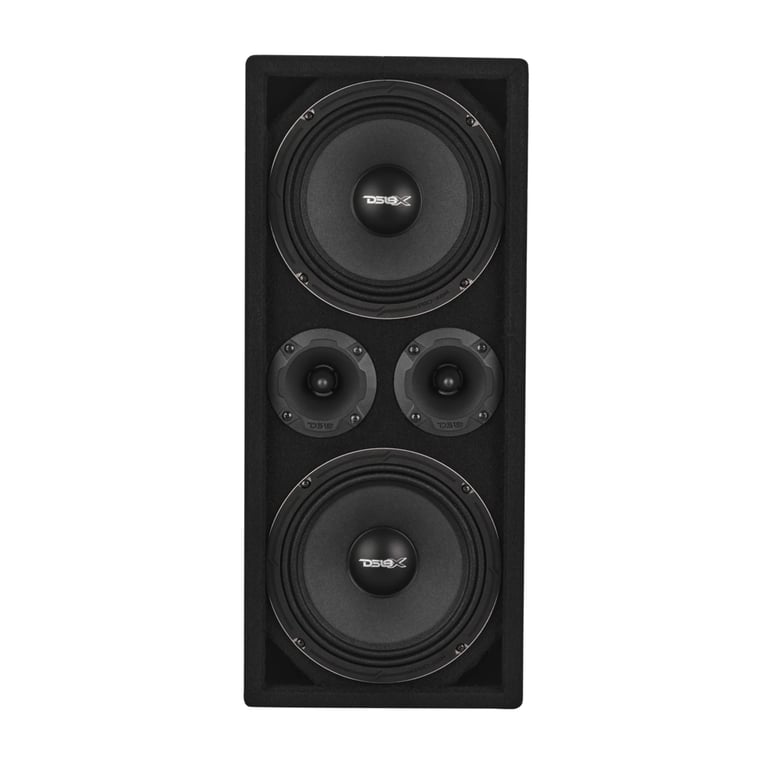

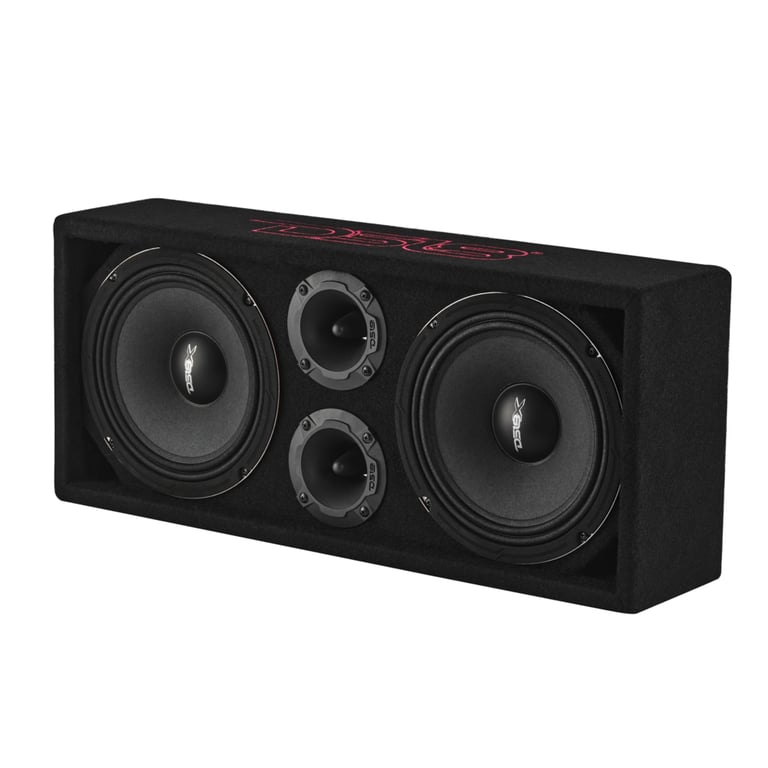

DS18 VOC8PRO Enclosure Specifications:

• Dual 8" speaker with dual 3.78" tweeter vented enclosure
• 1/2" Medium Density Fiberboard (MDF) enclosure construction
• Total Internal Volume: 0.41 cubic feet
• Box Finish: Black carpet finish
• MFR #: VOC8PRO
