Kenwood DDX616 (DDX-616)

6.1" Double DIN Touchscreen TFT-LCD Monitor with Built-in Bluetooth, DVD/CD/MP3/USB/iPod Player

Kenwood
Shop all Kenwood
Product videos
highlight-star-icon

GUARANTEED LOWEST PRICE. CONTACT US 24/7 • In-dash DVD, AM/FM, CD, MP3, WMA, AAC Receiver • 6.1" Full Color Display • Built-in Bluetooth • 50W x 4 Chan. Max • 22W x 4 Chan. RMS • Variable Color Illumination • Front A/V Input • Dolby Digital • DTS 2.0 • RDS and SNPS

Learn more about the ddx616

We apologize

This item has been discontinued

Product Highlights


GUARANTEED LOWEST PRICE. CONTACT US 24/7 • In-dash DVD, AM/FM, CD, MP3, WMA, AAC Receiver • 6.1" Full Color Display • Built-in Bluetooth • 50W x 4 Chan. Max • 22W x 4 Chan. RMS • Variable Color Illumination • Front A/V Input • Dolby Digital • DTS 2.0 • RDS and SNPS

Description


Kenwood brand icon

Authorized dealer

Kenwood DDX616 Product Overview

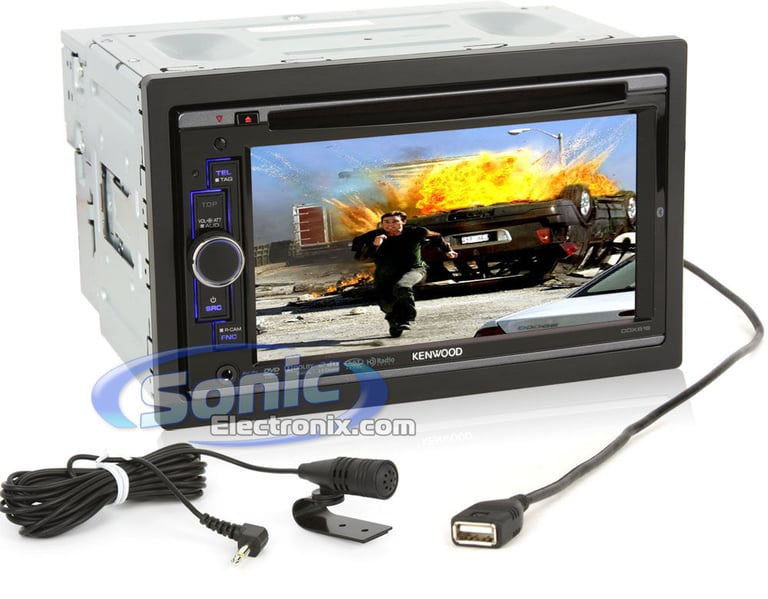

The Kenwood DDX616 is a Double DIN DVD/CD Player with a 6.1” Touchscreen TFT-LCD Monitor. DVDs and CDs aren’t the only playback options for this Kenwood receiver, it is also compatible with AM/FM, which has a built-in CR-2 Tuner with 18 FM presets and 6 AM presets, MP3, WMA, AAC, and iPod. Equipped with 800 x 480 high resolution, a widescreen touch sensitive panel display, variable color button illumination, and interactive video graphics, this receiver provides easy navigation through its menu while producing enhanced video quality. Some cool audio features for Kenwood’s DDX-616 are the built-in RDS (Radio Data System) for improved radio features, SNPS (Station Name Preset) which allows you to assign programmable names to each radio preset, EQ3 3-band parametric equalizer with 8 preset tone curves, and the dual zone capability which allows the playing of separate sources to the front of the vehicle and the rear of the vehicle.

This Kenwood CD/DVD receiver also has plenty of expandability options starting with the built-in Bluetooth. The Bluetooth includes cables and a microphone, providing complete hands-free operation when receiving or making a call from inside your vehicle. With the built-in USB port, you will have full control with the latest iPods and iPhones, giving you even more playback options. The front panel A/V input allows portable media devices such as DVD player, gaming systems, and MP3 player to be connected. Sirius and XM Satellite Radio, HD Radio, and compatibility with steering wheel controls are some other expandability options that make the Kenwood DDX616 a must have.









General Features:

  • In-dash DVD, AM/FM, CD, MP3, WMA, AAC Receiver

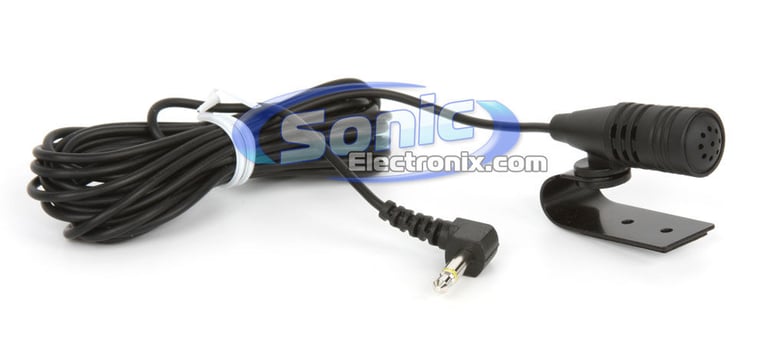

  • Built-in Bluetooth for hands-free talking with included cables and microphone

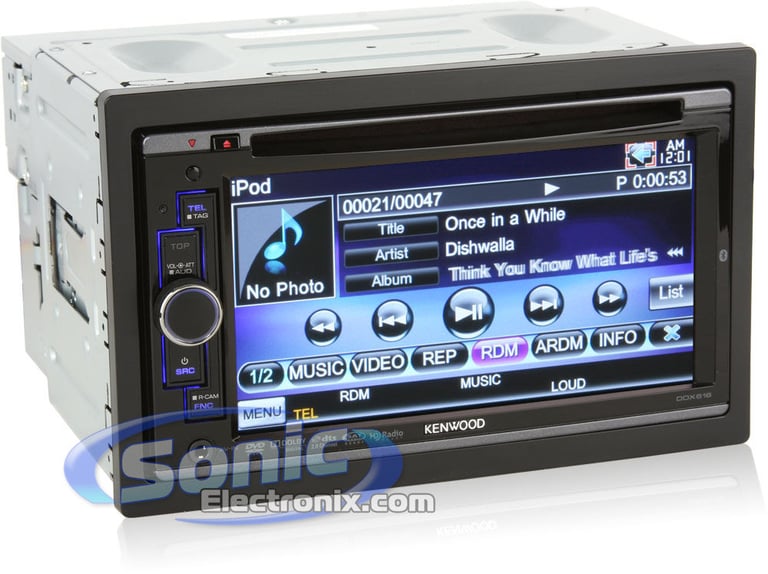

  • Offers complete control with the latest iPods and iPhones
  • Fixed faceplate with buttons on the left
  • Large 6.1" full color display
  • Widescreen touch-sensitive panel display
  • High resolution display has a 800 x 480 resolution
  • Optional remote control: Kenwood KNA-RCDV331
  • Variable color illumination button lighting to match OEM interior lights

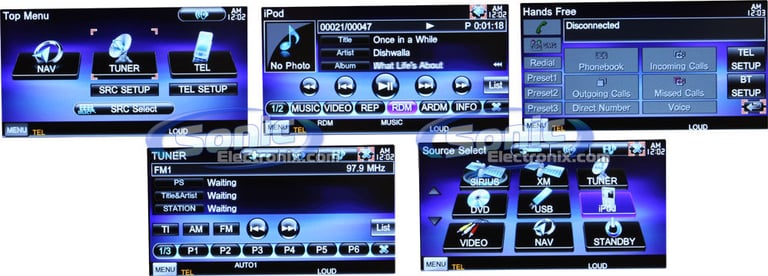

  • Easy to navigate menu with interactive video graphics
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 22 watts x 4 channels
  • CD Text Display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • 1-year Sonic Electronix warranty

Playback and Audio Features:

  • Playback of DVD, DVD-R, DVD-RW, DVD+R, DVD+RW, DVD DL, DTS-CD, VCD, CD, CD-R, CD-RW, MP3, WMA, and AAC
  • CR-2 tuner with 18FM/6AM presets
  • SNPS (Station Name Preset) allows for the assigning of programmable names to each radio station preset
  • Built-in RDS (Radio Data System) for enhanced radio features
  • System Q-EX/System E's+ sound shaping for enhanced audio playback
  • EQ3 (3-band parametric equalizer with 8 preset tone curves)
  • Built-in Dolby Digital and DTS 2.0 audio decoding
  • Loudness feature
  • Individual source adjustment for volume and equalization
  • Dual zone capability allows the playing of separate sources to the front of the car and the rear of the car
  • 24-bit Digital-to-Analog converter for superior audio quality
  • Four selectable viewing modes for the perfect playback of video files

Expandability Options:


Best selling similar products

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(37)

$1883.96

List price $2282.96

AVH-2550NEX small

Pioneer AVH-2550NEX

• Double DIN Bluetooth DVD Receiver
• 6.8" Resistive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic Equalizer with 7 Preset EQ Curves
• SiriusXM Satellite Radio Ready
• iDatalink Maestro compatible

$650.00

List price $750.00

i509-WRA-JL small

Alpine i509-WRA-JL

• Custom Fit Bluetooth Digital Multimedia Receiver
• 9" WVGA Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready
• iDataLink Maestro Compatible
• Built-in HD Radio Tuner
• Anti-glare double DIN touchscreen display
• Hi-Res audio playback

(1)

$2899.95

List price $3480.00

i407-WRA-JK small

Alpine i407-WRA-JK

• Double DIN Bluetooth Digital Multimedia Receiver
• 7" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 5-Band Graphic Equalizer
• SiriusXM Satellite Radio Ready
• iDataLink Maestro Compatible
• Built-in HD Radio Tuner
• Anti-glare double DIN touchscreen display
• Customizable user interface and wallpapers

$1199.95

List price $1440.00

I407-WRA-JL small

Alpine I407-WRA-JL

• Custom Fit Bluetooth Digital Multimedia Receiver
• Compatible with select 2018-2023 Wrangler (JL) and Gladiator
• 6.95" TFT Active Matrix Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 5-Band Graphic Equalizer
• SiriusXM Satellite Radio Ready
• iDataLink Maestro Ready
• High-resolution audio playback

$1499.95

List price $1800.00

i509-WRA-JK small

Alpine i509-WRA-JK

• Custom Fit Bluetooth Digital Multimedia Receiver
• 9" Touchscreen WVGA Display
• Designed for select 2011-2018 vehicles from Jeep
• Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready
• Splash-proof and dust-proof touchscreen and bezel (IP53-rated)

$2599.95

List price $3120.00

DDX5707S small

Kenwood DDX5707S

• Double DIN Bluetooth CD/DVD Multimedia Receiver with USB and AUX
• 6.8" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 2 volts preamp outputs
• 13-Band Graphic Equalizer with Digital Time Alignment
• SiriusXM Satellite Radio Ready

(5)

$399.00

List price $580.00

AVH-W4500NEX small

Pioneer AVH-W4500NEX

• Double DIN Bluetooth CD/DVD Receiver
• 7" Touchscreen Display Display
• Wireless Apple CarPlay and Android Auto Compatible
• 5 display colors, 112 key color options
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic Equalizer
• SiriusXM Satellite Radio Ready

(5)

$999.99

List price $1200.00

108TO4_PKG1 small

Pioneer DMH-C5500NEX Package for 2015-2017 Toyota Camry

• Double DIN Bluetooth Digital Multimedia Receiver
• 8" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Equalizer
• SiriusXM Satellite Radio Ready
• Built-in HD Radio

(134)

$829.96

List price $1028.97

DDX9907XR small

Kenwood eXcelon DDX9907XR

• Double DIN Bluetooth CD/DVD Multimedia Receiver with USB and AUX
• 6.8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic Equalizer with Digital Time Alignment
• SiriusXM Satellite Radio Ready
• iDatalink Maestro compatible

(2)

$1199.00

List price $1400.00

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Double DIN
Anti-Theft Security
Detachable Controls
Wireless Remote
Optional (Accessory and sold separately)
Peak Power Output
50 watts x 4 channel
RMS Power Output
22 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
2 volts
Built-In Equalizer
3-Band parametric equalizer with 8 preset tone curves
Display Type
TFT-LCD Display
Touchscreen
Yes
Display Adjustment
Black Level
Brightness
Color
Contrast
Tint
Expandability Features
Inputs
Backup Camera
Outputs
Audio/Video (RCA)
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

DDX616

Weight:

6.00lbs

Internal SKU:

ddx616

Internal Product ID:

22738
