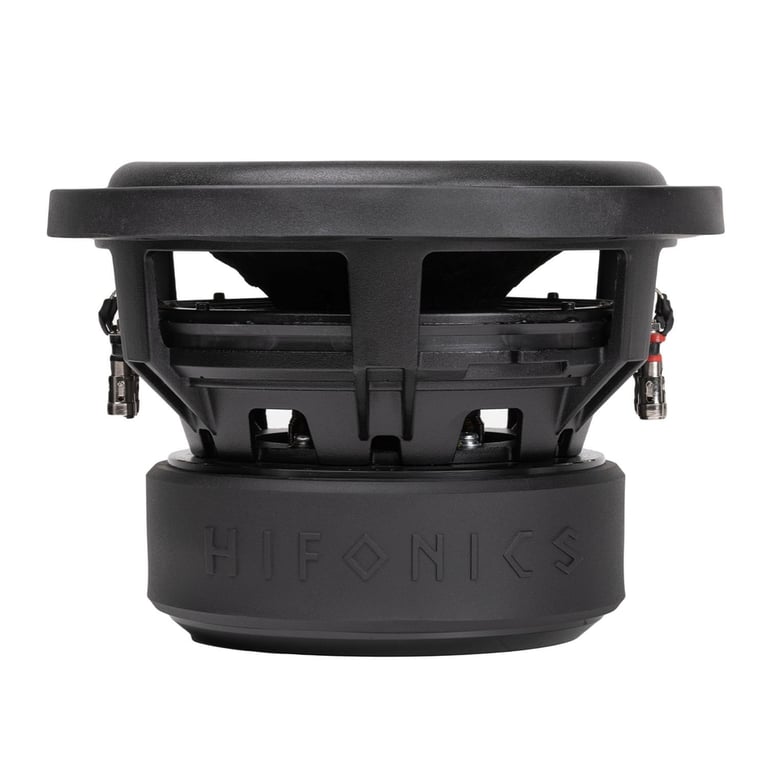

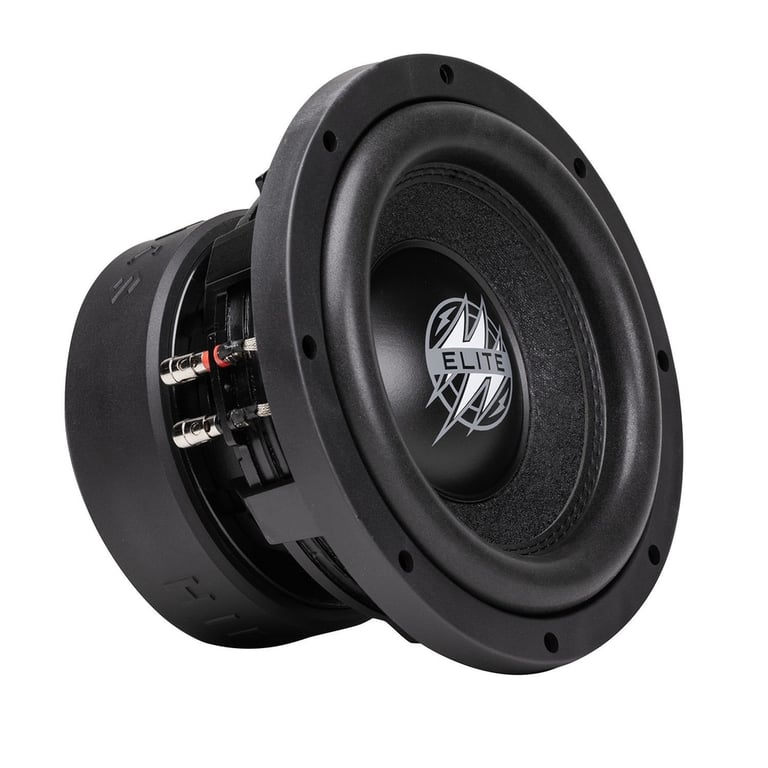

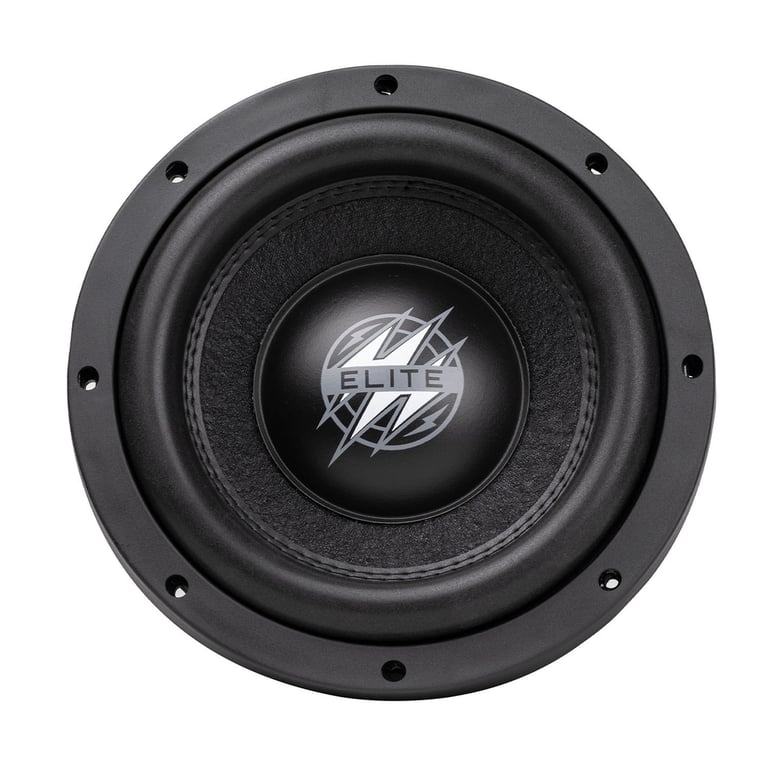

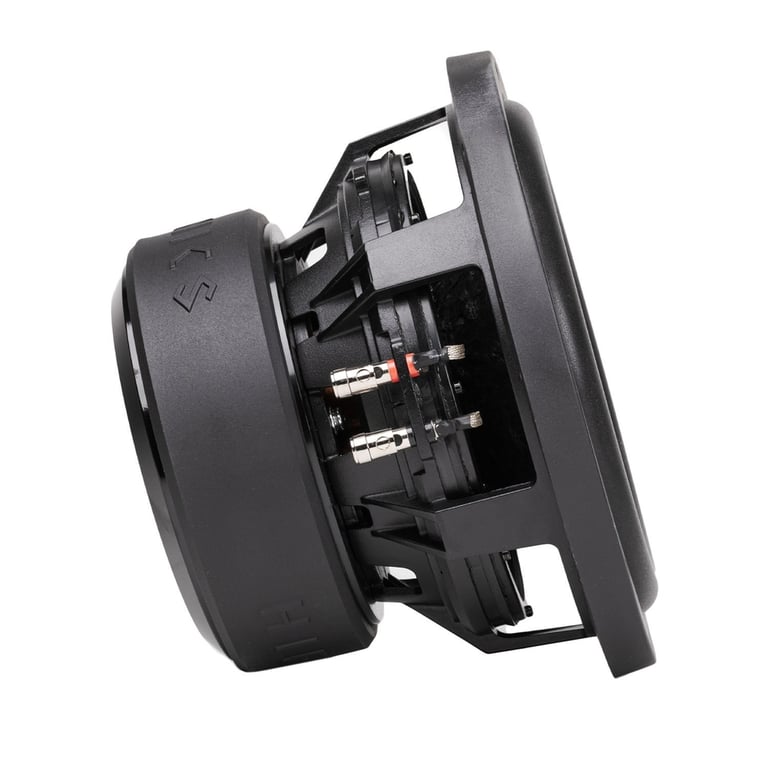

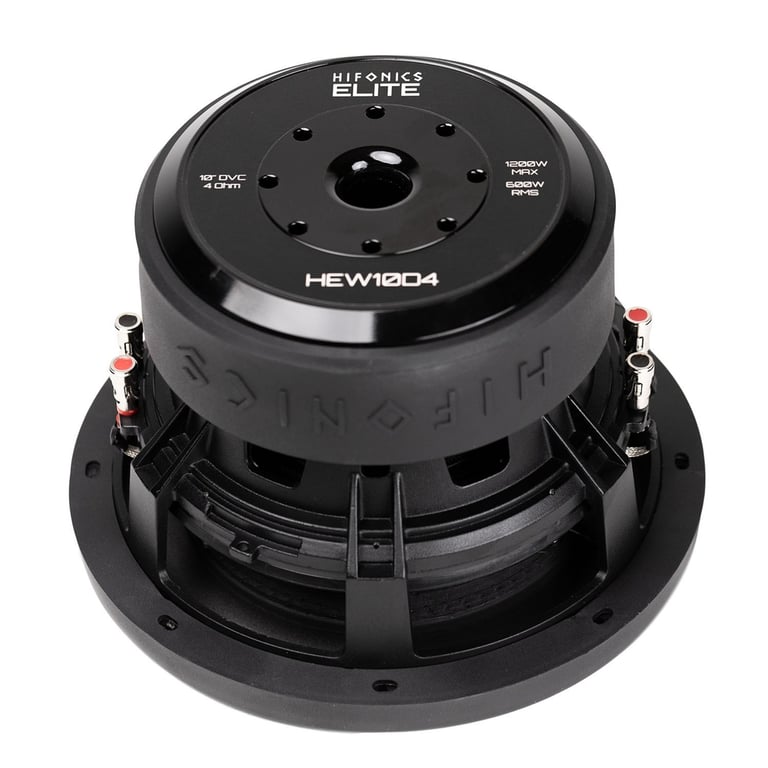

Hifonics Elite 10" (HEW10D4)

1200W Peak (600W RMS) 10" Hifonics Elite Series Dual 4-ohm Subwoofer

Hifonics
Shop all Hifonics
highlight-star-icon

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Double Stitched Foam Surround
• Mount depth: 6.53"
• Sensitivity: 83.4 dB

Learn more about the hew10d4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

55
RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Description


Hifonics brand icon

Authorized dealer


Hifonics HEW10D4

The Hifonics Elite Series 10" Dual 4-ohm subwoofer delivers powerful bass in a compact size, handling up to 1200 watts peak and 600 watts RMS for rich, distortion-free audio. Built with a durable polypropylene cone, double-stitched foam surround, and dual poly-cotton spider, it ensures long-lasting performance and tight control. Its high-temperature 3" aluminum voice coil and double-stacked ferrite magnet provide deep low frequencies, while the heavy-gauge die-cast basket offers strength and stability. Easy push-insert terminals and a small ported box requirement make installation simple for any audio setup.


Product Details:

  • 10" Dual 4 ohm Hifonics Elite Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Polypropylene Cone
  • Double Stitched Foam Surround
  • 3" High Temperature Copper voice coil on aluminum former
  • Vented high energy motor assembly with heavy duty magnets
  • Push and insert style terminals for easy installation
  • Specialized dual poly cotton spider with double centering
  • Heavy duty aluminum die-cast basket allows back venting
  • Exchanges heat with cool air for more power handling
  • Handles more power with minimum distortion
  • 18 mm Xmax
  • Double Stacked Ferrite magnet motor structure
  • Resonance Frequency (Fs): 32 Hz
  • Sensitivity: 83.4 dB
  • Recommended ported box volume (Sound Quality): 2 cubic feet
  • Recommended ported box volume (SPL): 1.25 cubic feet
  • Top-mount depth: 6.53"
  • Cutout diameter: 9.375"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Hifonics Elite 10" (HEW10D4) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Hifonics Elite 10" (HEW10D4) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Hifonics Elite 10" (HEW10D4) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Hifonics Elite 10" (HEW10D4) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(15)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
Hifonics Elite Series
Subwoofer Size
10"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Material
Copper
Voice Coil Diameter
3"
Sensitivity
83.4 dB
Xmax (millimeters)
18 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Double Stitched Foam
Magnet Structure
Double Stacked
Magnet Type
Ferrite
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Optimum Ported Box Volume
2 cubic feet
Top-Mount Depth (Mounting Depth)
6.53"
Cutout Diameter
9.375"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
32 Hz
Equivalent Compliance (Vas)
18.8 liters
Total Speaker Q Value (Qts)
0.43
Electrical Q Value (Qes)
0.46
Electrical Resistance of Voice Coil (Re)
4 ohm
Mechanical Q Value (Qms)
5.2
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HEW10D4

Weight:

25.10lbs

Internal SKU:

hew10d4

Internal Product ID:

228357
