MB Quart MBTAC-STG6A-16-19

Product Details:

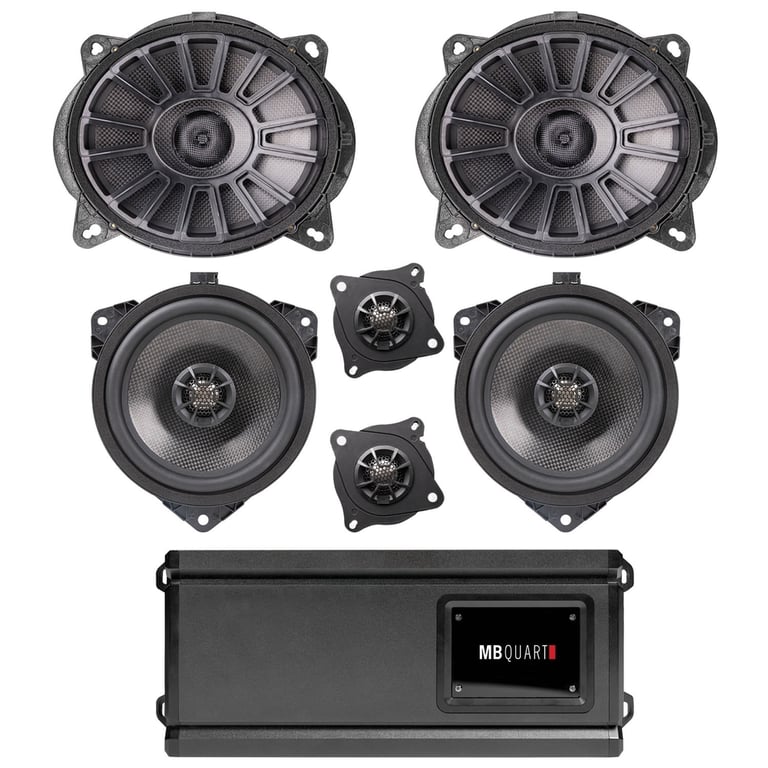

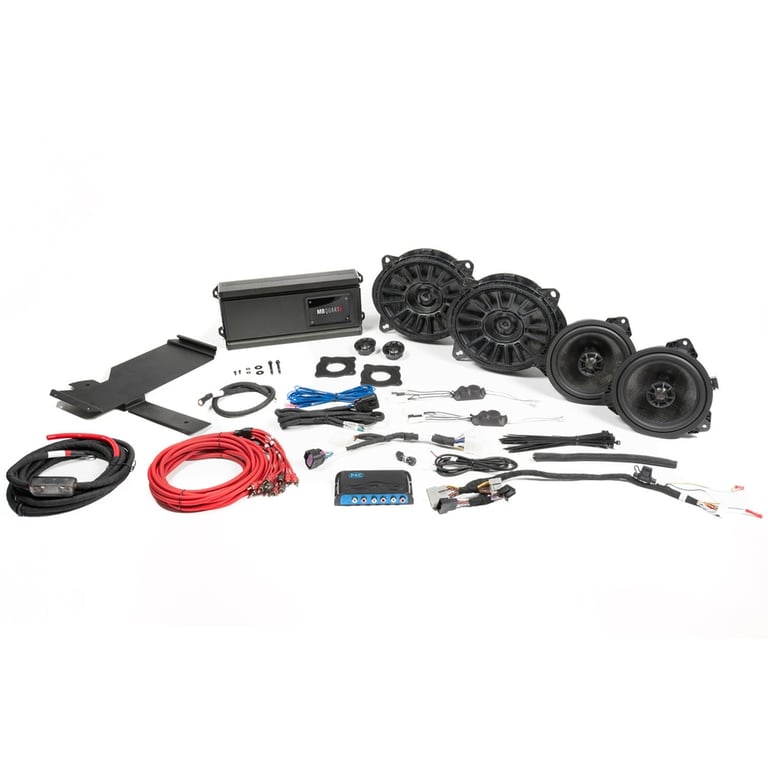

• System includes a pair of 7" component speakers, one pair of 8x10" coaxial speakers, and one 5-channel amplifier
• Designed and engineered to match and compliment the factory fit and finish of your vehicle

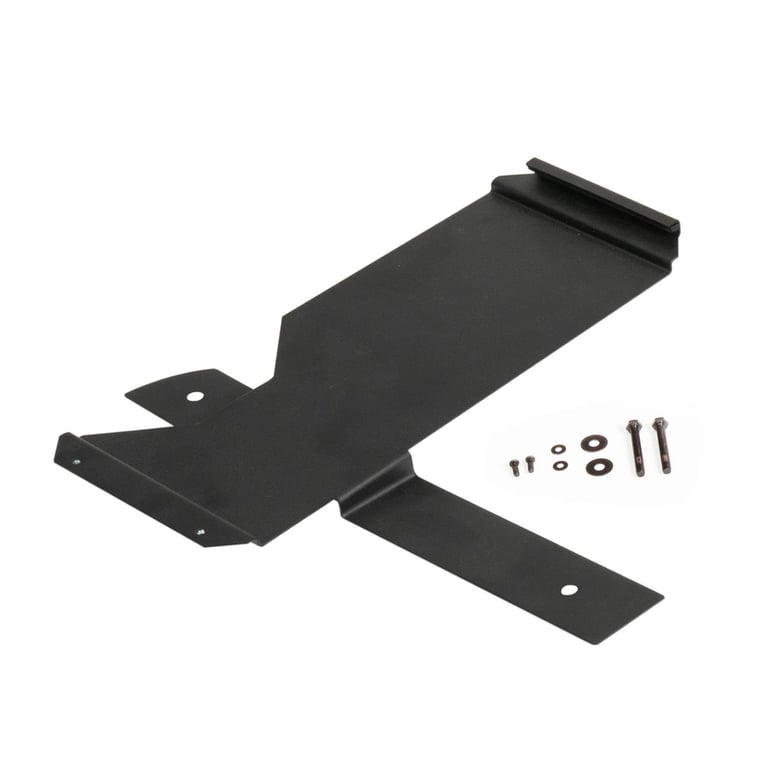

• Powder coated behind rear seat amplifier mounting plate included

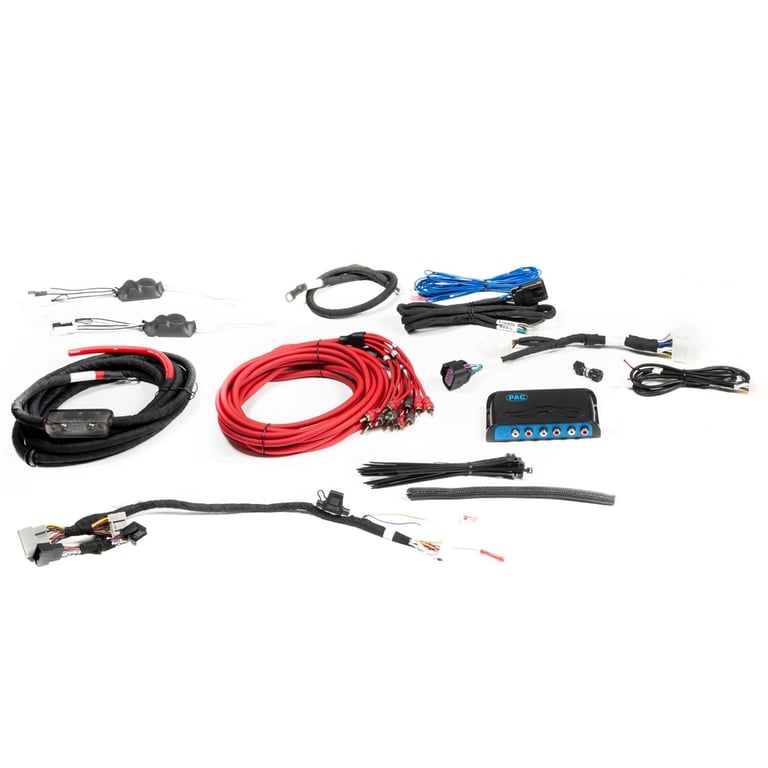

• PAC module included for integration into the OEM JBL source unit
• Plug and play design for easy installation
• Total Kit Power: 700 watts
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• Compatible with select 2016-2019 Tacoma

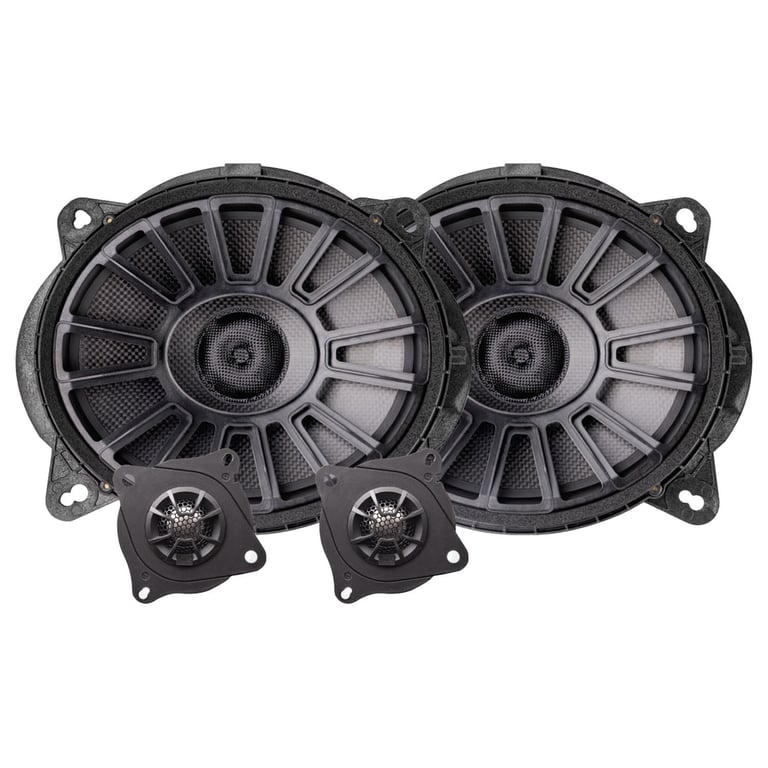

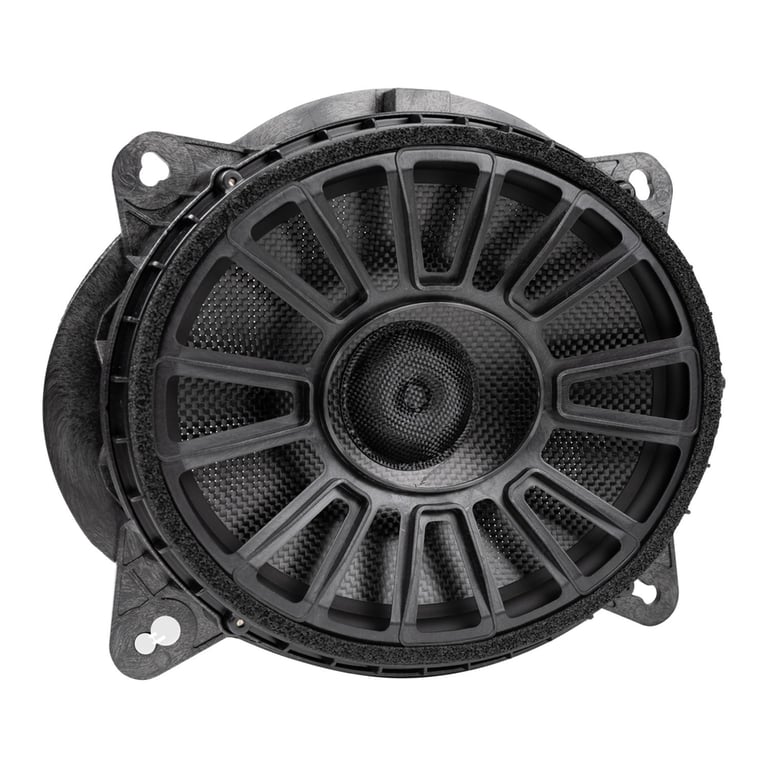

MB Quart TS1-2810 8X10" 2 Way Component Front Speakers

• Power Handling:
• Peak: 160 watts per set / 80 watts each side
• RMS: 80 watts per set / 40 watts each side
• Hybrid fiber cone material
• Rubber speaker surround

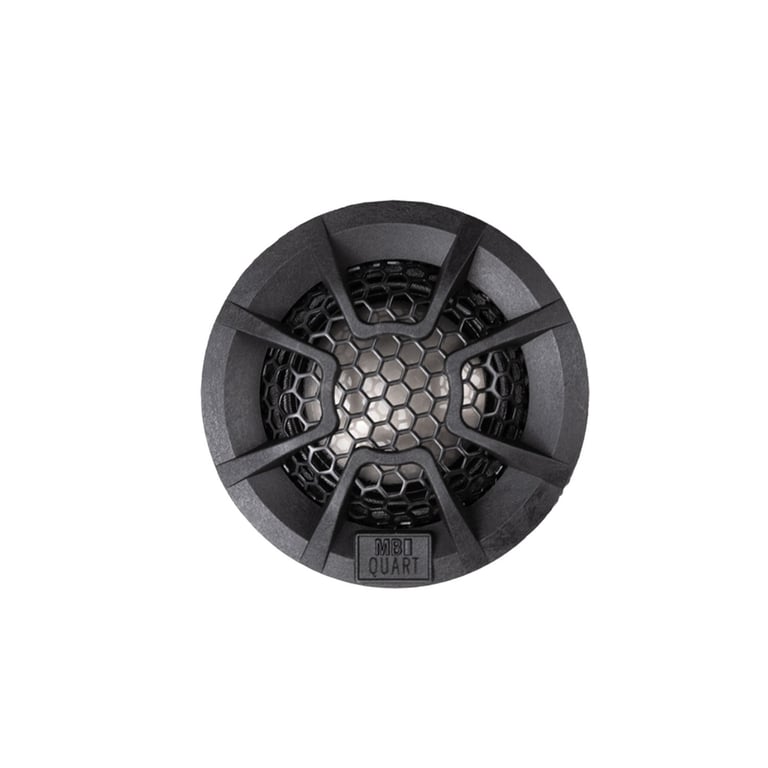

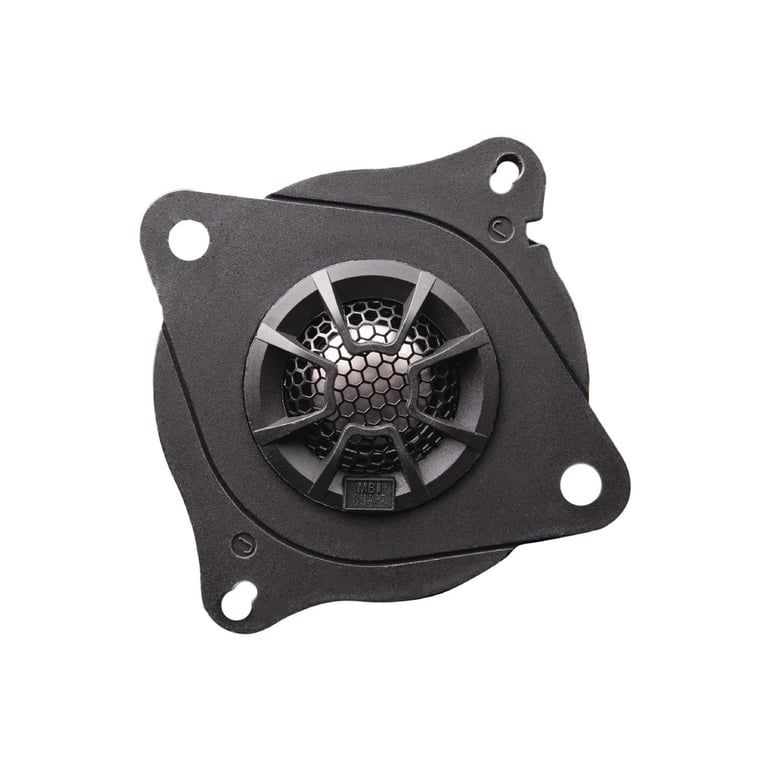

• Titanium dome tweeters
• WideSphere Tweeter Technology
• OEM style speaker frame design
• Y35 iron ferrite magnet motor structure
• 12dB external crossover network
• Crossover: 12db midrange
• Top-mount Depth: 1.908"
• Impedance: 4 ohm
• Frequency Response: 50 - 20000 Hz
• Sensitivity: 89 dB
• MFR #: TS1-2810

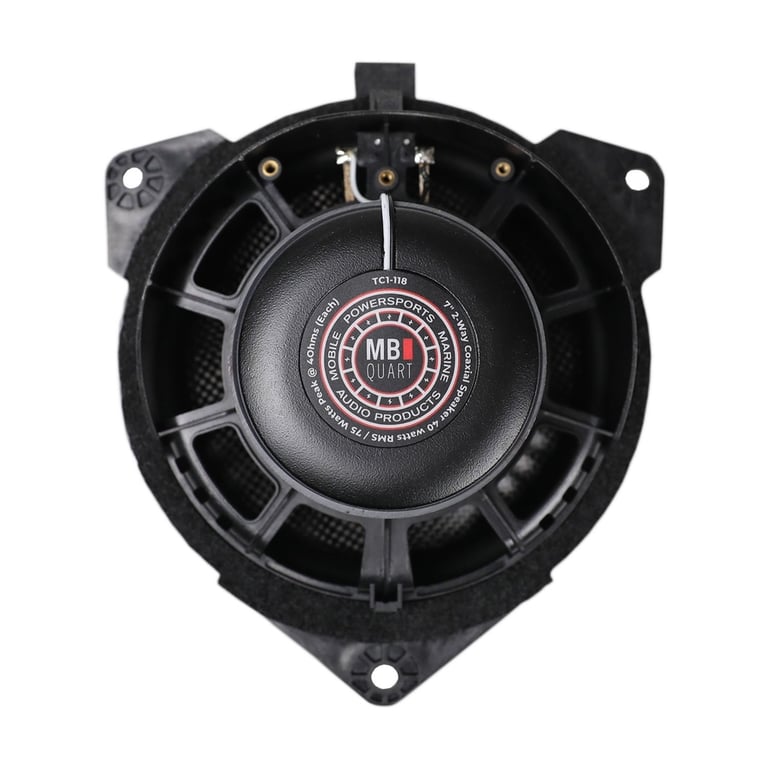

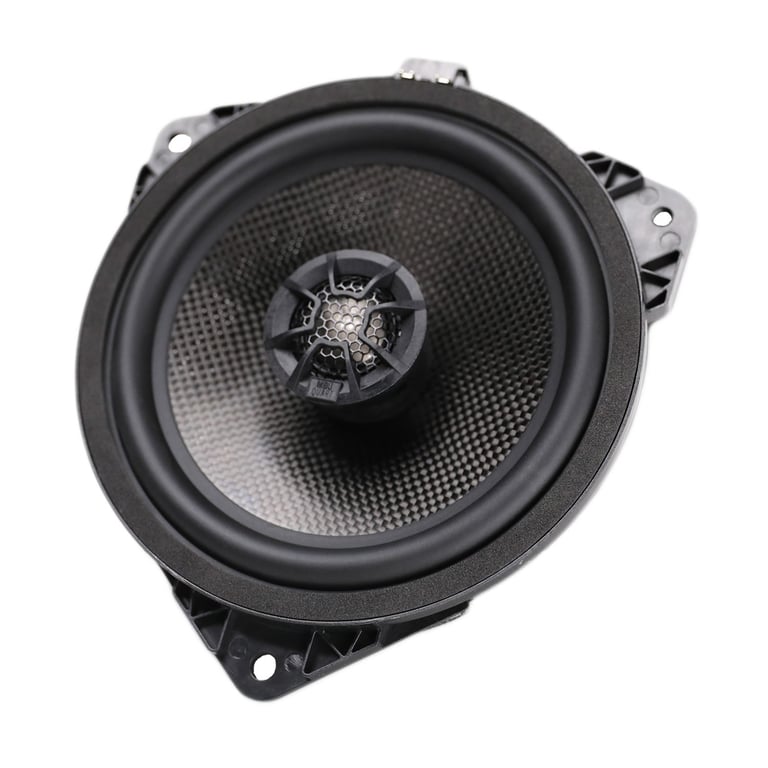

MB Quart TC1-118 7" 2 Way Rear Coaxial Speakers

• Power Handling:
• Peak: 150 watts per set / 75 watts each side
• RMS: 80 watts per set / 40 watts each side
• Hybrid fiber cone material
• Titanium dome tweeters
• WideSphere tweeter technology
• OEM style speaker frame design
• Y35 iron ferrite magnet motor structure
• 12dB external crossover network
• Crossover: 12db midrange
• Top-mount Depth: 2.132"
• Impedance: 4 ohm
• Frequency Response: 50 - 20000 Hz
• Sensitivity: 88 dB
• MFR: TC1-118

MB Quart RA1-710.5 Class D 5-Channel Amplifier:

• RMS Power Rating:
• 4 ohm: 50 watts x 4 channel + 150 watts x 1 channel
• 2 ohm: 100 watts x 4 channel + 150 watts x 1 channel
• Bridged: 350 watts x 1 channel @ 4 ohm + 150 watts x 1 channel @ 2 ohm
• Total power output: 550 watts
• Rugged MOSFET Pulse Width Modulation power supply
• Speaker wire-to-RCA adapters required for speaker-level input
• DC offset-sensing turn-on with speaker-level input
• Variable electronic crossovers allowed
• MB Quart output devices and FLUID-FETS Output Device Technology
• Wired remote bass level control included
• Low Noise Preamplifier Circuit
• Aluminum Heat Sink
• Input sensitivity: 0.02 - 9 volts
• Frequency Response: 10 - 35000 Hz
• Total Harmonic Distortion (THD): <0.07%
• Variable high-pass filter: 50 - 250 Hz, 24 dB/octave
• Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
• Fuse Rating: 80A
• 4 AWG gauge power and ground wiring is recommended for installation.
• Dimensions: 18.5" W x 8.5" L x 4" H
• MFR #: RA1-710.5
