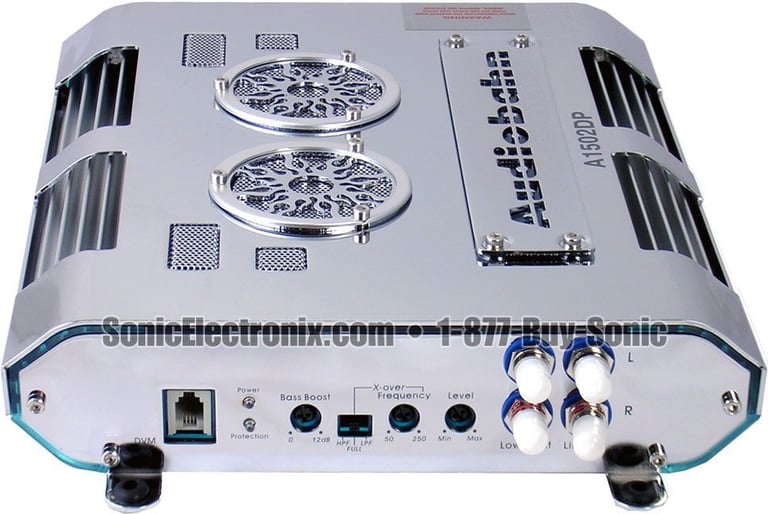

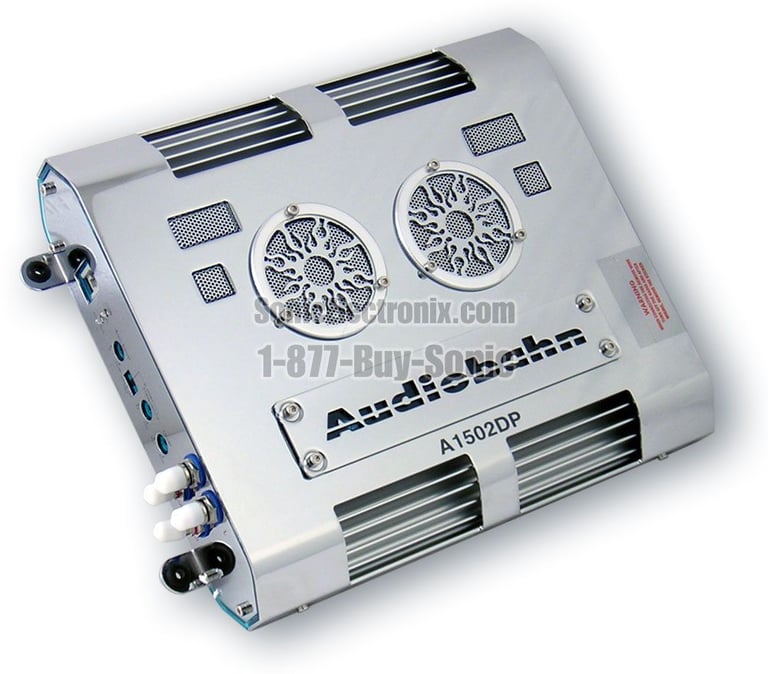

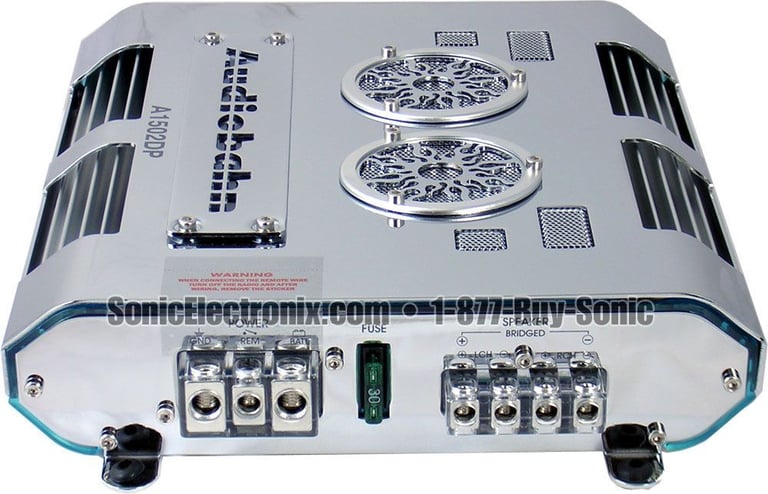

Audiobahn A1502DP True Digital Series 2-Channel Amplifier

Audiobahn A1502DP

True Digital Series 2-Channel Amplifier

True Digital Series 2-Channel Amplifier

1 ohm stereo stable, 2 ohms bridged • True Digital Circuitry • Dual Cooling Fans • HP/LP Crossovers • Bass Boost • Cobalt Blue Illumination • 150/300/450 watts x 2 ch. (@ 4/2/1 ohms)

We apologize

This item has been discontinued

DESCRIPTION
  • Class D, True Digital Circuitry 2-Channel Car Amplifier
  • RMS Power Rating:
    • 150 watts x 2 chan. @ 4 ohms
    • 300 watts x 2 chan. @ 2 ohms
    • 450 watts x 2 chan. @ 1 ohm
    • Bridged, 300 watts x 1 chan. @ 4 ohms
    • Bridged, 600 watts x 1 chan. @ 2 ohms
  • Preamp Outputs
  • Cobalt Blue LED Illuminated Heat Sink Design (on/off switch for your preference)
  • Dual Cooling Fans
  • Chrome Flame Cooling Fan Grill Covers Included (other optional designs available and sold separately)
  • Double Sided Glass Epoxy Circuit Board
  • High Gloss Chrome Plated Finish
  • Optional Remote-mount Digital Volt-meter Display (Audiobahn ADM100T sold separately)
  • 4-Way Protection Circuitry: Thermal, Short Circuit, Overload, DC Offset
  • Variable Bass Boost: 0-12dB
  • Variable High-Pass Crossover: 50-250Hz
  • Variable Low-Pass Crossover: 50-250Hz
  • Signal-to-Noise Ratio: 100dB
  • Frequency Response: 20Hz-20kHz
  • THD: 0.05%
  • Input Sensitivity: 200mV - 8V
  • 4-gauge power and groud leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Dimensions: 9-15/32" L x 8-1/2" W x 2-1/16" H
  • 1-year SonicElectronix.com warranty
FEATURES & SPECS
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 2 channels
RMS Power @ 2 ohms
300 watts x 2 channels
RMS Power @ 1 ohm
450 watts x 2 channels
Bridged RMS Power
900 watts x 1 channels
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
RMS Power @ 2 ohms
RMS Power @ 1 ohm
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
Peak Power @ 2 ohms
Peak Power @ 1 ohm
Bridged Peak/Max Power
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
Peak Power @ 2 ohms
Peak Power @ 1 ohm
Amplifier Specifications
Amplifier Series
Marine Certified
Amplifier Class
D
Number of Channels
2
Total Peak Power Output
Total RMS Power Output
900 watts
Maximum Input Gauge Size
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
2 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 12 dB
Bass/Gain Remote
No
Fan Cooled
Yes
Fuse Rating
30A x 1
Total Fuse Rating
Strappable
CEA-2006 Compliant
Sonic Certified Amplifier
Amp Bluetooth Connectivity
Hi-Res Certified
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5
Paperwork
Specials with this Item
Deals
Warranty and Return Policy
Parts Warranty Duration
Not warranted
Labor Warranty Duration
Not warranted
Warranty Provider
Manufacturer
VIDEOS AND HOW - TO
REVIEWS
Audiobahn A1502DP

Audiobahn A1502DP

4.5

(4)

Write a review

Overall rating distribution

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%

By feature average rating

Durability
4.5
Value
5
Features
4.8
Design
5
Usability
5

cory

April 20, 2006

Low Amp

I own this amp and for starers it made my 2 10L5S hit pretty good but now it doesn't sound that loud. The does put out some serious bass if u turn it up all the way. the filter level really doesn't do anything for the amp or subs. Then you have the level which is gain, u turn that up and the subs hit hard. Overall it is a really good amp for the price and wattage. My only problem is that I can't feel the full sound out of my subs from it. The sol-barics should hit harder than they are with the amp but they aren't. It looks great I haven't had it shut down at all and i put a lot of power to it. Sonic has it for the cheapest price. It looks sweet with that blue neon at night. I gave a 4 overall because it should be making my system hit harder and it isn't.

3

found this helpful.

Andy

November 27, 2005

Buy It

It is extremly worth the price and it easy to setup up. I had it in my car for 5 months and no problems. Buy it

3

found this helpful.

jimmy

February 2, 2006

great amp

for a little over two hundred bucks this amp is very good. It pushes my subs perfectly. Se never seems to fail with great deals.

2

found this helpful.

trillium

March 3, 2009

pretty good buy

for a while now this amp has been really good to me. I have it powering a pioneer premier ts-w3004spl(1000 rms) and this amp makes it hit really hard. this past weekend though i was going around a turn and a car was stopped dead so i had to slam on my brakes. i has just re-wired my subwoofer so i didnt screw it back down and my subwoofer slid forward and hit the amp pretty hard. The amp cuts off in certain positions now so i have to keep it at a certain angle for it to stay on. I mean its my fault my subwoofer slid into it thats not the amps fault so overall this amp has been pretty good to me since a 100 pound box doesnt even break it
