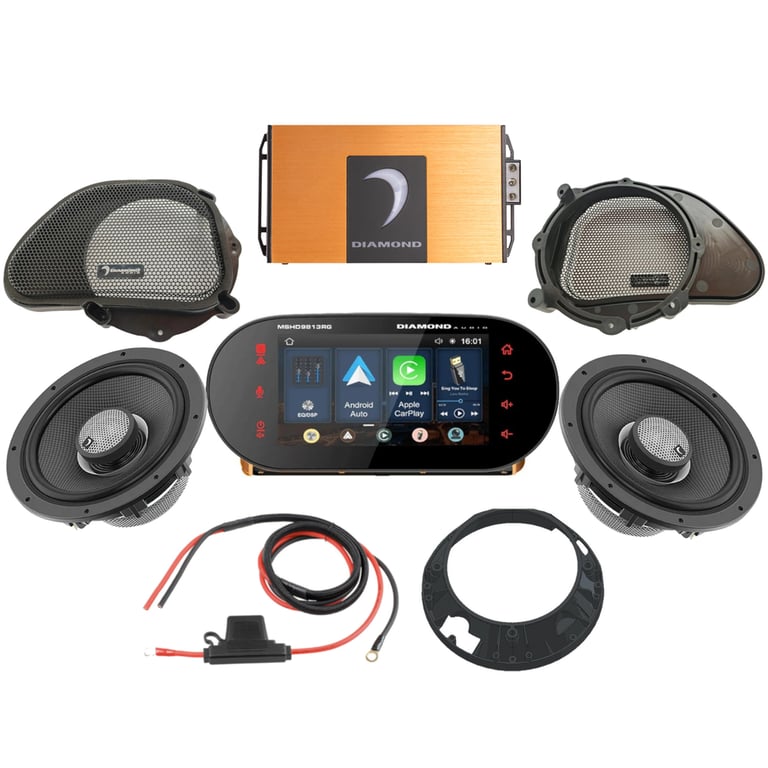

Diamond Audio 2-Speaker Sound Packs For '98-'13 Road Glide

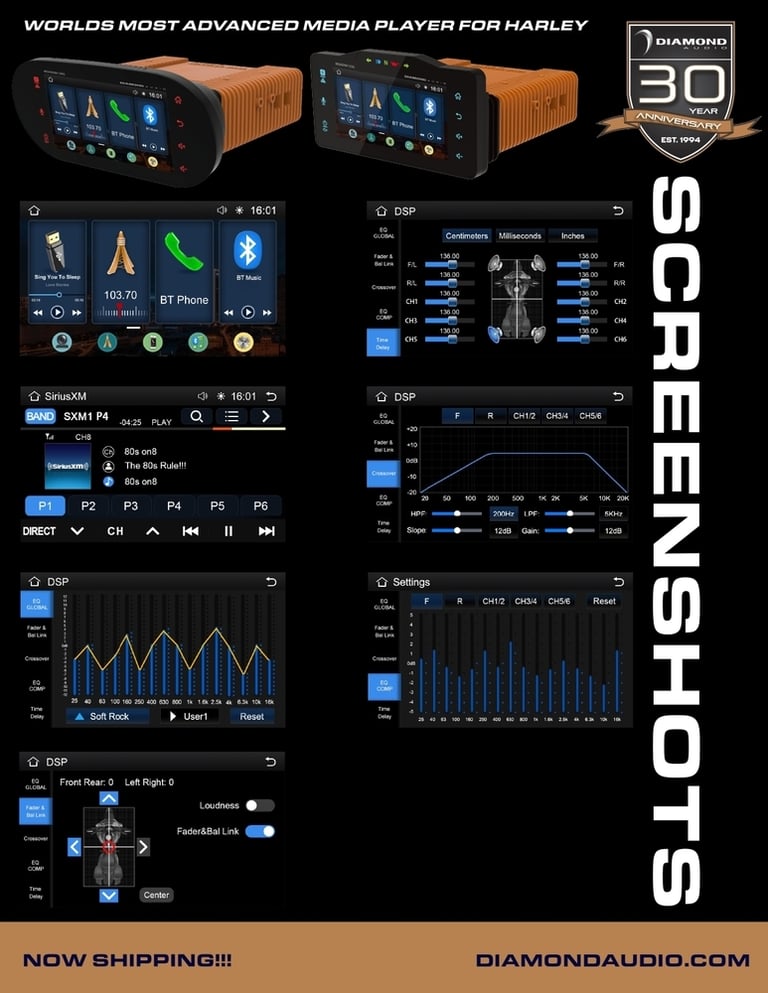

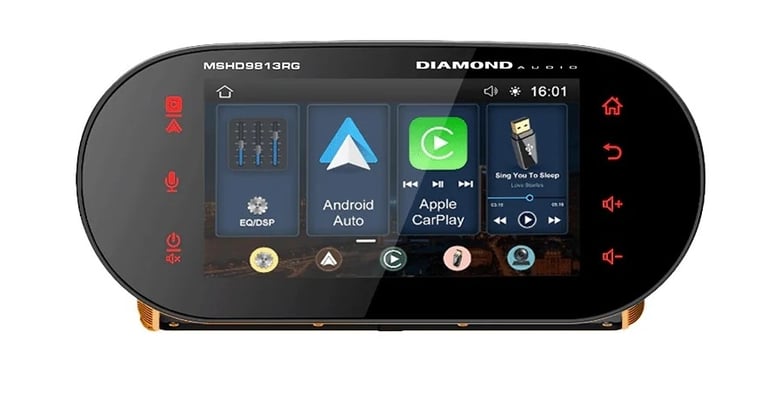

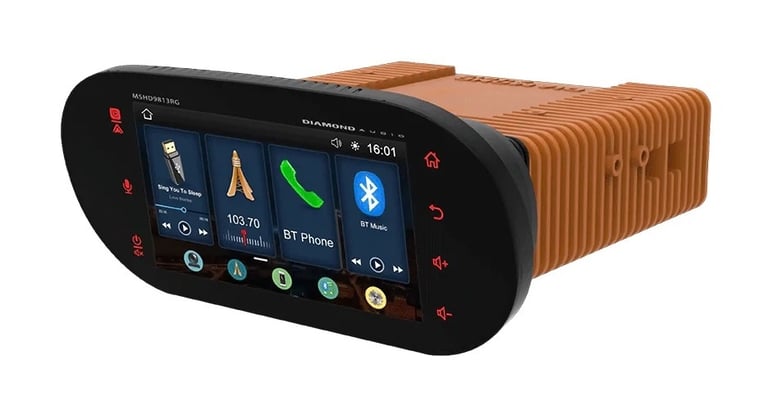

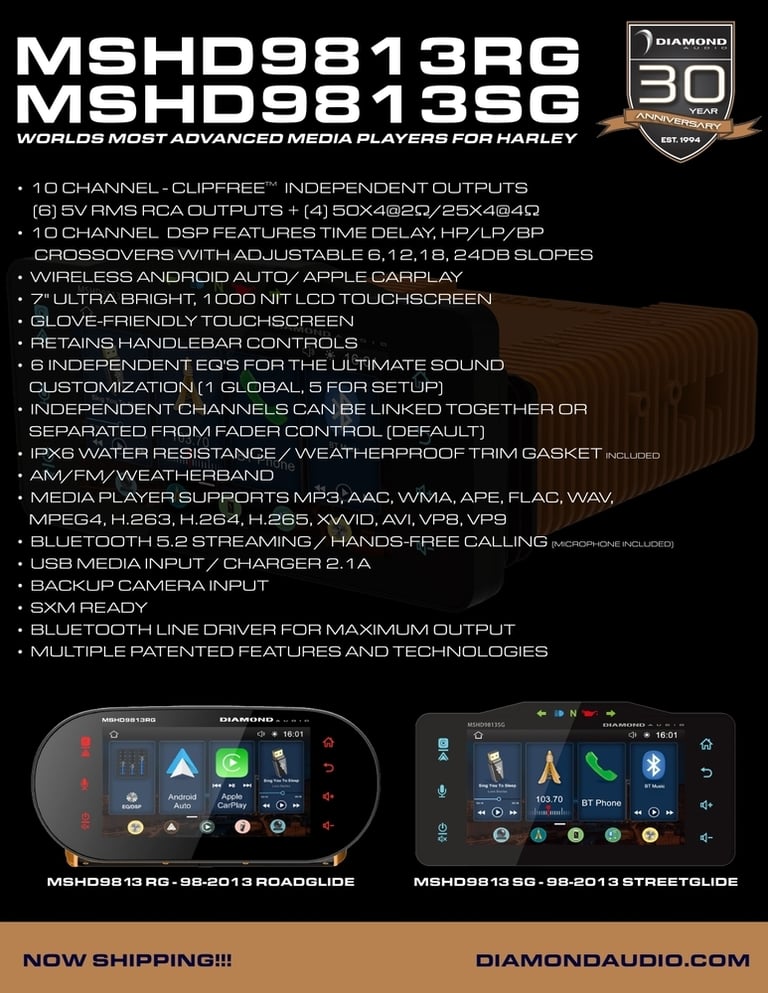

Diamond Audio MSHD9813RG 7" Custom-Fit Digital Media Receiver:

• 7" TFT-LCD Display
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 25 watts x 4 channel
• Bluetooth hands-free calling and audio streaming
• Adjustable RGB color touch-sensitive front keys
• Retains handlebar controls, reconfigurable though programming
• Selectable on-screen data such as RPM, voltage, temperature, and throttle position
• Glove friendly, ultra-bright 7" 1000 nit, sunlight viewable touch screen display
• 6 independent equalizers for the ultimate sound customization (1 Global, 5 for Setup)
• 10-channel integrated digital signal processor with time delay
• High-pass, bandpass, and low-pass filters with adjustable 6,12,18,24db slopes
• Independent channels can be linked together or separated from fader control

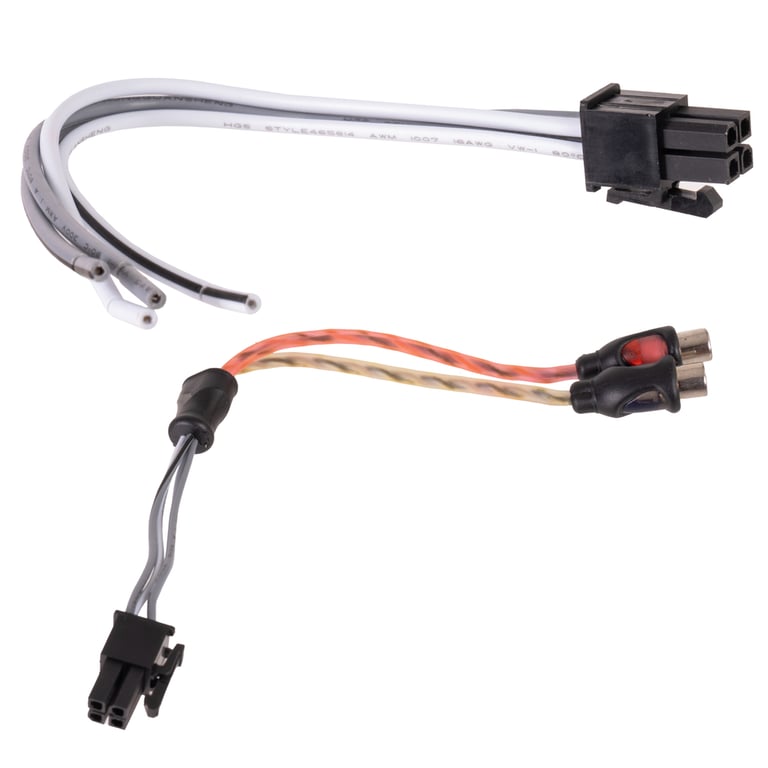

• Includes pre-wired plug-n-play harness
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: MSHD9813RG

Smartphone Features

• Wireless Apple CarPlay and Android Auto compatible
• Display and control music, and other apps with iPhone and Android

Playback and Audio Features

• MP3 | WMA | WAV | AAC | FLAC Audio Playback
• AM/FM tuner with 12 FM / 10 AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• 16 Band Graphic Equalizer

Expandability Options

• Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately

Audio/Video Inputs and Outputs

• 3 sets of 5 volts preamp outputs (front, rear, and subwoofer)
• Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes a built-in microphone for clear, convenient, distortion-free talking
• MFR #: MSHD9813RG

Product Details:

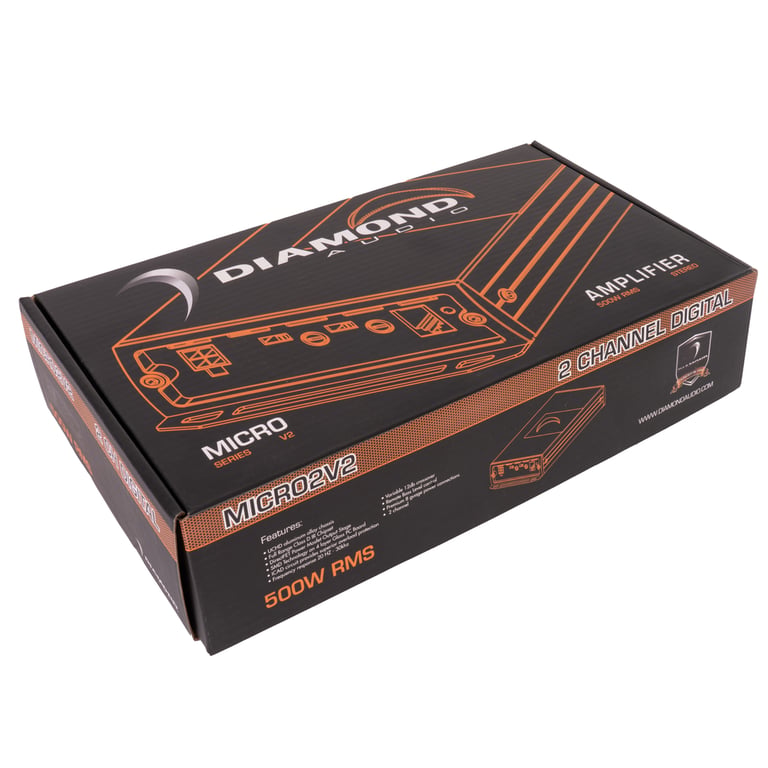

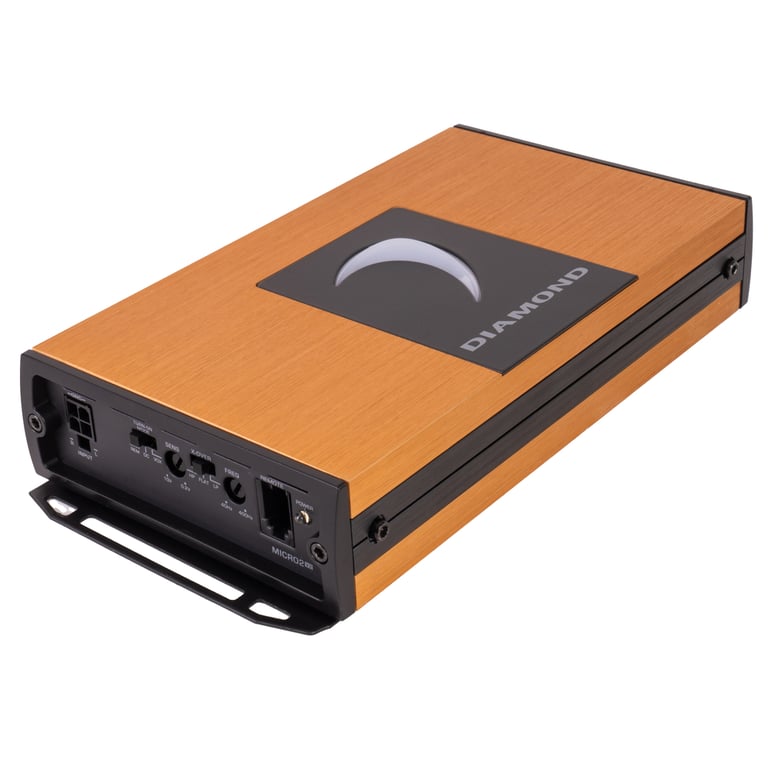

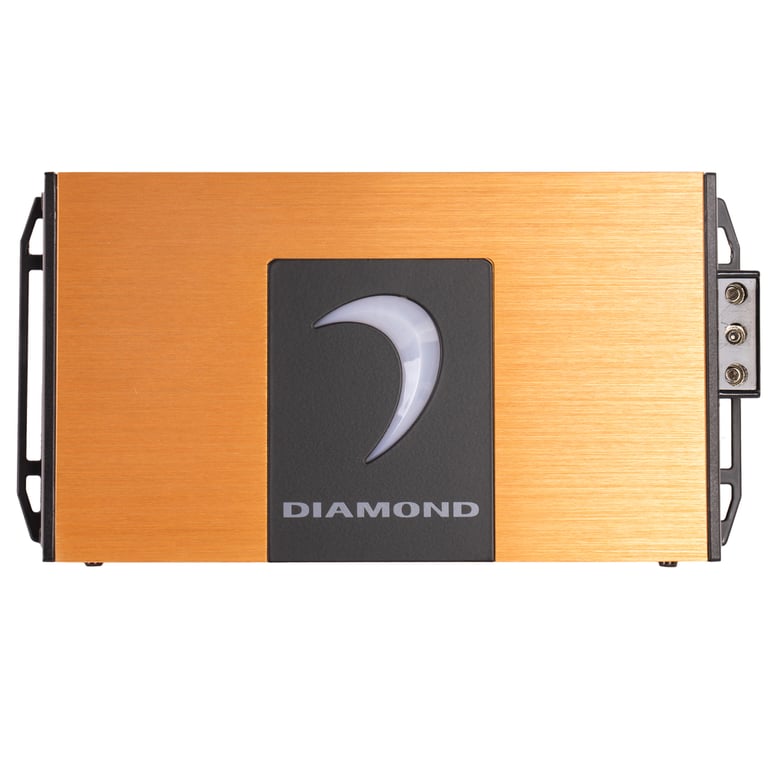

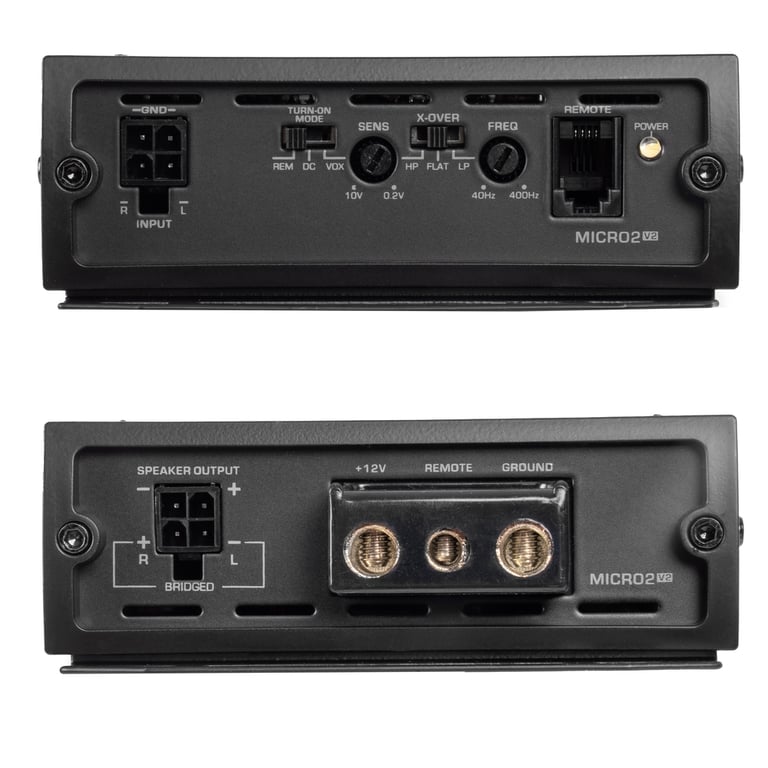

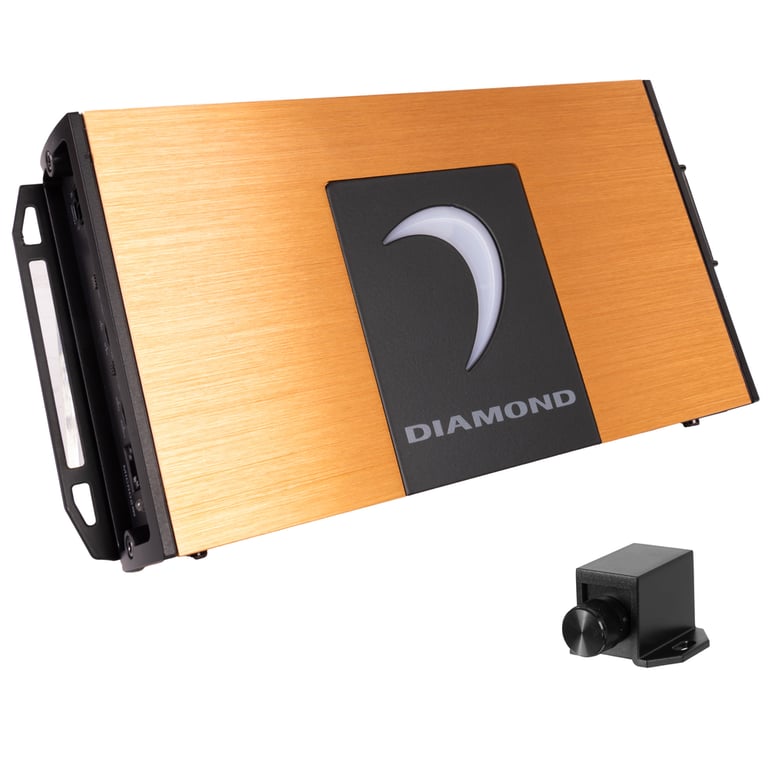

• MicroV2 Series Class D 2 ohm Stable 2-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 150 watts x 2 channel
• 2 ohm: 250 watts x 2 channel
• Bridged: 500 watts x 1 channel @ 4 ohm
• Total RMS power output: 500 watts
• LED Power/Protect Light
• Wired bass level remote control included
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
• Selectable turn-on mode (Remote, DC Offset, Signal Sensing)
• Advanced rollback and thermal protection
• Full range Class D IR chipset
• DirectFET power MOSFET output stage
• SMD technology on 4-layer glass PC board
• ICAD circuit provides superior overload protection
• Variable 12dB crossovers
• Ultra-compact and versatile
• Bluetooth receiver enabled for Diamond Audio Datura/12 Bluetooth receivers only
• Input sensitivity: 200 mV - 10 volts
• Frequency Response: 20 - 30000 Hz
• Total Harmonic Distortion (THD): 0.5%
• Signal to Noise Ratio: -85 dB
• Variable high-pass filter: 40 - 400 Hz
• Variable low-pass filter: 40 - 400 Hz
• Variable Bass Boost: 0 - 12 dB
• Fuse Rating: 25A
• 8 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 7.89" L x 4.0" W x 1.46" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: MICRO2V2

Product Details:

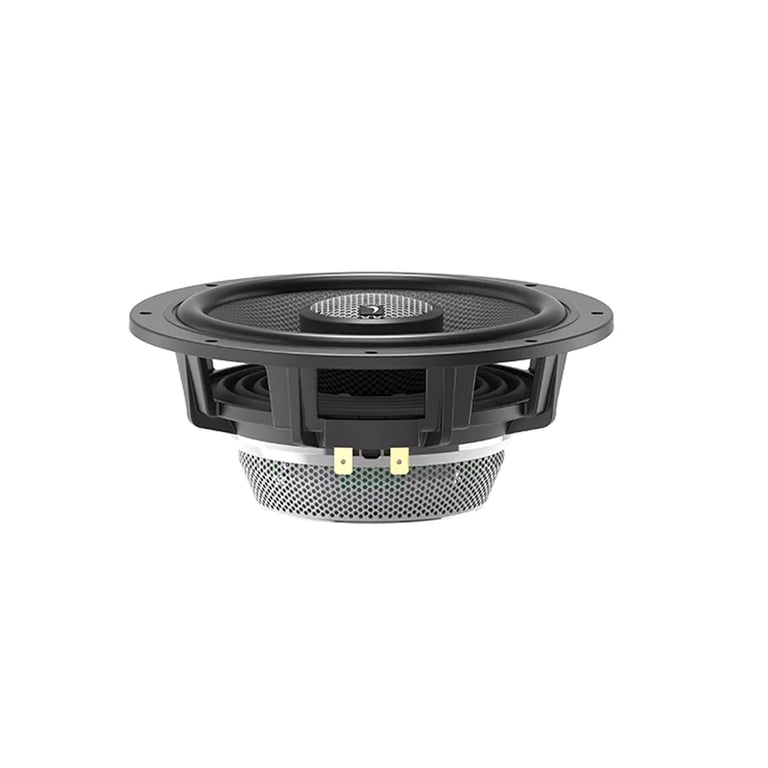

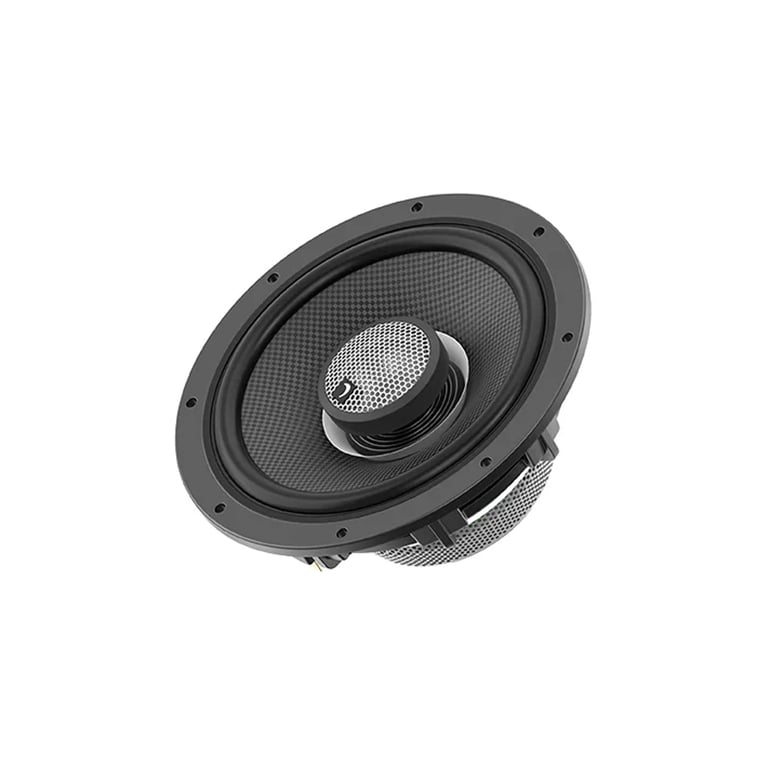

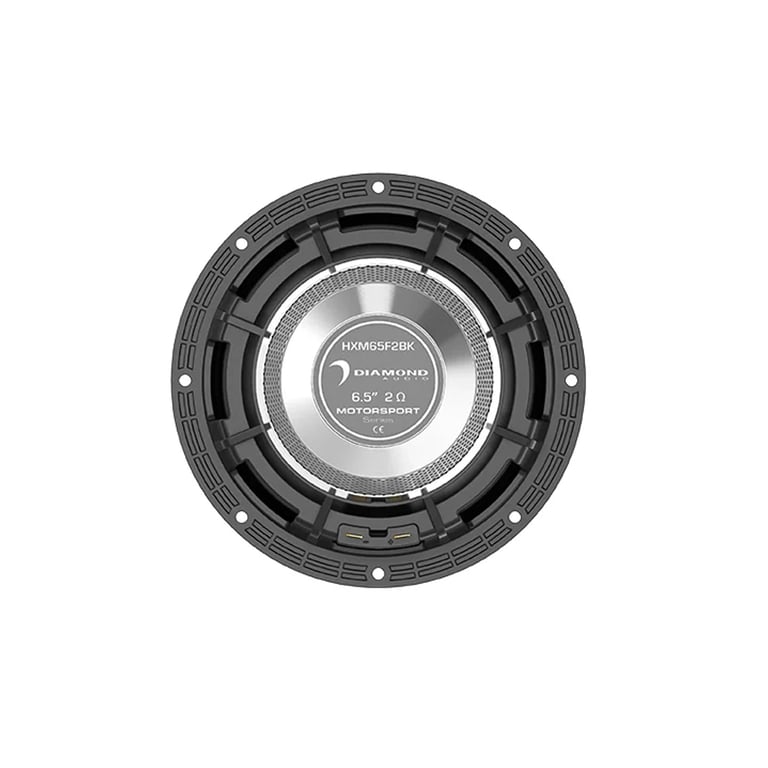

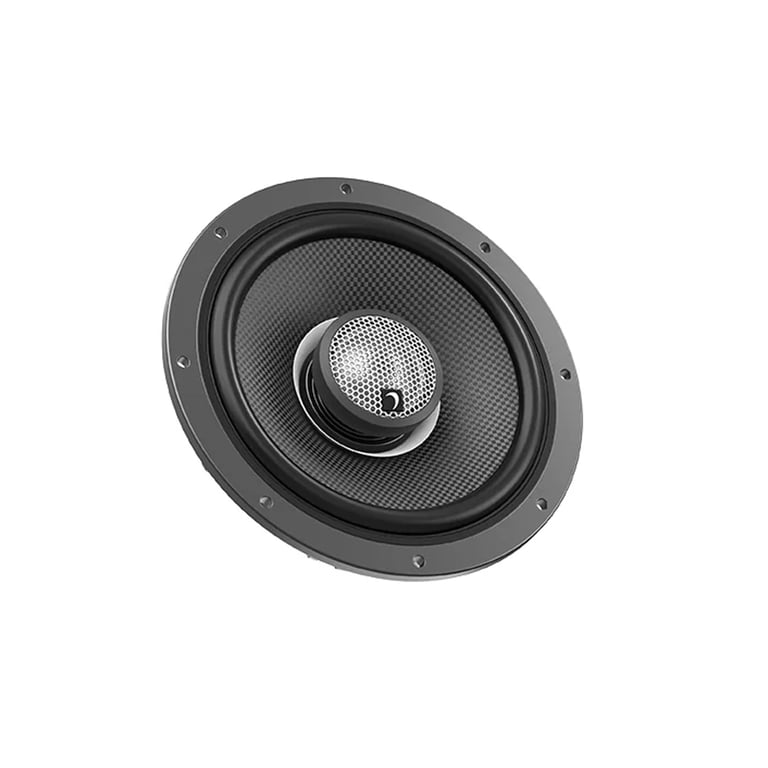

• 6-1/2" HXMF Series 2-way Coaxial Marine Speakers
• Power Handling:
• Peak: 750 watts per pair / 375 watts each
• RMS: 250 watts per pair / 125 watts each
• Carbon Fiber cone material
• Rubber speaker surround
• 1-1/2" Titanium Dome Tweeters
• 1.5" High temperature voice coil
• Ultralight neodymium magnet motor structure
• Motor structure includes max xmax suspension
• Flush or back mount design
• Water spray and salt water resistant, 100% UV stable
• Light weight injection molded composite basket
• Top-mount Depth: 2.51"
• Cutout Dimensions: 5.43"
• Impedance: 2 ohm
• Frequency Response: 110 - 20000 Hz
• Sensitivity: 95 dB
• Authorized Internet Dealer
• MFR #: HXM65F2BK
• 1-year Manufacturer's Warranty



Priced Per Pair

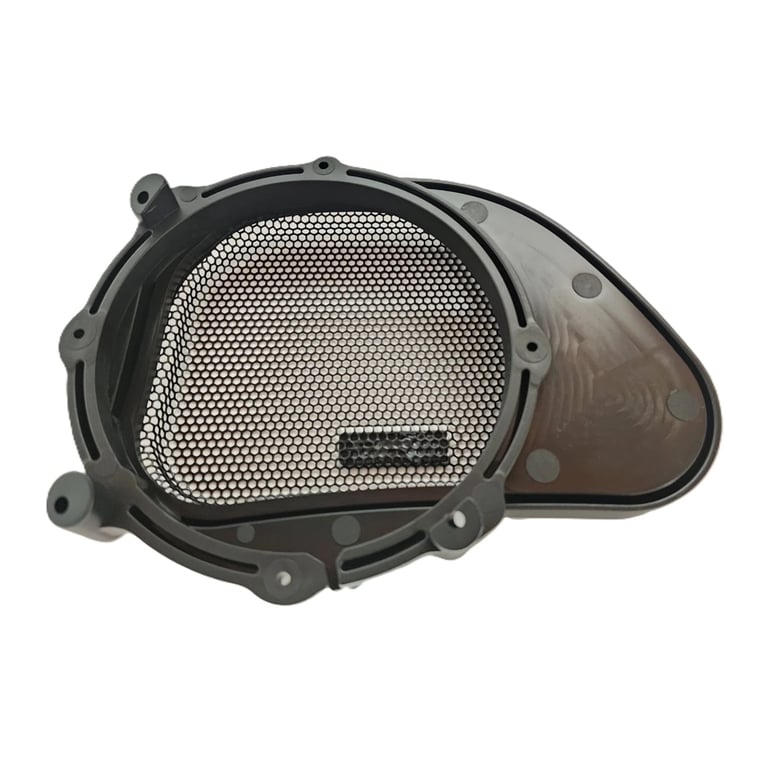

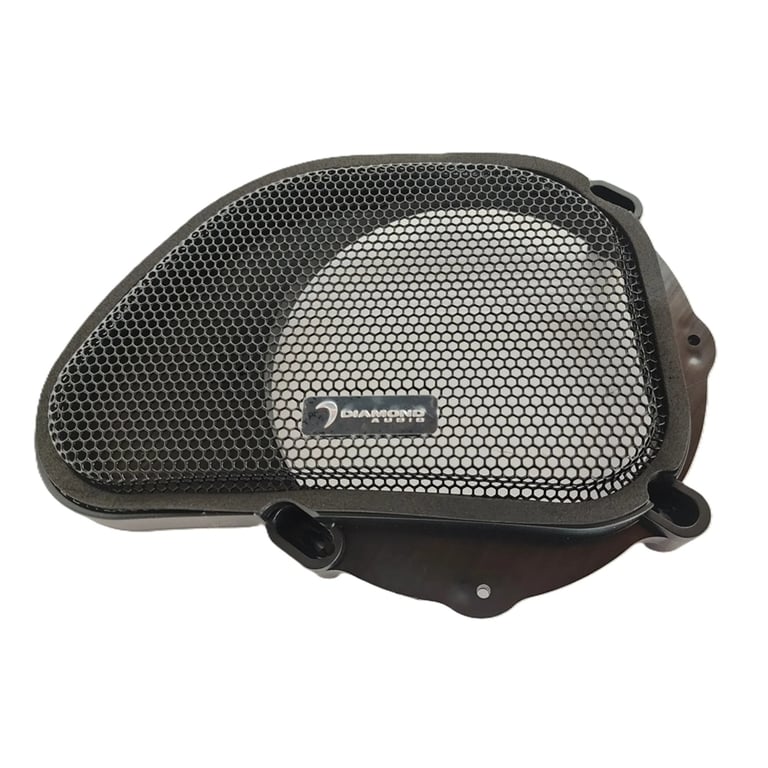

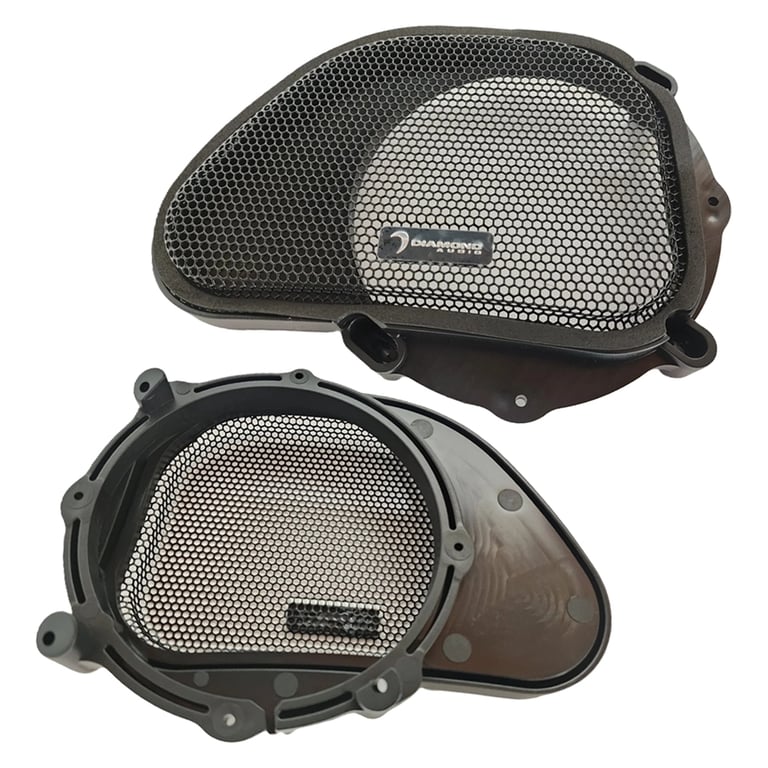

Product Features:

• Compatible with select 1998-2013 FLTR/I Road Glide and FLTRI Road Glide and FLTR Road Glide
• Designed for fairing-mounted speakers (speakers not included)
• Protects speakers against road, debris, dust, and environmental wear
• Made with OEM quality heavy-duty metal mesh
• Embossed Diamond Audio logo for custom and sleek look
• Easy to install, direct fit, and no additional modifications required
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Priced Per Pair

Product Details:

• Complete power kit for fairing mounted amplifier on any Harley-Davidson
• Premium power and ground wire provides optimal power transfer
• Made from OFC (100% Oxygen-Free Copper)
• Easy connection of ring terminals to battery
• Terminals are Nickel for excellent signal transfer
• ATC Fuse holder offers ideal protection for powered systems
• True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Package Includes:

1. 6 feet of 8 gauge red power cable
2. 5 feet of 8 gauge black ground cable
3. 1 feet of 18 gauge blue remote turn-on wire
4. 3 feet braided loom to cover wire from battery to fairing
5. (1) 8 gauge in-line ATC fuse holder
6. (1) 60A ATC maxi fuse
7. (1) 8 gauge red ring terminal installed
8. (1) 8 gauge black ring terminal installed

Product Features:

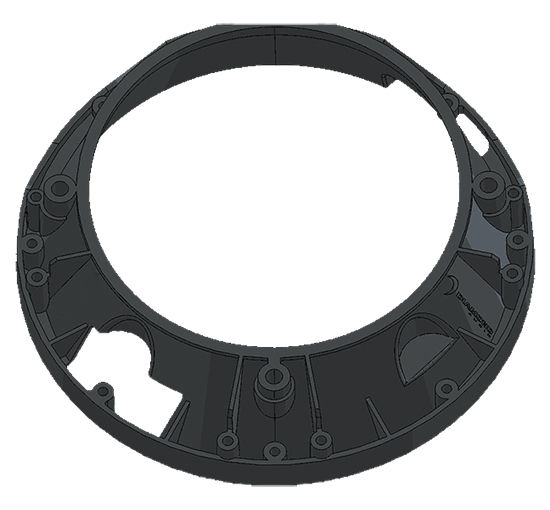

• For the installation of 6.5" aftermarket speakers
• Precision-engineered speaker adapter ring kit
• Provides secure mounting solution, ensures proper alignment and stability
• Perfect for custom motorcycle audio builds or amplifier upgrades
• Includes (2) speaker adapter plates
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Applications:

• 1998 - 2009 Harley Davidson FLHT Electra Glide Standard
• 1998 - 2013 Harley Davidson FLHTC Electra Glide Classic
• 1998 - 2006 Harley Davidson FLHTCI Electra Glide Classic
• 2003 - 2006 Harley Davidson FLHTI Electra Glide Standard
• 2006 - 2013 Harley Davidson FLHXI Street Glide
