Diamond Audio MICRO2V2 | 500W Micro 2-Channel Amplifier

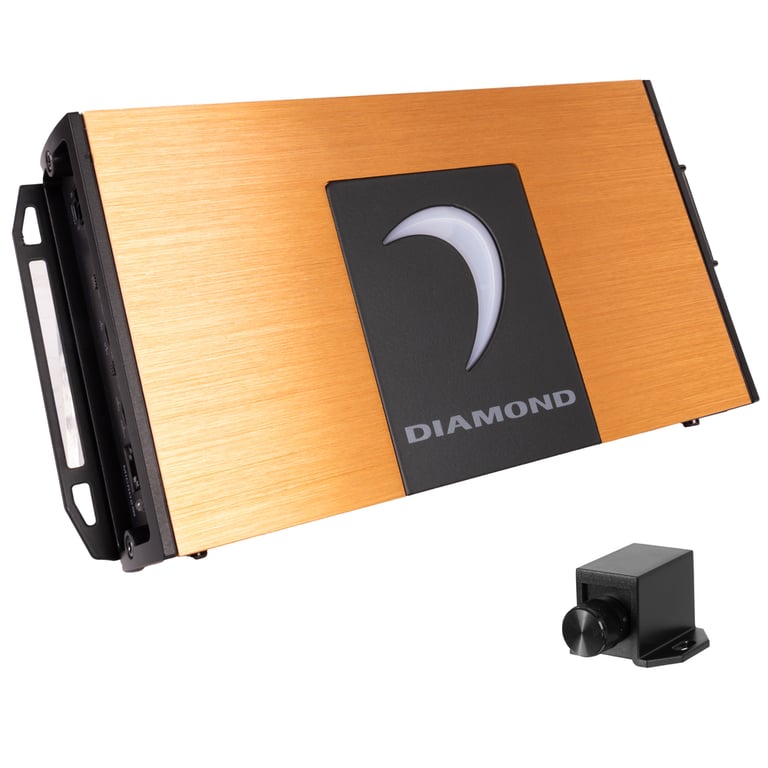

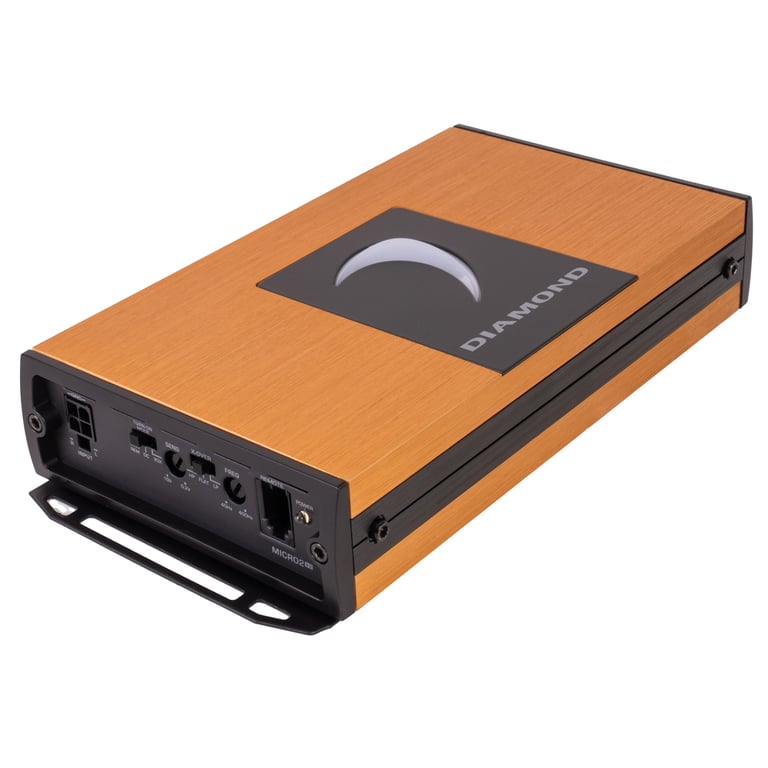

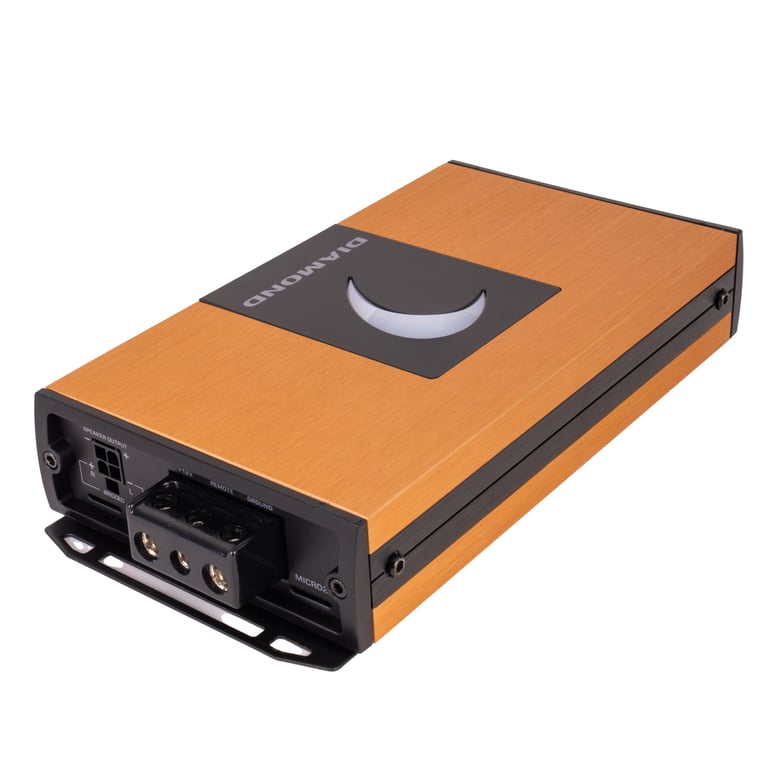

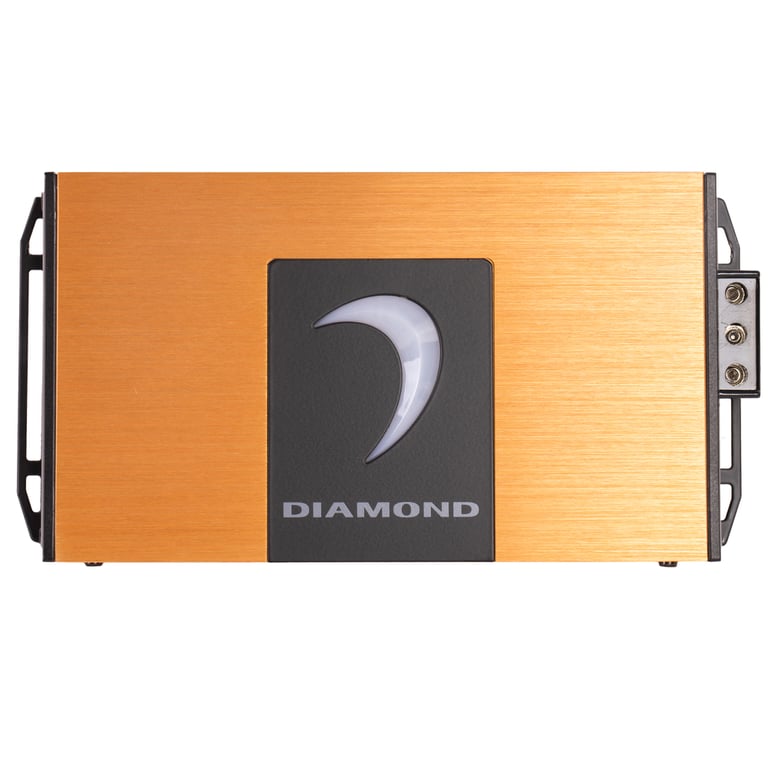

Diamond Audio MICRO2V2

2-Channel Micro Full Range Class-D Amplifier 500W RMS

2-Channel Micro Full Range Class-D Amplifier 500W RMS

• 2-Channel Micro Class-D Amplifier
• 150W RMS x 2 @ 4 ohms / 250W RMS x 2 @ 2 ohms / 500W RMS x 1 @ 4 ohms Bridged
• Ultra-compact, high density aluminum alloy chassis provides superior thermal stability
• Four layer, glass epoxy circuit board for enhanced performance and reliability
• Full Range Class D amplifier technology

$339.99

Special Order. Ships at Later Date with warranty
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

BUNDLE AND SAVE (1 offer)

Purchase Select Amplifiers and Receive A Free $50 Sonic Gift Card! This offer cannot be combined with any other coupons or offers.

Diamond Audio MICRO2V2

100% off


Priced separately $389 99

Bundle Savings of $50 00

Total bundle price:

$339 99

DESCRIPTION

Product Details:

  • 2-Channel Micro Class-D Amplifier
  • Power Output:
    • 150W RMS x 2 @ 4Ω
    • 250W RMS x 2 @ 2Ω
    • 500W RMS x 1 @ 4Ω Bridged
  • Ultra-compact, high density aluminum alloy chassis provides superior thermal stability
  • Four layer, glass epoxy circuit board for enhanced performance and reliability
  • Full Range Class D amplifier technology
  • Balanced differential inputs for superior noise rejection
  • Input sensitivity from 200mV to 10V accepts line (RCA) and Speaker level input

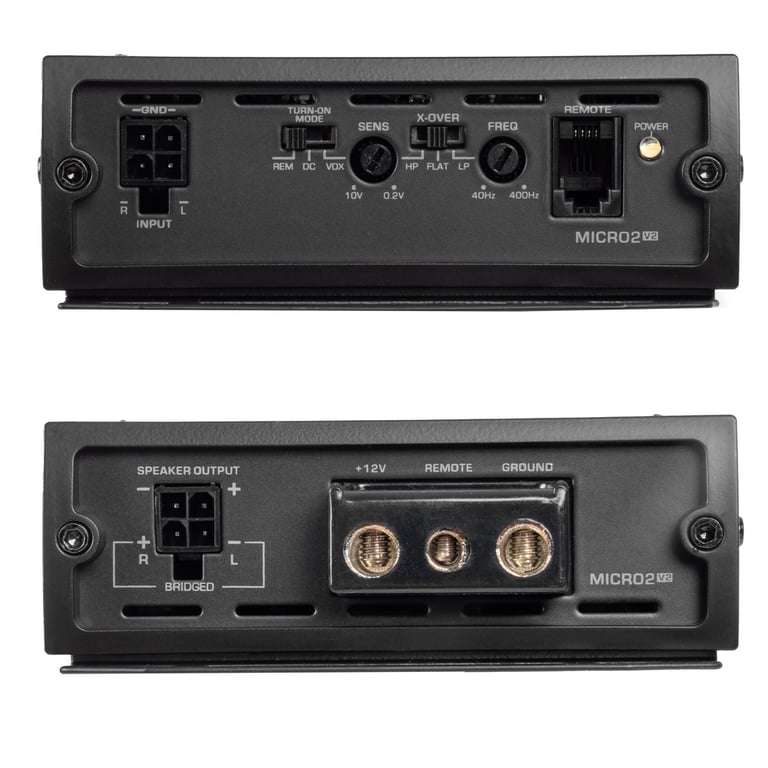

  • Selectable auto-turn-on modes: Signal Sensing (VOX), 12V Remote (REM) and DC offset (DC)
  • Fully variable, 12dB per octave, electronic crossover
  • Variable 18dB per octave sub-sonic filter
  • Adjustable Bass EQ (45Hz: 0dB to +12dB)
  • Wired Remote Level Control included
  • Illuminated logo
  • THD: 0.5%
  • S/N Ratio (A weighted @ 1W): -85dB
  • Low Input Level: 200mV - 10.0V
  • Bandwidth(-3dB): 10Hz - 350Hz
  • Variable High-Pass: 40Hz - 400Hz
  • Variable Low-Pass: 40Hz - 400Hz
  • Fuse Ratings - ATC: 25A
  • Dimensions: 7.89"L x 4.0"W x 1.46"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the Diamond Audio MICROV2 Series Amplifiers Owner's Manual
FEATURES & SPECS
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 2 channels
RMS Power @ 2 ohms
250 watts x 2 channels
Bridged RMS Power
500 watts x 1 channels
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
300 watts x 2 channels
Peak Power @ 2 ohms
500 watts x 2 channels
Bridged Peak/Max Power
1000 watts x 1 channels
Amplifier Specifications
Amplifier Series
Micro Series
Marine Certified
Amplifier Class
D
Number of Channels
2
Total Peak Power Output
1000 watts
Total RMS Power Output
500 watts
THD at Rated RMS Power
0.5%
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 400 Hz
Low-Pass Crossover Frequency
40 - 400 Hz
Signal-to-Noise Ratio
>85 dB
Bass Boost
0 - 12 dB
Bass/Gain Remote
Yes
Fuse Rating
25A x 1
Total Fuse Rating
25
Amp Bluetooth Connectivity
No
Authorized Dealer
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Amplifier
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
