Tarantula Series 2-Channel Car Amplifier • 820W RMS • 410W x 2-Chan @ 2 Ohm • 250W x 2-Chan @ 4 Ohm • IDI (Intelligent Distress Indicator) • Tri-Guard System Protection Circuitry • OEM Floating Ground Input

Learn more about the LS-trx2820-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Tarantula Series 2-Channel Class A/B Car Amplifier
RMS Power Rating:
- 4 ohm: 250 watts x 2 chan.
- 2 ohm: 410 watts x 2 chan.
- Bridged, 4 ohm: 820 watts x 1 chan.
Fully regulated MOSFET power supply with PWM circuitry
LED power (green) and protect (red) indicators

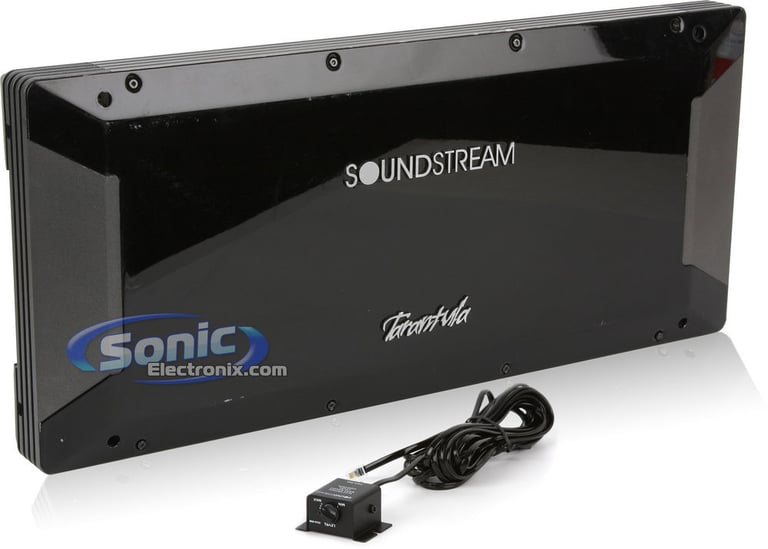

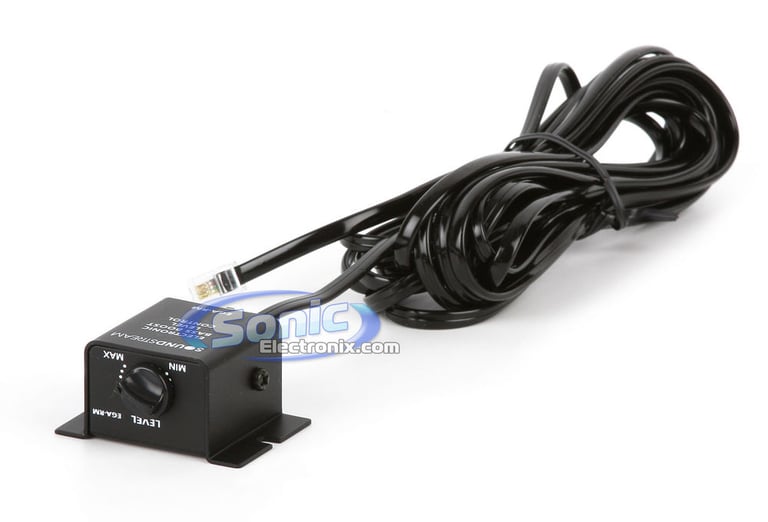

Bass Remote Details (Wired remote bass level control included)
Variable Bass Boost (0 to +18 dB bass boost at 35-80Hz)
OEM Floating ground input
2/1 Channel operation
Bi-selectable crossovers for inputs and outputs
Tri-mode speaker operation
High gloss piano black finish
Included end caps hide exposed wires for that professional look
Preamp RCA outputs to daisy chain multiple amps
Tri-Guard System Protection circuitry (thermal, overload, and speaker short protection)
IDI (Intelligent Distress Indicator) gives visual indication of protection status
Heavy duty aluminum alloy heatsink for extreme heat dissipation
Platinum-plated RCA level inputs
Platinum-plated screw terminals
Input sensitivity:
- Level: 200mV-8V
Variable high-pass filter (50-500 Hz, 24 dB/octave)
Variable low-pass filter (50-150 Hz, 24 dB/octave)
Phase Shift: 0-180°
Frequency response: 10-35,000 Hz
Dimensions: 24-13/16"L x 11"W x 2-5/8"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's warranty
Item Condition: Factory Refurbished

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

250 watts x 2 channel

RMS Power @ 2 ohms

410 watts x 2 channel

Bridged RMS Power

820 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

2-Channel

Total RMS Power Output

820 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

50 - 500 Hz

Low-Pass Crossover Frequency

50 - 150 Hz

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Fuse Rating

30A x 3

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
