Name: MB Quart ONX4.80 Open Box
Brand: MB Quart
SKU: LS-onx480-OB
Price: 116.99 USD
Availability: Discontinued

by MB Quart

About
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

MB Quart ONX4.80 Open Box Image 1 — MB Quart ONX4.80 Open Box

MB Quart ONX4.80 Open Box Image 2 — MB Quart ONX4.80 Open Box

MB Quart ONX4.80 Open Box Image 3 — MB Quart ONX4.80 Open Box

MB Quart ONX4.80 Open Box Image 4 — MB Quart ONX4.80 Open Box

MB Quart ONX4.80 Open Box Image 5 — MB Quart ONX4.80 Open Box

MB Quart ONX4.80 Open Box Image 6 — MB Quart ONX4.80 Open Box

MB Quart ONX4.80 Open Box Image 7 — MB Quart ONX4.80 Open Box

MB Quart ONX4.80 Open Box Image 8 — MB Quart ONX4.80 Open Box

MB Quart ONX4.80 Open Box Image 9 — MB Quart ONX4.80 Open Box

MB Quart ONX4.80 Open Box Image 10 — MB Quart ONX4.80 Open Box

MB Quart ONX4.80 Open Box Image 11 — MB Quart ONX4.80 Open Box

Product videos

Product highlights

ONYX Series 4-Channel Class AB Car Amplifier • 160W x 4 Chan @ 2 Ohm • 80W x 4 Chan @ 4 Ohm • Unbalanced RCA Input Jack • Preamp RCA Outputs • 4-Way System Protection Circuitry • Piano Black Gloss Finish

Learn more about the LS-onx480-OB

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Success is a Measurement of Quality and Power

The success of any car audio amplifier depends on system quality and construction, ease of installation and configuration, and sound enhancing features. MB Quart engineers built the all new Onyx series amplifiers from the ground up to be an affordable amplifier with the audiophile and performance enthusiast in mind. This series is composed of value-packed class-D and A/B class amplifiers that boast affordability without sacrifice to power or quality. All Onyx Amplifiers come clothed in a beautiful new age piano black finish which accents interiors and brings a whole new level of sophistication to swallow. To match, the line of Onyx Speakers shows off the same piano black finish applied to their polypropylene cone woofers. It’s a perfect match every time.

Speaking of features, Onyx amplifiers bring the full tuning spectrum to your fingertips with variable high-pass, low-pass and subsonic filters built-in. To increase endurance, MB Quart designed Onyx amplifiers with military grade printed circuit boards and built-in system diagnostics that keep these amps running strong. High speed MOSFET output devices are used in the power supply to give you the best watts-per-dollar ratio. It’s not hard to see how success has been written all over these amplifiers, though with a piano finish that looks that good, we know you will be staring.

ONYX Series 4-Channel Class AB Car Amplifier
RMS Power Rating:
- 4 ohm: 80 watts x 4 chan.
- 2 ohm: 160 watts x 4 chan.
- Bridged, 4 ohm: 320 watts x 2 chan.
PWM (Pulse Width Modulated) MOSFET power supply
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +12 dB bass boost at 45 Hz
4/3/2 channel operation
Unbalanced RCA input jack
Preamp RCA outputs to daisy chain multiple amps
4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)

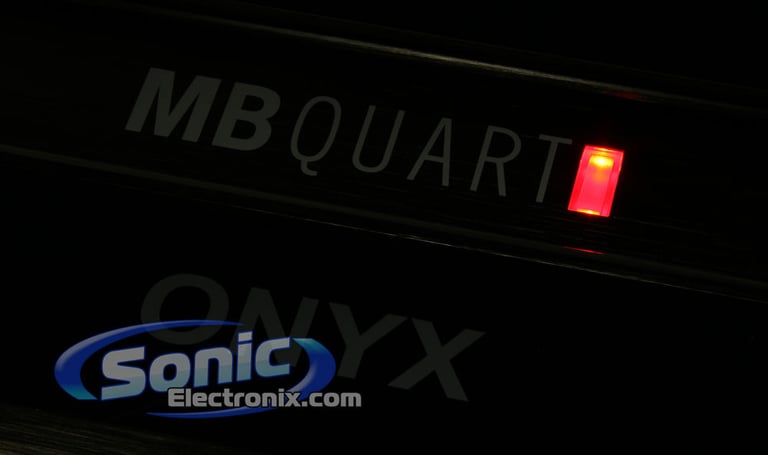

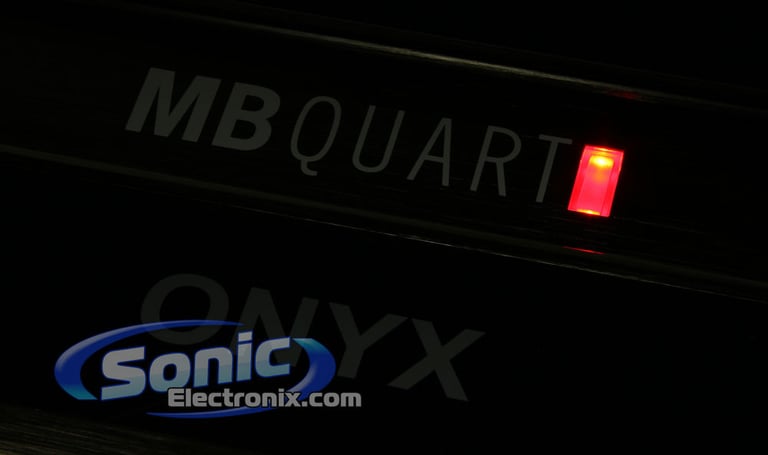

Piano black gloss finish with illuminated logo
Heavy duty aluminum alloy convection heatsink for superb heat dissipation
Silver-plated RCA level inputs
Silver-plated screw terminals
Input sensitivity:
- Low level: 200mV-6V
Variable high-pass filter (60-13,000 Hz, 24 dB/octave)
Variable low-pass filter (30-250 Hz, 24 dB/octave)
Damping factor: >180
Frequency response: 10-45,000 Hz
Dimensions: 14-7/8"L x 9"W x 2-1/2"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

80 watts x 4 channel

RMS Power @ 2 ohms

160 watts x 4 channel

Bridged RMS Power

320 watts x 2 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

4-Channel

Total RMS Power Output

640 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

60 - 13,000 Hz

Low-Pass Crossover Frequency

30 - 250 Hz

Signal-to-Noise Ratio

>92 dB

Channel Separation

>80 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Fuse Rating

25A x 2

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
