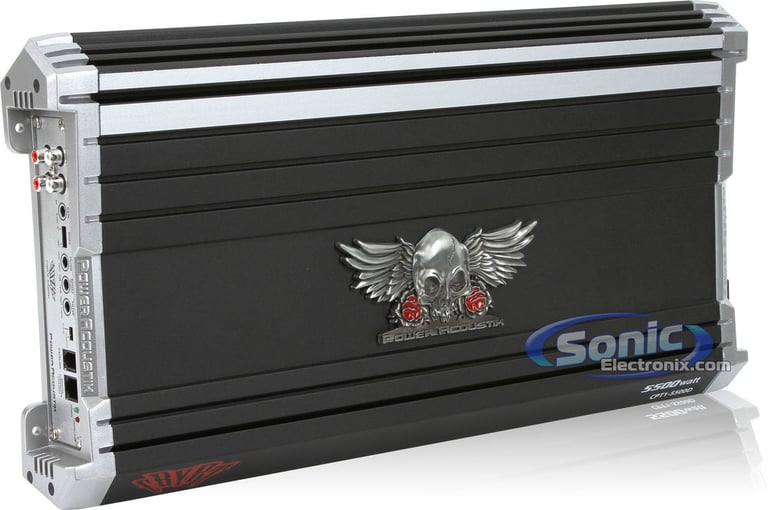

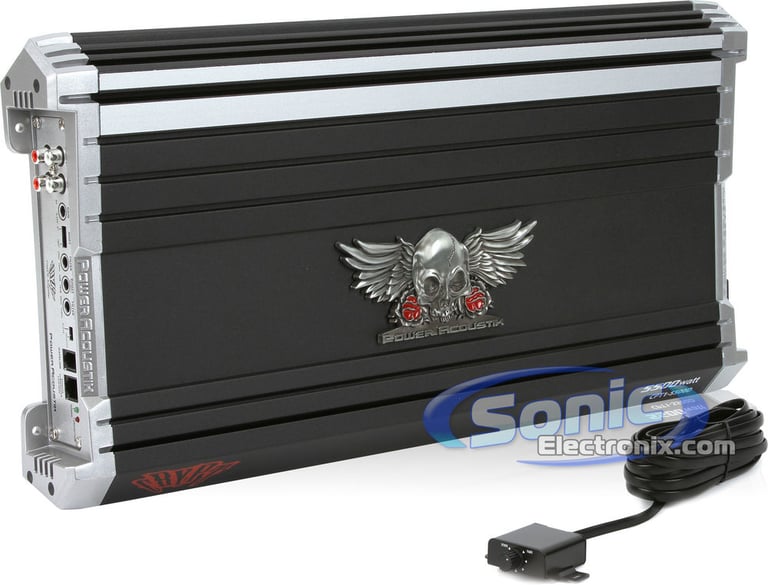

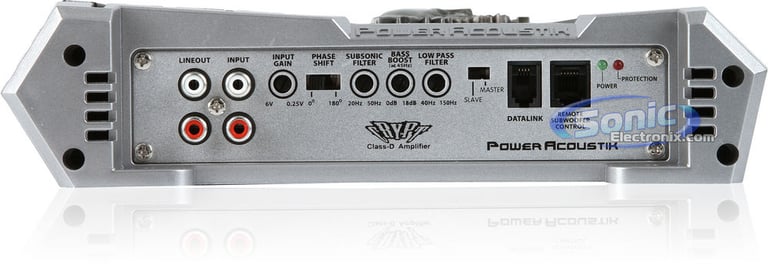

Power Acoustik CPT1-5500D

5500W Max CRYPT Series Class D Monoblock Amplifier

Product videos
highlight-star-icon

• RMS: 1700W x 1 @ 4 ohm, 2500W x 1 @ 2 ohm, 3200W x 1 chan @ 1 ohm
• Total Peak Power: 5500W
• Class D Circuitry
• Bass Boost: 0-12 dB at 45 Hz
• 1 Pair of Preamp Outputs
• Dimensions: 19"L x 9-13/16"W x 2-5/16"H

Learn more about the cpt15500d

We apologize

This item has been discontinued


Loading...
CP1-S main

PAC CP1-S

CAN-Bus Interface Module for select 2015-2024 vehicles from Ford, Tesla

-30.20%

$104.00

List price $149.00

AXLOC-FD2 main

Axxess AXLOC-FD2

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ford with Non-Amplified Systems

3
-10.48%

$93.99

List price $104.99

CP1-FRD2 main

PAC CP1-FRD2

CAN-Bus Plug-and-Play Harness for 24-pin Connector at OBD2 Gateway Module in select 2014-2024 vehicles from Ford

-34.18%

$52.00

List price $79.00

AP4-FD31 main

PAC AP4-FD31

AmpPRO Series Amplifier Integration Interface for select 2018-2024 vehicles from Ford

-12.75%

$479.00

List price $549.00

SB-F-RNGSCG4/10TW1 main

JL Audio Stealthbox® SB-F-RNGSCG4/10TW1

Custom-Fit Loaded 10" Subwoofer Enclosure for select 2019-2025 Ranger

$1,149.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

OEMADAPT6.5 main

DS18 OEMADAPT6.5

Universal 6.5" Speaker Mounting Adapters

C2-350X main

JL Audio C2-350x

50W RMS 3.5” C2 Series 2 Way Coaxial 4-ohm Car Speakers

15

Product Highlights


• RMS: 1700W x 1 @ 4 ohm, 2500W x 1 @ 2 ohm, 3200W x 1 chan @ 1 ohm
• Total Peak Power: 5500W
• Class D Circuitry
• Bass Boost: 0-12 dB at 45 Hz
• 1 Pair of Preamp Outputs
• Dimensions: 19"L x 9-13/16"W x 2-5/16"H

Description


Power Acoustik brand icon

Authorized dealer

  • CRYPT Series Class D Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 1700 watts x 1 chan.
    • 2 ohm: 2500 watts x 1 chan.
    • 1 ohm: 3200 watts x 1 chan.
  • Max power output: 5500 watts
  • Pulse Width Modulated power supply
  • MOSFET PSU Transistors

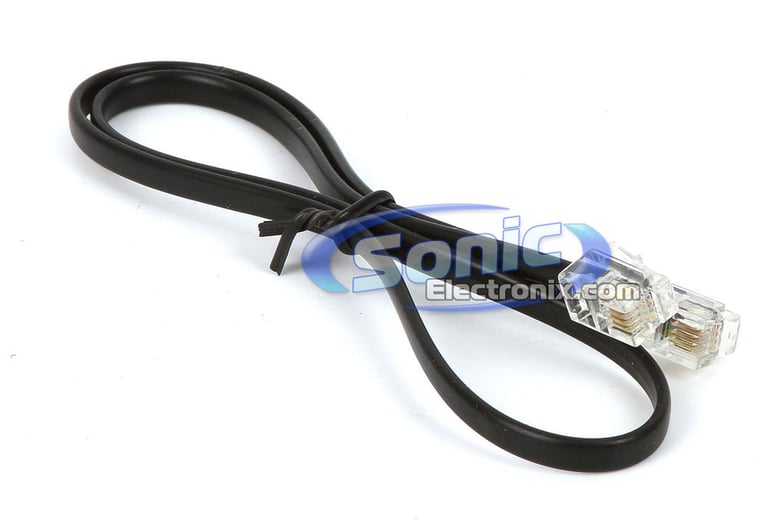

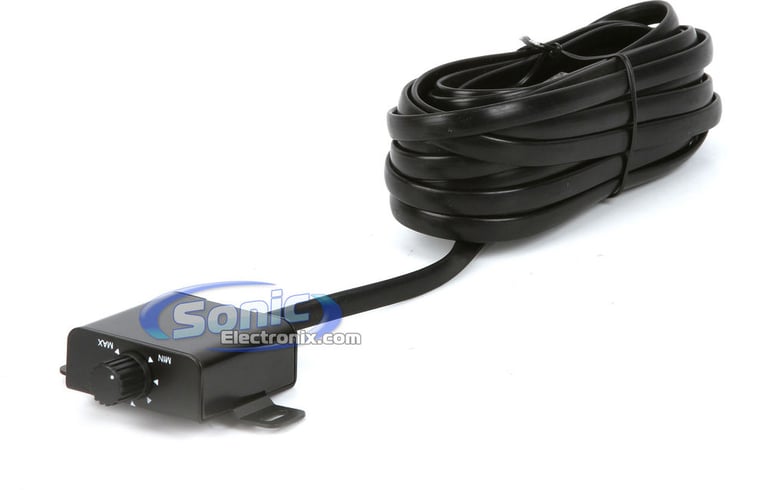

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Selectable bass boost (6, 12 dB at 45 Hz)
  • Soft Start Turn-on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty extruded aluminum chassis heatsink for maximum heat dissipation
  • Black textured finish with silver trim and cast metal badge
  • Nickel-plated RCA level inputs

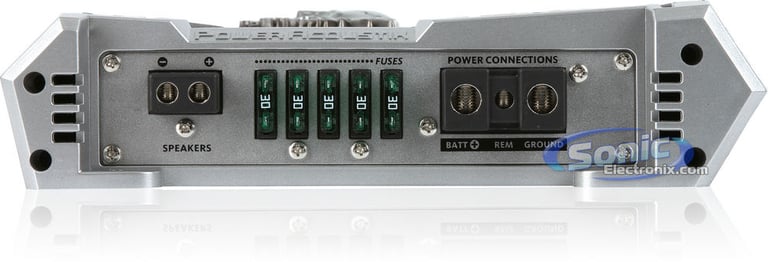

  • Nickel-plated screw terminals
  • Input sensitivity:
    • Level: 200mV-8V
  • Variable low-pass filter (50-250 Hz, 12 dB/octave)
  • Subsonic filter (20-50 Hz)
  • Phase Shift: 0-180 Degrees
  • Frequency response: 15-150 Hz
  • Dimensions: 19"L x 9-13/16"W x 2-5/16"H
  • 2-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
SB-F-RNGSCG4/10TW1 main

JL Audio Stealthbox® SB-F-RNGSCG4/10TW1

Custom-Fit Loaded 10" Subwoofer Enclosure for select 2019-2025 Ranger

$1,149.99

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1700 watts x 1 channel
RMS Power @ 2 ohms
2500 watts x 1 channel
RMS Power @ 1 ohm
3200 watts x 1 channel
Amplifier Specifications
Series
Crypt Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
5500 watts
Total RMS Power Output
3200 watts
Maximum Input Gauge Size
2 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.5%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
6, 12 dB
Remote bass/level controller
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CPT1-5500D

Weight:

16.00lbs

Internal SKU:

cpt15500d

Internal Product ID:

24270
