Big Bang Series 4-Channel Digital Car Amplifier • 1200W Max • 300W x 4-Chan @ 2 Ohm • Strap Two Amps Together for Twice the Power • 3-Way Protection • Variable Bass Boost (0 to +18 dB)

Learn more about the LS-bb4150-RB

Product Highlights

Big Bang Series 4-Channel Digital Car Amplifier • 1200W Max • 300W x 4-Chan @ 2 Ohm • Strap Two Amps Together for Twice the Power • 3-Way Protection • Variable Bass Boost (0 to +18 dB)

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

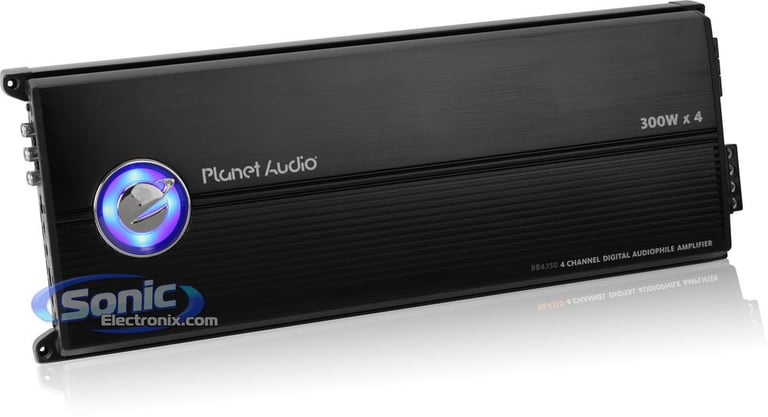

Big Bang Series 4-Channel Digital Car Amplifier
Item Condition: Refurbished
RMS Power Rating:
- 4 ohm: 150 watts x 4 chan.
- Bridged, 4 ohm: 600 watts x 2 chan.
MAX Power Rating:
- 2 ohm: 300 watts x 4 chan.
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +18 dB bass boost)
Soft Start Turn-on
Mono channel operation
Low level inputs and outputs
Strap two amps together for twice the power
3-Way System Protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heatsink for extreme heat dissipation
Chrome-plated RCA level inputs
Chrome-plated set-screw terminals
Input sensitivity:
- Low level: 100mV-2V
- High level: 2V-8V
Variable low-pass filter
Phase Shift: 0-180º
Frequency response: 20-20,000 Hz
Dimensions: 17-3/4"L x 6-7/8"W x 2"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
90 Day Sonic Electronix warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

150 watts x 4 channel

Amplifier Specifications

Number of Channels

4-Channel

Total Peak Power Output

1200 watts

Total RMS Power Output

600 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

50 - 250 Hz

Low-Pass Crossover Frequency

50 - 250 Hz

Signal-to-Noise Ratio

102 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Fuse Rating

40A x 2

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix

Customer Ratings & Reviews

Planet Audio BB4.150 R/B thumbnail image

Overall rating distribution

5 star		33%
4 star		67%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4
Value		4.7
Features		4
Design		4.4
Usability		4.4

Customer Reviews

Sort by:

Stout 4 Channel

In a 2 ohm load per channel this amplifier showed an output of 238wrms per channel according to my o-scope. This is one beefy little four channel. It's powered everything I've thrown at it as far as highs go and even moved my Fi Btl pretty good when I hooked it up to it for fun...

This being a class a/b amplifier, it runs quite warm. I made a fan shroud to cover it and make sure it stayed cool since I have it mounted under my passenger seat.

By Jason on March 8, 2013

2 found this helpful

Report abuse

Aggressive power!

This amp is compact in size but not in performance. This amplifier is very powerful. Make sure you speakers are up to par.

By Big Ken on August 21, 2012

2 found this helpful

Report abuse

Loud but gets real hot

Make sure you mount in well ventilated area as it gets extremely hot quick. It get loud and clear just watch the temp. They should have put a built in fan like the bb2400.1 I have it doesn't. Get as hot maybe warm when played a long time on 1ohm load.

By bass4yoface on September 13, 2012
