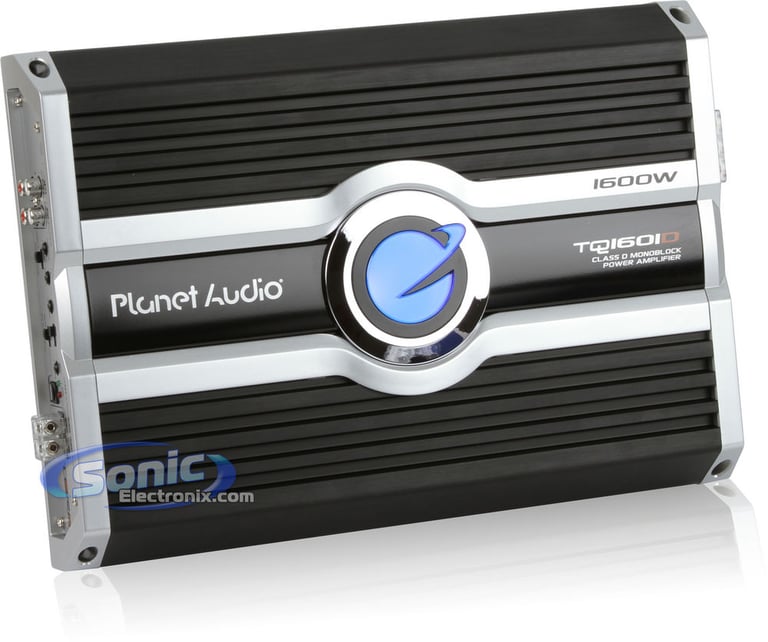

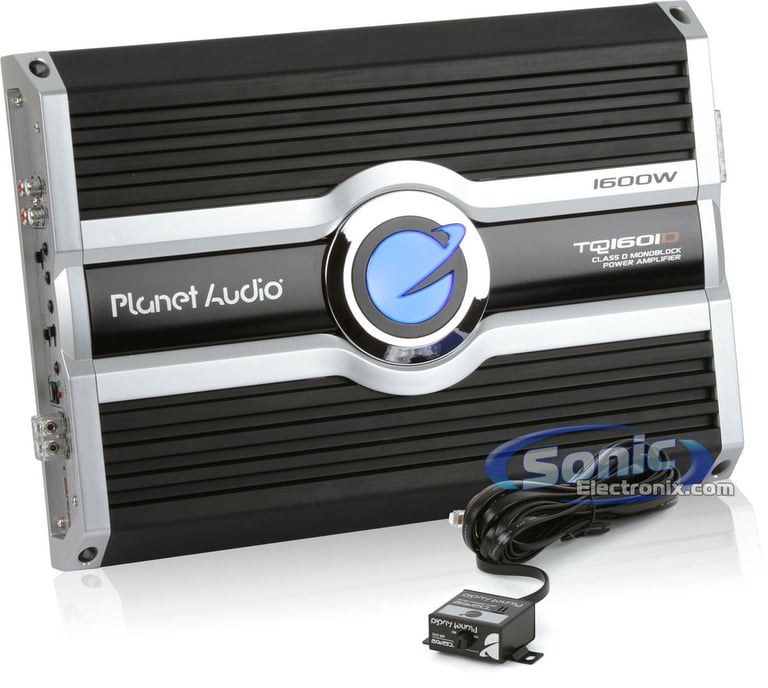

Planet Audio TQ1601D

1600W Max Torq Series Class D Monoblock Power Amplifier with Remote Level Control

Product videos
highlight-star-icon

Max Torq Series Monoblock MOSFET Power Amplifier • 500W x 1 chan @ 4 ohm • 800W x 1 chan @ 2 ohm • Variable Bass Boost • LED Power and Protect Indicators • Illuminated Planet Audio Logo • Subsonic Filter

Learn more about the tq1601d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-7401 main

Metra 72-7401

Install New Speakers in select 2000-2024 vehicles from Nissan, Infiniti, Chevrolet

16
-13.34%

$12.99

List price $14.99

40-NI12 main

Metra 40-NI12

Antenna Adapter for select 2005-2025 vehicles from Nissan, Infiniti, Acura

31
-28.59%

$9.99

List price $13.99

82-7403 main

Metra 82-7403

Tweeter Mounting Brackets for select 2003-2024 vehicles from Nissan, Infiniti, Audi

2
-41.68%

$13.99

List price $23.99

72-7400 main

Metra 72-7400

Install New Speakers in select 1990-2024 vehicles from Nissan, Infiniti, Mercury

20
-46.70%

$7.99

List price $14.99

HRN-HRR-NI1 main

iDataLink Maestro HRN-HRR-NI1 Wiring Harness

Install a New Car Stereo in select 2007-2021 vehicles from Nissan (Requires ADS-MRR or ADS-MRR2 Module)

-31.04%

$79.99

List price $115.99

99-7630 main

Metra 99-7630

Single DIN or Double DIN Stereo Dash Kit for select 2016-2020 Maxima

-45.27%

$51.99

List price $94.99

NI6 main

PAC NI6

Install a New Car Stereo and Retain the Factory Antenna in select 2005-2020 vehicles from Nissan, Infiniti, Suzuki

-62.50%

$9.00

List price $24.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

NSP69 main

NVX NSP69

900W Peak (300W RMS) 6x9" N-Series 2 Way Coaxial Car Speakers

53
-16.67%

$89.99

List price $107.99

Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

39
-30.71%

$51.96

List price $74.99

Product Highlights


Max Torq Series Monoblock MOSFET Power Amplifier • 500W x 1 chan @ 4 ohm • 800W x 1 chan @ 2 ohm • Variable Bass Boost • LED Power and Protect Indicators • Illuminated Planet Audio Logo • Subsonic Filter

Description


Planet Audio brand icon

Authorized dealer

  • Max Torq Series Monoblock MOSFET Class D Power Amplifier
  • RMS Power Rating:
    • 4 ohm: 500 watts x 1 chan.
    • 2 ohm: 800 watts x 1 chan.
    • 1 ohm: 1200 watts x 1 chan.
  • Max power output: 1600 watts x 1 chan.
  • MOSFET power supply

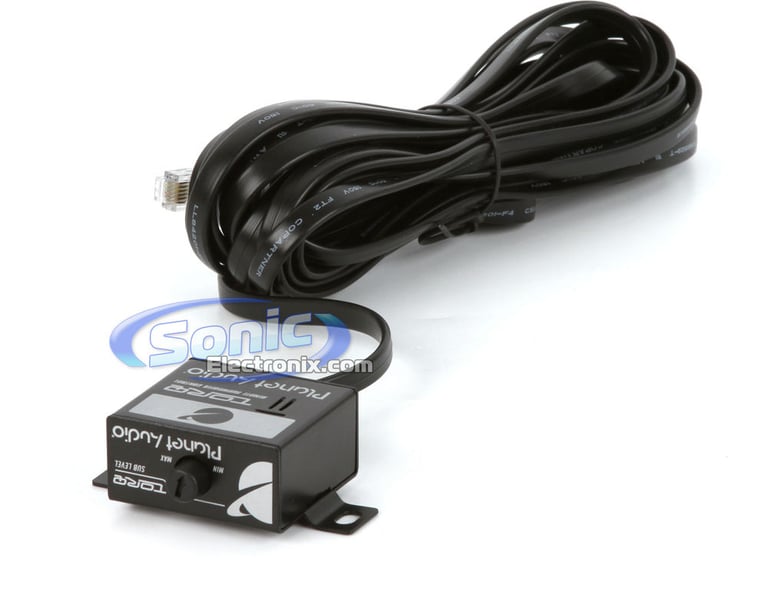

  • Remote level control included
  • LED power (green) and protect (red) indicators
  • Strapping Capability allows you to strap two amps together for twice the power
  • Variable Bass Boost (0-18 dB)
  • Low level inputs & outputs
  • Mono channel operation
  • Illuminated Planet Audio logo
  • Preamp RCA outputs to daisy chain multiple amps
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Chrome-plated RCA level inputs
  • Chrome-plated screw terminals
  • Input sensitivity:
    • Low level: 100mV-2V
    • High level: 2V-8V
  • Variable low-pass filter
  • Subsonic filter (15-40 Hz)
  • Phase Shift: 0-180°
  • Frequency response: 50-150 Hz
  • Signal-to-noise ratio: 100 dB
  • Dimensions: 14-1/2"L x 10"W x 2-3/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(41)

$399.99

List price $429.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(144)

$259.99

List price $335.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(24)

$199.99

List price $219.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
500 watts x 1 channel
RMS Power @ 2 ohms
800 watts x 1 channel
RMS Power @ 1 ohm
1200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1600 watts
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TQ1601D

Weight:

10.50lbs

Internal SKU:

tq1601d

Internal Product ID:

25326

Product and How-to Videos


Customer Ratings & Reviews


Planet Audio TQ1601D thumbnail image

5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

great for the money

Very good amp for the money. It is one ohm stable but not for long periods of time. Maybe an hour and a half at high volume at one ohm then it goes into protect mode. Don't get ne wrong though, I have had it on a 10" Orion hcca and a 15" audioque hdc3 which are both monster subs and it did great. Does rated power and looks good. Excellent amp for the price, can't beat a powerful one ohm stable amp for under $200. Very clean at 2 ohms too.

By will on August 15, 2011

19 found this helpful
