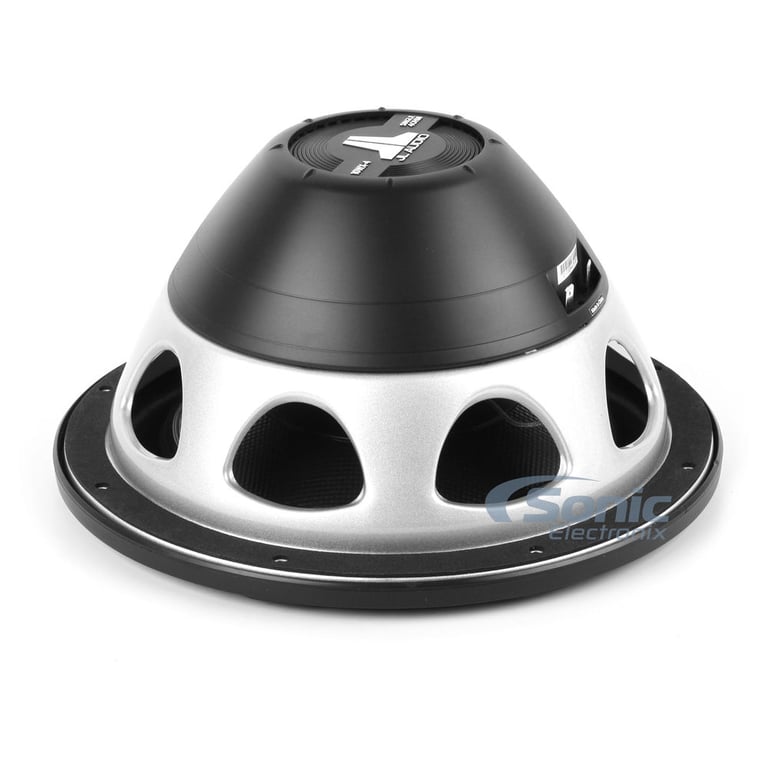

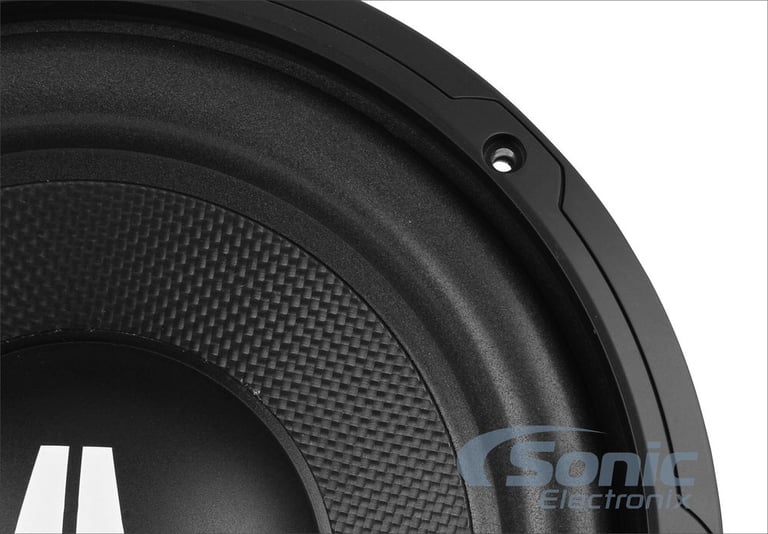

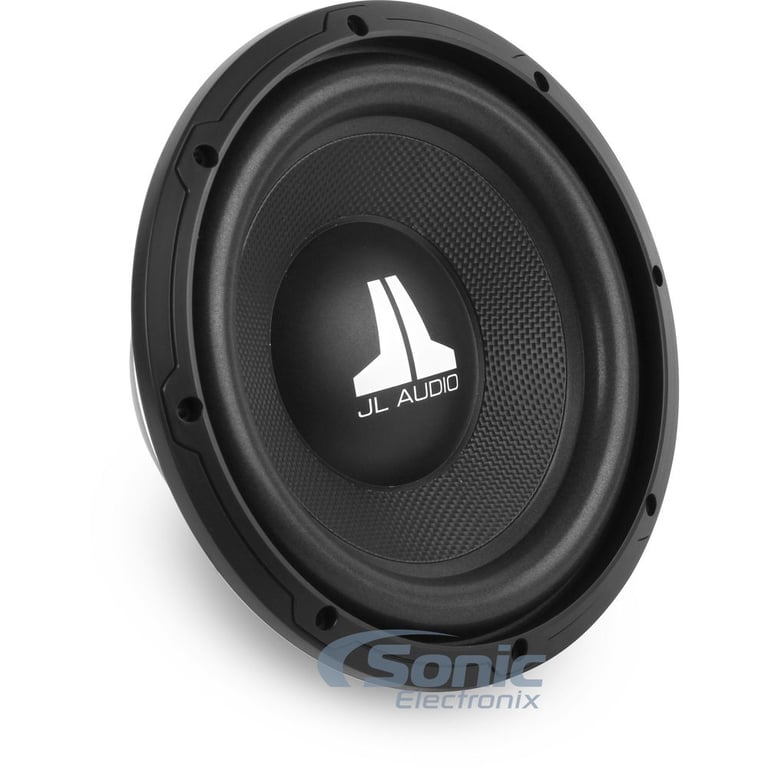

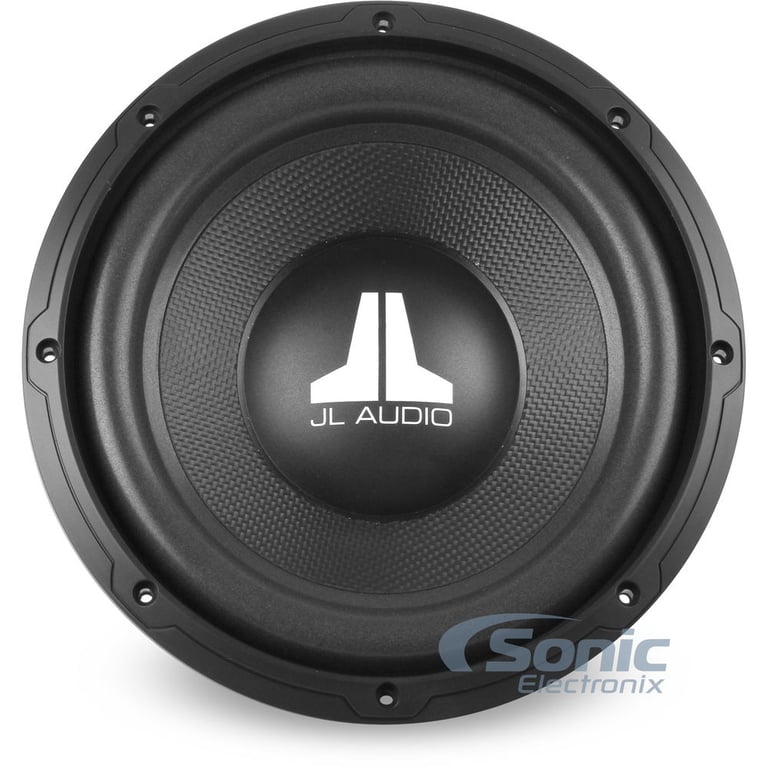

JL Audio 10WX-4

10" Single 4 ohm WX Series Car Subwoofer

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

• 400W Peak
• 200W RMS
• Polypropylene Woofer Cone Material
• Elevated Frame Cooling
• Integrated Foam Rear Gasket
• Resists Breakdown Under Extreme Conditions

Learn more about the 10wx4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

10wxv24 thumbnail

JL Audio 10WXv2-4

OUR PRICE: $89.99

View item

Loading...
72-9300 main

Metra 72-9300

Install New Car Speakers in select 1976-2015 vehicles from Subaru, Nissan, Mazda

8
-40.03%

$8.99

List price $14.99

70-8901 main

Metra 70-8901 Wiring Harness

Install a new car stereo in select 1990-2013 vehicles from Subaru

12
-30.03%

$6.99

List price $9.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
-12.50%

$69.99

List price $79.99

VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-15.39%

$109.99

List price $129.99

Product Highlights


• 400W Peak
• 200W RMS
• Polypropylene Woofer Cone Material
• Elevated Frame Cooling
• Integrated Foam Rear Gasket
• Resists Breakdown Under Extreme Conditions

Description


JL Audio brand icon

Authorized dealer

Digitally Optimized So You Don't Have To

For years JL Audio has produced subwoofers with highly accurate, tight and clean bass reproduction. For many years more JL will continue its legacy of hard hitting bass and the WX series is no exception. These woofers work great in smaller more compact enclosures which saves trunk space and gives that bass we have grown to love. This woofer utilizes elevated frame cooling techniques to deliver cold air above the top plate of the voice coil helping to resist breakdown in extreme situations. A polypropylene cone has been used for durability and a foam surround provides exceptional excursion for a woofer of this size. Proprietary Dynamic Motor Analysis (DMA) modeling gives a highly accurate computer reproduction of the woofers physical behavior. This helps JL Audio engineers analyze the distortion mechanisms of the speakers and make adjustments to improve loudspeaker behavior. For reduced distortion, improved performance and stellar sound quality the WX series woofers have it made!

Product Features:

  • 10" Single 4 Ohm WX Series Subwoofer
  • Power Handling:
    • Peak: 400 watts
    • RMS: 200 watts
    • Recommended Power Range: 50-200 watts
  • Impedance: 4 ohm
  • Polypropylene woofer cone material
  • Foam woofer surround type
  • Proprietary dynamic motor analysis (DMA) improves motor behavior
  • Elevated frame cooling delivers cold air above the top plate to the voice coil
  • resists breakdown under extreme conditions
  • Integrated foam rear gasket which provides an optimal seal
  • Great application flexibility with small or medium enclosures
  • Frequency response: 25-250 Hz
  • Sensitivity: 86.06 dB
  • Black Steel-Mesh Grille Insert Available: JL Audio SGRU-10
  • 1-year Manufacturer's Warranty
JL Audio 10WX Recommended Power Range

Product history:

JL Audio 10WXv2-4 thumbnail
(newest, current model)
JL Audio 10WX-4 thumbnail
(previous model, replaced by JL Audio 10WXv2-4)

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JL Audio 10WX-4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JL Audio 10WX-4 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JL Audio 10WX-4 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JL Audio 10WX-4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Series
WX Series
Subwoofer Size
10"
Peak Power Handling
400 watts
RMS Power Handling
200 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
25 - 250 Hz
Sensitivity
86.06 dB
Xmax (millimeters)
9.8 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Foam
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.65 cubic feet
Maximum Sealed Box Volume
0.65 cubic feet
Minimum Ported Box Volume
1.0 cubic feet
Maximum Ported Box Volume
1.0 cubic feet
Top-Mount Depth (Mounting Depth)
4-7/8"
Cutout Diameter
8-13/16"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

10WX-4

Weight:

6.73lbs

Internal SKU:

10wx4

Internal Product ID:

25660

Product and How-to Videos


Customer Ratings & Reviews


JL Audio 10WX-4 thumbnail image

5 star
67%
4 star
22%
3 star
11%
2 star
0%
1 star
0%



Durability
4.6
Value
4.6
Features
4.5
Design
4.6
Usability
4.5

Customer Reviews

Sort by:

Loading...

more than i expected

i bought one 10in cuz they were good on my wallet and was highly surprised at its output.. it out hit a 12 in Memphis then outhit 2 12in alpine i jus purchased a 2nd one to install and easy to install

By hunter4life on October 24, 2010

27 found this helpful


Great Sub!

I have this sub in my 06 Frontier pick-up truck. It is exactly what I as looking for, sounds great and was on sale. Would highly recommend this to anyone.

By Gregory on April 1, 2012

25 found this helpful


Great sub

For the price you couldn't ask for a better sub, i plan on purchasing another.

By Shea on April 7, 2012

24 found this helpful


good bass

I would recommend these subs for a tight areas. I have them in my '95 GMC extended cab and they do the job great.

By Mike on March 20, 2012

24 found this helpful


these subs hit

I managed to fit three of these in a single cab truck and i can say they hitt very hard. I do recommend these they are a great starter/entry level sub.
Pros: very hard tight hitting bass and clean sound
Cons: none

By freddie on January 1, 2012

24 found this helpful


JL....

I love those subs. i have two in a truck box under my set and the pound. and im only pushin them with a 600 watt boss amp. so if u want a sub that u can hear comein down the street and dont require a lot of power i would get JLs hands down.

By jomamma on November 6, 2010

22 found this helpful


Nice good sound quality

I have a pair of these subs. They are great for sound quality. Your not gonna flex the roof of your car or turn heads with these subs. But they sound good on mids. The lows dont really pick up. I bought a set of used ones for $30 for both subs. They are definitely worth that. But jl audio is way too expensive for what you get. You can get the same quality from mtx and kicker. And they are half the price as jl audio. For example- you can get two kicker cvr 12" subs for less than 2 of these 10's. And they sound way better. However, higher end jl audio sounds great. Not sonics fault that jl audio is so expensive, Sonic is the cheapest you will find car audio. Even on jl audio. And they have great service and fast shipping.

By Audio freak on September 25, 2012

21 found this helpful


great deal

Affordable, really good quality, sound is super great, seller provides fast shipping, very satisfied.

By oscar on February 14, 2012

20 found this helpful


AWESOME!

Great performance and takes a pounding! Great buy for the money!! I've had them over 5 years now and they work perfectly.

By Rekless on May 3, 2016 Checkmark Icon Verified purchase

12 found this helpful




No picture

Sonic Sub Box: 1BV12 OB

(MINOR DAMAGE) Single 12" Bandpass Vented MDF Enclosure

$30.00

List price $89.99

1SL15-2.0-GRAY small

Sonic Sub Box: 1SL15-2.0 (Gray)

Single 15" Sealed MDF Enclosure

(2)

$29.99

List price $59.99

CEX12TE small

Audiobahn CEX12TE

Triple 12" Subwoofer Enclosure Custom Fit for a Ford Expedition

$99.99

List price $249.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 Ford Taurus

2016 Audi RS7

1978 Triumph TR8

2004 Subaru Impreza

2017 Dodge Durango

2015 Dodge Viper

2005 Chrysler Pacifica

2018 Ford Explorer

2011 BMW 760Li

2010 Dodge Ram 2500

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
