Name: Refurbished Rockford Fosgate LS-T1500-1bdCP-RB
Brand: Rockford Fosgate
SKU: ls-t15001bdcp-rb
Price: 529.99 USD
Availability: Discontinued

by Rockford Fosgate

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

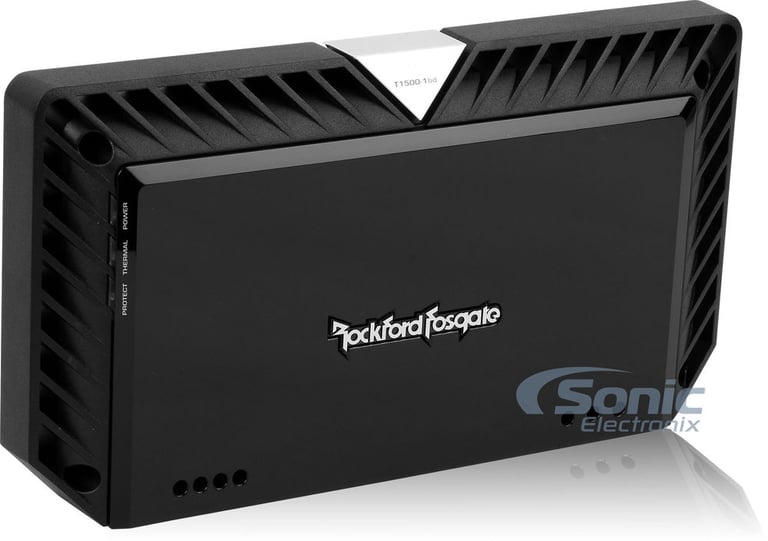

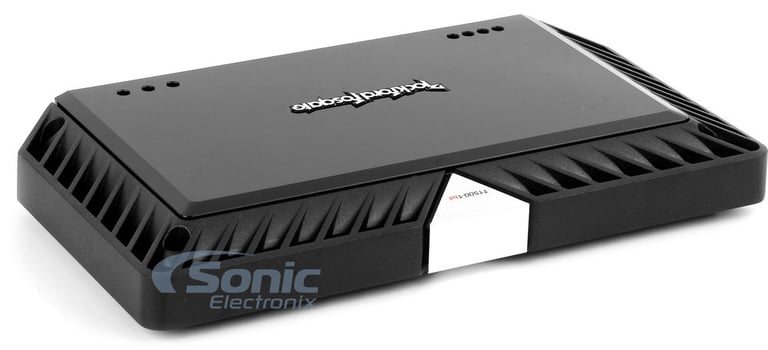

Refurbished Rockford Fosgate LS-T1500-1bdCP-RB Image 1 — Refurbished Rockford Fosgate LS-T1500-1bdCP-RB

Refurbished Rockford Fosgate LS-T1500-1bdCP-RB Image 2 — Refurbished Rockford Fosgate LS-T1500-1bdCP-RB

Refurbished Rockford Fosgate LS-T1500-1bdCP-RB Image 3 — Refurbished Rockford Fosgate LS-T1500-1bdCP-RB

Refurbished Rockford Fosgate LS-T1500-1bdCP-RB Image 4 — Refurbished Rockford Fosgate LS-T1500-1bdCP-RB

Refurbished Rockford Fosgate LS-T1500-1bdCP-RB Image 5 — Refurbished Rockford Fosgate LS-T1500-1bdCP-RB

Refurbished Rockford Fosgate LS-T1500-1bdCP-RB Image 6 — Refurbished Rockford Fosgate LS-T1500-1bdCP-RB

Refurbished Rockford Fosgate LS-T1500-1bdCP-RB Image 7 — Refurbished Rockford Fosgate LS-T1500-1bdCP-RB

Refurbished Rockford Fosgate LS-T1500-1bdCP-RB-video

Product videos

Product highlights

• RMS Power: 1000W x 1 @ 4 ohm, 1500W x 1 @ 2 ohm, 1500W x 1 @ 1 ohm
• Total RMS Power: 1500W
• CEA-2006 Compliant
• Variable Bass Boost: 0 to +18 dB at 45 Hz
• Ultra Efficient Class bD Circuitry
• Dimensions: 14-15/16"L x 8-3/16"W x 2-3/16"H

Learn more about the ls-t15001bdcp-rb

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

General Features:

Refurbished Constant Power Series Monoblock Class bD Car Amplifier
RMS Power Rating (14.4V):
- 4 ohm: 1,000 watts x 1 chan.
- 2 ohm: 1,500 watts x 1 chan.
- 1 ohm: 1,500 watts x 1 chan.
Remote bass level input (Punch PEQ remote level control sold separately)
LED power (blue), protect (yellow) and thermal (red) indicators
Variable Bass Boost (0 to +18 dB bass boost at 45 Hz)
Gyrator based punch EQ eliminates frequency shift with boost
Mono channel operation

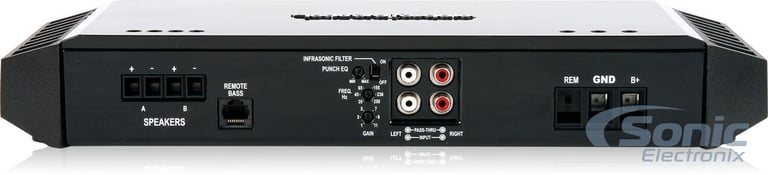

Audiophile grade speaker connections
Preamp Pass-Thru RCA outputs to daisy chain multiple amps
3-Way System Protection circuitry (thermal, overload, and speaker short protection)
Dual speaker terminals simplify the hookup of multiple speakers
Heavy duty cast aluminum convection heatsink with Direct Thermal Management evenly distributes heat across the entire heatsink for improved efficiency
Nickel-plated RCA level inputs
Nickel-plated clamp wire terminals
Input sensitivity:
- Level: 150mV-5V
Variable low-pass filter (35-250 Hz, 24 dB/octave Butterworth)
Selectable Infrasonic filter (12 dB/Octave, -3dB at 28 Hz)
Damping factor: >200
CEA-2006 compliant amplifier
Frequency response: 20-250 Hz
Designed and Engineered in the U.S.A.
External 200A fuse required and sold separately
Dimensions: 14-15/16"L x 8-3/16"W x 2-3/16"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
90 Day Sonic Electronix Warranty

Rockford Technology:

Class bd topology is more efficient then class AB and has lower distortion than class D designs
Constant Power technology instantaneously delivers maximum output power regardless of speakers varying impedance
Differential input circuitry measures both (+) and (-) input signals and subtracts the noise creating a clean signal

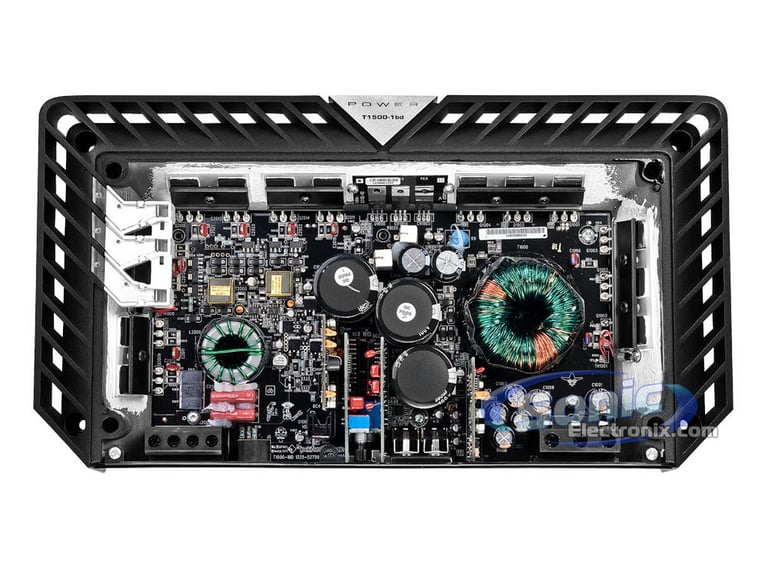

Discrete Surface Mount (DSM) components utilize 1% tight-tolerances improving efficiency, decreasing cross-talk and lowering operating temperatures
MEHSA3 (Maximum Efficiency Heat Sink Application) reduces MOSFET temperatures, lowers distortion, increases durability and prolongs output device lifespan
Custom TO-247 MOSFETs have 60% more metal tab area increasing power capacity, lowering impedance and improving heat dissipation

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

1000 watts x 1 channel

RMS Power @ 2 ohms

1500 watts x 1 channel

RMS Power @ 1 ohm

1500 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

1500 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

<0.8%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

35 - 250 Hz

Subsonic Filter

28 Hz

Signal-to-Noise Ratio

100 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

Rockford Fosgate PEQ

Fuse Rating

200A x 1

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
