Name: Alpine PDX-M12-OPEN BOX
Brand: Alpine
SKU: LS-pdxm12-OB
Price: 539.95 USD
Availability: Discontinued

by Alpine

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

Alpine PDX-M12-OPEN BOX Image 1 — Alpine PDX-M12-OPEN BOX

Alpine PDX-M12-OPEN BOX Image 2 — Alpine PDX-M12-OPEN BOX

Alpine PDX-M12-OPEN BOX Image 3 — Alpine PDX-M12-OPEN BOX

Alpine PDX-M12-OPEN BOX Image 4 — Alpine PDX-M12-OPEN BOX

Alpine PDX-M12-OPEN BOX Image 5 — Alpine PDX-M12-OPEN BOX

Alpine PDX-M12-OPEN BOX Image 6 — Alpine PDX-M12-OPEN BOX

Alpine PDX-M12-OPEN BOX Image 7 — Alpine PDX-M12-OPEN BOX

Alpine PDX-M12-OPEN BOX Image 8 — Alpine PDX-M12-OPEN BOX

Alpine PDX-M12-OPEN BOX Image 9 — Alpine PDX-M12-OPEN BOX

Alpine PDX-M12-OPEN BOX Image 10 — Alpine PDX-M12-OPEN BOX

Alpine PDX-M12-OPEN BOX Image 11 — Alpine PDX-M12-OPEN BOX

Alpine PDX-M12-OPEN BOX Image 12 — Alpine PDX-M12-OPEN BOX

Alpine PDX-M12-OPEN BOX Image 13 — Alpine PDX-M12-OPEN BOX

Product videos

Product highlights

• RMS: 1200W x 1 @ 4 ohm, 1200W x 1 @ 2 ohm
• Total RMS Power: 1200W
• CEA-2006 Compliant
• 6-Layer Glass Epoxy PC Board and Compact Size
• Thermal Protection Circuitry
• Dimensions: 7-9/16"D x 10-1/8"W x 2"H

Learn more about the LS-pdxm12-OB

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

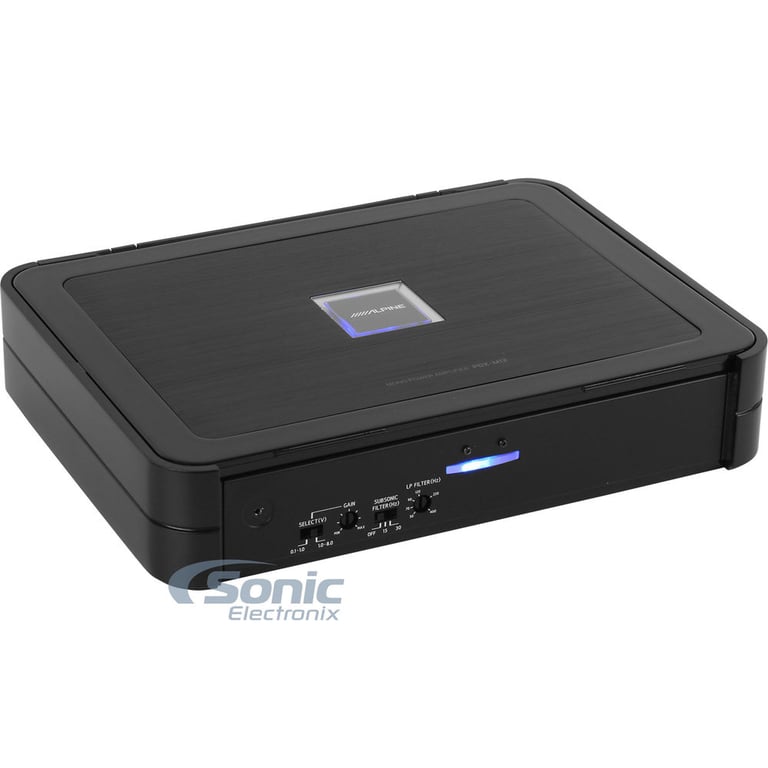

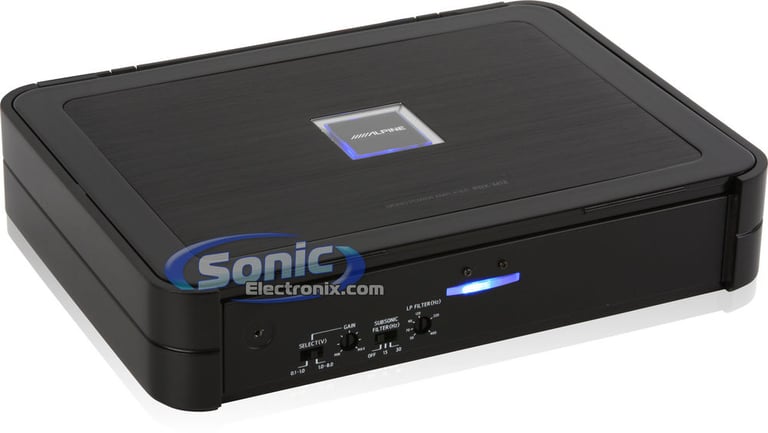

PDX Series 1-Channel Class D Car Amplifier
RMS Power Rating (@ 14.4V):
- 4 ohm: 1200 watts x 1 chan.
- 2 ohm: 1200 watts x 1 chan.
Total RMS output: 1200 watts
DC-DC PWM Power supply with STAR circuitry

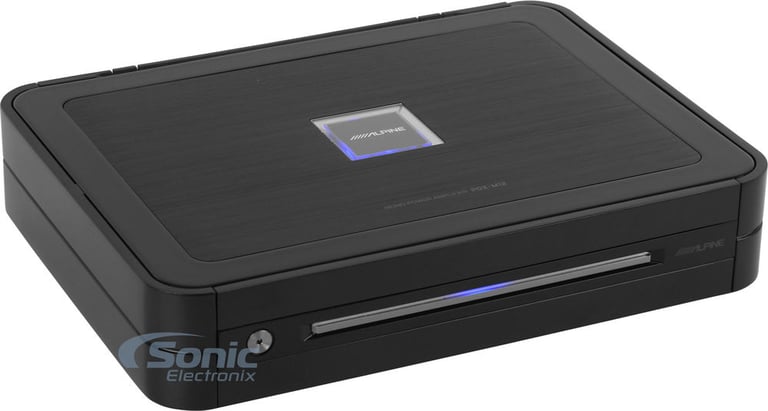

Blue LED power/status indicator conveniently located on the top
Discrete pre-amp stage
6-Layer glass epoxy PC board
Automatic over-current protection system
Soft start turn-on prevent initial system popping
1-Channel monoblock operation
1 Set of pre-amp outputs
System Protection circuitry keeps the amp running properly
Large aluminum alloy heatsink for extreme heat dissipation
Gold-plated RCA level inputs

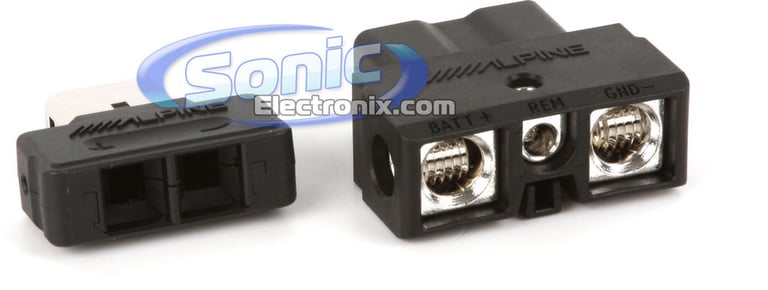

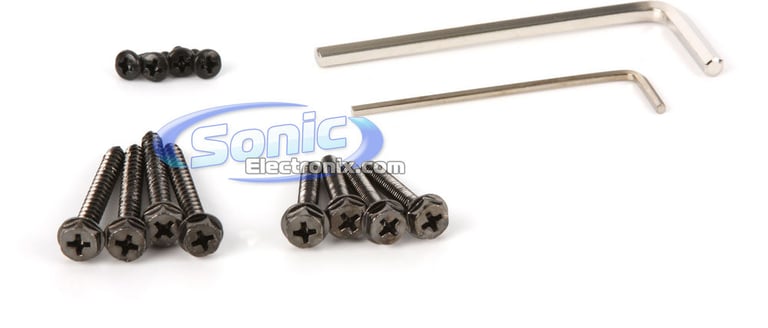

Proprietary screw terminals ensure a solid and secure connection
Input sensitivity: 0.1-8 V with input level

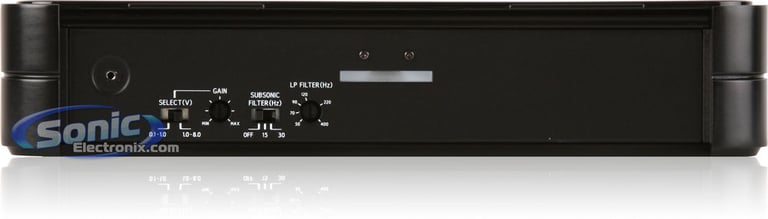

Variable low-pass filter (50-400 Hz, 24 dB/octave)
CEA-2006 compliant amplifier
Frequency response: 5-100,000 Hz

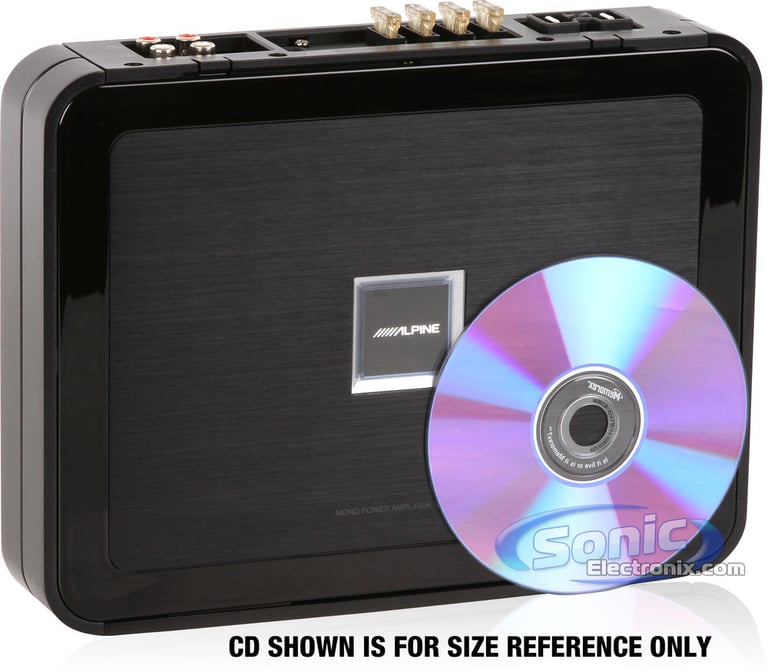

Dimensions: 7-9/16"D x 10-1/8"W x 2"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
1-year Sonic Electronix warranty

Alpine products are warranted solely by Sonic Electronix, Inc. under the same period and terms as the original Alpine warranty. Sonic Electronix is not an Authorized Alpine Dealer and Alpine requires all merchandise purchased by Sonic Electronix customers to be returned solely to Sonic Electronix. Alpine products are also covered by our Standard Return Policy for returns on exchanges or refunds within 30 days from the date of purchase.

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

1200 watts x 1 channel

RMS Power @ 2 ohms

1200 watts x 1 channel

RMS Power @ 1 ohm

Not Stable

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

1200 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.004%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

50 - 400 Hz

Signal-to-Noise Ratio

92 dB

Remote bass/level controller

Yes

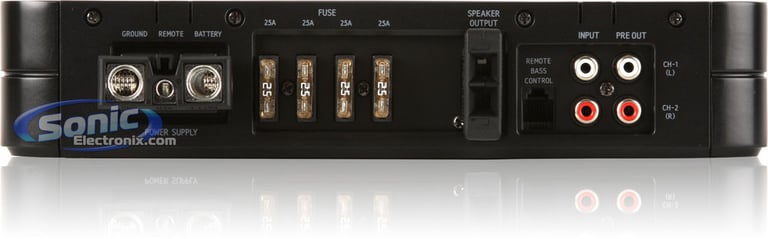

Fuse Rating

25A x 4

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix
