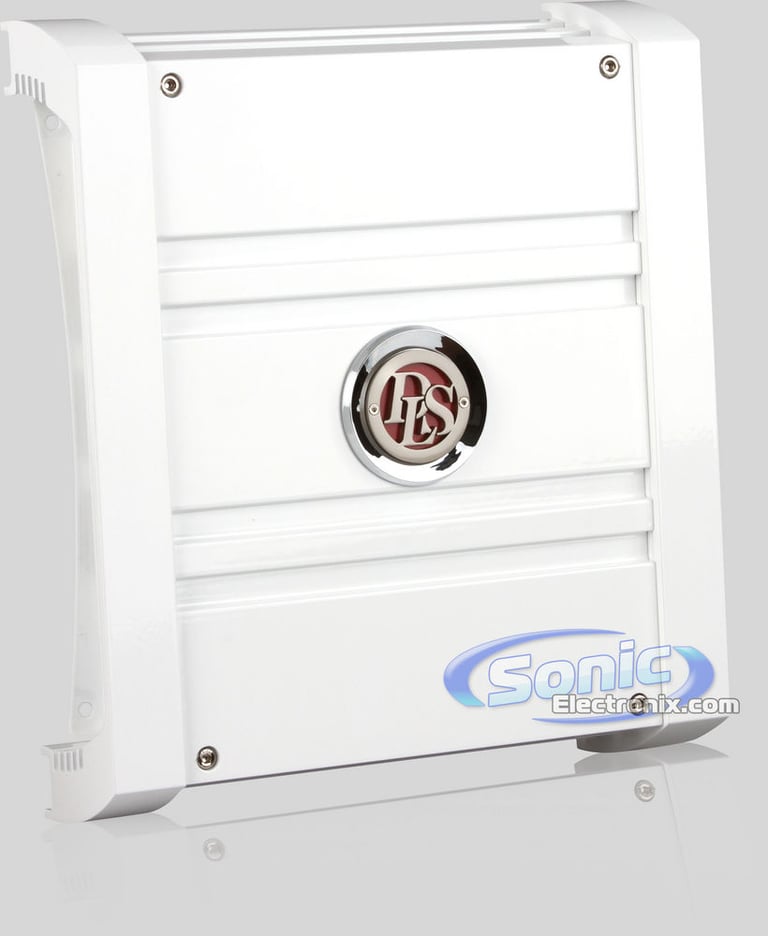

DLS MR A 22

200W RMS, 2-Channel Class AB Marine Amplifier

DLS
Shop all DLS
highlight-star-icon

• 200W RMS
• Lacquer Coated PC Board Protects Against Moisture
• Speaker-Level Inputs
• Preamp RCA Outputs
• 3-Way System Protection Circuitry
• Removable Side Flanges

Learn more about the dlsmra22

We apologize

This item has been discontinued


Loading...
FD1426B main

Scosche FD1426B

Double DIN Stereo Dash Kit for select 2004-2009 vehicles from Ford, Mercury, Lincoln (Black)

118
-6.69%

$13.95

List price $14.95

70-5520 main

Metra 70-5520 Wiring Harness

Install a new car stereo in select 2003-2016 vehicles from Ford, Mercury, Lincoln

56
99-5807 main

Metra 99-5807 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2005-2009 vehicles from Ford, Mercury

3
-43.76%

$17.99

List price $31.99

FMK540 main

American International FMK540

Single DIN or Double DIN Stereo Dash Kit for select 2004-2016 vehicles from Ford, Lincoln, Mercury

14
-71.82%

$10.99

List price $39.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMX129BT main

Kenwood DMX129BT

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

2
-26.30%

$199.00

List price $270.00

TS-G6930F main

Pioneer TS-G6930F

800W Peak (90W RMS) 6x9" G-Series 3-way 4-ohm Coaxial Car Speakers

14
-25.01%

$59.99

List price $80.00

480BRGB main

Boss Elite 480BRGB

Double DIN Digital Media Receiver with Bluetooth

17

JVC KW-R950BTS

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

6
-10.58%

$169.00

List price $189.00

Pioneer TS-A6881F

700W Peak (160W RMS) 6x8" A-Series 4-way 4-ohm Coaxial Car Speakers

5
-40.01%

$65.99

List price $110.00

Description


DLS brand icon

Authorized dealer

  • 2-Channel Class AB Marine Amplifier
  • RMS Power Rating (13.8V):
    • 4 ohm: 60 watts x 2 chan.
    • 2 ohm: 100 watts x 2 chan.
    • Bridged, 4 ohm: 200 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • Lacquer coated PC board protects against moisture
  • LED power (green) and protect (red) indicators
  • Rotatable and removable logo
  • Removable side flanges
  • Soft Start Turn-on
  • 2/1 channel operation
  • Speaker-level inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Input sensitivity:
    • Level: 250mV-5V
  • Variable high-pass filter (15-500 Hz)
  • Variable low-pass filter (50-500 Hz)
  • Damping factor: >100
  • Frequency response: 10-35,000 Hz
  • Dimensions: 10-9/16"D x 9-1/16"W x 2-15/16"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Manufacturer's warranty

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 2 channel
RMS Power @ 2 ohms
100 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
200 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total RMS Power Output
200 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs

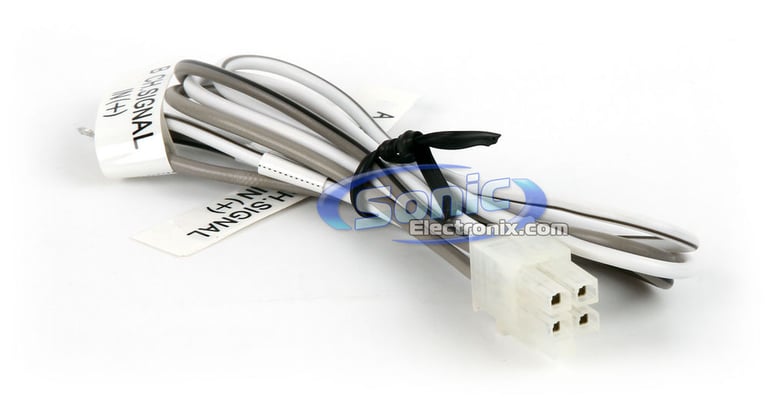

Yes - with included adapter
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
15 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
>100 dB
Remote bass/level controller
No
Fuse Rating
25A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

DLS

Model Number:

MR A 22

Weight:

5.00lbs

Internal SKU:

dlsmra22

Internal Product ID:

26436
