Description


DLS brand icon

Authorized dealer

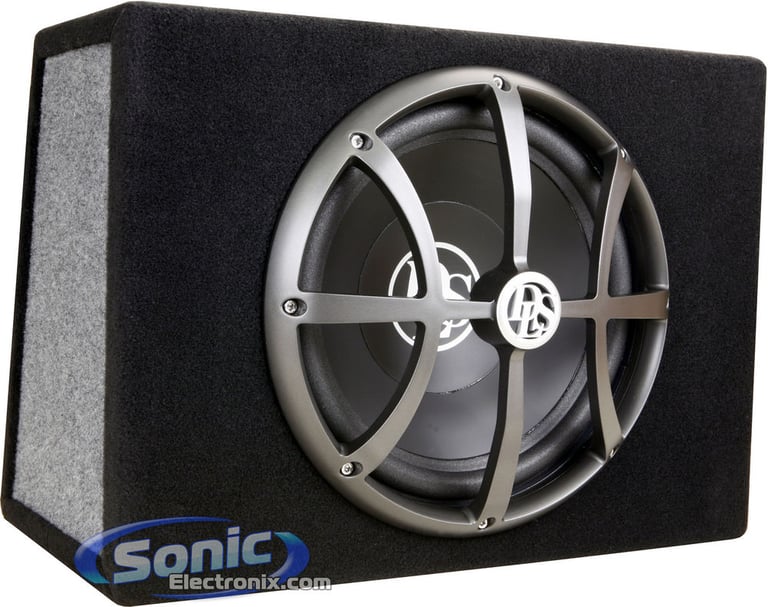

Enclosure Features:
  • 12" Active Loaded Subwoofer Box with Built-in Amplifier
  • Loaded with one DLS RW12 12" Subwoofer
  • Built-in SBA185 Amplifier
  • 1 Cubic foot vented enclosure
  • Durable black carpet
  • Protective woofer grille
  • DLS logo on front of enclosure
  • Dimensions: 10-3/16"D1 x 7-15/16"D2 x 19-3/4"W x 14-3/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Subwoofer Features:
  • 12" Single 2 Ohm Reference Series Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 265 watts
  • Impedance: Single 2 ohm
  • Polypropylene cone woofer
  • Foam surround
  • Steel basket
  • Made for sealed enclosures
  • 2" Single 2 ohm voice coil
  • 55 oz. Magnet structure
  • Frequency response: 20-2000 Hz
  • Sensitivity: 87 dB

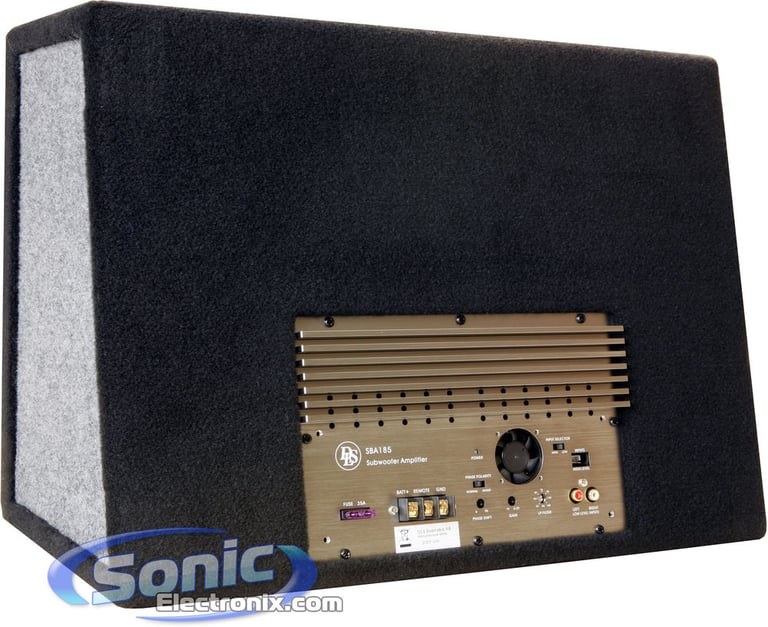

Amplifier Features
  • SBA-185 Monoblock Class AB Amplifier
  • Power Handling:
    • 4 ohm: 180 watts x 1 chan.
    • 2 ohm: 265 watts x 1 chan.
  • High and low level input
  • Built-in cooling fan
  • Frequency Range: 25-160 Hz
  • Input Sensitivity: 2-7 volts
  • Low Pass Filter: 50-250 Hz
  • High Pass Filter: Subsonic 25 Hz
  • Phase Control: 0°-180°
  • Dimensions: 6-5/16"D x 10"W x 2-5/8"H

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(196)

$369.95

List price $399.95

P300-10 small

Rockford Fosgate Punch P3 P300-10

• 10" Subwoofer 300 Watts RMS
• Rockford Fosgate Sealed Enclosure
• 300 Watt Class-D Mono Block
• Bass Remote Included
• Low And High level Inputs

(58)

$339.99

List price $339.99

QB12SPA small

NVX QB12SPA

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$199.99

List price $299.98

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
180 watts x 1 channel
RMS Power @ 2 ohms
265 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
25 Hz
Remote bass/level controller
No
Fuse Rating
35A x 1
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
265 watts
Total RMS Power Handling
500 watts
Woofer Surround
Polypropylene
Woofer Composition
Fiber Impregnated
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 ohm
Sensitivity
87 dB
Frequency Response
25 - 160 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Hatchback Style, Angled Back
Height
14-3/16"
Width
19-3/4"
Depth
10-3/16"
Second Width
7-15/16"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

DLS

Model Number:

ASB 212

Weight:

35.00lbs

Internal SKU:

dlsasb212

Internal Product ID:

26568
