PowerBass Xtreme XAX-500D

500W RMS XAX Series Class D Monoblock Mini Amplifier

PowerBass
Shop all PowerBass
Product videos
highlight-star-icon

XAX Series Monoblock Class D Mini Car Amplifier • 1000W MAX • High Efficiency SMD Circuit Technology • Damping Control Circuit • Blue LED Logo, Power And Speaker Terminal Lighting • Platinum-Plated Tiffany RCA Inputs

Learn more about the xax500d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Product Highlights


XAX Series Monoblock Class D Mini Car Amplifier • 1000W MAX • High Efficiency SMD Circuit Technology • Damping Control Circuit • Blue LED Logo, Power And Speaker Terminal Lighting • Platinum-Plated Tiffany RCA Inputs

Description


PowerBass brand icon

Authorized dealer

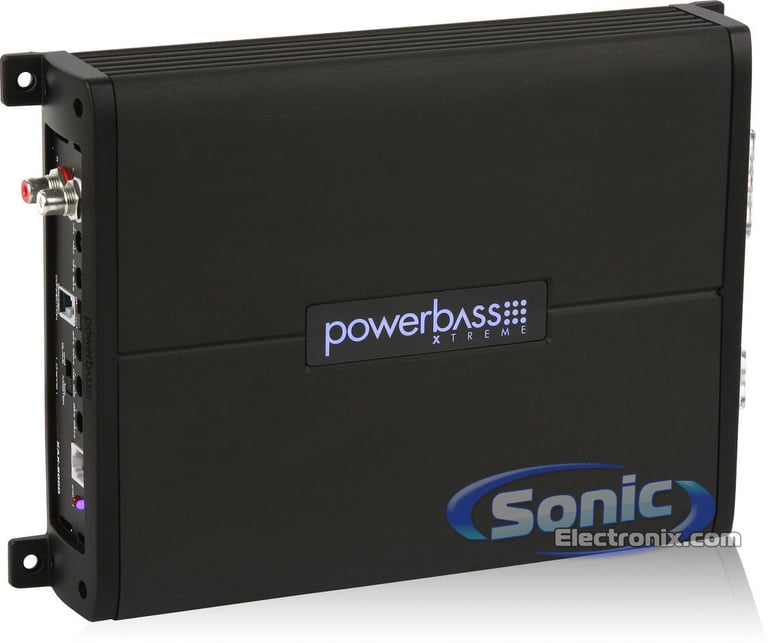

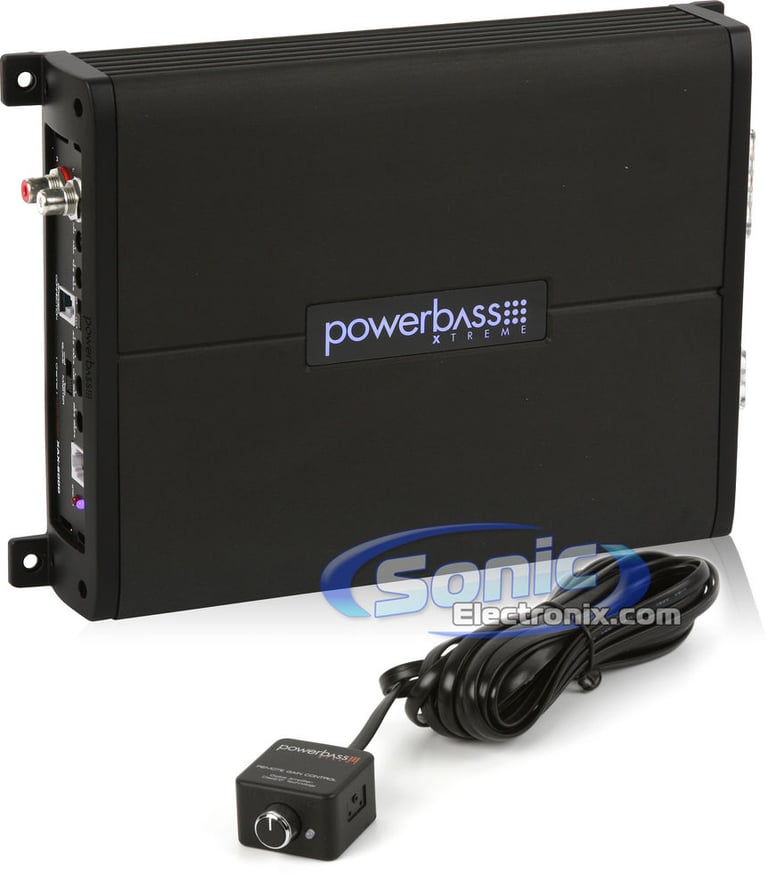

  • XAX Series Monoblock Class D Mini Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 250 watts x 1 chan.
    • 2 ohm: 400 watts x 1 chan.
    • 1 ohm: 500 watts x 1 chan.
  • MAX Power Rating:
    • 1 ohm: 1,000 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • Philips/NXP chip set with double sided copper plated PCB

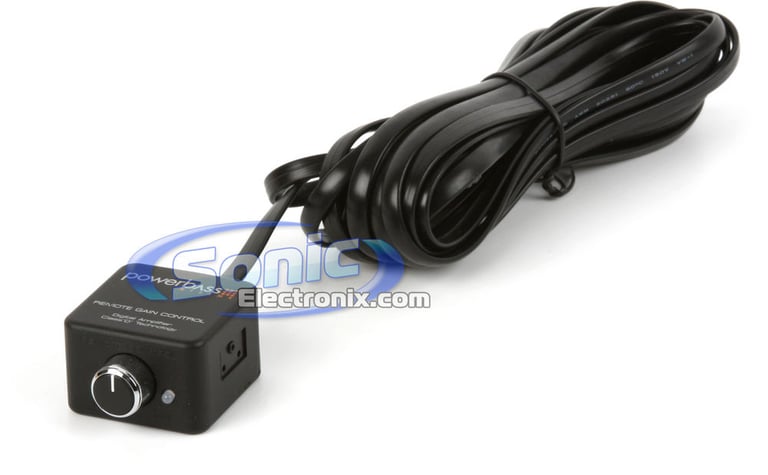

  • Wired remote gain level control included
  • LED power (blue) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 40-100 Hz)
  • Virtual silence turn on/off mute circuit
  • High damping control circuit
  • High efficiency SMD circuit technology
  • Ultra low current draw with more than a 85% efficiency rating
  • Dual link power doubling circuitry
  • Mono channel operation
  • Speaker-level inputs with signal sensing for automatic turn-on
  • Blue LED logo, power and speaker terminal lighting
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink with induction cooling fan for extreme heat dissipation
  • Platinum-plated Tiffany RCA level inputs
  • Platinum-plated screw terminals

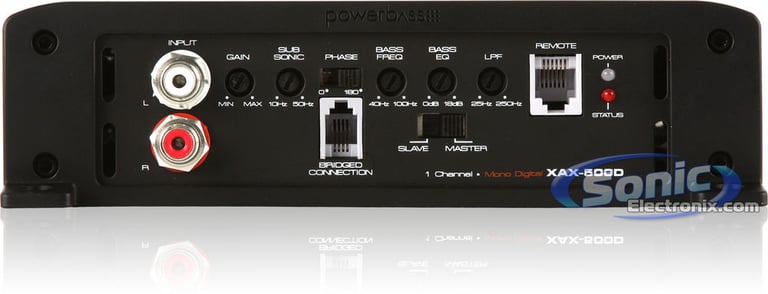

  • Input sensitivity:
    • Level: 500mV-6V
  • Variable low-pass filter (25-250 Hz, 12 dB/octave)
  • Subsonic filter (10-50 Hz, 12 dB/octave)
  • Phase Shift: 0-180°
  • Damping factor: >200
  • Frequency response: 20-250 Hz
  • Also found as: Power Bass Xtreme XAX-500D

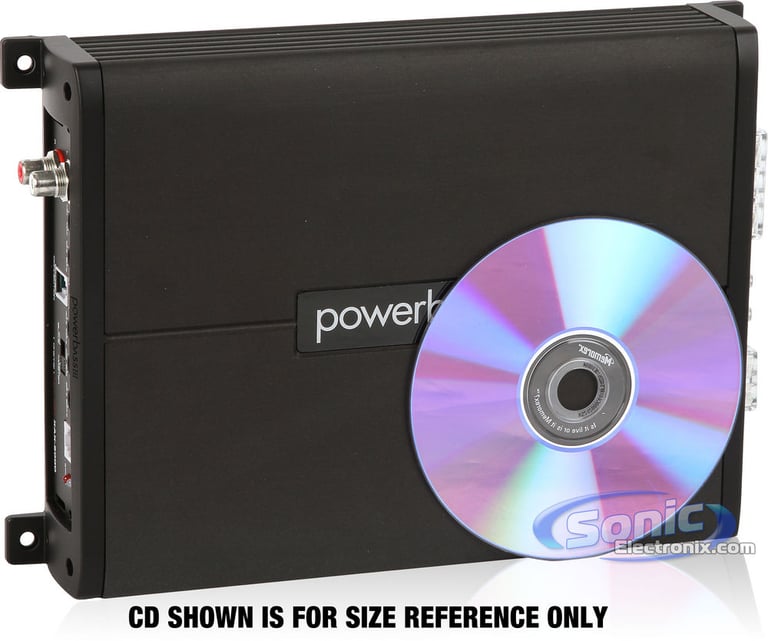

  • Dimensions: 10-1/4"L x 7-1/16"W x 1-15/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
250 watts x 1 channel
RMS Power @ 2 ohms
400 watts x 1 channel
RMS Power @ 1 ohm
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1000 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<1.0%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
25 - 250 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
>80 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes

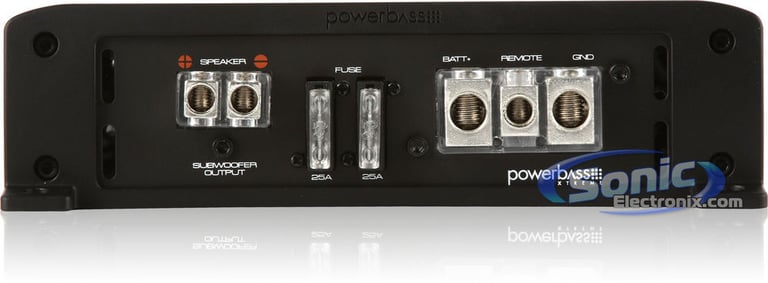

Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XAX-500D

Weight:

5.50lbs

Internal SKU:

xax500d

Internal Product ID:

26887

Product and How-to Videos


Customer Ratings & Reviews


PowerBass Xtreme XAX-500D thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

PowerBass Xtreme XAX-500D Pretty Good Amp !

I am using this amp at 2 ohms powering a single12 IDQ 4 v3
It seems to do a pretty good job.
I was also considering the Alpine PDX-M6, Both amps have about the same foot-print as I needed something small to mount under my seat.
The alpine is rated at 100 rms more then this amp @ 2ohm
I just could not justify spending $100 more for the extra power.
The IDQ is rated at 450 rms Max and this amp pushes 400 rms.
So it does a nice job.

I was a bit disappointed in the fact the the amp is made in China.
But I found a ton of other name brands also using China.

The only Con on this amp is the Terminals are phillips screws instead of allen heads and you have to careful not to strip them.

By Taco 21 on November 3, 2010
