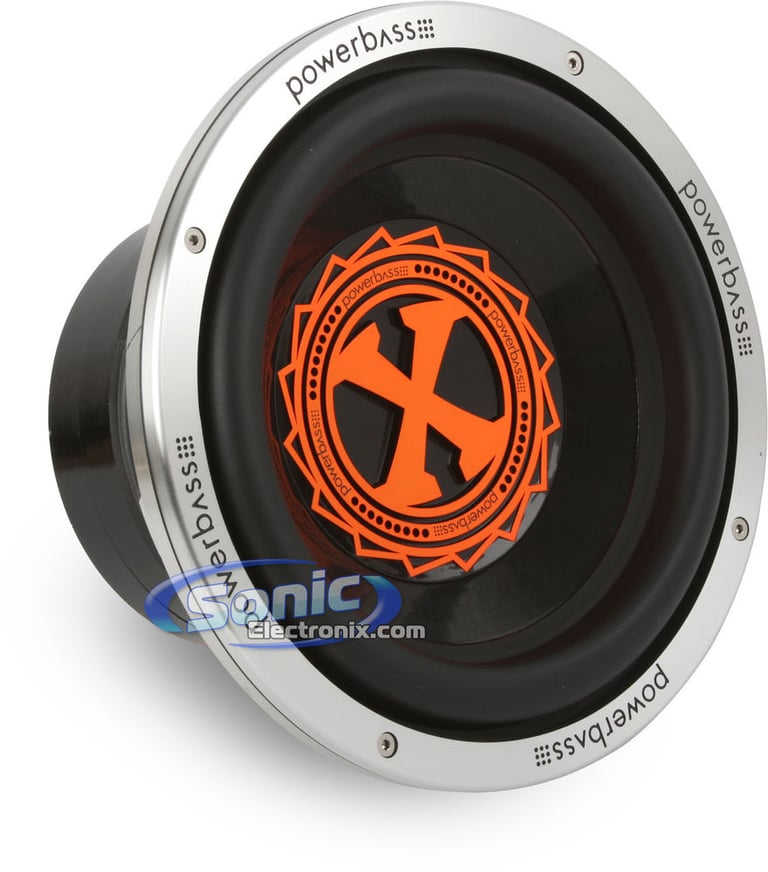

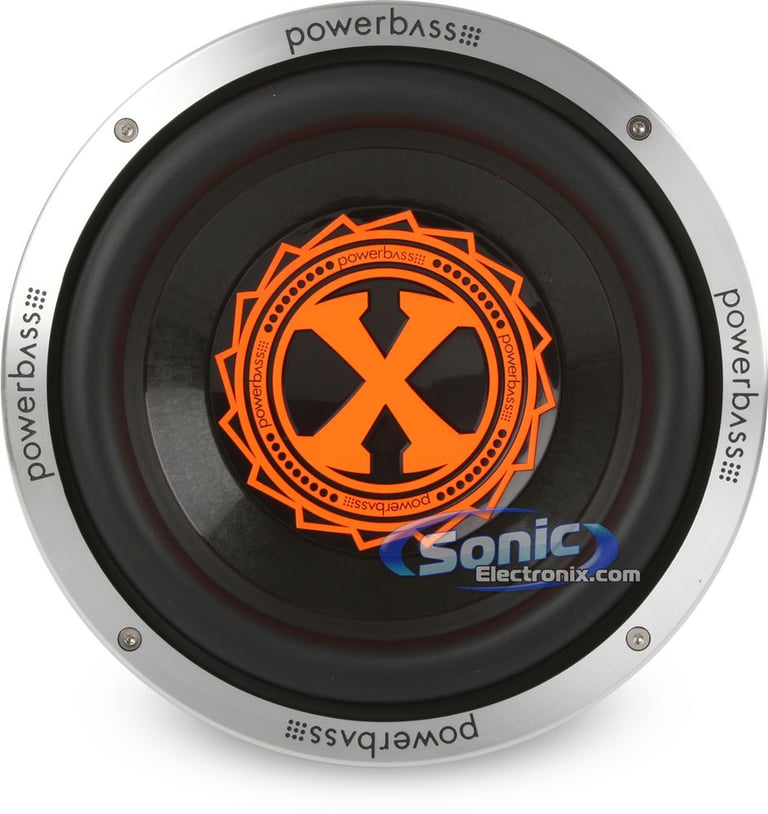

PowerBass Xtreme 2XL-104D

10" Dual 4 ohm Xtreme 2XL Series Car Subwoofer

PowerBass
Shop all PowerBass
Product videos
highlight-star-icon

10" Xtreme 2XL Series Subwoofer • Dual 4 ohm • 800 Watts Max • 400 Watts RMS • COC/Graphic Cone • U-Turn High Roll Surround • Pure EIW Wire Voice Coil • Pro-Lock Input Terminals • XTRA Large 264 oz. Motor Structure

Learn more about the 2xl104d

We apologize

This item has been discontinued


Loading...
Limited time!
KFC-415C main

Kenwood KFC-415C

320W Peak (80W RMS) 4x10" Performance Series 2-Way Coaxial 4-ohm Car Speakers

25
-45.00%

$99.00

List price $180.00

H410 main

Cerwin-Vega H410

420W Peak (140W RMS) 4x10" Vega Series 2-Way Coaxial 4-ohm Speakers

-16.67%

$99.99

List price $119.99

Limited time!
50CSC4104 main

Kicker CSC410 (50CSC4104)

450W Peak (150W RMS) 4x10" CS Series 2 Way Coaxial 4-ohm Speakers

1
-33.36%

$79.96

List price $119.99

51KSC41004 main

Kicker KSC410 (51KSC41004)

300W Peak (150W RMS) 4x10" KS Series 2 Way Coaxial 4-ohm Speakers

-13.33%

$129.99

List price $149.99

H7410 main

Cerwin Vega H7410

640W Peak (100W RMS) 4x10" HED Series 2-Way Coaxial 4-ohm Speakers

14
-16.67%

$69.99

List price $83.99

V410 main

Cerwin-Vega V410

540W Peak (180W RMS) 4x10" Vega Series 2025 Edition 2-Way Coaxial 4-ohm Speakers

DMDX410 main

Diamond Audio DMDX410

270W Peak (90W RMS) 4x10" DMDX Series 2-Way Coaxial 4-ohm Car Speakers

H7410, SDSK2, SDRLR1, BTK106 main

Cerwin-Vega H7410 with Speaker Installation Kit

Includes: (Pair) 4" x10" Coaxial Speakers, Sound Damping , Roller and Panel Removal Kit

153
-28.22%

$98.13

List price $136.71

RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

Product Highlights


10" Xtreme 2XL Series Subwoofer • Dual 4 ohm • 800 Watts Max • 400 Watts RMS • COC/Graphic Cone • U-Turn High Roll Surround • Pure EIW Wire Voice Coil • Pro-Lock Input Terminals • XTRA Large 264 oz. Motor Structure

Description


PowerBass brand icon

Authorized dealer

Audiophile Sound in Small Sealed Enclosures

For those looking for tight, accurate bass in a small sealed enclosure, the PowerBass Xtreme 2XL subwoofers are the perfect choice. Constructed with cutting-edge materials, each woofer will efficiently handles lots of high power from the amplifier. To increase the power output, Power Bass uses a U-Turn high roll Santoprene surround that increases the cone area, as well as allows for over 3 inches of linear travel! The dual terminals integrated on the side feature a pro-lock input terminals that hold the connections secure and ensure the maximum amount of power transfer from the amplifier. The 2XL subwoofers from PowerBass are designed specifically for use in small sealed enclosures.

  • 10" Dual 4 ohm Xtreme 2XL Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Impedance: Dual 4 ohm
  • Proprietary COC/Graphic cone

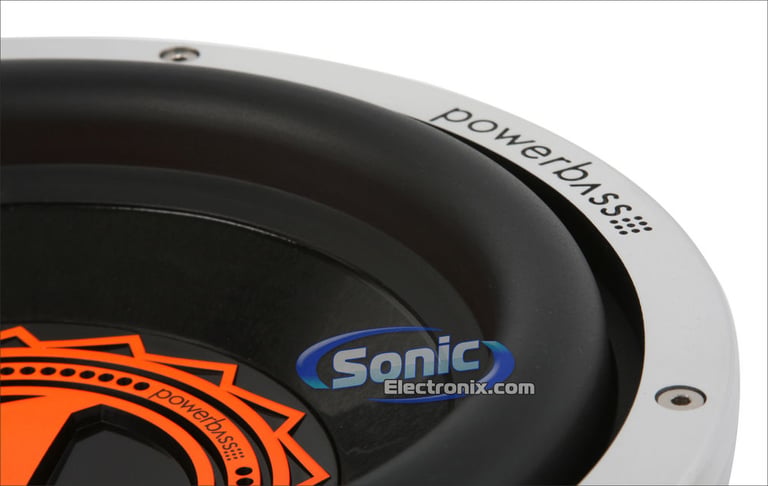

  • U-Turn high roll Santoprene surround
  • Custom CNC cut, cast aluminum basket provides excellent subwoofer support

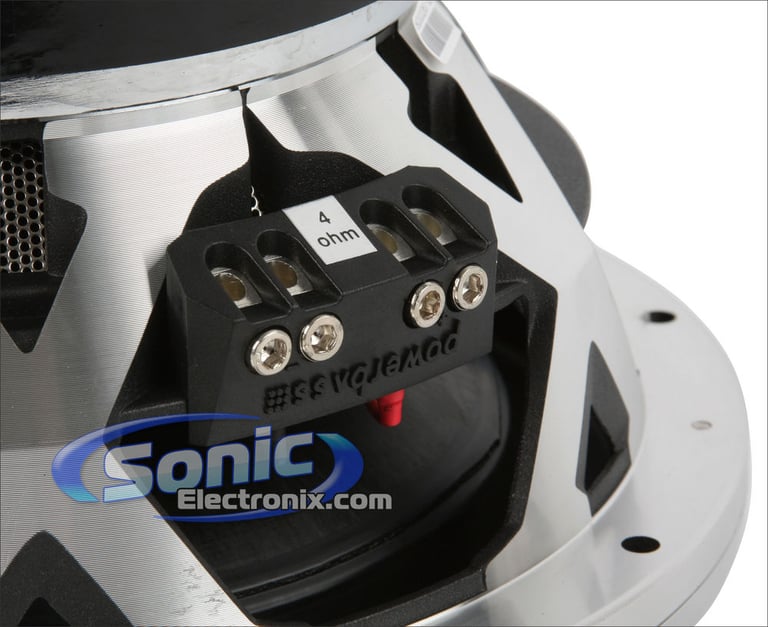

  • Pro-lock input terminals ensure maximum current transfer from the amplifier
  • Includes a CNC billet aluminum trim ring
  • Designed for optimal bass in small sealed enclosures
  • Pure EIW wire voice coils with 2.5" voice coil former

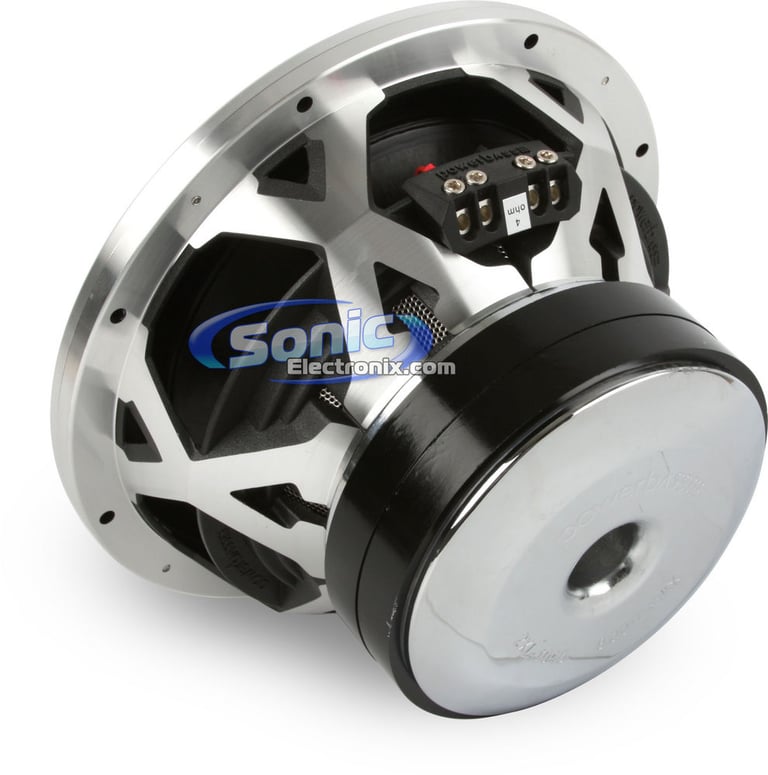

  • XTRA XTRA Large 264 oz. motor structure with dual stacked magnet
  • Frequency response: 31-500 Hz
  • Sensitivity: 91 dB
  • Also found as: Power Bass Xtreme 2XL 104D
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 PowerBass Xtreme 2XL-104D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 PowerBass Xtreme 2XL-104D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 PowerBass Xtreme 2XL-104D Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 PowerBass Xtreme 2XL-104D Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
2XL Series
Subwoofer Size
10"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
31 - 500 Hz
Sensitivity
91 dB
Xmax (millimeters)
14 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Orange
Woofer Composition
Graphite Reinforced Polypropylene
Woofer Surround
Santoprene Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.65 cubic feet
Maximum Sealed Box Volume
0.85 cubic feet
Minimum Ported Box Volume
1.0 cubic feet
Maximum Ported Box Volume
1.0 cubic feet
Top-Mount Depth (Mounting Depth)
8-1/4"
Cutout Diameter
9-1/4"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

2XL-104D

Weight:

20.50lbs

Internal SKU:

2xl104d

Internal Product ID:

26946
