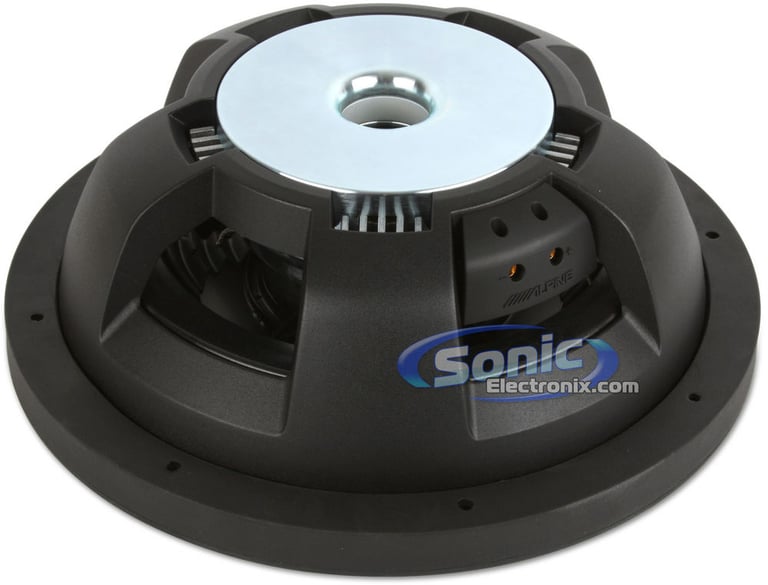

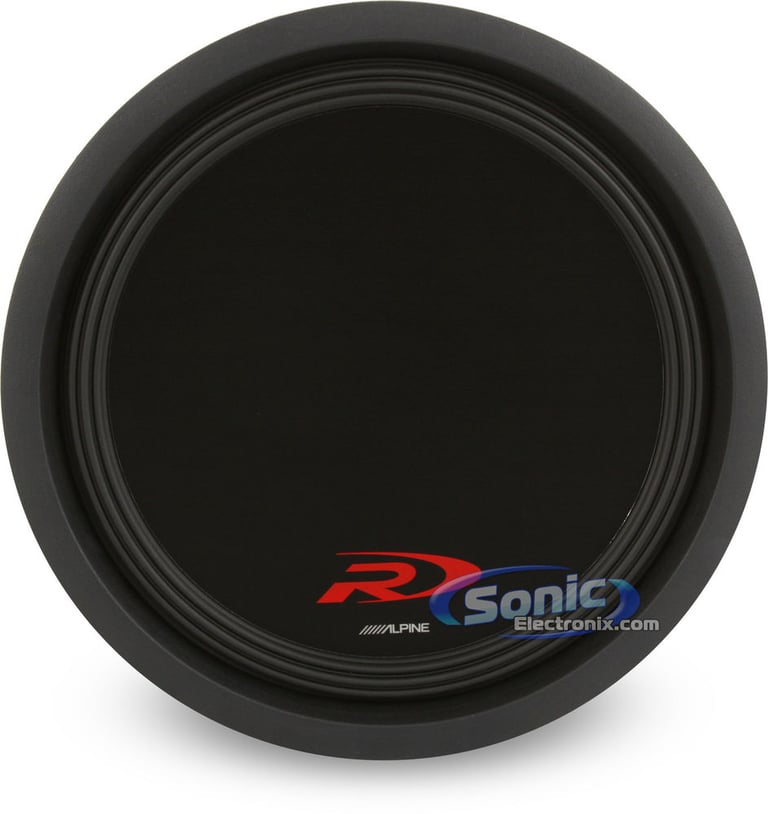

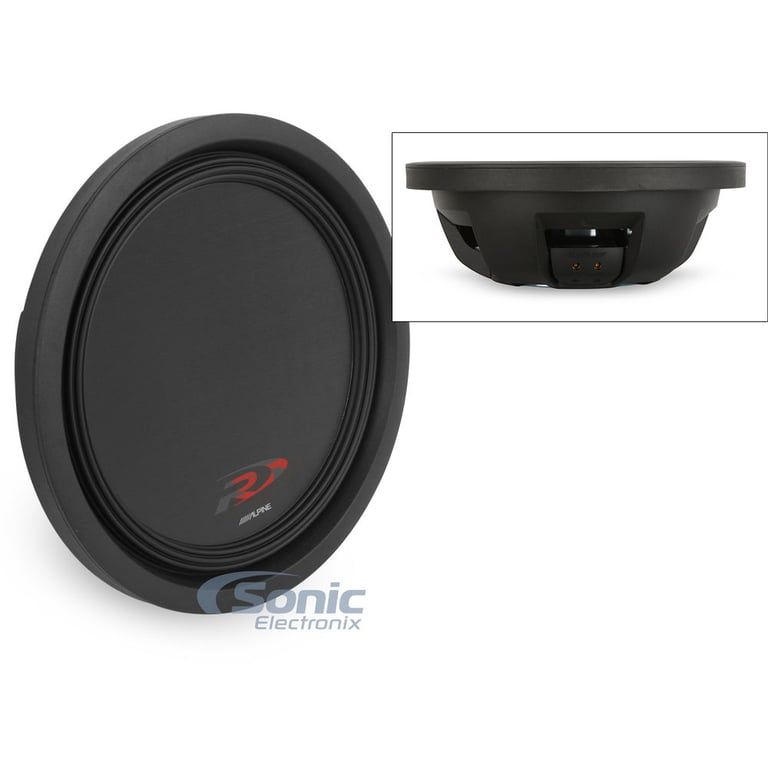

Alpine Type-R SWR-T12

1800W Max (600W RMS) 12" Type-R Series Shallow Mount Single 4 Ohm Car Subwoofer

Alpine
Shop all Alpine
Product videos
highlight-star-icon

• Peak Power: 1800 Watts
• RMS Power: 600 Watts
• Aluminum Woofer Cone
• Santoprene Rubber Surround
• Cast Aluminum Frame
• Radial Finned Heat Sink
• Special Spider Design

Learn more about the swrt12

We apologize

This item has been discontinued


Loading...
K 165 main

Hertz K 165

300W Peak (75W RMS) 6.5" Uno Series 2-way 4-ohm Component Speaker System

4
-33.34%

$99.99

List price $150.00

Limited time!
Stage3 627 main

JBL Stage3 627 (Stage3627AM)

270W Peak (90W RMS) 6.5" Stage3 Series 2 Way Coaxial 3-ohm Speakers

2
-22.74%

$84.95

List price $109.95

MM-50L main

Deaf Bonce Machete MM-50L

320W Peak (196W RMS) 5.2" Machete Series Midrange 4-ohm Speakers

1
NSP35 main

NVX NSP35

200W Peak (70W RMS) 3.5" N-Series 2 Way Coaxial Car Speakers

55
-16.67%

$49.99

List price $59.99

Product Highlights


• Peak Power: 1800 Watts
• RMS Power: 600 Watts
• Aluminum Woofer Cone
• Santoprene Rubber Surround
• Cast Aluminum Frame
• Radial Finned Heat Sink
• Special Spider Design

Description


Alpine brand icon

Authorized dealer

Product Features:

  • 12" Type-R Shallow-Mount Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 600 watts
  • Recommended power range: 300 - 600 watts RMS
  • Impedance: Single 4 Ohm
  • Aluminum woofer cone

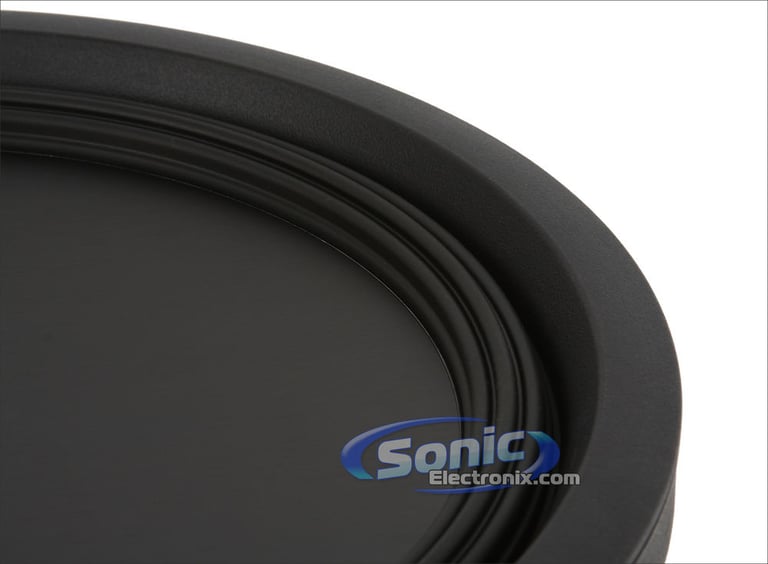

  • Injection Molded Santoprene rubber surround
  • High-Amplitude Multi-Roll (HAMR) suspension results in the highest X-max and SPL output in its category

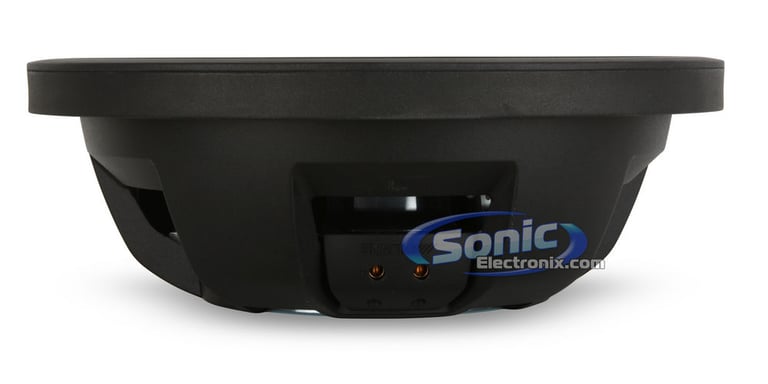

  • Thin design allows for installation in compact areas
  • FEA-Optimization allows for maximum linearity, greatly reduces distortion, and improves power handling and output
  • Vented voice coil heat sink, and airflow management system keeps subwoofer cool, while reducing distortion
  • 4" diameter single layer edge-wound ribbon wire voice coil
  • Unique spider and pass-through gap design, provide over 50mm of peak-to-peak excursion
  • Neodymium 35SH magnet structure
  • Frequency response: 26-200 Hz
  • Sensitivity: 84dB
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

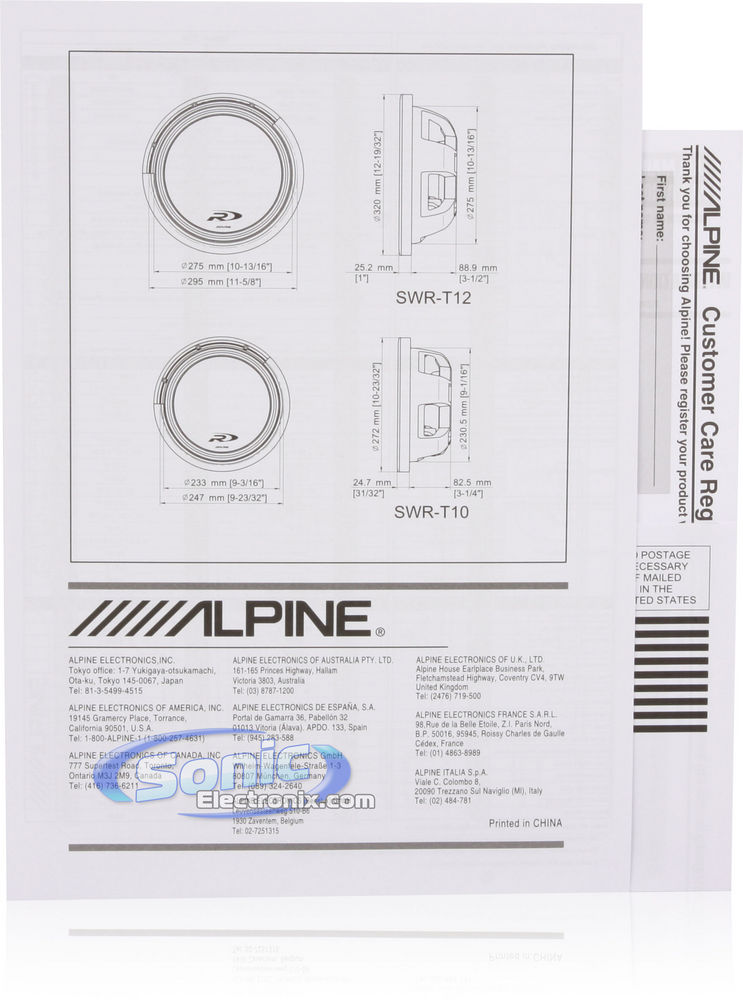

Check out the Alpine Type-R SWR-T12 Owner's Manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine Type-R SWR-T12 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine Type-R SWR-T12 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine Type-R SWR-T12 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Alpine Type-R SWR-T12 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
Type-R Series
Subwoofer Size
12"
Peak Power Handling
1800 watts
RMS Power Handling
600 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
26 - 200 Hz
Sensitivity
84 dB
Xmax (millimeters)
15 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Aluminum
Woofer Surround
Santoprene Rubber
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.40 cubic feet
Optimum Sealed Box Volume
0.55 cubic feet
Maximum Sealed Box Volume
0.75 cubic feet
Minimum Ported Box Volume
1.0 cubic feet
Optimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
3-1/2"
Cutout Diameter
10-15/16"
Shallow Mount Installation
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

SWR-T12-2

Weight:

15.50lbs

Internal SKU:

swrt12

Internal Product ID:

27183

Product and How-to Videos


Customer Ratings & Reviews


Alpine Type-R SWR-T12 thumbnail image

5 star
68%
4 star
18%
3 star
9%
2 star
0%
1 star
5%



Durability
4.2
Value
4
Features
4.7
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great subwoofer

This subwoofer has amazing bass for a shallow mount plus it's has a well built frame.

By Jr on July 21, 2014

60 found this helpful


Great

Installed this in a custom sealed box in my 350z and it sounds great. I had the old, thicker 12" Type R and this sounds just as amazing. I even installed this in the worst location (the compartment behind the driver's side seat in the 350z) and it still sounds awesome. Can't even beat the price anywhere else.

By Obama on June 20, 2011

58 found this helpful


Blows easy

I bought this subwoofer a year ago and put it in my truck with the alpine pdx-m6. Both units run at 600w rms and I somehow blew the sub the same night. Granted my wiring might have been the problem. I then upgraded some wires and got another one. (No warranty) this then sounded great and was honestly a wonderful sub! I had it in a down firing box under my seat and if you stood outside of the truck you couldn't hear any obnoxious bass. But inside the truck everything vibrated crazy! But then it blew randomly one night at sonic, without being turned up. These shallow mount subwoofers aren't able to take the abuse as a regular subwoofer and although it sounds good the reliability isn't there.

By Brendan on August 6, 2014

55 found this helpful


Good sub

I had this sub installed in a 06 f150 supercrew under my back seat. This is a good sub and it sounded great. However for the price(currently 309.00) and the single voice coil config, I would recommend something else. I currently own a 2011 supercrew f150 and for the price of 1 of these subs, I was able to purchase 2 skar audio vd-10(10") subwoofers and a box for under the back seat. I must say these 2 dvc 10" subs have more wiring options than the Alpine. They also blow the single 12" away. Using an online port calculator I ported my current enclosure to around 35 hz and they sound incredible. They shake my truck like the Alpine never could. The point I am trying to make is that while Alpine has a great product, I believe that for the price, there are a lot more options out there. All it take is some patience and a little research.

By Aldog on July 24, 2014

56 found this helpful


Nice lil sub

Very happy with this product. Good for small spaces and surprisingly loud. Could not really fault this product. Perfect for what I wanted.

By Hardy on May 23, 2013

55 found this helpful


Love it

Love this woofer.

By Marcus on August 12, 2011

55 found this helpful


Solid Sub

Bought this sub to go in my truck due to lack of space. I have had Type R 12"s before and they sounded great. Props to Alpine for getting it right on the shallow mount. I have heard several shallows, and none compare. Just one in a small box hits pretty hard, it won't blow your mind but its a good sub. I would not pay what other places charge for this woofer, some up to 500, but for what its listed for here its a great deal when space is an issue. I will say the box and power are very important. I had it in a .4 cubic foot box and it sounded terrible, switched to a .75 box and it made a world of difference. Give it at least 500 watts rms too, trust me it needs it. Also, make sure to get a grill, although its constructed very well the cone will take dents very easily.

By zz on February 27, 2011

55 found this helpful


Great but be careful

Had these in a sealed box, the box cracked and they took some damage from that but they played on. Both blew about 6 months after owning them of hard playing. Ordered 2 more now if these blow again ill probably switch To something different but overall i like em. They hit hard enough for shallows. I have them wired to 2.3 ohm in series. They dont drop as much as they should and so they dont get as much power from my amp as they should. This brand new one i just got rattles when it plays already. But still plays fine.

By Burke on December 5, 2014

53 found this helpful


Very clean bass

I am very pleased with the performance of this sub. I was skeptical about how good it would sound compared to a regular 12" and it totally exceeded my expectations. I am running it with an '10 Apline PDX M6. I built the enclosure to manufacturers volume recommendations and it's perfect.
I had to custom build a funky shaped box to fit behind the back seats of my '09 Tacoma double cab. I went to a few car audio shows and have by far the highest SPL Tacoma in Edmonton with an OEM style system (no huge box in the cab)

As long as your enclosure volume is correct you will love this sub.

By Damien on June 6, 2011

54 found this helpful


Great shallow sub!!

I bought this sub to go in my 08 Tundra. When I started my audio build I initially went with the Rockford P3 10' shallow sub, then upgraded to the P3 12', and finally to this sub. This sound undoubtibly sounds better that both of the previous subs, it will really handle the lows alot better than I expected. And right now I only have and MRP 500 pushing it. I am not even sure I will upgrade the amp it just sounds and pounds so good now. It is a little $ but you get what you pay for, and out of all the shallow subs I have heard this one is the cleanest, tightest, most accurate I have heard.
Semper Fi

By 08Tundra on November 17, 2010

55 found this helpful
