Product highlights

VLX Series Monoblock Class "DE" Digital Stereo Amplifier • 2400W x 1 Chan @ 1 Ohm • 1200W x 1 Chan @ 2 Ohm • Magnetic Induction Regulated Drive Power Supply • Balanced Transformer-Less Logic Input

Learn more about the LS-vlx3de-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

RE Audio's Pride

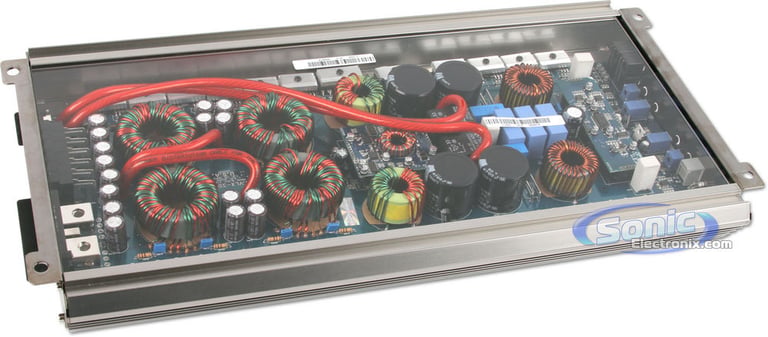

RE Audio has joined the digital amplifier era, and crafted their VLX all digital amplifiers. This series of impressive amplifiers includes 4 monoblock amplifiers, and one full range 4-channel amplifier. The VLX Digital amplifiers have such clean internals that RE Audio decided to case them with a transparent bottom.

The circuitry is class “DE” which is circuitry specific to RE Audio. This is a Class D Digital amplifier; however the internals have been meticulously designed by Dirk R. Ecker – RE Audio's head engineer. Every amplifiers internal circuitry has Dirk’s initials inscribed as this series is his premium high-speed digital amplifiers.

The four monoblocks have impressive power ratings. All have true 1 Ohm stability. The first in the series, the VLX-1DE pushes 1000 watts RMS power at 1 Ohm. This rated power increases to 1800 watts RMS at 1 ohm with the next model in the line – the VLX-2DE. These amplifiers showcase perfect ability to run any high powered subwoofer application. Need more power? The VLX-3DE outputs 2400 watts RMS at 1 Ohm, this amplifier is meant for those in need of serious power. Last in the series, the VLX-4DE can be considered nothing short of an absolute beast. This monstrous amplifier can push 7000 watts RMS at 1 Ohm of continuous power! Take it up a notch today with RE Audio’s full range, ALL Digital VLX amplifiers.

VLX Series Monoblock Class "DE" Digital Stereo Amplifier
RMS Power Rating:
- 4 ohm: 600 watts x 1 chan.
- 2 ohm: 1200 watts x 1 chan.
- 1 ohm: 2400 watts x 1 chan.
Magnetic induction regulated drive power supply
Pulse Width Modulated high-current matched MOSFET devices
Class DE technology utilizes elevated efficiency platform technology
90% High density construction surface mount technology
Metallized high temperature low ESR capacitors
High speed audio grade low level stage components
Balanced Transformer-less Logic input for highest possible damping factor, slew rate and S/N ratio
Stability filter design for reduction in noise

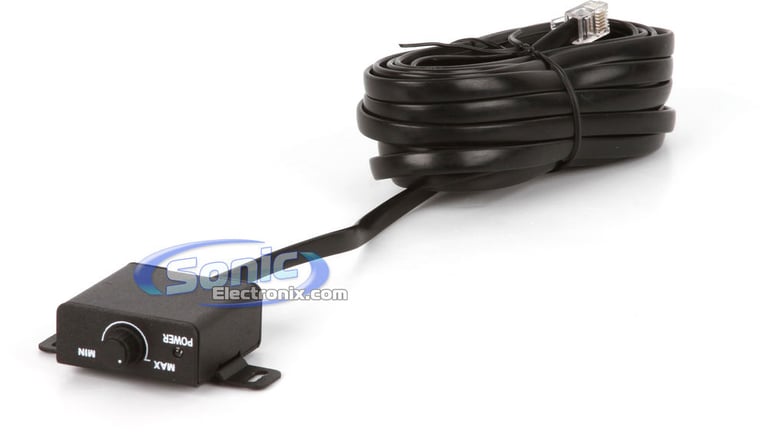

Wired remote bass level control included
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +20 dB bass boost at 45 Hz)
Time delay soft start turn on
Mono channel operation
Preamp RCA outputs to daisy chain multiple amps
3-Way System Protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy convection cooled heatsink for extreme heat dissipation
Platinum-plated RCA level inputs
Platinum-plated screw terminals
Input sensitivity:
- Level: 250mV-9V
Variable low-pass filter (40-250 Hz, 24 dB/octave)
Subsonic filter (15-40 Hz, 24 dB/octave)
Damping factor: >200
CEA-2006 compliant amplifier
Frequency response: 20-250 Hz
Dimensions: 19-3/4"L x 9-3/4"W x 2-1/4"H
1/0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
90 Day Manufacturer's warranty

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

600 watts x 1 channel

RMS Power @ 2 ohms

1200 watts x 1 channel

RMS Power @ 1 ohm

2400 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

2400 watts

Maximum Input Gauge Size

1/0 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.09%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

40 - 250 Hz

Subsonic Filter

15 - 40 Hz

Signal-to-Noise Ratio

80 dB

Bass Boost

0 - 20 dB

Remote bass/level controller

Yes

Fuse Rating

60A x 6

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
