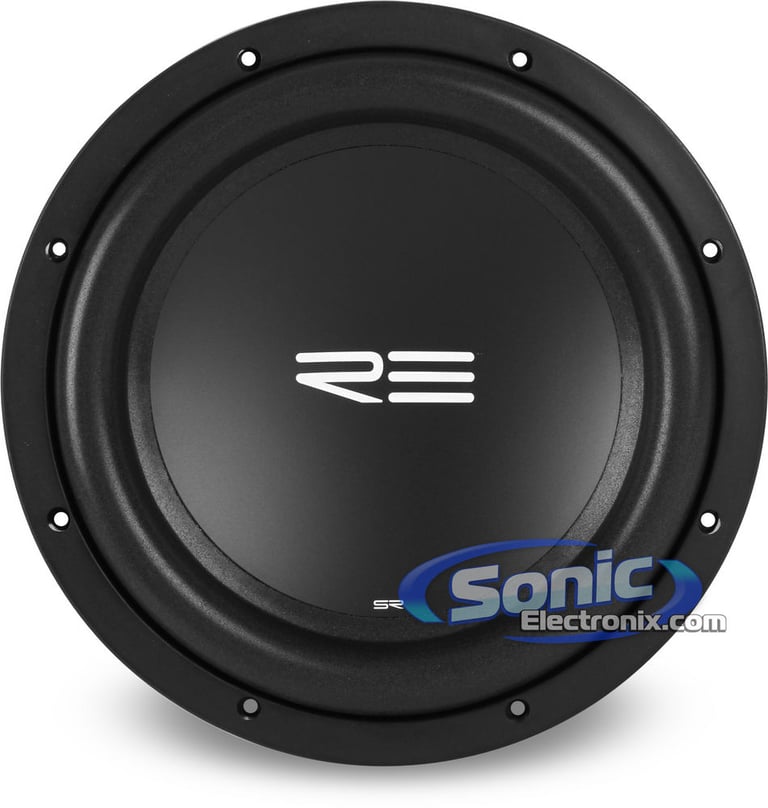

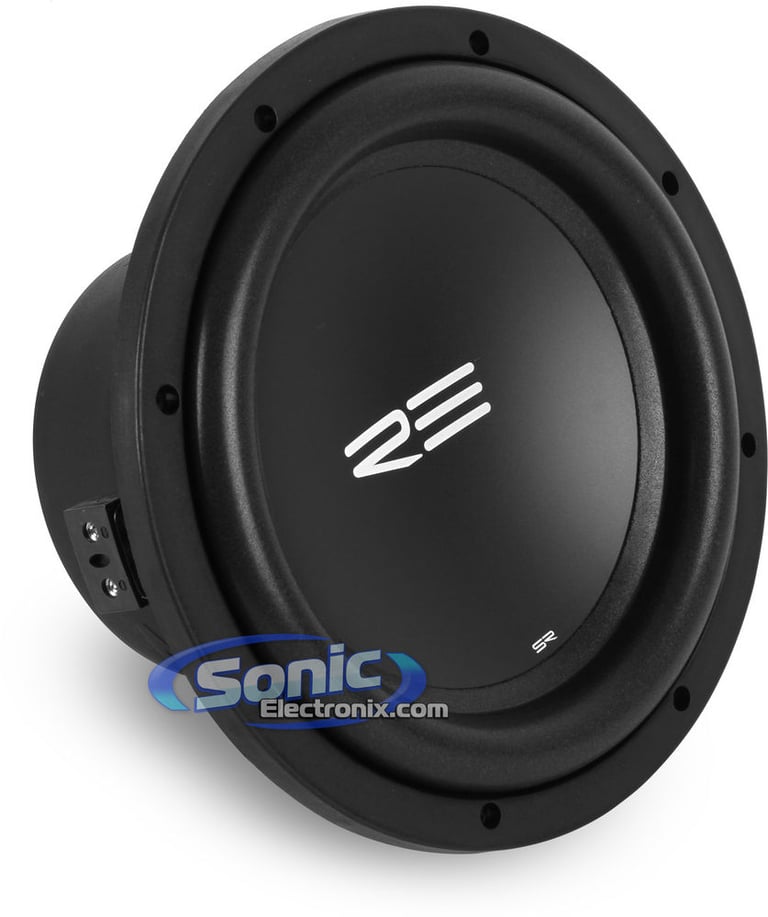

RE Audio SRX10D2

300W 10" SRX Series Dual 2 ohm Subwoofer

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• RMS Power: 300W
• Dual 2 Ohm
• Kraft Pulp Cone

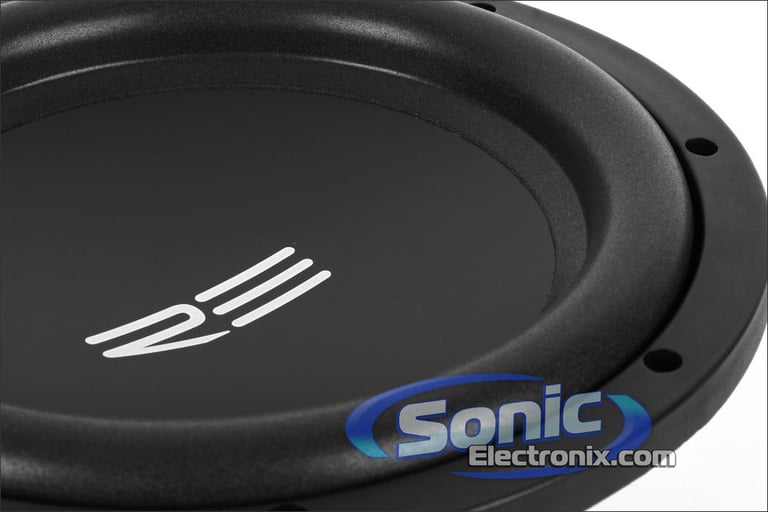

• Rubber Surround
• FEA Optimized Motor Structure
• 4-Layer Voice Coil
• Double Stacked Magnet

Learn more about the srx10d2

We apologize

This item has been discontinued


Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

40-EU55 main

Metra 40-EU55

Antenna Adapter for select 2000-2026 vehicles from Audi, Chevrolet, Ram

49
-13.05%

$19.99

List price $22.99

99-6518B main

Metra 99-6518B Dash Kit

Install a new Single-DIN car stereo in select 2013-2022 vehicles from Ram, Jeep, Chrysler (Matte Black)

5
-39.59%

$28.99

List price $47.99

72-6514-12 main

Metra 72-6514-12

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

7
-14.30%

$11.99

List price $13.99

AXDI-CH5 main

Axxess AXDI-CH5 Wiring Interface

Install a New Car Stereo and Retain Steering Wheel Controls, Factory Chimes, and Other Factory Features in select 2013-2023 vehicles from Ram, Dodge, Fiat

-10.38%

$163.99

List price $182.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

47
-42.51%

$22.99

List price $39.99

V3 main

Cerwin-Vega V3

360W Peak (120W RMS) 3" Vega Series 2025 Edition 2-Way Coaxial 4-ohm Speakers

TS-A6991F main

Pioneer TS-A6991F

1400W Peak (240W RMS) 6x9" A-Series 5-Way Coaxial 4-ohm Speakers

9
-13.34%

$129.99

List price $150.00

Product Highlights


• RMS Power: 300W
• Dual 2 Ohm
• Kraft Pulp Cone
• Rubber Surround
• FEA Optimized Motor Structure
• 4-Layer Voice Coil
• Double Stacked Magnet

Description


RE Audio brand icon

Authorized dealer

Monster Performance

Get big bass with the RE Audio SRX series of car subwoofers.! Easily expect monster performance and deep bass from these quality drivers. The SRX series has twice the power handling and improved audio output over the RE Audio REX series. The striking cosmetics complete the look of the subwoofer, while ensuring that high quality sound is produced. Once mounted, the kraft pulp cone and rubber surround will be visible for all to see. Underneath the cone is a 4-layer copper voice coil, a FEA optimized motor structure, double stacked magnets that all work together to keep the subwoofer linear and sounding great. The RMS of the SRX series is an affordable 300 watts and is perfect for those just starting their car audio system or the long time car audio enthusiast. Like all of the RE Audio subwoofers, they are capable of accepting much more power then the recommended RMS. For excellent performance for a great price, check out the RE Audio SRX car subwoofers

Subwoofer Features:
  • 10" Dual 2 ohm SRX Series Subwoofer
  • Power Handling:
    • RMS: 300 watts
  • Impedance: Dual 2 ohm
  • Kraft pulp woofer cone
  • Rubber surround
  • Pressed steel basket
  • FEA optimized motor structure
  • Linear spiders
  • Foam gasket
  • 4-Layer copper voice coil
  • Double stacked magnets
  • Also available in dual 4 ohm: RE Audio SRX10D4
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
SRX 10" T/S Parameters:
  • Electrical Q Value (Qes): 0.39
  • Mechanical Q Value (Qms): 5.5
  • Total Speaker Q Value (Qts): 0.36
  • Free Air Resonance (Fs): 25.3 Hz
  • Equivalent Compliance (Vas): 31 liters
  • One-Way, Linear Excursion (Xmax): 18 mm
  • Efficiency (SPL 1W/1m): 85.3 dB SPL
  • Effective Piston Area (Sd): 310 cm^2
  • DC Resistance (Re): 1.8 ohm
  • Nominal Impedance (Znom): Dual 2 ohm
  • Thermal Power Handling (Pe): 300 W
  • Force Factor (Bl): 14.35

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Subwoofer Wiring Guide


Wiring Guide to Wire 1 RE Audio SRX10D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio SRX10D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio SRX10D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 RE Audio SRX10D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
51KRDL7T102 main

Kicker KRDL7T10 (51KRDL7T102)

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2002-2024 vehicles from Ram, Dodge

1
-10.53%

$849.99

List price $949.99

DRQC20AC-TN main

MTX Audio Thunderform DRQC20AC-TN (Charcoal, Amplified)

select 2002-2018 vehicles from Ram, Dodge Amplified 2 10" 4 ohm Vehicle Specific Thunderform Subwoofer Enclosure

2
SB-D-QDRAMD/10TW1 main

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

Custom fit subwoofer enclosure for select 2002-2024 vehicles from Ram, Dodge

3

$1,699.99

DRQC20C-TN main

MTX Audio Thunderform DRQC20C-TN (Charcoal, Loaded)

Two 10" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure for select 2002-2018 vehicles from Ram, Dodge

51KTDL7T102 main

Kicker 51KTDL7T102

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2011-2024 vehicles from Ram

-10.53%

$849.99

List price $949.99

SB-D-QDRAM/10W3v3 main

JL Audio Stealthbox® SB-D-QDRAM/10W3v3 (Open Box, Like New)

Custom fit subwoofer enclosure for select 2002-2024 vehicles from Ram, Dodge

1

$1,249.99

51KR_46CXA_RCT_XK42_NK_49K main

Kicker KRDL7T10 Sub Enclosure + CXA1200.1 Amp + Remote w/ Free Amp Install Kit

1000W RMS Dual 10" Sealed Truck Enclosure, 1200W RMS Class D Monoblock Amp, Wired Bass Remote, 4 Gauge OFC Amp Kit, and 2 Koozies

158
-18.40%

$1,290.01

List price $1580.93

51KRDL_NDA15_XK42_NK_KK main

Kicker KRDL7T10 Subwoofer Enclosure + NVX NDA15001 Amp w/ Free Amp Install Kit

1000W RMS Loaded Dual 10 inch Sealed Truck Enclosure, 1500W RMS Class D Monoblock Amplifier with Bass Remote, 4 Gauge OFC Wiring Kit and Koozies

138
-24.94%

$1,050.02

List price $1398.94

51KTDL7_NDA15_XK42_NK_49K main

Kicker 51KTDL7T102 + NVX NDA15001 w/ Free Amp Install Kit

1000W RMS Loaded Dual 10" Sealed Truck Enclosure with 1500W RMS Class D Monoblock Car Amplifier, 4 Gauge OFC Wiring Kit, and Koozies

137
-24.94%

$1,050.02

List price $1398.94

51L7T_CXA12_ARCT_XK42_NK_KK main

Kicker 51KTDL7T102 Enclosure + CXA1200.1 Amp w/ Free Amp Install Kit

Kicker 1000W RMS Loaded Dual 10" Sealed Truck Enclosure, 1200W RMS Monoblock Amp, Bass Remote, NVX 4-Gauge OFC Wiring Kit, and Koozies

157
-18.40%

$1,290.01

List price $1580.93


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Series
SRX Series
Subwoofer Size
10"
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Xmax (millimeters)
18 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kraft Pulp
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.35 cubic feet
Maximum Sealed Box Volume
0.5 cubic feet
Minimum Ported Box Volume
0.65 cubic feet
Maximum Ported Box Volume
1.0 cubic feet
Top-Mount Depth (Mounting Depth)
6"
Cutout Diameter
9-3/16"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SRX10D2

Weight:

16.00lbs

Internal SKU:

srx10d2

Internal Product ID:

27306

Product and How-to Videos


  • RE Audio 12" SRX Subwoofer Bass Demo | SRX12D4 in a Custom Ported Box
  • RE Audio New Product Line Overview | CES 2015
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


RE Audio SRX10D2 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

great performance

Purchased a single srx10 for a console set up
the resrx10 performed great
great woofer and price

By clark on September 12, 2014

27 found this helpful


Still bangin!

In addition to my previous review, I have it running on 450Wrms@1ohm. Not recommended I know, but it has taken it like a champ daily for months with no ill effects. I listen to mostly Hiphop/Dubstep so it puts in a hard days work. And the Bose deck/speakers the van came with definitely can't keep up! Mmmmmmmmm, new HU/components:)

By FootballDad on March 15, 2011

24 found this helpful


Great sub for the price !

Never knew about RE Audio until a couple of weeks ago from online research. I blew my 2 12s, Audiobahn, which were like 5 years old and needed something stronger.

I saw this here and found a box to the specs Re.A. recommend, got everything in 3-4 days and WOW, these things BUMP !

Got them running on a 300rms @ 4 ohms Kenwood amp and they sound MEAN. I can imagine after breaking them in and with a stronger amp.

I really recommend RE Audio to anyone. I'll soon be upgrading to one of their digital amps !

2 thumbs up.

By Jay on October 9, 2010

25 found this helpful


Great sub !!

I would recommend to anyone this 10 inch sub, I am impressed with quality and sound. Great buy for the price had high dollars subs this is just as good if not better !!!

By Bob on December 30, 2013

24 found this helpful


WOW!

This sub was great! This thing can take every bit of 300 RMS. I have it running at 400 and it still hasnt blown! I will definitely be buying another. I have it hooked up to the Visonik mono amp that can put out 600 rms at 2 ohms that i also go from sonic

By Tanner on February 8, 2011

23 found this helpful


RE audio!

This is a very nice sub very good sound rele pounds I'm going to order another one of these and a se-x for my full system. I really think these are a good buy for someone who wants good quality and sound for a good price. I like 10 in, because I can fit them almost anywhere. I think these things will be able to handle more then 300 watts RMS after its broken in, but im not one to push what they say they can do. if you want a good little sub, buy this...

By Eric on February 1, 2011

23 found this helpful


Awesome sub

This sub exceeded far beyond my expectations, it hits low and hard with minimal wattage and takes more power then rated. i had it on an alpine mrp-m500 in a 1.10 cu ft ported box (after displacement) and it sounded phenomenal. i ended up selling it to try the sex and now im selling the sex to try the sxx! THERE ALL AMAZING

By Miss Parker on July 7, 2013

22 found this helpful


Buy this sub. It's bangin!

I love this sub. It is in a custom (sealed) console I built for my 05 Montana SV6 and it sounds great! I listen to a variety of music and it plays it all excellently. Tight, clean, hard hits for fast bass/kick drums but also shakes the seats on the deep lows. Excellent low frequency response for a 10" sub. I have it paired with the MB Quart RAB 1450 so it has lots of power. I can't comment on durability as I am still breaking it in. From what I have seen and heard, RE tends to underrate the power handling of their drivers. I have heard of people who gave this woofer (older model year) 400rms daily with no issues.

Pairs well with the premium Bose setup the van came with, for now. I think (know) once it is broken in and ready to fully pound, I am gonna need to upgrade the components/HU to keep up.

Bummer, more gear ;)

By FootballDad on October 23, 2010

22 found this helpful




99-3304 small

Metra 99-3304 Dash Kit

Install a new Single-DIN car stereo in select 2005-2013 vehicles from Chevrolet, Hummer, Buick (Matte Black)

(1)

$18.99

List price $32.99

KTE-8G.3 small

Alpine KTE-8G.3

Mesh Grille for Alpine 8" R2 and S2 Subwoofers (Black)

$39.95

List price $50.00

V754 small

Phoenix Gold Ryval V754

1000W Max, 4-Channel Amplifier (Rival)

(2)

$124.99

List price $269.99

IMAGE S3 PERFECT PINK small

Klipsch Image S3 (Perfect Pink)

Image Series In-Ear Headphones w/ Noise-Isolation Technology (1012672)

$29.99

List price $49.99

99-8300 small

Metra 99-8300 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2000-2020 vehicles from Toyota, Scion, Pontiac

(2)

$44.99

List price $49.99

CS-10/BK small

DS18 CS-10/BK

10" Silicone Marine Tower, Speaker, and Subwoofer Cover in Black

$29.95

List price $35.99

No picture

SSV Works 240-DF-F65V

320W Peak (160W RMS) 6.5" 2 Way Coaxial Front Kick Panel Marine Speaker Pods for select 2018-2025 vehicles from Can-Am

$479.99

List price $479.99

SAZ2CH12 small

Sundown Audio SAZ2CH12

12 Ft SAZ Series 2-Channel 2 Male RCA Interconnect Cable

$45.99

List price $55.19

98-9002 small

Metra 98-9002

Integrated Mounting Solution for iPhone 5 / 6 / 6+

$89.99

List price $189.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2014 BMW M6

2020 Mazda 6

1978 BMW 320i

2001 Kia Optima

2000 Chevrolet Corvette

2007 Buick Rendezvous

1983 Ford Ranger

2016 Ram 3500

2012 Subaru Forester

2008 BMW M3

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
