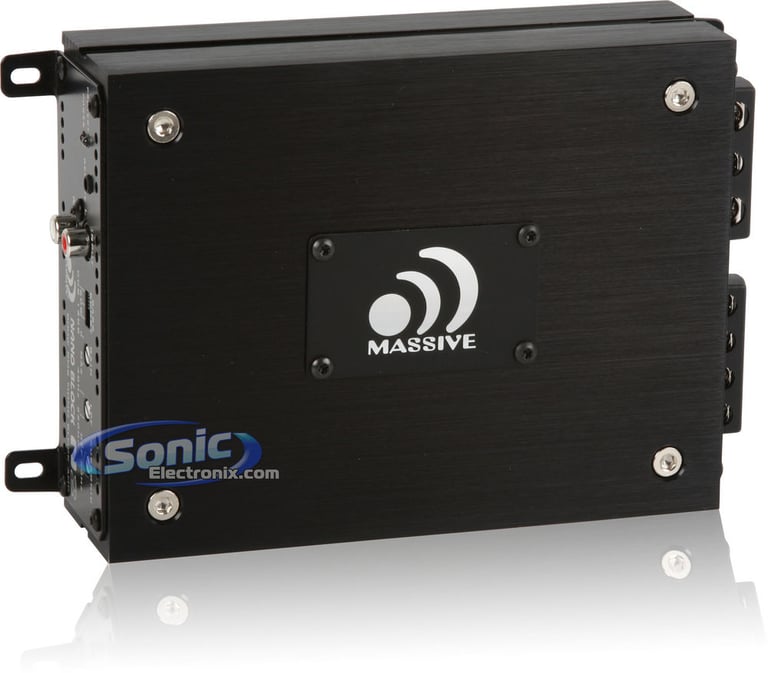

Massive Audio N2 Ultra-Compact Class-D Monoblock Amplifier

1600W Max (800W RMS) Nano Block Series Class-D Monoblock 1-Ohm Stable Amplifier with Adjustable Bass Boost

Product videos
highlight-star-icon

• RMS: 200W x 1 @ 4 ohms, 400W x 1 @ 2 ohms, 800W x 1 @ 1 ohm
• Total Peak Power: 1600W
• CEA-2006 Compliant
• Selectable Bass Boost: 0, +6, +12 dB
• Class D Circuitry

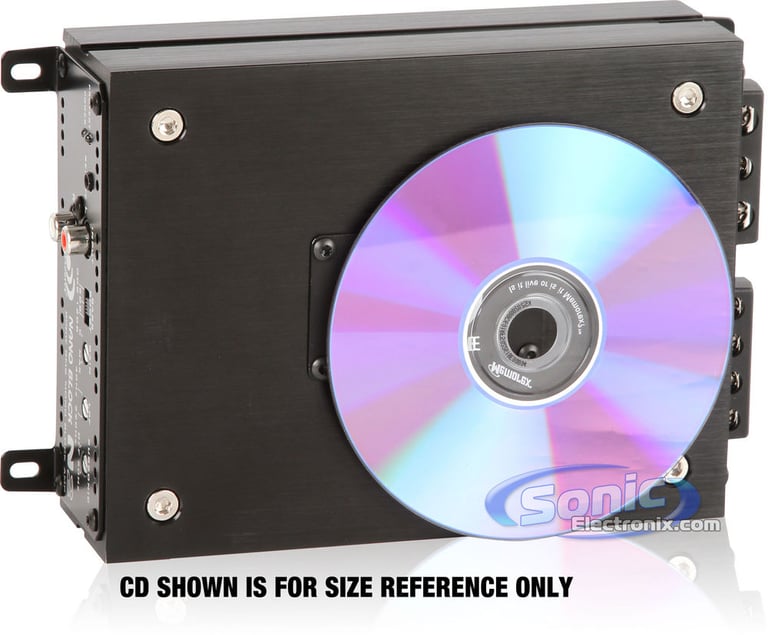

• Dimensions: 7-1/4"L x 5-1/2"W x 2-1/8"H

Learn more about the n2

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

n2es thumbnail

Massive Audio N2 (ES - Special Edition)

OUR PRICE: $99.99

View item

Product Highlights


• RMS: 200W x 1 @ 4 ohms, 400W x 1 @ 2 ohms, 800W x 1 @ 1 ohm
• Total Peak Power: 1600W
• CEA-2006 Compliant
• Selectable Bass Boost: 0, +6, +12 dB
• Class D Circuitry
• Dimensions: 7-1/4"L x 5-1/2"W x 2-1/8"H

Description


Massive Audio

Authorized dealer

Massive Audio is now the leader in "Micro Circuit Topology" by fusing micro technology, intelligent design and precision assembly in creating "Nano Block" series power amplifiers! This fully compliant CEA 2006 rated amplifier is designed to fit into restrictive or limited spaces while still delivering staggering amounts of power! The "Nano Block" model has one of the smallest installation foot prints vs. power in today's industry. The aluminum heat sinks are anodized in a "Raven Black" finish that's only 5.5" wide and 2.1" tall! Everything you would expect in a state of the art power amplifier is here in "Nano Block". Adjustable Hi/Lo 24dB X-Overs, up to12dB bass boost control, 24dB sub harmonic filter, Dual sided mil spec PCB"s, Protection circuits for short circuit/overheating and Low Voltage, Ultra efficient Nano Technology power supplies and endless possible installation scenarios make Nano "The Best Deal on the Block".

General Features

  • Massive Audio Block Series N2 Nano
  • Class-D 1-Ohm Stable Monoblock Amplifier
  • RMS Power Rating (14.4v):
    • 4 ohms: 200 watts x 1 chan.
    • 2 ohms: 400 watts x 1 chan.
    • 1 ohm: 800 watts x 1 chan.
  • Max power output: 1600 watts x 1 chan.
  • CEA-2006 Compliant Amplifier
  • Designed to fit into restrictive or limited spaces while still delivering staggering amounts of power
  • Ultra efficient Nano Technology power supplies and endless possible installation scenarios
  • Pulse Width Modulated MOSFET power supply
  • Mill Spec double sided PCB with SMD parts
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Chrome-plated RCA level inputs
  • Chrome-plated screw terminals
  • Built-In noise reduction circuitry
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

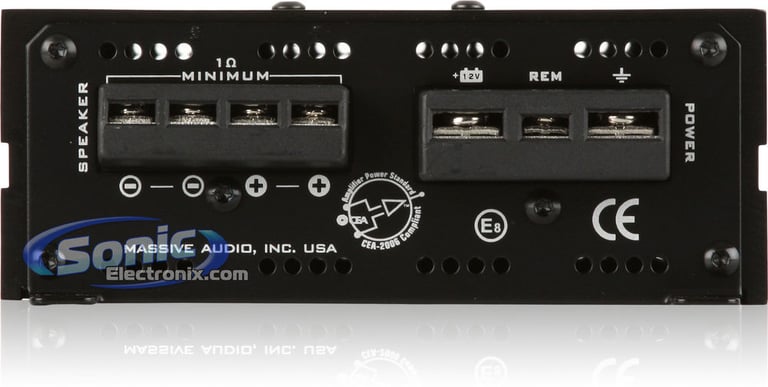

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity: 200mV - 5V
  • Frequency Response: 10 - 220 Hz
  • Total Harmonic Distortion (THD): <0.3%
  • Signal to Noise Ration: >80 dB

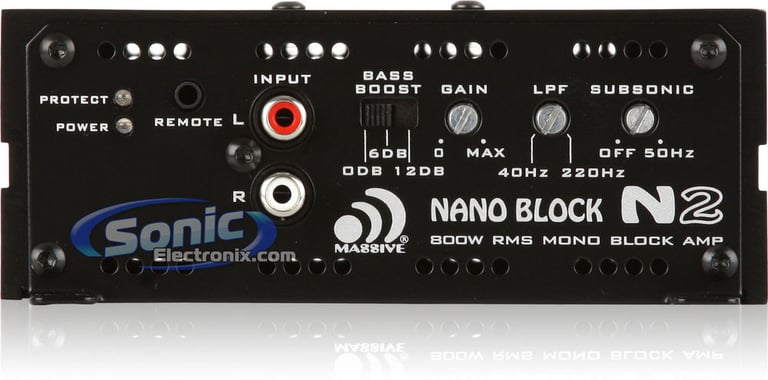

  • Variable low-pass filter: 40 - 220 Hz, 24 dB/octave
  • Subsonic filter: 10 - 50 Hz , 24 dB/octave
  • Selectable Bass Boost: 0, +6 dB, +12 dB
  • 4 - 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Weight: 7 lbs
  • Dimensions: 7-1/4"L x 5-1/2"W x 2-1/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Massive Audio N2-ES thumbnail
(newest, current model)
Massive Audio N2 thumbnail
(previous model, replaced by Massive Audio N2 (ES - Special Edition))

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
400 watts x 1 channel
RMS Power @ 1 ohm
800 watts x 1 channel
RMS Power @ .5 ohm
Power Specifications - Subwoofer Channel
Peak Power @ .5 ohm
Amplifier Specifications
Series
Marine Certified
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1600 watts
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
Not Bridgeable
Frequency Response
THD at Rated RMS Power
<0.3%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
40 - 220 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
>80 dB
Bass Boost
0dB, 6dB, 12dB
Remote bass/level controller
No
Fan Cooled
No
Fuse Rating
Not specified by manufacturer
CEA-2031 Compliant
Yes
Low-Level Input Sensitivity
High-Level Input Sensitivity
What is in the box?
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

N2

Weight:

5.00lbs

Internal SKU:

n2

Internal Product ID:

27728

Product and How-to Videos


  • Dalek Massive @ Massive Audio Booth | CES 2014
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews



5 star
85%
4 star
15%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.9
Features
4.6
Design
4.9
Usability
4.9
Sort by:

Loading...

Buy this!!

This amp throws a huge punch, has a good price, and is very small ! I have my N2 hooked up to a 15" Massive CW with a Massive digital 3.0 cap... It's in a proper deep slot port box with a deck that has 6V pre-outs. It's plenty loud enough to piss your neighbors off, power a 15 or a couple 12's !

By Etch on July 9, 2011

24

found this helpful.

The best amp ever

Amp is small size but very strong it's pushing two american bass 10in subs without any problem !!!

By Moya1 on May 7, 2014

25

found this helpful.

Superb

Best amp I've ever owned. Compact and does not heat up at all. I have mine under my passenger seat. The power it puts out is ample enough for anyone seeking some quality bass. I have mine hooked up to 2 Boston acoustics g12. The massive audio support is great and they would help you with anything. For the price nothing compares. Get this if you like quality and style.

By Patrick on March 26, 2012

23

found this helpful.

Great value

I bought the N2 to push my 6x9's and they're perfect!!

By robert on July 19, 2012

22

found this helpful.

N2 amp &2 kenwood xrw10f subs

Got this amp pushing 2 kenwood 10" oversize shallow mount subs. Got them in a 99 ford expedition using a dual 10" jeep down firing box. These subs slam. Good highs and lows. Pushing 400watts @ 2 ohms.

By Romeo on February 18, 2012

21

found this helpful.

Crazy clean power in a small package

Bigger is'nt always better. This little amp will blow your ears off hooked to a set of twelves or anything else you throw at it. Think smarter not harder.

By Rudy on September 13, 2010

22

found this helpful.

WOW

I must say that I am surprised. This little amp is a beast. I tested it out on my HCCA 12.4 Orions. I was and still is shocked. It didnt push my subs to the max obviously but it rocked them as my friend's Kicker 1000rms monoblock did. I noticed it cuts off if you give it too much work. Better than it frying. lol.. Awsome amp. I give it 5 stars..Great job guys.

By Keith Anthony on May 24, 2011

20

found this helpful.

Top Quality Performace & accurate bass

Best over all quality performance amplifier I have ever installed.

By ED on January 13, 2011

22

found this helpful.

Good amp

I have this amp driving 2 RF P2's and it sounds good. Great value for the money.

By STP on November 3, 2011

19

found this helpful.

hide it anywhere

I am pushing a pioneer 12" 400 rms @ 2 ohms, this n2 this combo is perfect. The great thing about this amp is that you can hide this thing anywhere. If you have a SPORTS CAR, TRUCK, OR LIMITED SPACE there is no other amp you should get other than the massive n series. The quality is top of the line. It is a simple amp not a bunch of stuff you don't need. i would recomend this amp to anyone who just wants to have the true power of the n2 but not the flash of a huge amp.

By lawrence on October 21, 2011

19

found this helpful.
