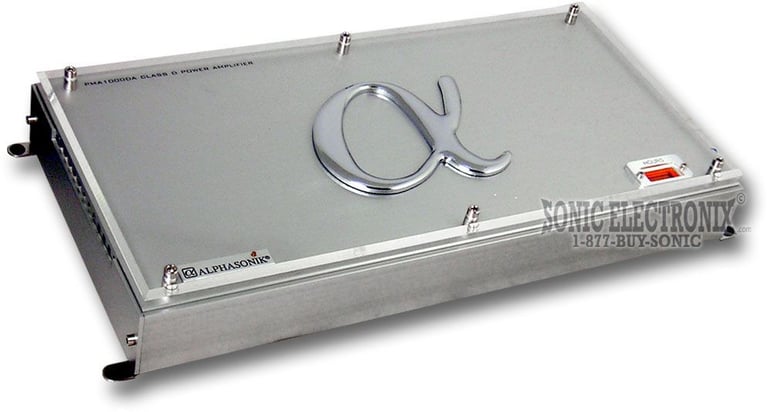

Alphasonik PMA1000DA R/B

Factory Refurbished Class D Monoblock Amplifier

Alphasonik
Shop all Alphasonik
Product videos
highlight-star-icon

1-Channel Class D Monoblock Power Amplifier • 2060 watts x 1 chan. at 1 Ohm • 1500 watts x 1 chan. at 2 Ohm • 1000 watts x 1 chan. at 4 Ohm • Digital voltmeter • Remote bass control

Learn more about the LS-pma1000da-RB

We apologize

This item has been discontinued

Product Highlights


1-Channel Class D Monoblock Power Amplifier • 2060 watts x 1 chan. at 1 Ohm • 1500 watts x 1 chan. at 2 Ohm • 1000 watts x 1 chan. at 4 Ohm • Digital voltmeter • Remote bass control

Description


Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

  • 1-Channel Class D Monoblock Power Amplifier
  • RMS Power Rating: 2060W x 1 chan. at 1 Ohm Mono
  • RMS Power Rating: 1500W x 1 chan. at 2 Ohm Mono
  • RMS Power Rating: 1000W x 1 chan. at 4 Ohm Mono
  • Hour Meter

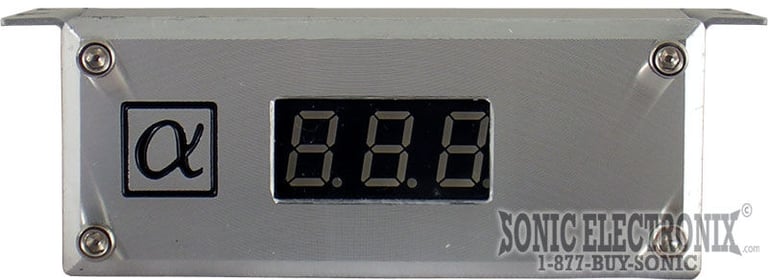

  • Remote mount digital voltmeter not included

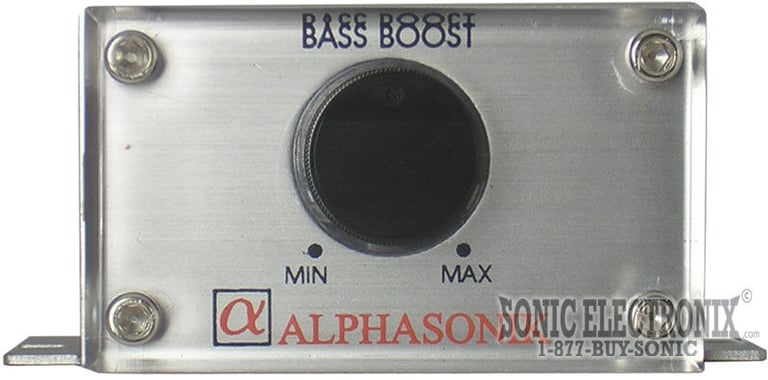

  • Remote bass boost control not included
  • Heavy duty heat sink
  • Beveled clear acrylic protective cover

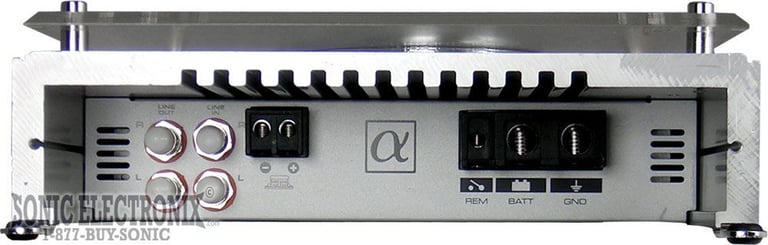

  • Tiffany-style input and output RCA jacks

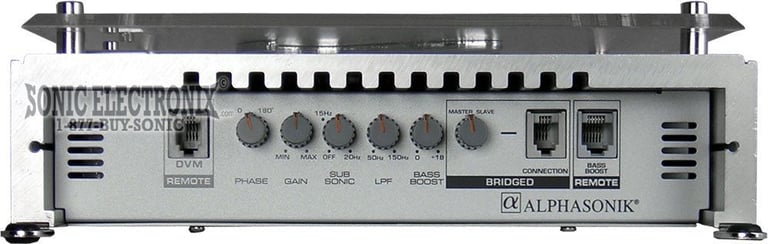

  • Removable covers for control and input areas
  • High speed switching power supply
  • Double-sided glass epoxy circuit board
  • THD: 0.08
  • S/N Ratio: >100dB
  • Frequency Response: 15Hz-150Hz
  • Variable Low Pass Filter: 50Hz-150Hz, 24 dB/oct
  • Variable Subsonic Filter: Off-20Hz, 24dB/oct
  • Variable Bass Boost at 45Hz: 0~+18dB
  • Variable Phase Shift: 0-180 degrees
  • Input Impedance: 10K ohm
  • 4-Way Protection Circuitry: Thermal, Short Circuit, Overload and DC Offset
  • On board hook-up terminals
  • Dimensions: 18L x 9W x 2H
  • 1-year SonicElectronix.com warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
1000 watts x 1 channel
RMS Power @ 2 ohms
1500 watts x 1 channel
RMS Power @ 1 ohm
2060 watts x 1 channel
Bridged RMS Power
Not Bridgeable
Amplifier Specifications
Number of Channels
1 - Mono
Total RMS Power Output
2060 watts
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.08%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
Off - 20 Hz
Signal-to-Noise Ratio
>100 dB
Bass Boost
Yes, 0 - 18 dB at 45Hz
Fuse Rating
120A

Item Details


Manufacturer:

Model Number:

PMA1000DA-RB

Weight:

25.00lbs

Internal SKU:

LS-pma1000da-RB

Internal Product ID:

12288
