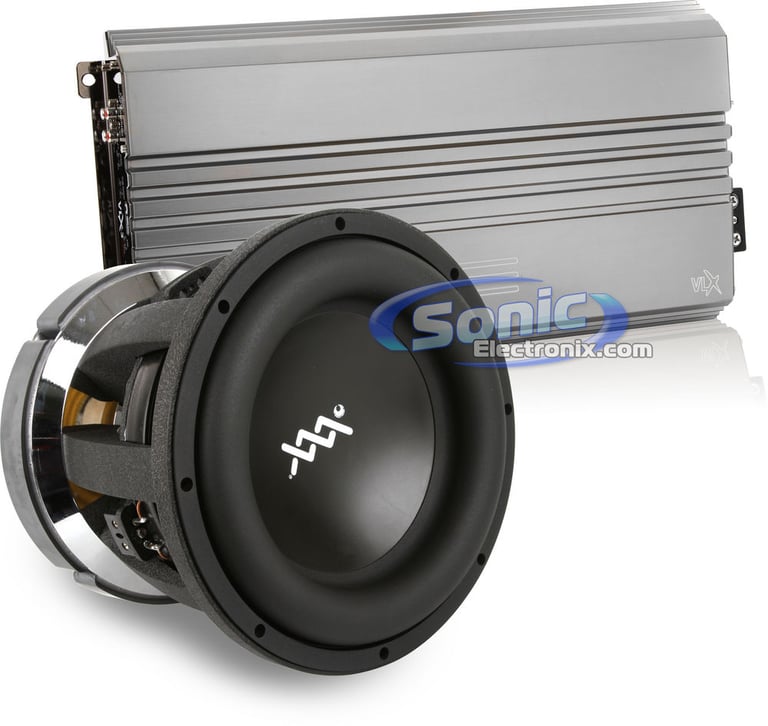

Combo: RE Audio XXX12D2 and RE Audio VLX-3DE

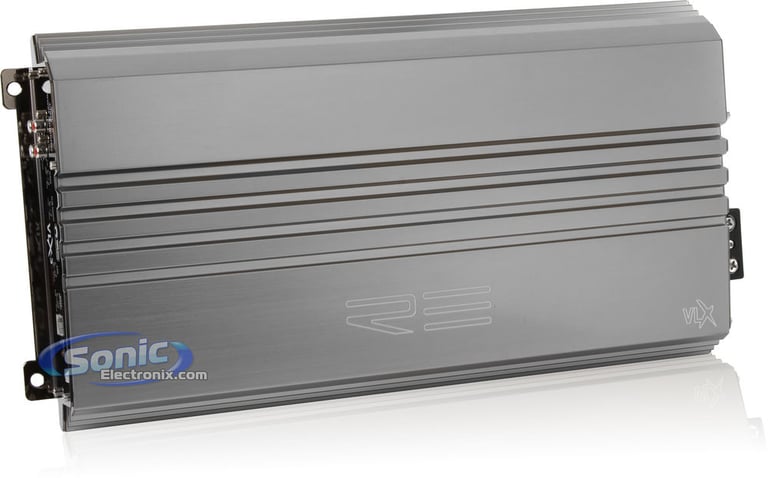

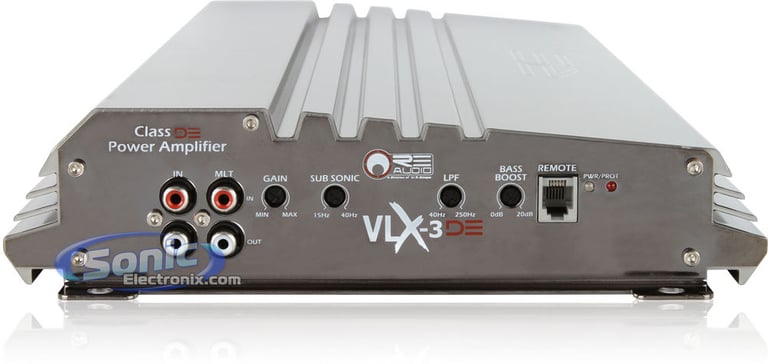

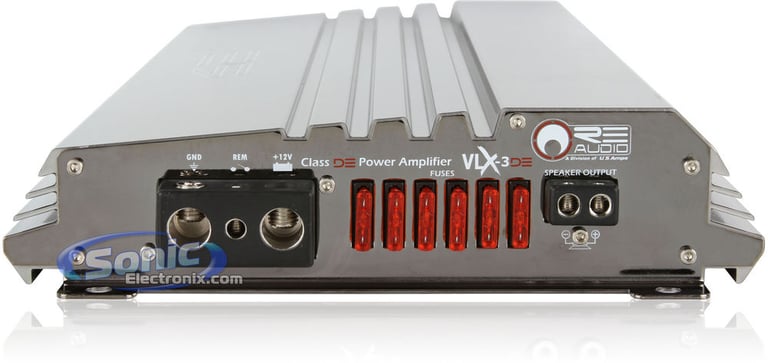

• VLX Series Monoblock Class "DE" Digital Stereo Amplifier
• RMS Power Rating:
  • 4 ohm: 600 watts x 1 chan.
  • 2 ohm: 1200 watts x 1 chan.
  • 1 ohm: 2400 watts x 1 chan.
• Magnetic induction regulated drive power supply
• Pulse Width Modulated high-current matched MOSFET devices
• Class DE technology utilizes elevated efficiency platform technology

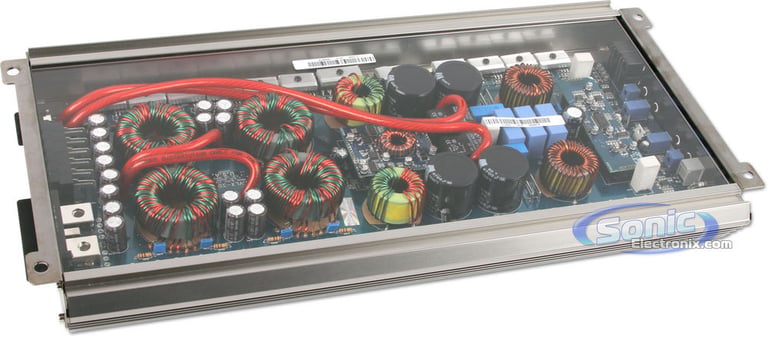

• 90% High density construction surface mount technology
• Metallized high temperature low ESR capacitors
• High speed audio grade low level stage components
• Balanced Transformer-less Logic input for highest possible damping factor, slew rate and S/N ratio
• Stability filter design for reduction in noise

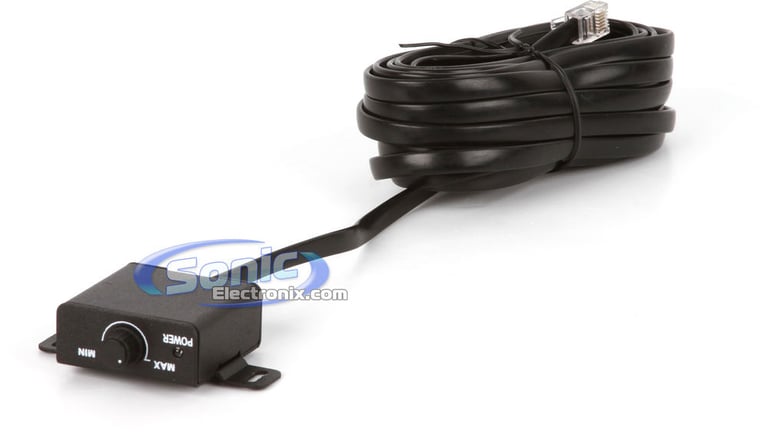

• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Variable Bass Boost (0 to +20 dB bass boost at 45 Hz)
• Time delay soft start turn on
• Mono channel operation
• Preamp RCA outputs to daisy chain multiple amps
• 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy convection cooled heatsink for extreme heat dissipation
• Platinum-plated RCA level inputs
• Platinum-plated screw terminals
• Input sensitivity:
  • Level: 250mV-9V
• Variable low-pass filter (40-250 Hz, 24 dB/octave)
• Subsonic filter (15-40 Hz, 24 dB/octave)
• Damping factor: >200
• CEA-2006 compliant amplifier
• Frequency response: 20-250 Hz
• Dimensions: 19-3/4"L x 9-3/4"W x 2-1/4"H
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

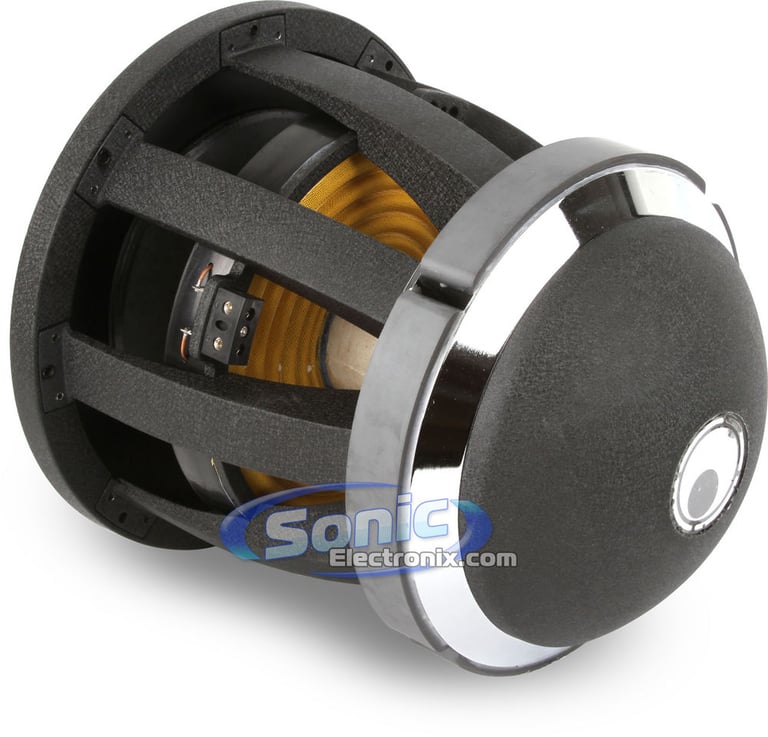

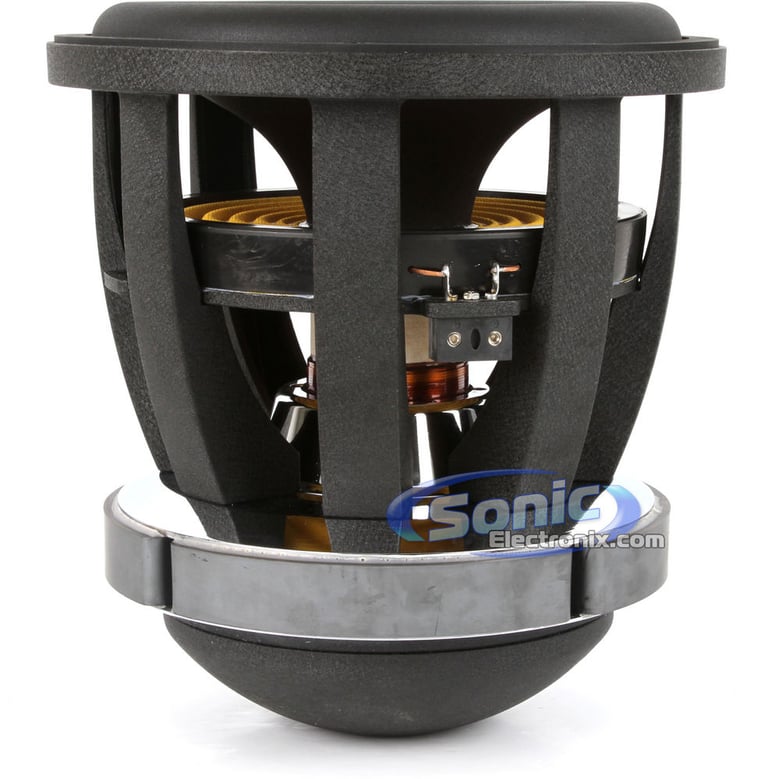

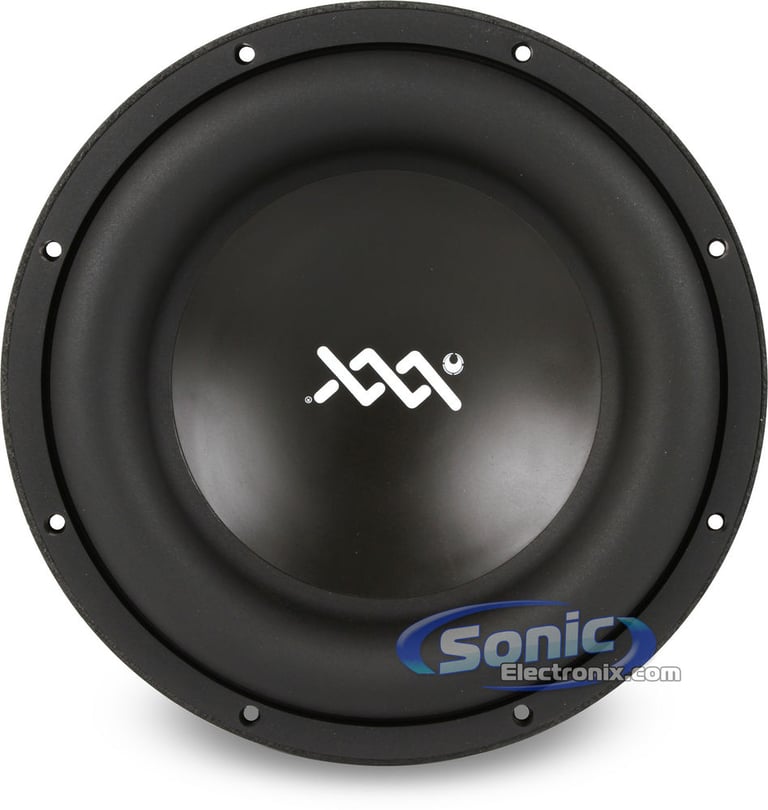

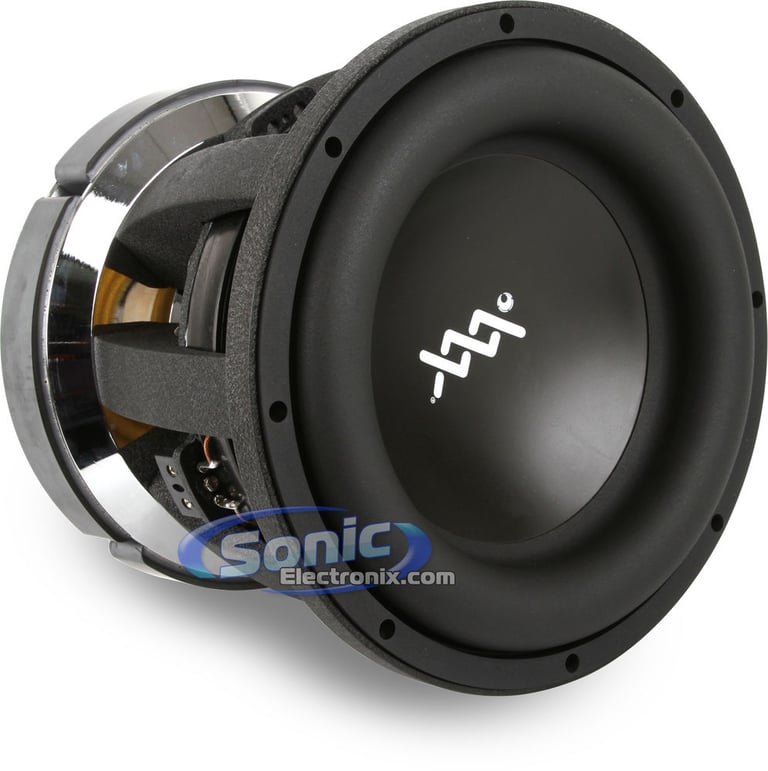

• 12" Dual 2 ohm XXX Series Car Subwoofer
• Power Handling:
  • RMS: 2000 watts
• Impedance: Dual 2 ohm
• Kevlar reinforced kraft pulp, dual composite 2-piece cone

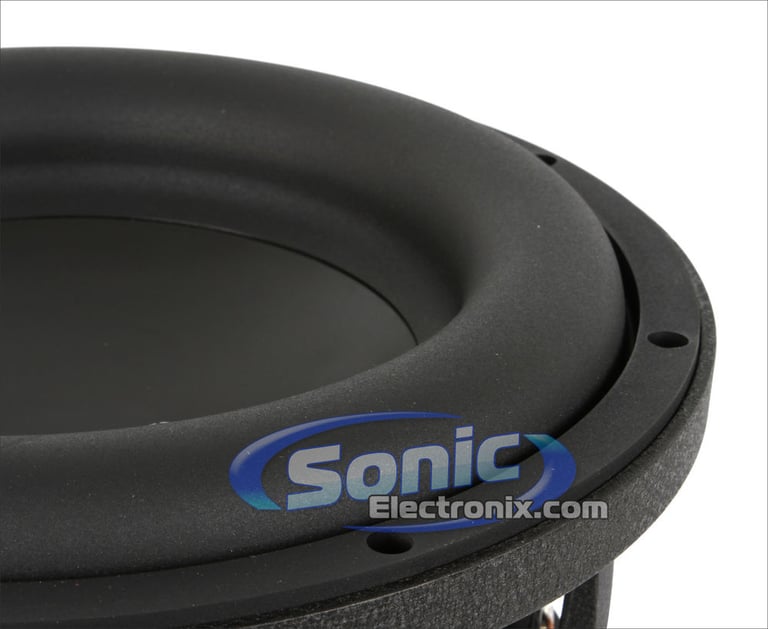

• Rubber surround
• Integrated tinsel leads
• FEA Optimized motor structure
• Dual progressive spiders
• Integrated gasket
• Tork-Tite terminals
• 3" 4-Layer aluminum flat wire voice coil
• Split coil design
• VMS Vented magnet system
• Cast aluminum basket
• Triple stacked magnets
• Designed specifically for sealed or ported enclosures
• Proudly made in the USA
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

• Electrical Q Value (Qes): 0.46
• Mechanical Q Value (Qms): 3.29
• Total Speaker Q Value (Qts): 0.404
• Free Air Resonance (Fs): 21 Hz
• Equivalent Compliance (Vas): 74 liters
• One-Way, Linear Excursion (Xmax): 54 mm
• Efficiency (SPL 1W/1m): 83.76 dB SPL
• Effective Piston Area (Sd): 480 cm2
• DC Resistance (Re): 4.2 ohm
• Nominal Impedance (Znom): Dual 2 ohm
• Thermal Power Handling (Pe): 2000 W
• Force Factor (Bl): 18.16

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article
