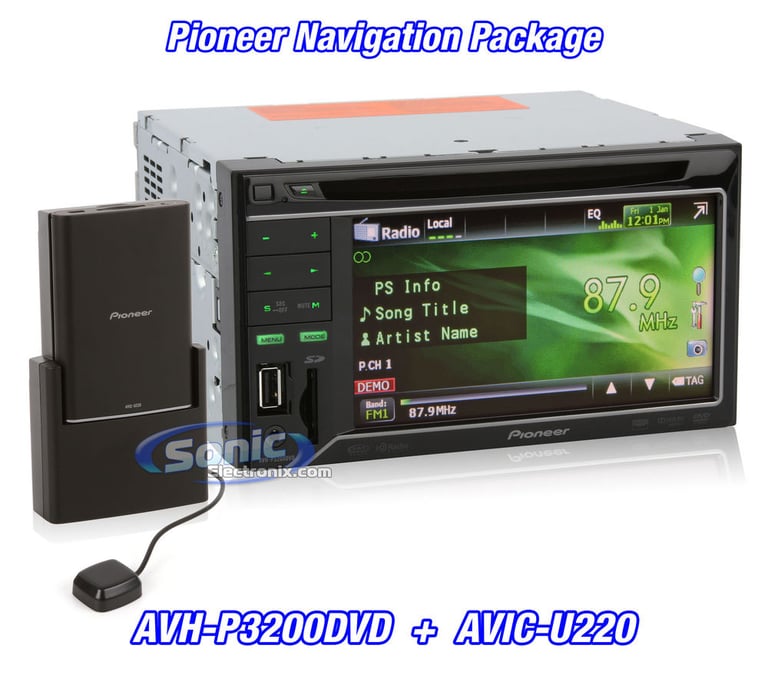

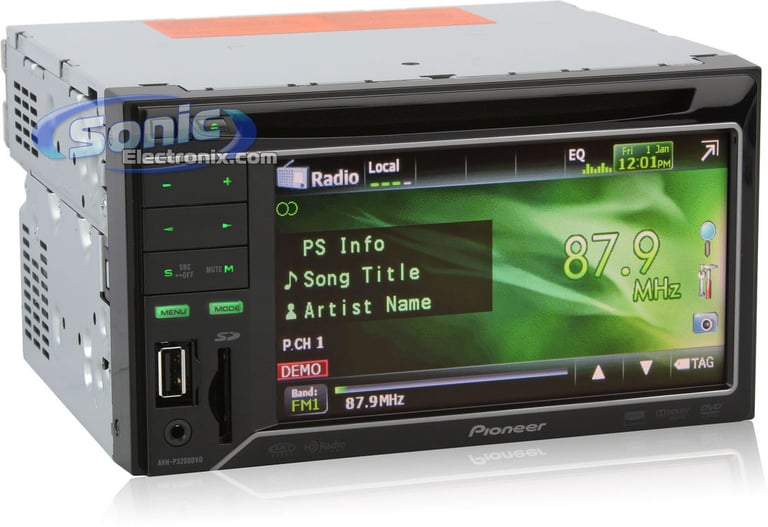

Pioneer AVH-P3200DVD Navigation Package

The Pioneer AVH-P3200DVD has a 5.8” TFT-LCD Touchscreen with an intuitive on-screen display and optional background images. With the 112 variable illumination button options and selectable background colors, you will have no problem matching your receiver with your vehicles interior. The user interface delivers advanced control by utilizing the touch screen to its full ability. You can tap, swipe or drag on the screen, exactly how you would want a receiver to work. Playback options include DVD, DivX, CD, MP3 and JPEG. With JPEG playback support you can view still images that have been recorded on CD-R/RW and SD Memory cards. The unit will automatically start a slideshow so you can view all your pictures from the folder or pictures. Along with multiple disc compatibilities, it has automatic, resume and frame-by-frame playback of the DVD discs.

Have you ever backed into something while driving? Well, this receiver has a composite video input for installing a rear view camera so you will no longer have to worry about it. The built-in USB input allows you to have iPod and iPhone direct control. You can search for content such as artists, songs or playlists. This Double DIN Receiver can be packed with so many great features such as optional Bluetooth, Satellite Radio and HD Radio. With these expandability options, you can make your new receiver the talk of the town.

General Features:

• In-dash DVD, AM/FM, CD, MP3, WMA player
• Includes the Pioneer AVIC-U220 GPS Navigation Add-on System
• Double-DIN fixed face
• 5.8" full color display

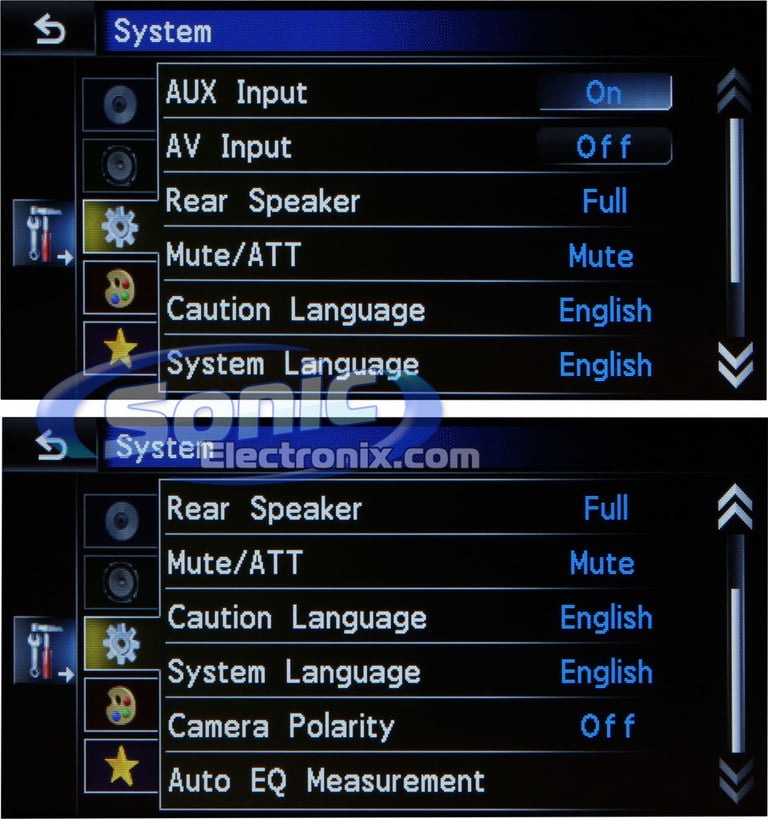

• Advanced and intuitive touchscreen operation
• Wireless remote control optional and sold separately (Pioneer CD-R55)
• 112 Variable color illumination button lighting
• 5 Selectable and customizable background display colors
• CEA-2006 compliant amplifier
• Power Output:
• Peak: 50 watts x 4 channels
• RMS: 22 watts x 4 channels (Pioneer Certified)
• RMS: 14 watts x 4 channels (CEA Certified)
• Rear channels can power a subwoofer directly from the speaker wires on the Pioneer harness (70 watt x 1 chan. @ 2 ohm)
• CD Text Display
• MP3 ID3 Tag Display (Title/Artist/Album)
• 1-year Sonic Electronix warranty

Playback and Audio Features:

• Playback of DVD, DVD-R, DVD-RW, DivX, VCD, CD, CD-R, CD-RW, MP3, and WMA
• Tuner with 18FM/6AM presets
• Dynamic Soundstage Organizer
• 8-Band parametric equalizer with 7 preset tone curves
• On-board high-pass and low-pass filters for greater acoustic customization
• With the optional Pioneer CD-MC20, the Pioneer AVH-P3200DVD will automatically equalize the sound and tailor the acoustics
• Bass boost adjustment for extra subwoofer output
• Advanced Sound Retrieval technology restores the lost frequencies that come with digital compression of music

Expandability Options:

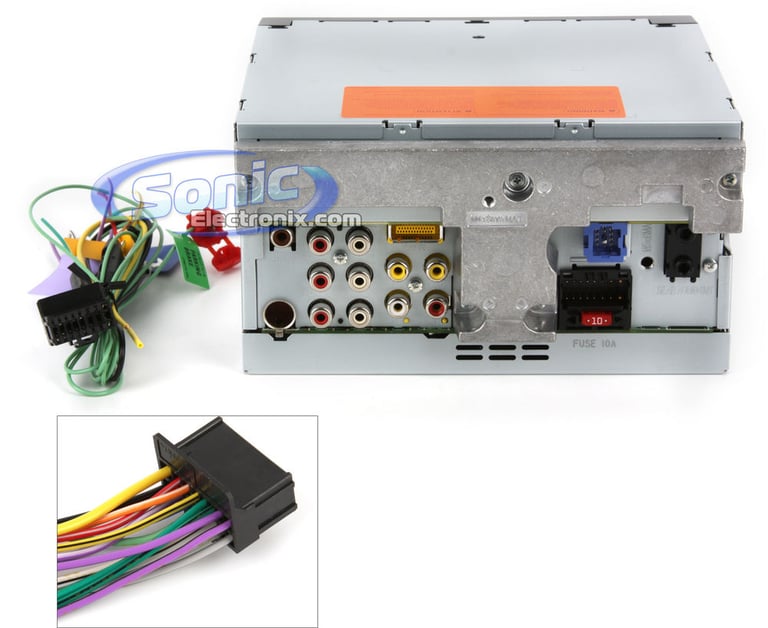

• 3 Sets of 4V preamp outputs (front, rear and subwoofer)
• Navigation Ready: Pioneer AVIC-U220 Required and Included in this Sonic Electronix Exclusive Package!
• Bluetooth Ready: Pioneer CD-BTB200 required and sold separately for audio streaming and hands free calling with included voice microphone
• SIRIUS or XM Satellite Radio Ready: SIRIUS Radio Package or the XM Radio Tuner required and sold separately
• HD Radio Ready: Pioneer GEX-P20HD required and sold separately
• iPod Ready:

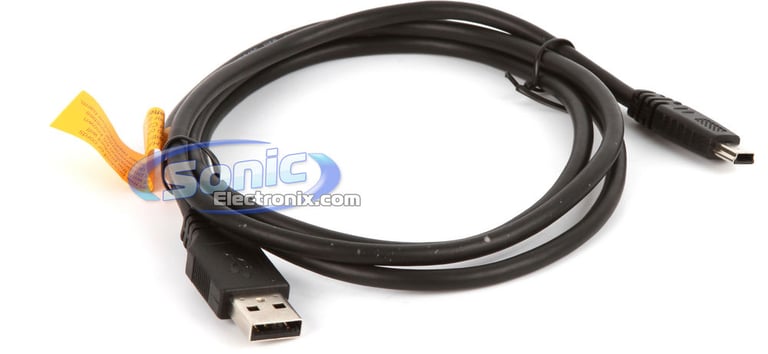

  • Audio Playback: Standard USB-to-iPod Cable is compatible or Pioneer CD-iU50 can be used.
  • Audio & Video: Pioneer CD-IU50V required and sold separately
• Front-panel auxiliary input: 3.5mm (headphone jack) allows connection to portable media devices such as MP3 players, etc.
• Front-panel USB input: 3.5mm (headphone jack) allows connection to portable media devices such as MP3 players, etc.
• Rear auxiliary video input: Rear video composite input
• Rear auxiliary video output: Rear video composite output for external monitors
• Rear auxiliary input: 2-Channel RCA audio input allows connection to portable media devices such as MP3 players, etc.
• Back-up camera ready: Pioneer ND-BC4 or the Pioneer ND-BC20PA recommended and sold separately
• Steering wheel remote ready: PAC SWI-PSv1 or the Axxess ASWC required and sold separately
• Front SD card slot

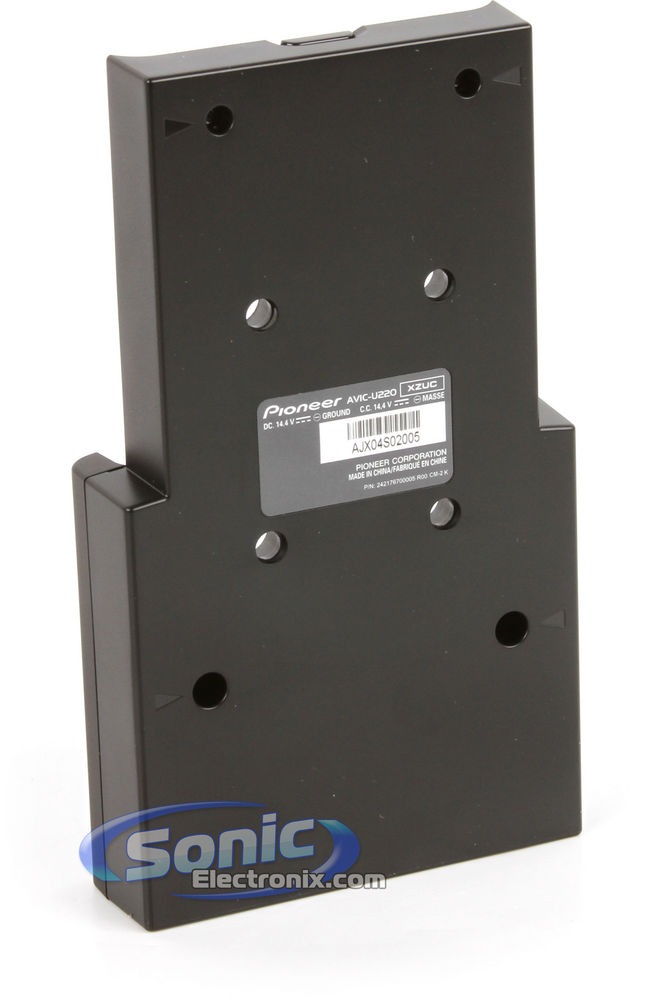

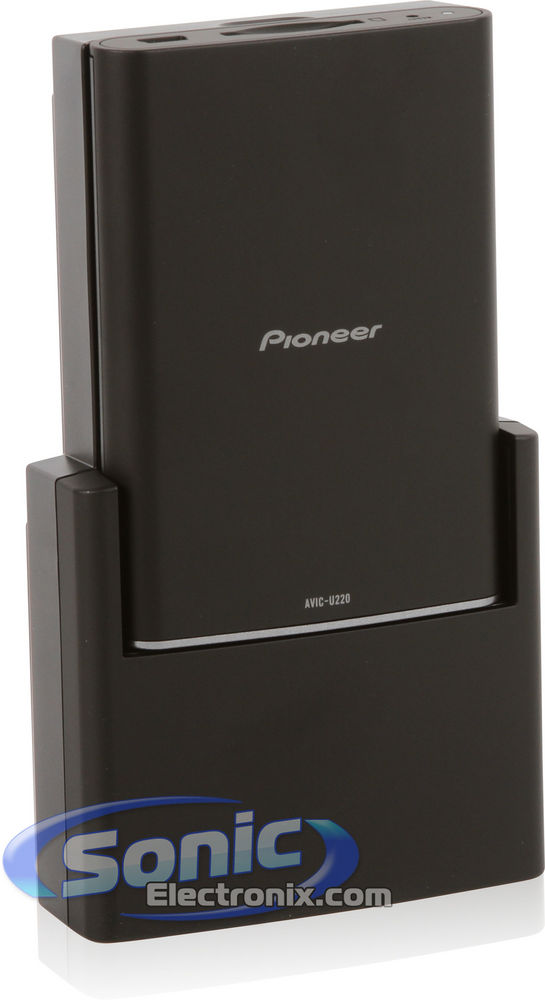

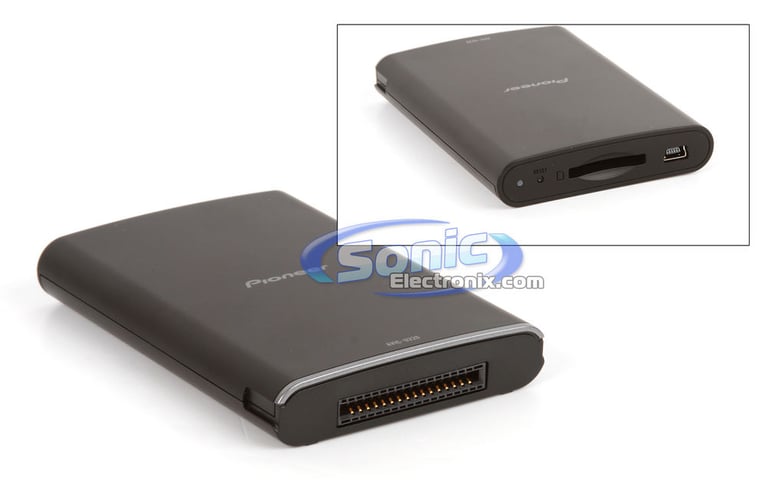

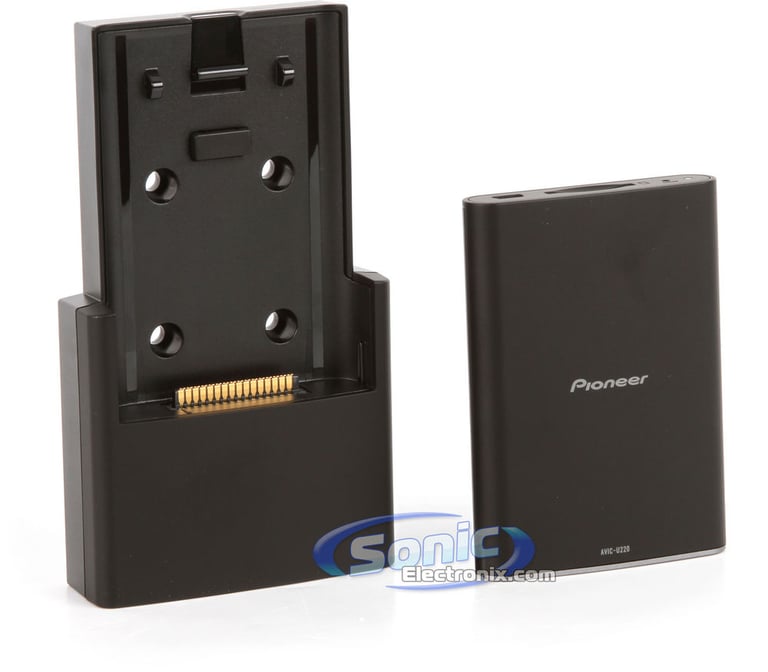

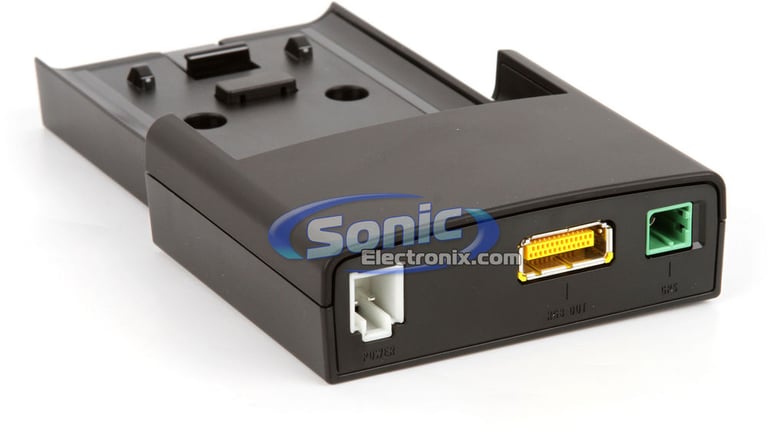

• Add-On Navigation System Included!
• Fast and simple installation
• Compact size fits in smaller locations behind dashes and panels

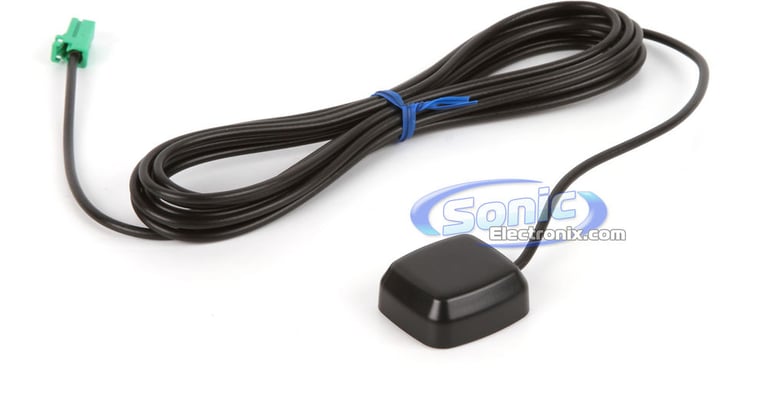

• Includes the GPS satellite antenna
• Comes pre-installed with maps for the entire United States and Canada
• Over 12 million points of interest for convenient traveling
• Navigation system is displayed on the units video screen
• Voice prompts with turn-by-turn guidance make the navigation system convenient and safe
• Multi-destination planning allows you to set a route with several destinations
• Quickly reroutes if turns are missed
• Compatible with the Pioneer AVIC Feeds system
• Internal trip computer
• SD card slot and USB input will allow future map updates
• 20-channel GPS receiver
