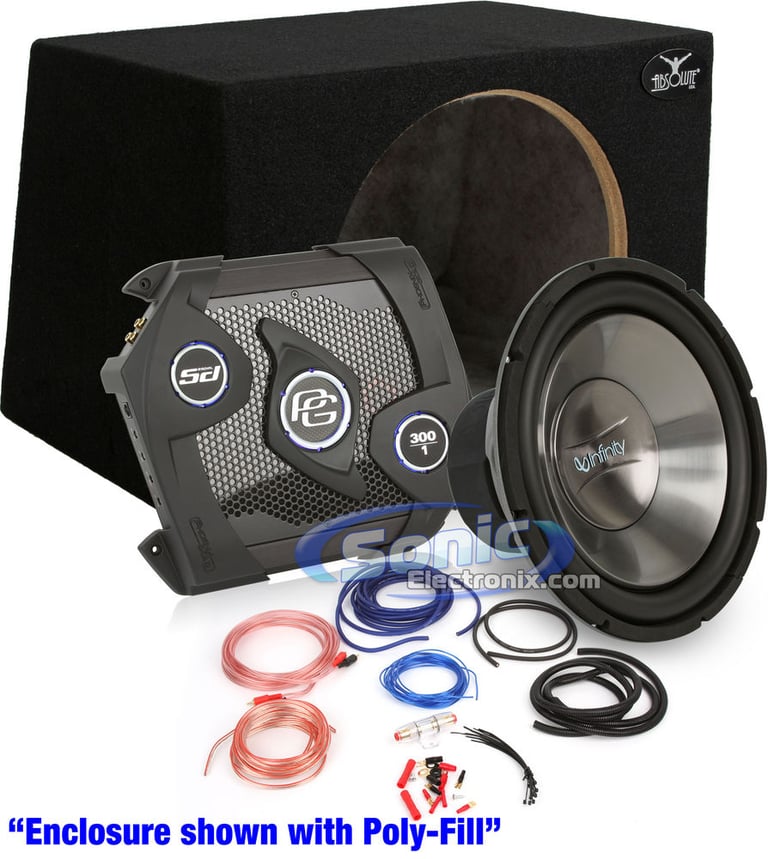

1200W Complete Phoenix Gold + Infinity Reference Bass Package

Phoenix Gold RSd 300.1 Amp + Infinity Reference 1260W Sub + 8 GA Amp Kit + Sealed Enclosure

Infinity
Shop all Infinity
EXCLUSIVE
Product videos
highlight-star-icon

Bass Package: Phoenix Gold Amplifier + Infinity 1260W Subwoofer + 8 GA Amp Kit + Subwoofer Box • 310W RMS • Includes Everything You Need To Add Bass To Your Car • Sonic Electronix Exclusive Bass Package

Learn more about the rsd3001_1260w

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

DMDX8 main

Diamond Audio DMDX8

390W Peak (130W RMS) 8" DMDX Series 2-Way Cocentric Coaxial Car Speakers

REF3032CFXAM main

Infinity Reference 3032cfx (REF3032CFXAM)

150W Peak (50W RMS) 3.5" Reference Series 2-Way Coaxial 3-ohm Car Speakers

14
-42.32%

$74.95

List price $129.95

JS35K main

Jensen JS35K

150W Peak (50W RMS) 3.5" Apex Series 2-Way Coaxial 4-ohm Car Speakers

Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

16
-30.71%

$51.96

List price $74.99

V3 main

Cerwin-Vega V3

360W Peak (120W RMS) 3" Vega Series 2025 Edition 2-Way Coaxial 4-ohm Speakers

EPICPRO8X main

AudioControl EPICPRO8X

700W Peak (500W RMS) 8" Epic Pro Series Pro Audio Midrange 4-ohm Speakers

Product Highlights


Bass Package: Phoenix Gold Amplifier + Infinity 1260W Subwoofer + 8 GA Amp Kit + Subwoofer Box • 310W RMS • Includes Everything You Need To Add Bass To Your Car • Sonic Electronix Exclusive Bass Package

Description


Infinity brand icon

Authorized dealer

Sonic Electronix Exclusive Bass Package

This combo package includes one Infinity Reference Series 12" subwoofer and a Phoenix Gold Radial SD Series Amplifier. This monoblock amplifier is a perfect match for the 12" subwoofer when wired at 2 ohms. The amplifier is equipped with on board protection circuitry that helps protect the amp from over powering the subwoofer. This exclusive package also includes a sealed 12" enclosure and a 8 gauge amplifier kit to make all the necessary power connections. Sonic Electronix is the only place you will find this perfectly matched combo.

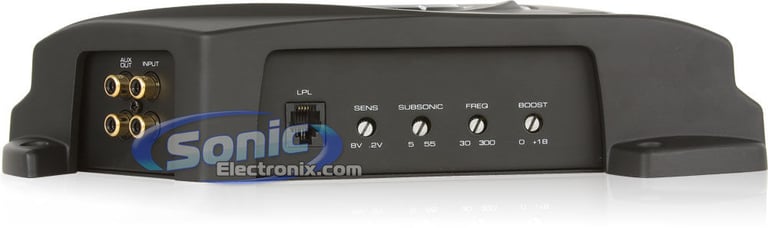

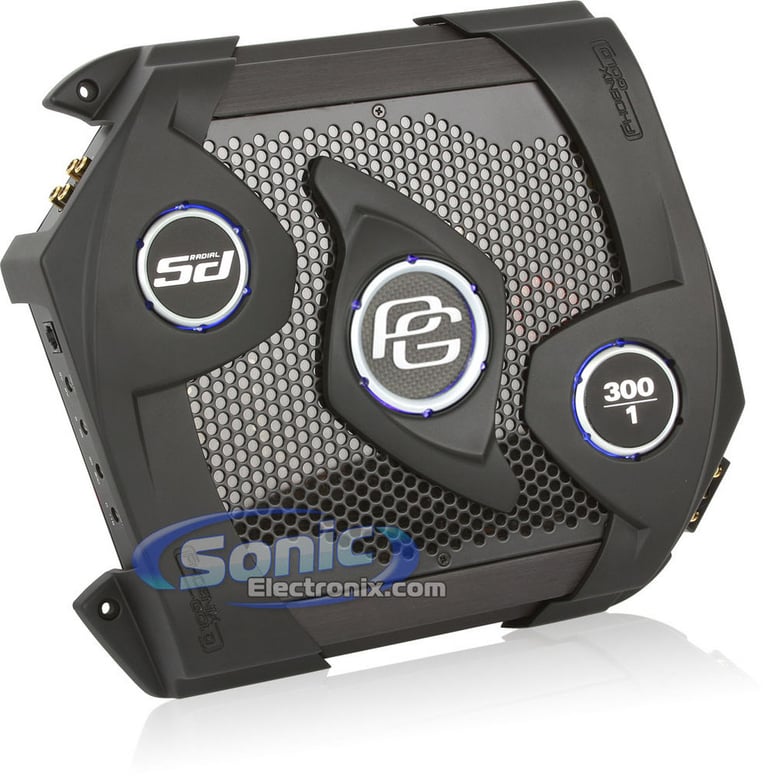

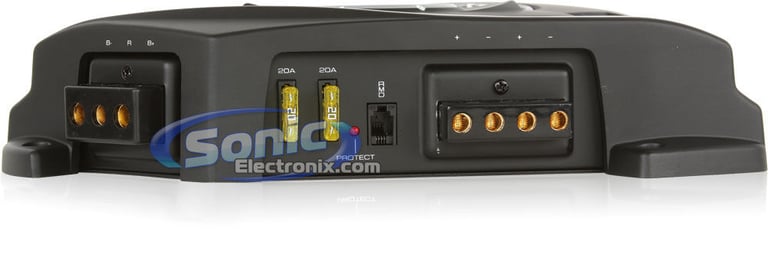

Phoenix Gold Amplifier Features
  • 300 watts, RSd Class AB Monoblock Amplifier
  • RMS Power Output:
    • 4 Ohm: 180 watts x 1 chan.
    • 2 Ohm: 310 watts x 1 chan.
  • High Speed, High Current MOSFET Switching Power Supply
  • On Board Protection Circuitry
  • Multi-Function Protection Indicator
  • Built-In Low Pass Crossover, 30 Hz - 300 Hz @ 18 dB/oct.
  • Variable Bass Boost(0 - 18 dB)
  • Wide Range Input Sensitivity Adjustment
  • Line Outputs
  • S/N Ratio: 84 dB
  • Dimensions: 12-7/8"L x 11-3/16"W x 2-3/8"H
  • Exclusive Authorized Internet Dealer
  • 2-year Manufacturer's warranty

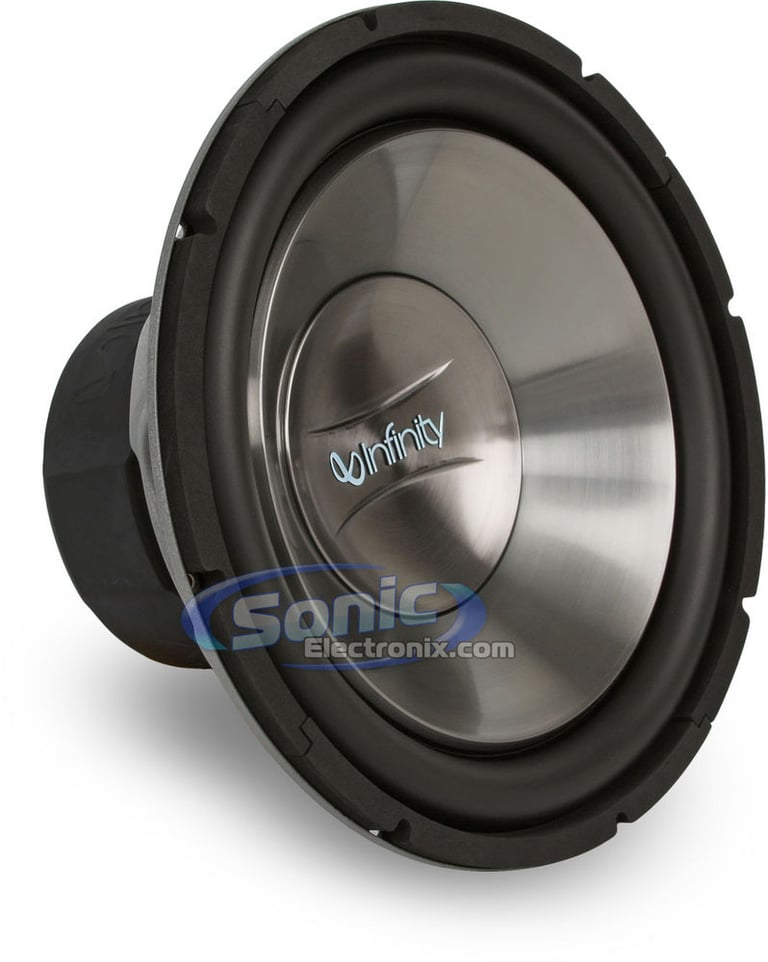

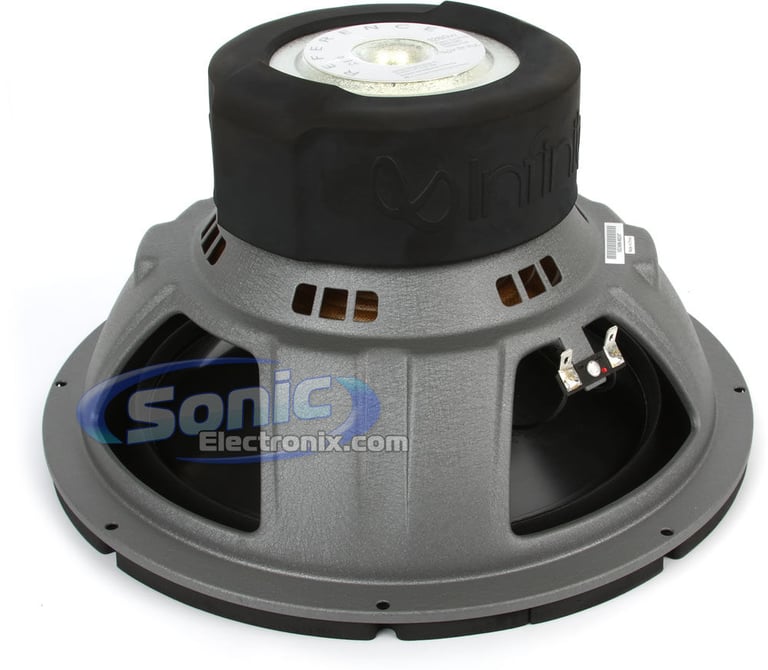

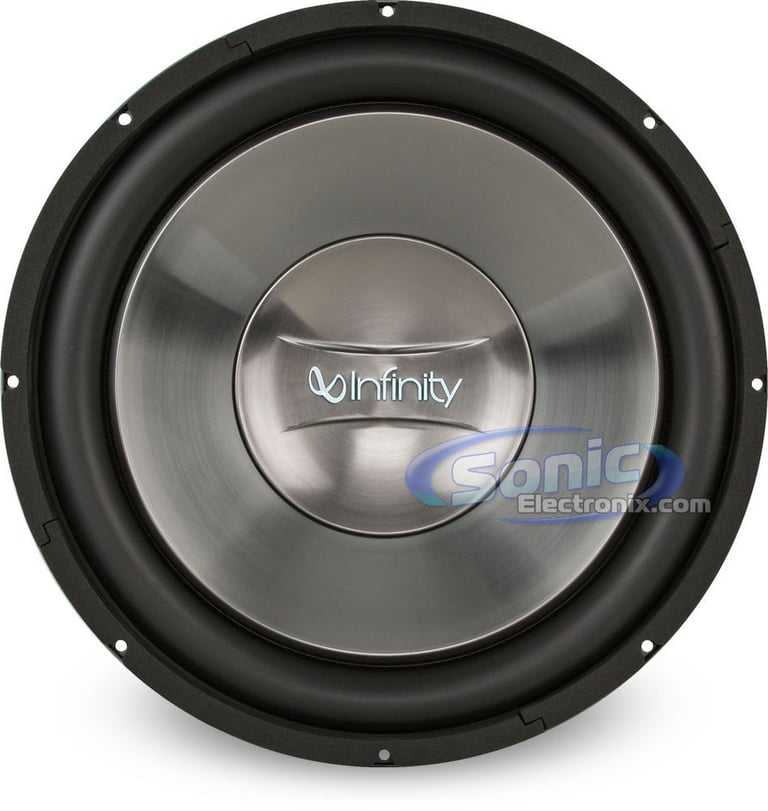

Infinity Subwoofer Features
  • 12" Single 4 Ohm Reference Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 300 watts
  • Impedance: 4 Ohm
  • High-gloss polypropylene woofer cone ensures maximum woofer efficiency
  • Large-roll rubber surround absorbs distortions
  • Vented pole pieces provide additional cooling of the motor
  • Progressive spider provides better control at excursion limits
  • 2" Voice coil
  • Frequency response: 23-400 Hz
  • Sensitivity: 91 dB
  • Mounting Depth: 6-3/8"
  • Cutout Diameter: 11-1/16"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

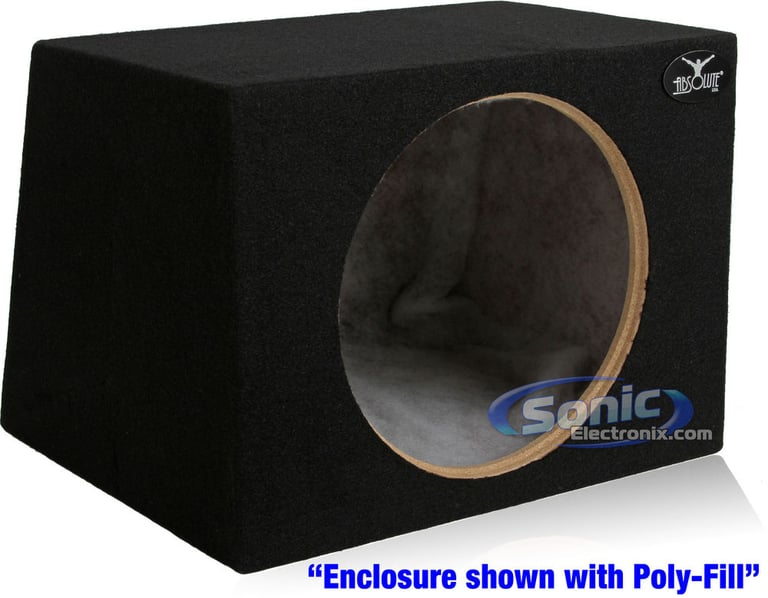

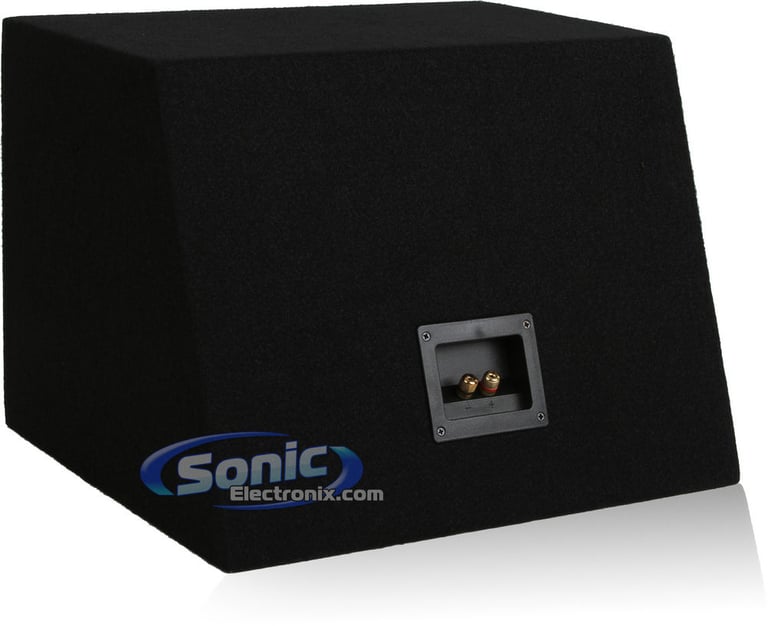

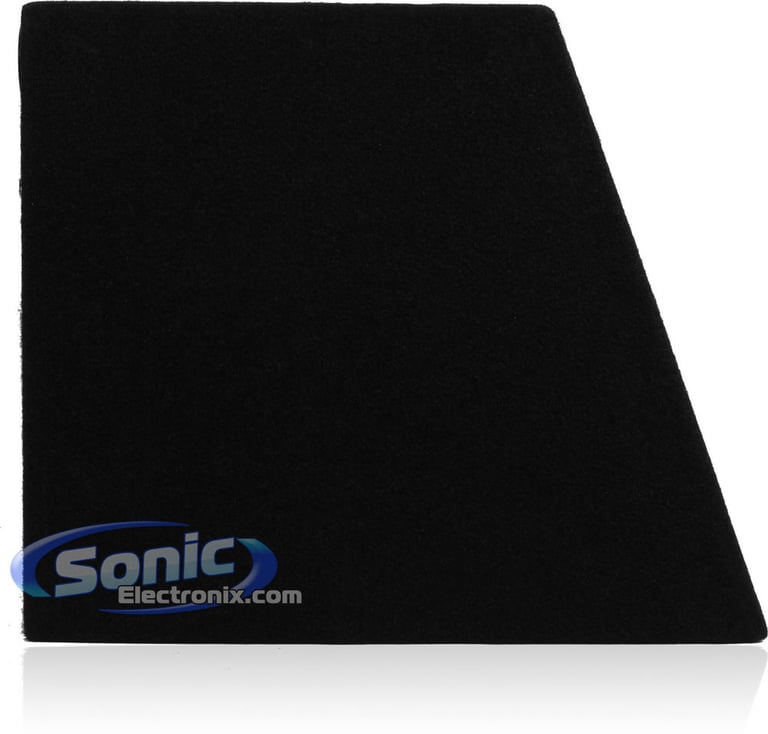

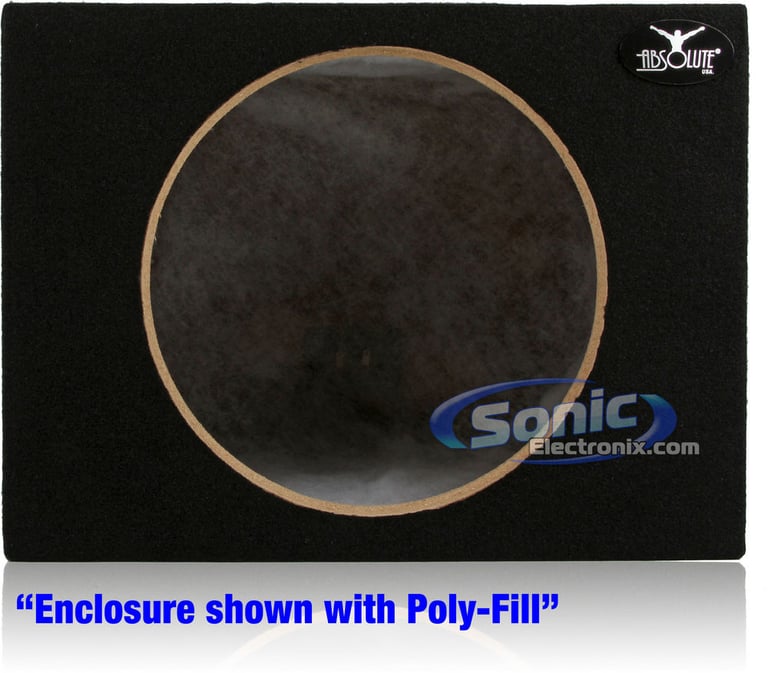

Absolute Subwoofer Enclosure Features
  • Single 12" Sealed Angled MDF Subwoofer Enclosure
  • Insulated fiberglass liner
  • 3/4" High quality MDF material
  • Professionally Sealed, caulked, and carpeted
  • Designed for round woofers
  • Durable black carpeting

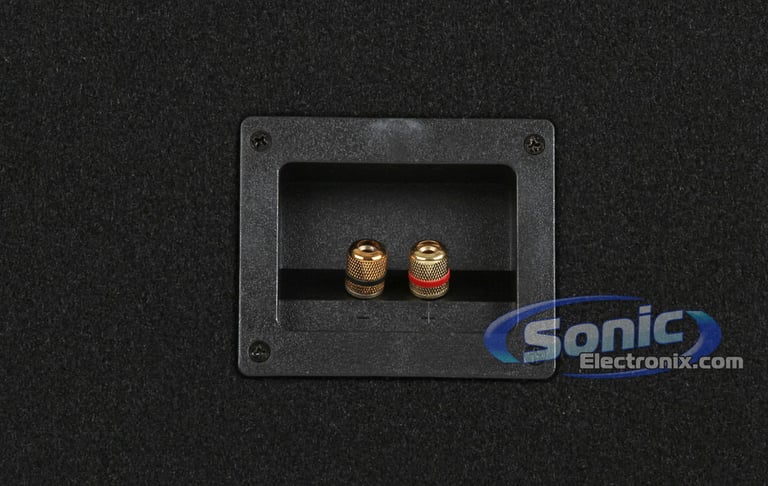

  • Gold screw terminals
  • Subwoofer mounting depth: 10-1/2"
  • Subwoofer cutout diameter: 11-5/8"
  • Total box volume: 1.20 cubic feet
  • Dimensions: 12"TD x 15-7/8"BD x 18"W x 13-3/4"H

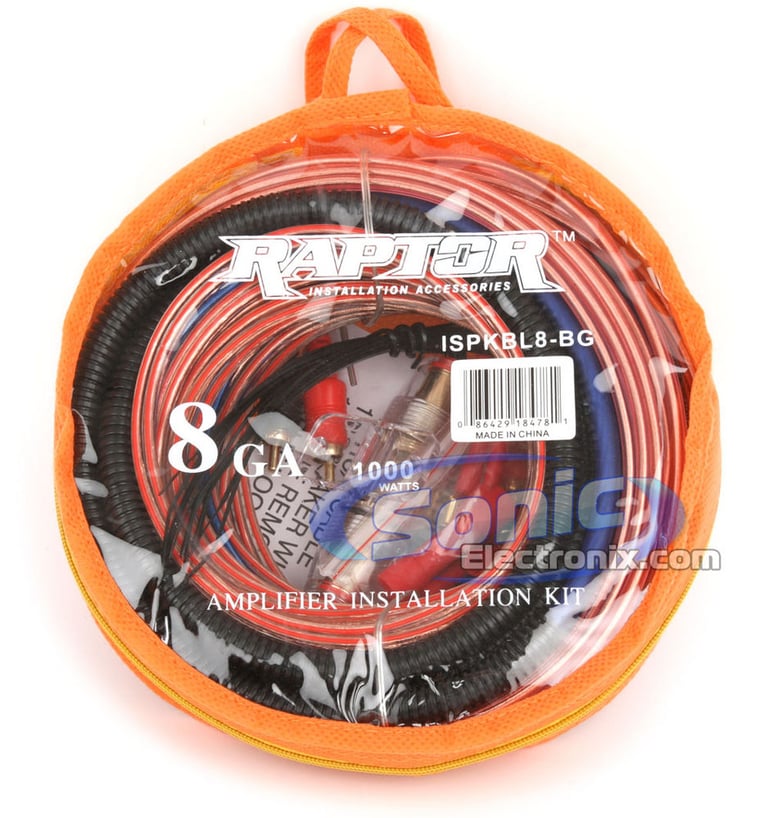

Raptor Amplifier Kit Features
  • Amplifier Installation Kit with RCA Interconnect Cable
  • 8 Gauge (AWG) Power and ground cable for excellent power transfer
  • Designed for systems up to 1000W
  • Comes with everything needed to install an amplifier
  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

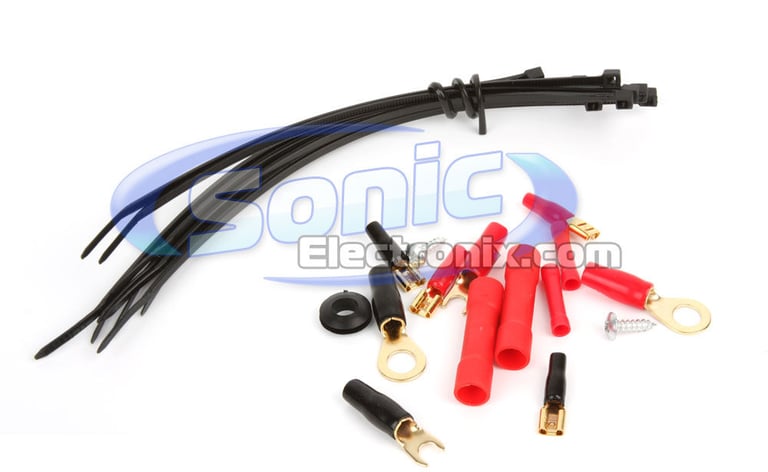

Amp Kit Includes:

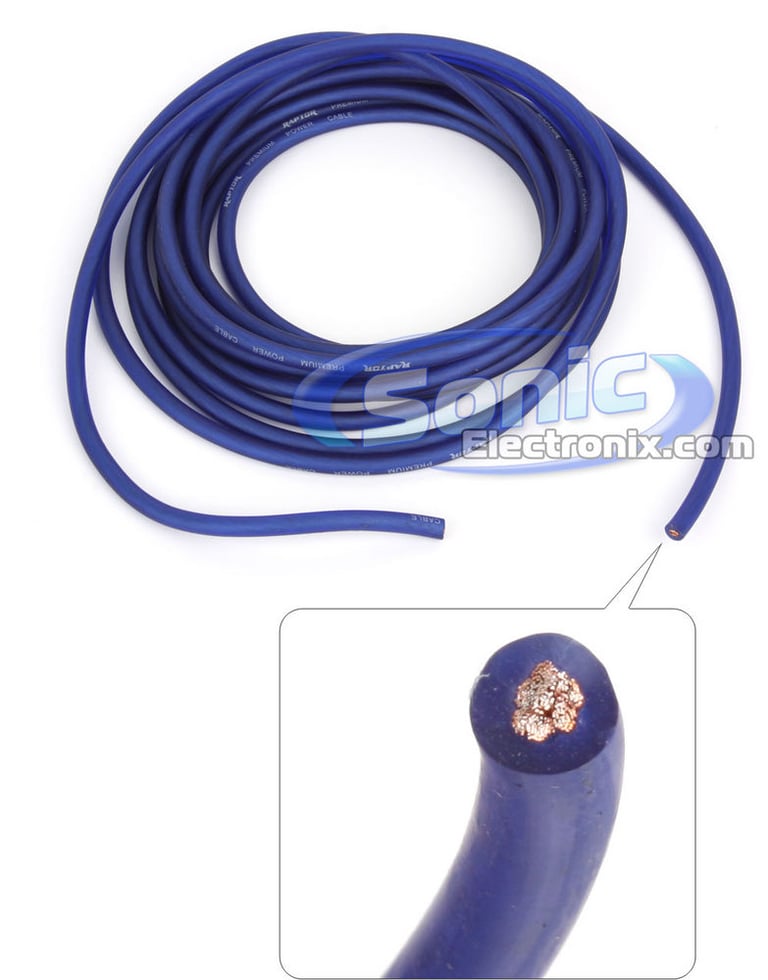

  1. 17 ft. of 8 Gauge blue power cable

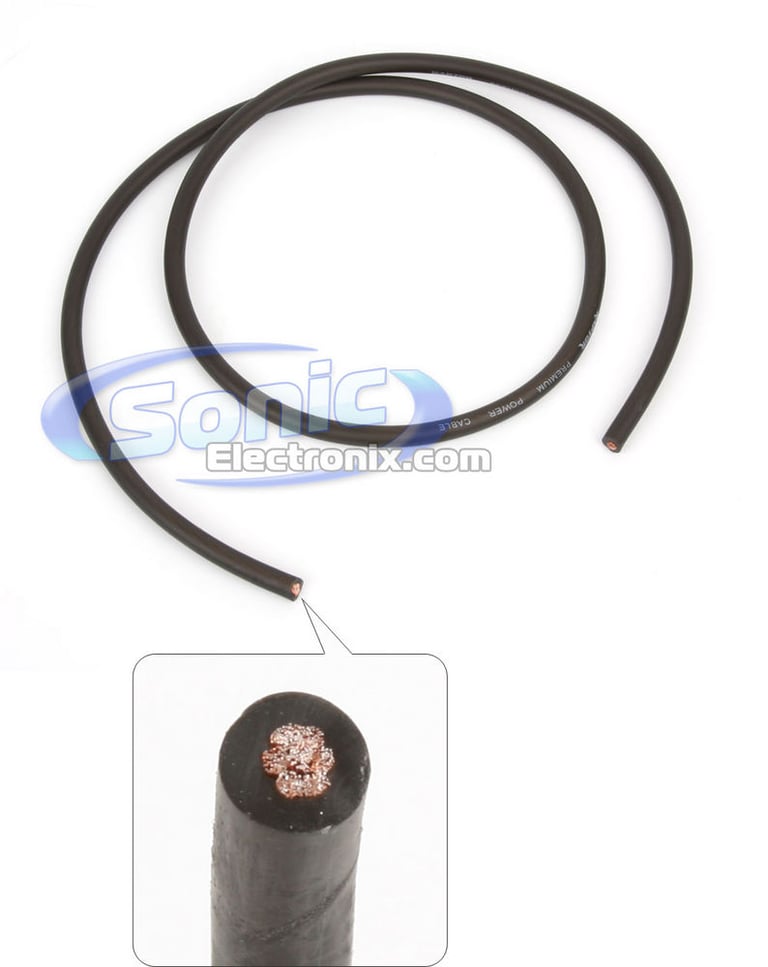

  2. 3 ft. 8 Gauge black ground cable

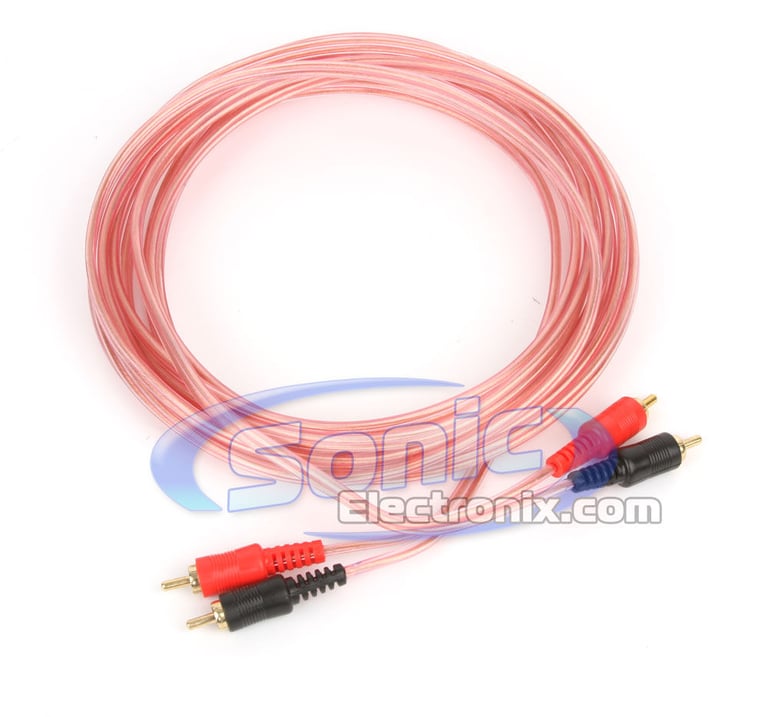

  3. 17 ft. Neon blue series RCA cable

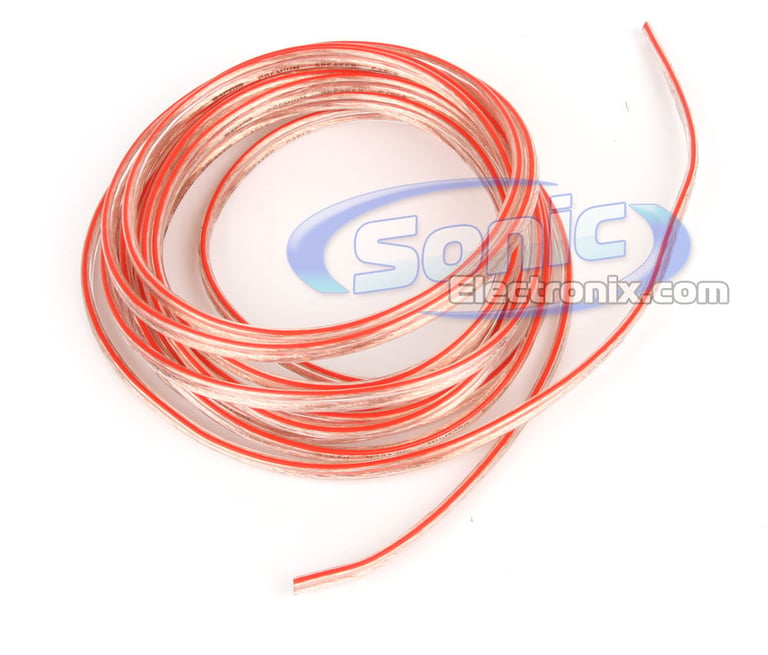

  4. 16 ft. of Premium speaker cable

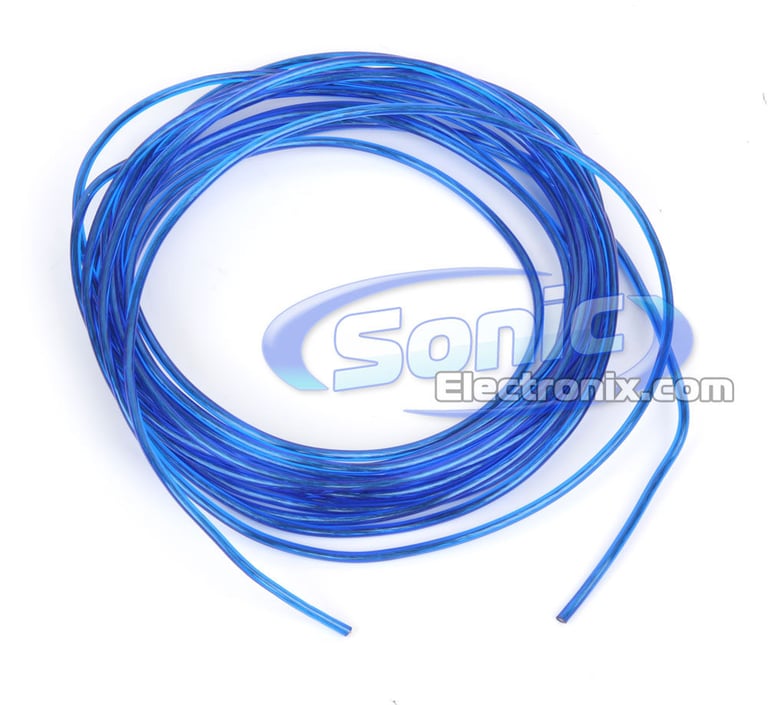

  5. 17 ft. of 18 Gauge blue remote turn-on wire

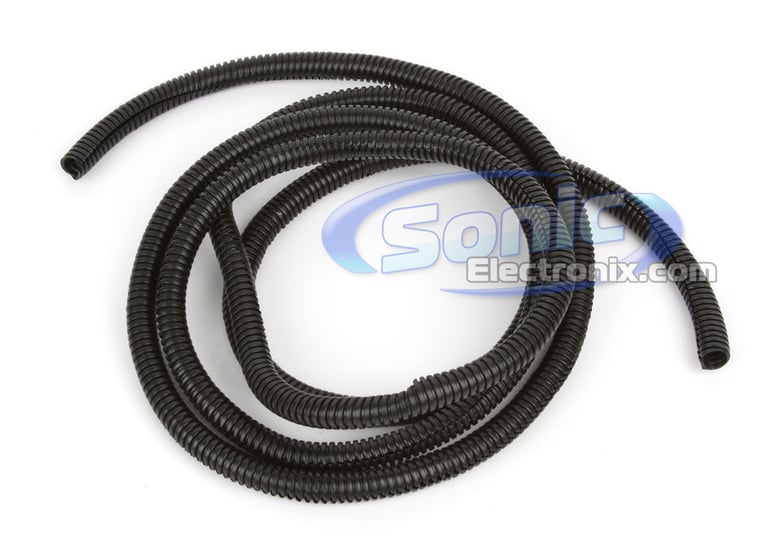

  6. 6 ft. Split loom tubing
  7. 1 AGU Fuse Holder
  8. 50 AMP Fuse

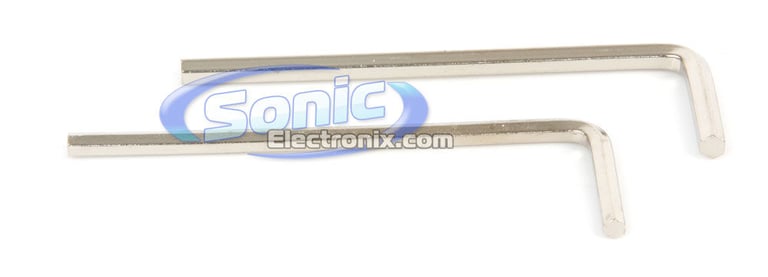

  9. All Necessary Hardware for Installation

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(261)

$486.93

List price $677.43

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

BAK42,46CXA4001T small

Kicker 46CXA4001 with Amplifier Wiring Kit


• 150 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Includes Amplifier Wiring Kit

(45)

$199.99

List price $269.98

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(250)

$311.43

List price $533.42

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(73)

$309.99

List price $369.98

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(267)

$495.93

List price $688.43

T500-1bdCP, BAK42 small

Rockford Fosgate Power T500-1bdCP & BAK42 4 AWG Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm, 500W x 1 @ 1 ohm
• Dynamic Power Output: 690W
• CEA-2006 Compliant
• Variable Bass Boost: 0 to +18 dB at 45 Hz
• Ultra Efficient Class bD Circuitry
• Dimensions: 11-7/16"L x 8-3/16"W x 2-3/16"H

(185)

$574.48

List price $609.98

BAK42BK,46CXA12001T small

Kicker 43CXA12001 with Amplifier Wiring Kit

• 1200 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 2400 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Dimensions: 7-3/16"W x 8-1/8"L x 2-3/8"H • Includes Amplifier Wiring Kit

(82)

$399.99

List price $489.98

Specifications & Details


Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
180 watts x 1 channel
RMS Power @ 2 ohms
310 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Peak Power Output
Not Specified
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
30 - 300 Hz
Subsonic Filter
5 - 55 Hz
Signal-to-Noise Ratio
84 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
20A x 2
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
300 watts
Peak Power Handling
1200 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
93 dB
Frequency Response
23 - 400 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Hatchback Style, Angled Back
Height
13-3/4"
Width
18"
Depth
10-1/2"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RSd300.1_1260w

Weight:

52.00lbs

Internal SKU:

rsd3001_1260w

Internal Product ID:

29424

Product and How-to Videos


  • Harman International: The Pursuit of Great Sound
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


1200W Complete Phoenix Gold + Infinity Reference Bass Package thumbnail image

5 star
67%
4 star
23%
3 star
8%
2 star
1%
1 star
1%



Durability
4.5
Value
4.7
Features
4.3
Design
4.5
Usability
4.7

Customer Reviews

Sort by:

Loading...

Knocks

The following review is for 1260w, which is a part of the bundle you are viewing.

I only have one of these in as of now but will be getting another one. Knocks hard just for one sub.

By Devin on November 1, 2014

50 found this helpful


Great slam for the buck

The following review is for 1260w, which is a part of the bundle you are viewing.

Put two of these 12's into a Ground-Shaker box, with two 1.65 cu ft chambers and added 2 ports to each chamber, 1-1/2" X 9" long to tune to approx 25 Hz. Using a subsonic filter set at 20Hz and powering with a 550W Alpine Class D amp. After loosening up the speakers for a few weeks, I have to say I'm impressed with the general sound quality of these drivers. These gotta be the value of the year! Harman may have cut some corners as far as using a stamped basket and where they are manufactured, but these drivers really do the job. I first tried them sealed, but ported is much better with these provided you have a large enough enclosure and use a subsonic filter. They are also relatively efficient and the fs/Q allows you use sealed or ported successfully.

By Todd_MKE on February 11, 2014

51 found this helpful


Best sub for the money!

The following review is for 1260w, which is a part of the bundle you are viewing.

This thing kicks and kicks hard! I have it installed in a 4th order bandpass box in my home theatre system and it shakes the house! Well worth the low cost!

By Judge on September 29, 2013

48 found this helpful


Pretty good, espcially for the price.

The following review is for 1260w, which is a part of the bundle you are viewing.

Picked up this sub for $60 off here and tossed it in a sealed enclosure built to specs to get me by. I have it being fed rated power, well, set my gain for 34.6VAC with a -3dB test tone. After that, I played the sub at low volume levels for a couple weeks, probably around 15Hrs. After that, I dialed up the sub volume. Single sub fills in the lows fairly well and sounds clean when not pushed hard. On some of my more bass heavy music and when volume levels reach the levels used when setting the gain, the sub's sound seems to get colored to some extent. It's by no means an SPL sub and it shows, but it for low to moderate levels, it does do quite well.

Initial plan was to install the sub in a JL HO enclosure, as it may be better suited for ported applications, but it really wasn't the sub I wanted to use for such. I bought it for that though and changed my mind last minute. I would like to believe the sub would perform better still in a proper ported enclosure, but I'll likely never know.

I'm probably going to be switching to a SQ HDS300 as I initially planned, now that they are back in stock.

Still, this Infinity was worth the price IMO, just not all I was looking for from a sub.

As for ratings, I'll give it a 4 overall. For value, it's difficult to beat, IMO. Aesthetics could use a little work perhaps, but looks mean little, I don't believe many watch their subs play after all. I've owned Infinity in the past and have good longevity from their products, if treated properly, I would like to believe same could be said of this product. Features? Well it's sub, so lets see. Polypropylene cone with a rubber surround. Not bad I guess. Included foam gasket, nice addition. 13mm Xmax, not too impressive by any means. SVC 4 ohm, easy to wire up. So, features are average. Ease of use, the terminals could have been better, but it's easy enough to wire up and use.

By Brandon on May 13, 2014

47 found this helpful


Incredible value and performance.

The following review is for 1260w, which is a part of the bundle you are viewing.

I went back and forth debating these against the kicker 07 cvrs. Kickers do hit and so do these. I just installed and they are amazing. They have such good quality and deliver bass tightly and accurately. Although they may not destroy your trunk like kickers these subs sound better and are a great value. Get these you will not be dissapointed.

By Josh on March 10, 2013

50 found this helpful


Excellent

The following review is for 1260w, which is a part of the bundle you are viewing.

This sub is excellent.
The bass is so clear that I just can't belive it , I like a very deep bass, not boomy, very low HZ and this guy delivers.
I had a sealed box according to specs and I added some Poly fill to make it sound even better smoother.
I building home tower speakers (5 ft tall) with subwoofer incorporated, so you can imagine two of these at the same time. my whole room vibrates.
Very importan that you "tame" them before you push them full power, at least two weeks everyday, the sounds gets better and better.
They look a lot better in person.
Sonic price is incredible, thank you.

By vidaldm on August 8, 2014

47 found this helpful


Can't go wrong with this sub!!!!

The following review is for 1260w, which is a part of the bundle you are viewing.

I upgraded from the Pioneer tsw310s4 12" sub. This Infinity rocks so much harder and hits way lower. I have yet after 30 days to have a complaint about this sub. I was blowing the Pioneers after about 10 hrs of use. This sub has not blown and continues to pound hard. Nothing negative to say: only positives. Order this sub and you will not be disappointed. This sub is way under rated as I am putting 580w of PPI power to it and it takes all you can throw at it.

By ken on November 6, 2013

47 found this helpful


Good Product

The following review is for ISPKBL8-BG, which is a part of the bundle you are viewing.

Used this package on my Mazda 6 i Sport and it covered the length of the car fine. Had scrap to splice off onto multiple amps.

By NETech on November 14, 2011

37 found this helpful


Very good subwoofer!

The following review is for 1260w, which is a part of the bundle you are viewing.

I would give these subs a 10 of 10 for the price. The build quality of the Infinity 1260w is superb, and this speaker has everything you need. Spider cooling, Vented pole piece and a rubber surround that will never go bad! It hits the lowest of lows and is decent in the higher hz. I would recommend this subwoofer to ANYONE on a budget, it even outperforms subs that aRE OVER TWICE ITS PRICE! I have 16 of these pounding like a competition...seriously I get lotssa noise complaints from just hooking it up and testing them out! I run 500 solid watts to them and they never look like they struggle at all...

By Hazy on April 26, 2014

45 found this helpful


These bad boys slam.

The following review is for 1260w, which is a part of the bundle you are viewing.

I wrote a review before on these subwoofers back when i had a junkie power acoustic amp. I now have a hifonics 1000w gladiator amp and these puppies slam in my mustang. i have 2 12s in a small dual ported box and these things are boomy. I've broken my rear view mirror off with these bad boys. I barely can turn my volume past 25 without it destroying my car and the value goes up to 50! people always know when i arrive at there house. I love it lol i do however want to try a sealed box out and see how they sound. I highy recommand these subwoofers, for the price you can't find a better deal.

By Boomstang99 on April 11, 2013

44 found this helpful



Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2015 MINI Cooper

2014 BMW X6

2003 Ford Taurus

1986 Mazda B2000

1997 Dodge B1500

2003 Mitsubishi Eclipse

1982 Buick Century

1987 Dodge Caravan

1987 Saab 900

1970 Cadillac Eldorado

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
