Name: JBL MS-A5001 (Open Box)
Brand: JBL
SKU: LS-msa5001-OB
Price: 159.95 USD
Availability: Discontinued

by JBL

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

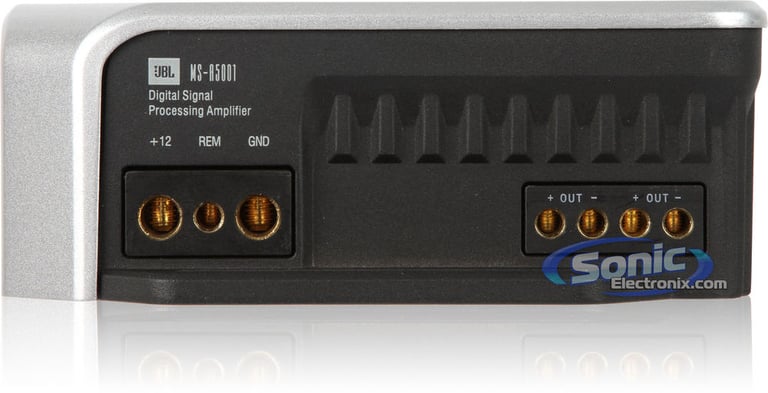

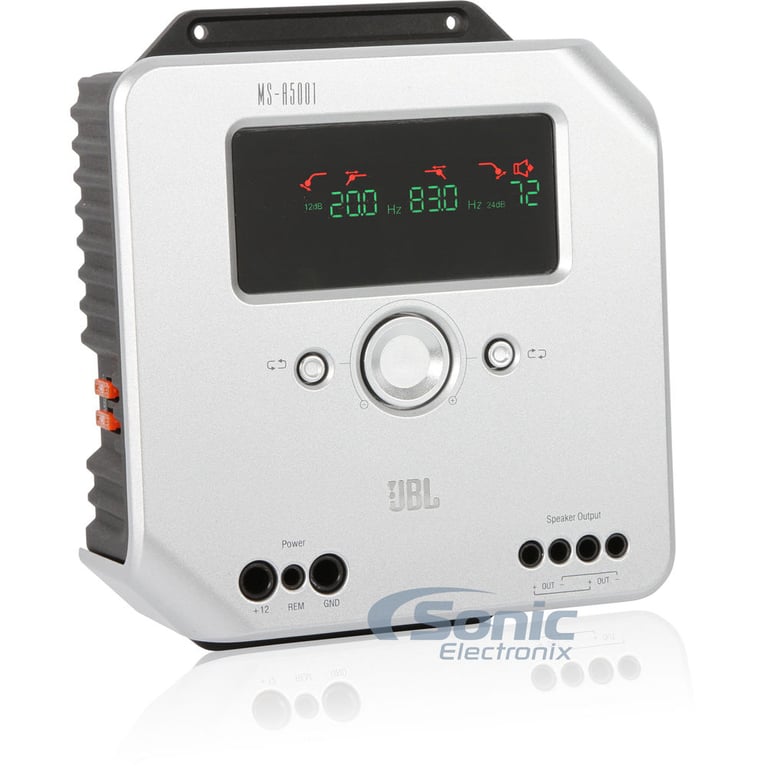

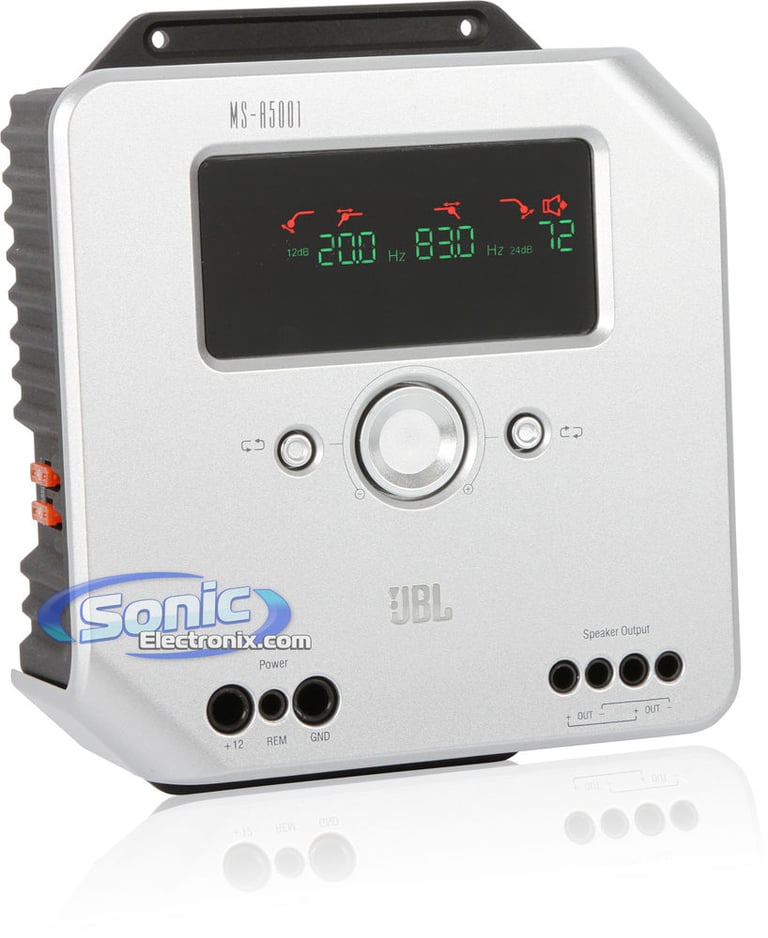

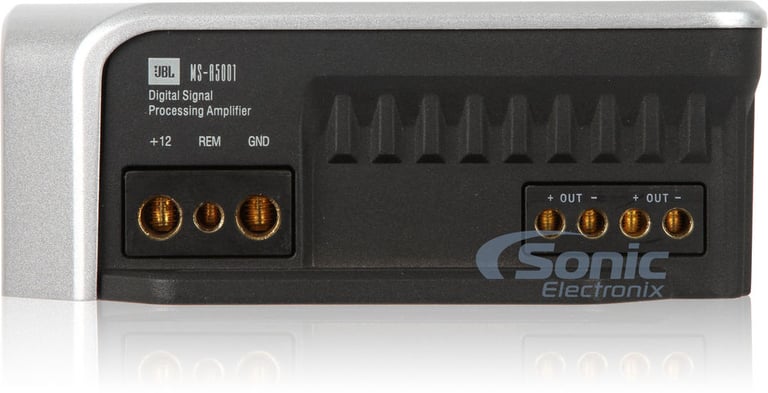

JBL MS-A5001 (Open Box) Image 1 — JBL MS-A5001 (Open Box)

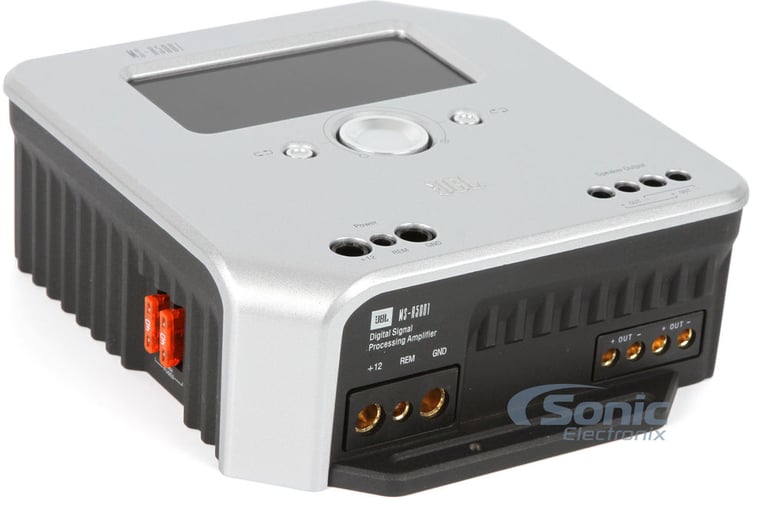

JBL MS-A5001 (Open Box) Image 2 — JBL MS-A5001 (Open Box)

JBL MS-A5001 (Open Box) Image 3 — JBL MS-A5001 (Open Box)

JBL MS-A5001 (Open Box) Image 4 — JBL MS-A5001 (Open Box)

JBL MS-A5001 (Open Box) Image 5 — JBL MS-A5001 (Open Box)

JBL MS-A5001 (Open Box) Image 6 — JBL MS-A5001 (Open Box)

JBL MS-A5001 (Open Box) Image 7 — JBL MS-A5001 (Open Box)

JBL MS-A5001 (Open Box) Image 8 — JBL MS-A5001 (Open Box)

JBL MS-A5001 (Open Box) Image 9 — JBL MS-A5001 (Open Box)

JBL MS-A5001 (Open Box) Image 10 — JBL MS-A5001 (Open Box)

JBL MS-A5001 (Open Box) Image 11 — JBL MS-A5001 (Open Box)

JBL MS-A5001 (Open Box) Image 12 — JBL MS-A5001 (Open Box)

Product videos

Product highlights

• RMS: 500 x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• DSP (Digital Signal Processing)
• Sophisticated Crossover Functions and Selectable Crossover Slopes
• Dimensions: 8-13/16"L x 7-1/4"W x 2-13/16"H

Learn more about the LS-msa5001-OB

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition: Open Box

Sophisticated crossover functions

Each of the MS-A5001’s outputs can be low-pass, high-pass or band-pass (low and high) filtered. You can choose among 97 different crossover points between 20Hz and 20kHz, and select crossover slope rates of 6dB, 12dB and 24dB per octave. For further flexibility, crossover settings are completely independent for each output.

DSP technology

The MS-A5001 uses digital signal processing (DSP) for all input-mixer, crossover and output-level controls. Compared with analog crossover circuitry, DSP circuits produce extremely precise results with a minimum of audible artifacts.

Connects to any analog signal

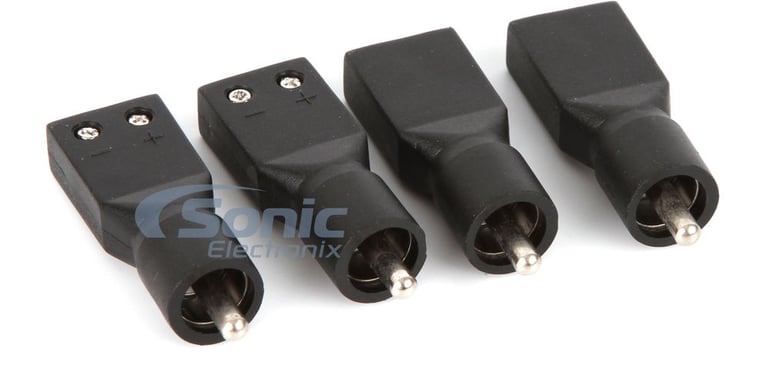

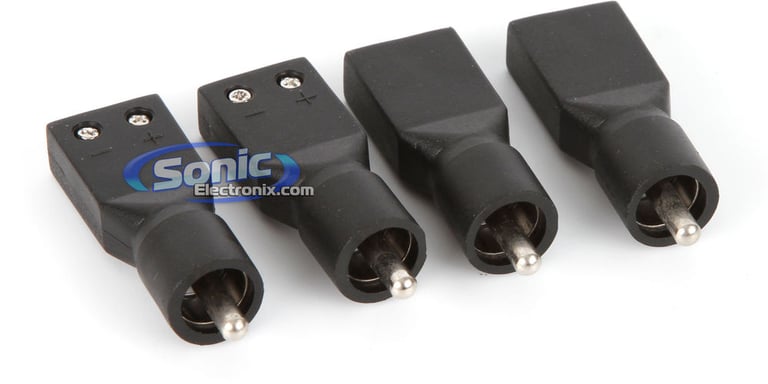

The MS-A5001 features RCA-to-bare-wire adapters to connect to all line-level and speaker-level inputs, and includes a selector switch for matching the amp’s input to the type of signal that it receives.

Digital input mixer

The MS-A5001’s digital input mixer simplifies configuration by allowing any input signal to be routed to either speaker output.

General Features

MS Series Monoblock Class D Car Amplifier
Product is Open Box

Does not include beauty box

RMS Power Rating:

4 ohm: 500 watts x 1 chan.
2 ohm: 500 watts x 1 chan.

Sonic Electronix Certified Power Rating*:

4 ohm: 468 watts x 1 chan.
2 ohm: 692 watts x 1 chan.

Digital signal processing amplifier
Pulse Width Modulated MOSFET power supply
Wireless Remote bass level input (JBL MS-WBC remote level control sold separately)
Built-in display shows tone and gain settings
Soft Start Turn-on
Mono channel operation
"Hi2" input setting provides factory system amps with output loads, eliminating "speaker disconnected" error messages
Speaker-level inputs with signal sensing for automatic turn-on
Preamp RCA outputs to daisy chain multiple amps
3-Way System Protection circuitry (thermal, overload, and speaker short protection)
Digital input-mixer control eliminates the need for Y adapters
Heavy duty aluminum alloy heatsink for extreme heat dissipation
CD for system setup included
Gold-plated RCA level inputs
Gold-plated screw terminals
Input sensitivity:
- Level: 100mV-15V
Variable low-pass filter (20-270 Hz, 6, 12, or 24 dB/octave)
CEA-2006 compliant amplifier
Frequency response: 20-270 Hz
Dimensions: 8-13/16"L x 7-1/4"W x 2-13/16"H
8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's warranty

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

500 watts x 1 channel

RMS Power @ 2 ohms

500 watts x 1 channel

Amplifier Specifications

Series

MSA Series

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

500 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

20 - 270 Hz

Signal-to-Noise Ratio

80 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

JBL MS-WBC

Fuse Rating

40A x 2

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix
