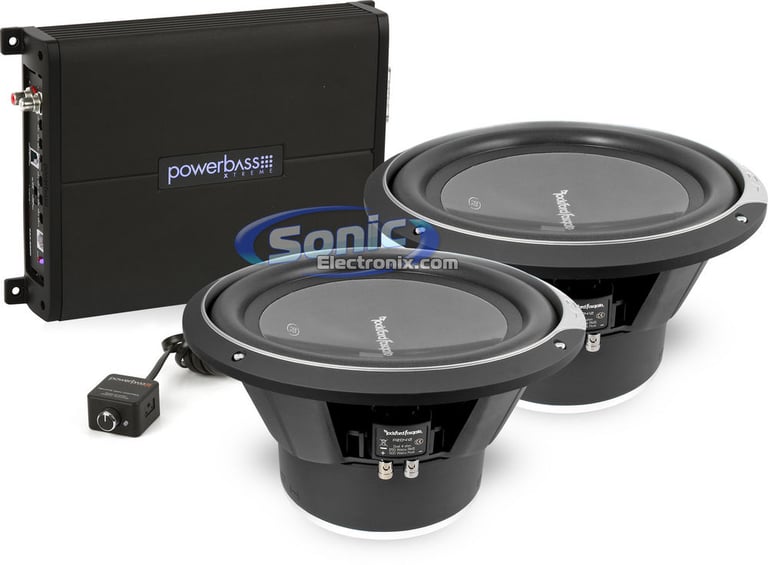

1000W PowerBass + Rockford Fosgate Bass Package

PowerBass Xtreme XAX-500D Class D Monoblock Amplifier + 2 Rockford Fosgate Punch P2D412 12" Subs

EXCLUSIVE
Product videos
highlight-star-icon

Bass Package: PowerBass Xtreme XAX500D Class D Monoblock Amplifier + 2 Rockford Fosgate Punch P2D412 12" Subwoofers • 1000W Max • Sonic Electronix Exclusive Bass Package

Learn more about the xax500d_2-p2d412

We apologize

This item has been discontinued

Product Highlights


Bass Package: PowerBass Xtreme XAX500D Class D Monoblock Amplifier + 2 Rockford Fosgate Punch P2D412 12" Subwoofers • 1000W Max • Sonic Electronix Exclusive Bass Package

Description


PowerBass

Authorized dealer

Sonic Electronix Exclusive Bass Package

We all know Rockford Fosgate as a champion in brutal bass. And what better to pair up with some brutal bass machines than a company where the name says it all. This Rockford Fosgate/Powerbass combo is where the buck stops when it comes to unrelenting SPL madness. These P2 woofers are a classic in the car audio world. Known for their deep lows and thirst for power which can finally be satisfied by the XAX-500D amplifier. This amp will have no problem keeping up and keeping the power flowing to give you the heart pounding bass that you crave. Look no further. Like we said, the buck stops here. And with savings of almost $100, how can it get any sweeter?

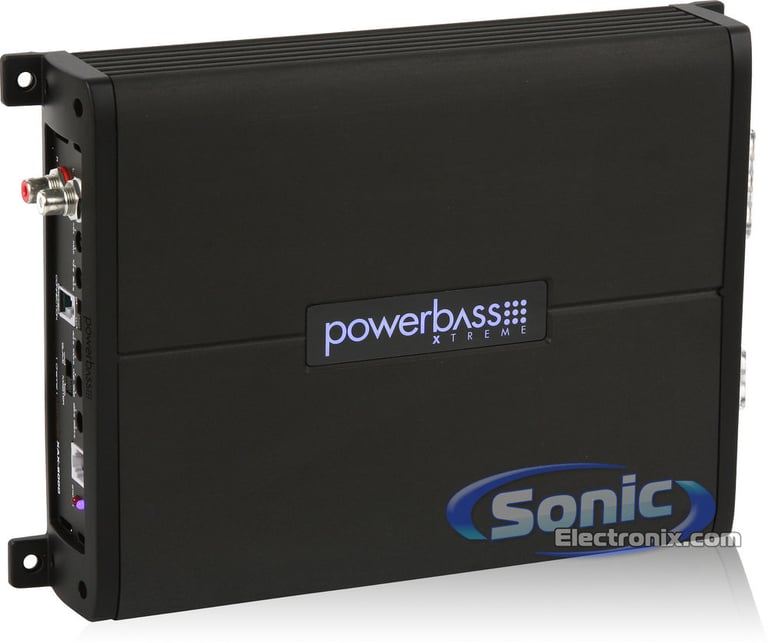

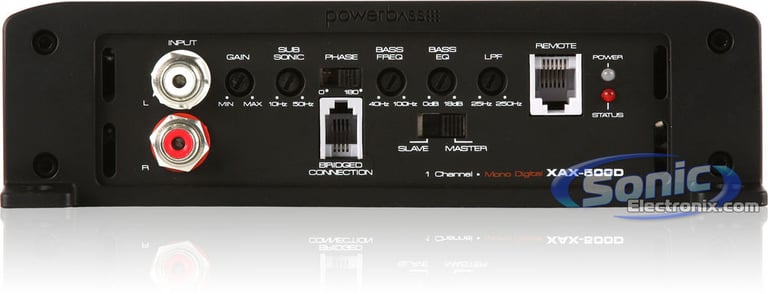

PowerBass Amplifier Features
  • XAX Series Monoblock Class D Mini Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 250 watts x 1 chan.
    • 2 ohms: 400 watts x 1 chan.
    • 1 ohm: 500 watts x 1 chan.
  • MAX Power Rating:
    • 1 ohm: 1,000 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • Philips/NXP chip set with double sided copper plated PCB

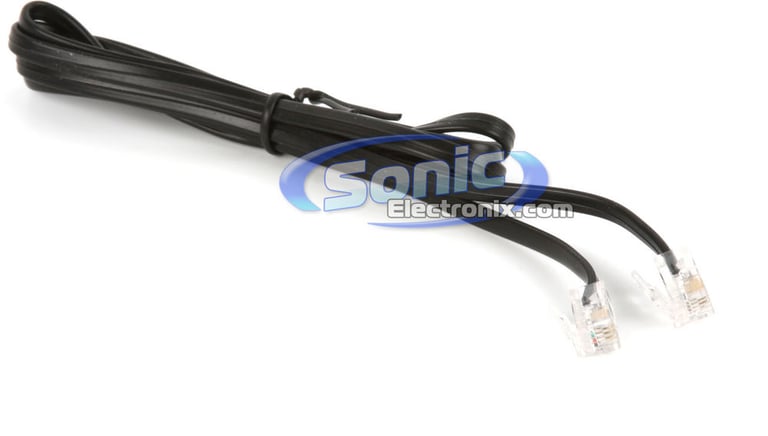

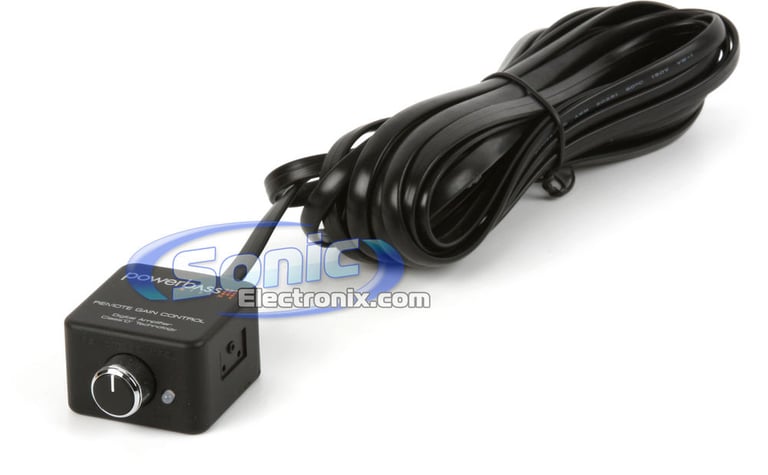

  • Wired remote gain level control included
  • LED power (blue) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 40-100 Hz)
  • Virtual silence turn on/off mute circuit
  • High damping control circuit
  • High efficiency SMD circuit technology
  • Ultra low current draw with more than a 85% efficiency rating
  • Dual link power doubling circuitry
  • Mono channel operation
  • Speaker-level inputs with signal sensing for automatic turn-on
  • Blue LED logo, power and speaker terminal lighting
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink with induction cooling fan for extreme heat dissipation
  • Platinum-plated Tiffany RCA level inputs
  • Platinum-plated screw terminals
  • Input sensitivity:
    • Level: 500mV-6V
  • Variable low-pass filter (25-250 Hz, 12 dB/octave)
  • Subsonic filter (10-50 Hz, 12 dB/octave)
  • Phase Shift: 0-180°
  • Damping factor: >200
  • Frequency response: 20-250 Hz
  • Also found as: Power Bass Xtreme XAX-500D
  • Dimensions: 10-1/4"L x 7-1/16"W x 1-15/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

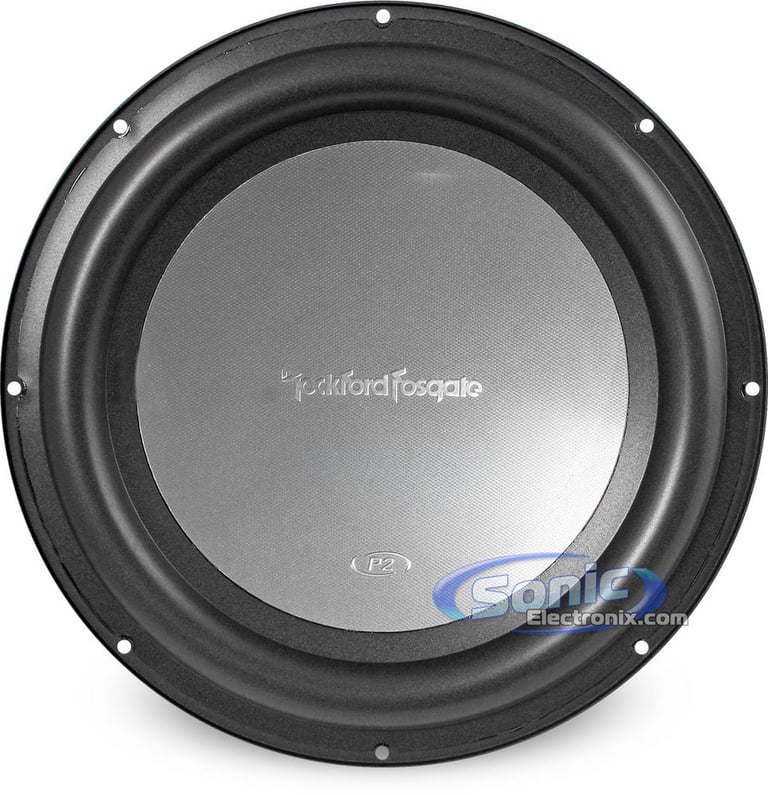

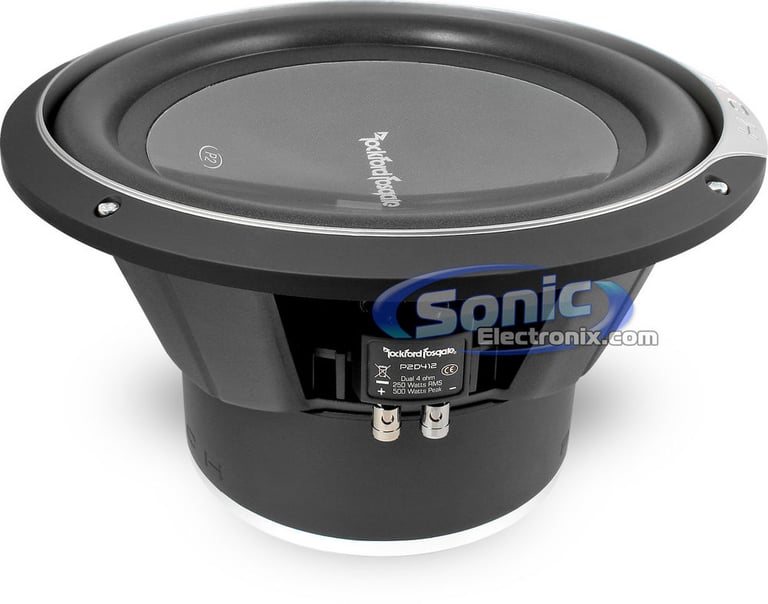

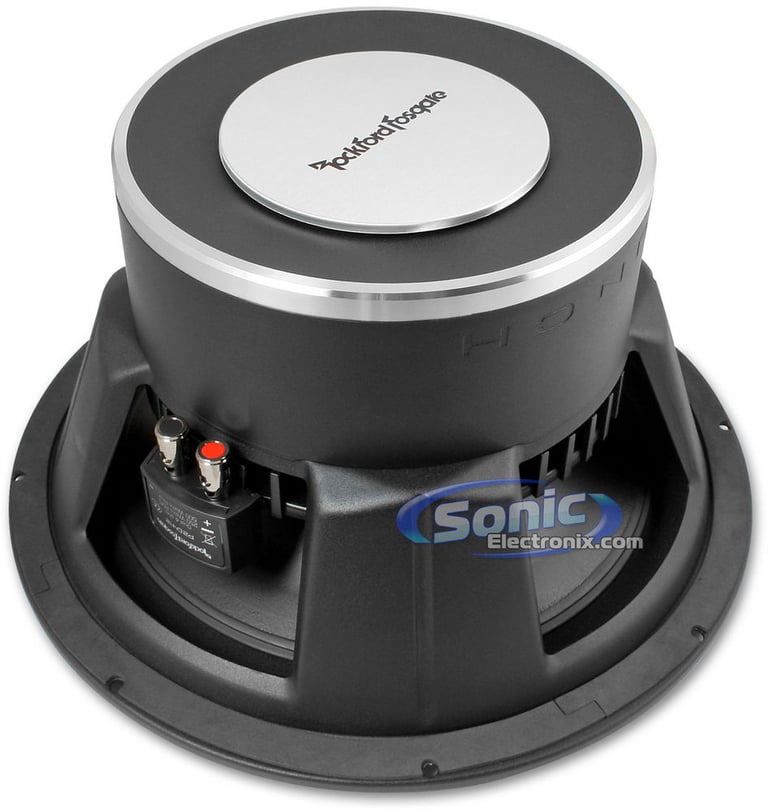

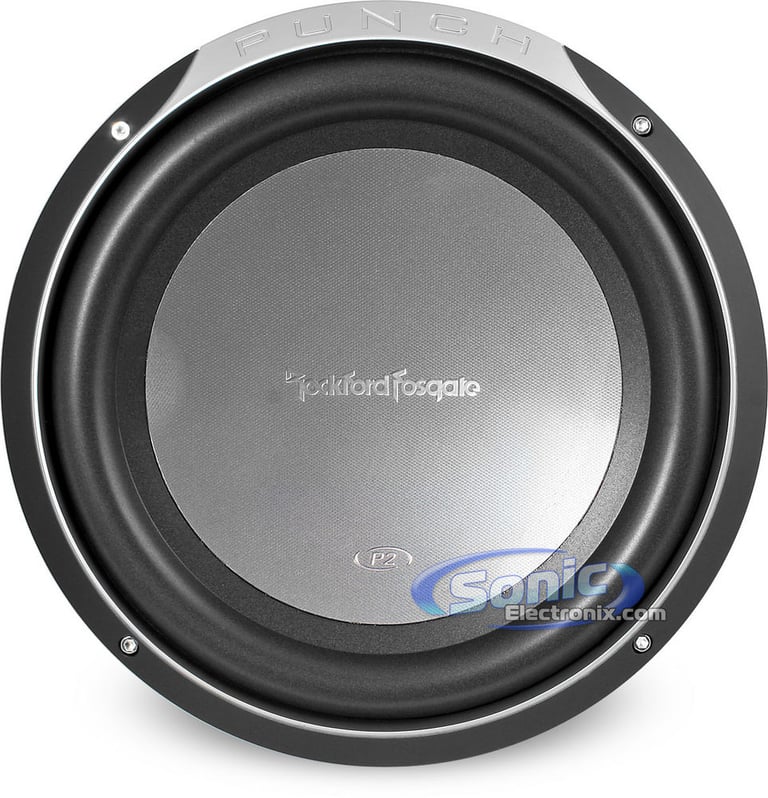

Rockford Fosgate Subwoofer Features
  • 12" Dual 4 ohm Punch Stage 2 Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Impedance: Dual 4 ohms
  • Venturi-effect center pole dispersion venting/cooling system
  • High modules closed conical polypropylene cone and ABS/Acrylic dustcap assembly geometry
  • Tear and Fatigue resistant poly-cotton spider
  • High density compressed half-roll sealed poly-foam surround
  • High temperature voice coil with spun-laced Nomex insulating re-inforcment collar
  • Optimized motor magnetics with extended pole and bumped backplate
  • Double stacked ferrite magnet structure
  • Multi-point high temperature/high strength neck joint bonding technique
  • Semi-flexible PVC removable protective motor cover
  • Custom insulated/isolated compression input terminal assembly
  • Diamond cut cast aluminum motor cover for improved heat dissipation
  • Proprietary spider venting/cooling technique
  • Frequency Response: 26 Hz - 250 Hz
  • Sensitivity: 86 dB
  • Free-air-Resonance: 26 Hz
  • Mounting depth: 6-3/8"
  • 2" 4-layer Voice Coil
  • 1-year SonicElectronix.com warranty

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
250 watts x 1 channel
RMS Power @ 2 ohms
400 watts x 1 channel
RMS Power @ 1 ohm
500 watts x 1 channel
Peak Power Output
1000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1000 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<1.0%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
25 - 250 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
>80 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fan Cooled
Yes

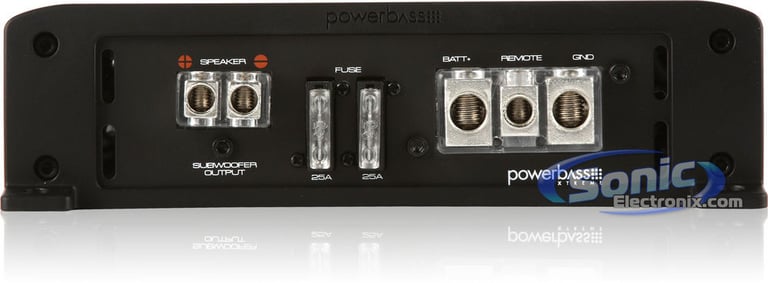

Fuse Rating
25A x 2
CEA-2031 Compliant
No
Subwoofer Specifications
Series
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohms
RMS Power Handling
250 watts
Total RMS Power Handling
500 watts
Peak Power Handling
500 watts
Total Peak Power Handling
1000 watts
Woofer Surround
Poly-Foam
Woofer Composition
Polypropylene
Minimum Sealed Box Volume
1.0 cubic feet
Maximum Sealed Box Volume
1.0 cubic feet
Minimum Ported Box Volume
1.8 cubic feet
Maximum Ported Box Volume
1.8 cubic feet
Sensitivity
86 dB
Frequency Response
26 - 250 Hz
Xmax (millimeters)
13-3/16 mm
Top-Mount Depth (Mounting Depth)
6-3/8"
Cutout Diameter
11-1/8"
Recommended Enclosure Type
Ported / Vented
Sealed
Compatible Vehicle Make and Model
Amplifier Wiring Kit
Is Amplifier Wiring Kit included?
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XAX500D_2-P2D412

Weight:

39.50lbs

Internal SKU:

xax500d_2-p2d412

Internal Product ID:

29637

Product and How-to Videos


  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews



5 star
85%
4 star
15%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
5
Features
4.8
Design
4.7
Usability
4.9
Sort by:

Loading...

Updated Review

The following review is for 09-P2D412, which is a part of the bundle you are viewing.

i just wanted to update for all wondering if they should buy this sub or not. YOU SHOULD. ok so i still have these runnign off my kicker, with a rockford 500-2 for the highs. got the bass knob, so the boost on the amp is full, and gain is a lil below 3/4 on the amp for safety. these babys slam dude. like, choking almost. and ther 2 12's. i have them facing inside my car in my 99 grand am gt with the back seats folded down in the rockford fosgate box with the ports (i took those out and made mdf seals for the box, sealed them in and painted because i like sealed better) and its insane how loud these are. the one has been through absolute hell, no other way to put it. i turned them around because i use my trunk alot and stuff gets tossed at them all the time unfortunately. so the one sub is destroyed, appearance wise. i had them reverse mounted in a sealed box at one point and due to the fact that the dust caps were cracked in the first place, it exploded. the dust cap literally exploded. so that one is trashed and has some tears in the surround, while the other one spent most of its life in my room its in fairly good condition, not being as broken in as the other one. and they still pound like ther aint no tomorrow. these things are invincible. they sustain so much unintentional abuse and still never back down. i love these things and want to get 2 more so i can hav 4 12's. MUST BUY if your just lookin to get a good bang for your buck. Rockford's are quality built. cant go wrong.

By Joey on January 18, 2010

11

found this helpful.

great sub

The following review is for 09-P2D412, which is a part of the bundle you are viewing.

I have had two sets of these subs, one set was stolen, then i went to kicker, then back to rockford for the best sound, they hit harder and cleaner than any subwoofers that i have heard in my vehicle,
Pros: clean bass, nice look, hits lows well
Cons: the durability could be better, the front of the subs can crack easy, but they sound does not change
Overall a great subwoofer, have my two being pushed by Rockford Fosgate T-500, gives it great kick

By CJ on February 21, 2011

8

found this helpful.

AWESOME SUB

The following review is for 09-P2D412, which is a part of the bundle you are viewing.

I have owned these suckers for couple years now (one older version and other is this version) and they are the best ever! After breaking them in, one decided to quick working (wire broke inside or something, seemed fine but wouldn't work) so I sent it in to have it fixed, they sent back a brand new one for free (just had 2 pay shipping)!!! Both work awesome now and have out lived the amp (got too warm and quit workin the other day). Best bang for the buck...Literally! Kicks the s*#t out of my coworker's $300/each subs! Buy these bangers now!

By Nathan on July 31, 2008

7

found this helpful.

Fosgate update P2D412

The following review is for 09-P2D412, which is a part of the bundle you are viewing.

I have owned these at least since mid 2008 and its now 2011 and they still pound!

By Stefan on February 17, 2011

6

found this helpful.

Rockford lives up to its rep

The following review is for 09-P2D412, which is a part of the bundle you are viewing.

WOW, for a 500w max sub, it hits lows harder than a 1000w or 1500w sub can. That precision engineering. I presently own 1 hooked onto one channel on my punch 400.2 amp and it throws about an inch and makes my car shake. i have 2 brand new ones coming in from sonic, who's prices were cheaper than ebay sellers for the p2's.
Pros- Hard hitting powerful lows
Cons- slightly weak mids, but sound quality is there

By Tom on July 22, 2009

6

found this helpful.

Good Sub

The following review is for 09-P2D412, which is a part of the bundle you are viewing.

easy install and the sounds is very good,less distortion than my last one.

By tryoungman on March 21, 2009

6

found this helpful.

Rockford Fosgate Subwoofers

The following review is for 09-P2D412, which is a part of the bundle you are viewing.

I have used all kinds of subwoofers. Rockford fosgate subwoofers are top of the line for me. Most bang for your buck.

By Steve O on June 30, 2010

5

found this helpful.

Decent sub.

The following review is for 09-P2D412, which is a part of the bundle you are viewing.

I have one of these in my chevy S-10...it hits hard, but my MA-Audio was way louder, but this sub has cleaner sound...now my volfenhag sub...ya that was wayyyy better than this sub, although the durability wasnt to great on it. so if you want clean bass and a durable sub, this is the way to go, now if you want LOUD...get the p3 or higher, or just go with kicker or ma or volfenhag...lol but still a nice sub none-the-less.

By Christopher on July 11, 2009

6

found this helpful.

quality sub

The following review is for 09-P2D412, which is a part of the bundle you are viewing.

I installed a 12" p2 in my truck and for the price, I don't think I could have bought anything better. I really abuse this sub pretty hard, and unlike my old blown sub that was even rated for higher power, this sub has held together no problem and continues to thump out those low notes like new. 100% satisfied

By Al on April 23, 2009

5

found this helpful.

Excellent Sub for the price

The following review is for 09-P2D412, which is a part of the bundle you are viewing.

I purchased an older version model P212D4 and that was in Oct. of 2006 and to this day my 12's still bump excellent punch bass. Some times I check the non ported box and the bass knocked out a external speaker port. I am serious people if you are looking for great bass at a superior price buy these subs. Oh and it would help if you match them with a 500 watt punch amp old school version if you can find one cause trust me old school power is just better with Fosgate.

By Stefan on July 10, 2008

5

found this helpful.
