Name: JL Audio 500/5 R/B
Brand: JL Audio
SKU: LS-jl5005-RB
Price: 399.99 USD
Availability: Discontinued
Rating: 5.0000 (1 reviews)

Shop all JL Audio

by JL Audio

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

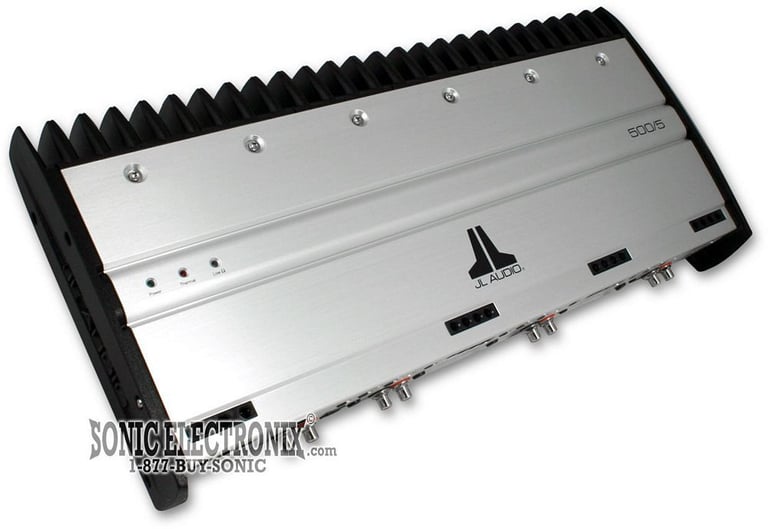

JL Audio 500/5 R/B Image 1 — JL Audio 500/5 R/B

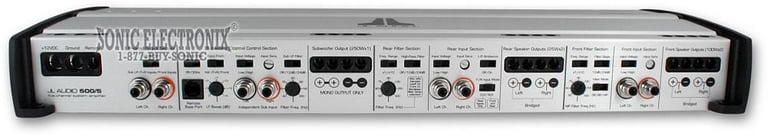

JL Audio 500/5 R/B Image 2 — JL Audio 500/5 R/B

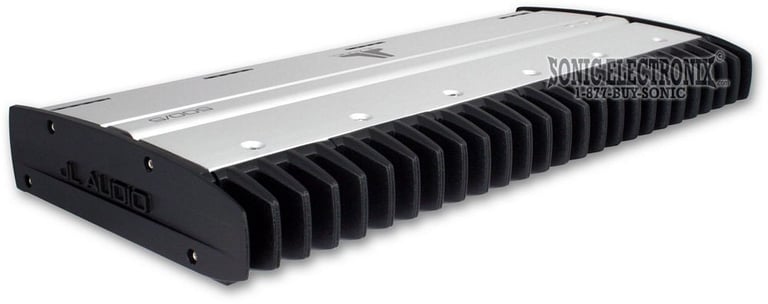

JL Audio 500/5 R/B Image 3 — JL Audio 500/5 R/B

JL Audio 500/5 R/B Image 4 — JL Audio 500/5 R/B

Product videos

Product highlights

5-Channel Power Amplifier • (100W x 2 front chan.) + (25W x 2 rear chan.) + (250W x 1 sub chan.) • 108.5 dB S/N Ratio for front/rear channels • 98.5 dB S/N Ratio for sub chan. • 1.5 ohm - 4 ohm stable

Learn more about the LS-jl5005-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Specifications:

Front Channels: 100W RMS x 2 @ 1.5 ohm-4 ohm (11V-14.5V)
Rear Channels: 25W RMS x 2 @ 1.5 ohm-4 ohm (11V-14.5V)
Subwoofer Channel: 250W RMS @ 1.5 ohm-4 ohm (11V-14.5V)
THD at Rated Power: <0.03% @ 4 ohm (F&R), <0.05% @ 4 ohm (Sub)
S/N Ratio* (F&R): >108.5 dB below rated power
S/N Ratio* (Sub): >95 dB below rated power
Frequency Response (front and rear): 5 Hz-30 KHz (+0, -1dB)
Frequency Response (sub channel): 5 Hz-500 Hz (+0, -1dB)
Damping Factor (front and rear): >200 @ 4 ohm/50 Hz
Damping Factor (sub channel): >500 @ 4 ohm/50 Hz
Input Range: switchable from 200mV-2V RMS to 800mV-8V RMS
Dimensions: 19.7"L x 9.25"W x 2.36"H

Features:

Differential-Balanced Input Topology: (3 pairs of inputs)
Front Crossover: Fully-variable (50 Hz-5 KHz), selectable-slope BP or HP (12 or 24 dB per octave)
Rear Crossover: fully-variable (50 Hz-5 KHz), selectable-slope HP (12 or 24 dB per octave)
Sub Crossover: fully-variable (40-200 Hz), selectable-slope LP (12 or 24 dB per octave)
Preamp Output: 2-channel (full-range or LP)
Bass EQ: Variable boost up to 15dB. Remote bass boost control optional.
Infrasonic Filter: defeatable 24dB/octave at 30 Hz
Left minus Right Ambience Circuit: ambient effect for rear channels
Front and rear speaker output connections: accept up to 8ga. wire
Dual mono subwoofer output connections: accept up to 8ga. wire
+12V and Ground connections: accept up to 4ga. Wire
90 Days Repair Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

100W x 2, 25W x 2, + 250W x 1 chan.

RMS Power @ 2 ohms

100W x 2, 25W x 2, + 250W x 1 chan.

RMS Power @ 1 ohm

only stable to 1.5 ohm: 100W x 2, 25W x 2, + 250W x 1 chan.

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

5-Channel

Total RMS Power Output

500 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1.5 ohm

Minimum Impedance Bridged

1.5 ohms

THD at Rated RMS Power

0.03%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

Front/Rear: 50 Hz - 5 kHz

Low-Pass Crossover Frequency

Rear: 50 Hz - 5 kHz, Sub: 40 - 200 Hz

Signal-to-Noise Ratio

Front/Rear: 108.5 dB, Sub: 95 dB

Remote bass/level controller

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix

Customer Ratings & Reviews

Overall rating distribution

5 star		100%
4 star		0%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4
Value		4
Features		5
Design		4
Usability		5

Customer Reviews

Sort by:

outstanding and clean

Great sound reproduction and stays clean when driven at full power. The only drawback is that it can get quite hot when driven at high powere for extended time.

By Max on April 17, 2009
