Diamond Audio D3 600.1

600 watts, Class D Monoblock Amplifier D3600.1

Product videos
highlight-star-icon

Black Anodized Heatsink • Raised Diamond Audio logo • 600W x 1 @ 1 Ohm RMS • 450W x 1 @ 2 Ohms RMS • Sub-Bass EQ • Built in crossovers

Learn more about the d36001

We apologize

This item has been discontinued

Product Highlights


Black Anodized Heatsink • Raised Diamond Audio logo • 600W x 1 @ 1 Ohm RMS • 450W x 1 @ 2 Ohms RMS • Sub-Bass EQ • Built in crossovers

Description

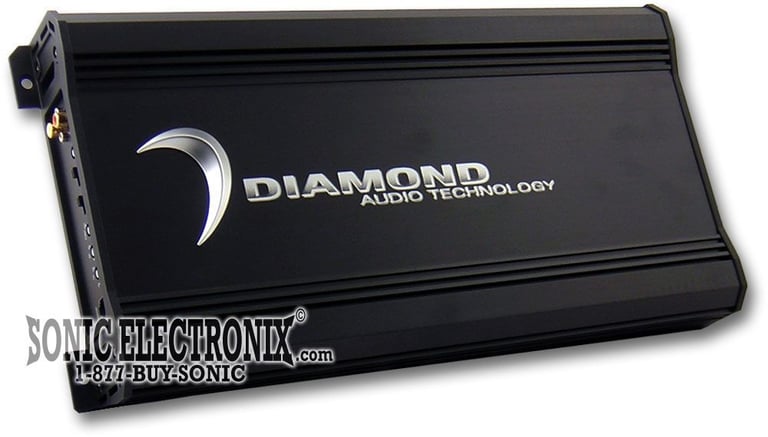

  • Black anodized aluminum finish
  • Raised Diamond Audio Technology logo
  • Advanced circuit design that features mono mode operation for use in Sub-Bass systems

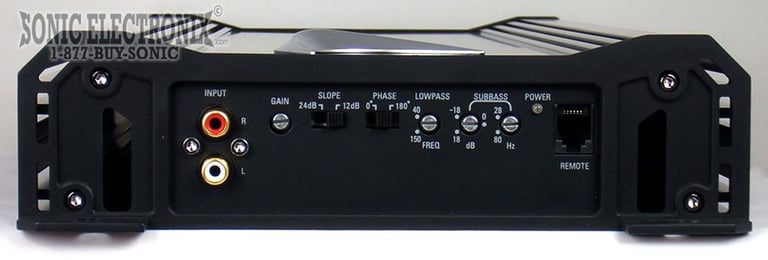

  • Variable Low pass crossover with selectable 12 or 24 dB/Oct slope (40 - 150 Hz)
  • Variable Sub-Bass EQ circuit to reinforce low frequency signals
  • Adjustable input level controls with ground loop isolation
  • PWM MOSFET Power supply with low AM RFI and protection circuits for overheating and sepaker shorts
  • RCA Inputs: 2 pair

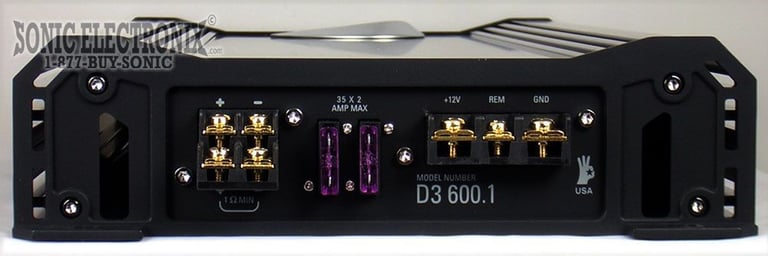

  • Gold-plated input/output connectors and an external automotive type fuse
  • Remote turn-on with "soft start" musting to prevent "thump"
  • Dimensions: 15-3/4" L x 8-1/2" W x 2-1/4" H
  • 1-year SonicElectronix.com warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
450 watts x 1 channel
RMS Power @ 1 ohm
600 watts x 1 channel
Bridged RMS Power
Not Bridgeable
Amplifier Specifications
Number of Channels
1 - Mono
Total RMS Power Output
600 watts
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
No
Low-Pass Crossover Frequency
40 - 210 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
-18 - 18 dB ( 28 - 80 Hz)
Fuse Rating
35A x 2
Warranty and Return Policy

Item Details


Manufacturer:

Model Number:

D3-600.1

Weight:

14.00lbs

Internal SKU:

d36001

Internal Product ID:

3011

Product and How-to Videos


Customer Ratings & Reviews



5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
5
Design
4.9
Usability
5

Customer Reviews

Sort by:

Loading...

very good amp. rated power is dead on

By jacob on January 17, 2006

8

found this helpful.

Best I Have Found

This is the best amp I have found in a while its has good sound and hits hard.

By David on June 26, 2010

8

found this helpful.

Good features, good sound

Having spent some time with alpine products mainly their 350 watt mono amp I decided it was time for something new, alittle more thump in the trunk so to speak. After checking thru prices on sonic I soon realized that the 3 best prices i could find included an alpine 600 watt amp and a diamond audio, having had experienec with alpine and knowing some local guys that swear by diamond, I chose the D3 600.1, upon opening the package i was extremely impressed with visual styling, and the features it offers are second to none, once hooked up the sound it reproduces is very clear and accurate and this amp seems to never clip, pushing a Kicker L7 12" i continued to turn the gain up to try to find a point where the amp would clip and as of yet i havent been able to. Amazing amp at a great price from sonicelectronix. Oh one last thing this amp does NOT have a subsonic filter control, thats about the only thing i would add to it.

By Jesse on January 11, 2006

8

found this helpful.

Excellent Amp!

i have one D3 600.1 and this is a beast with great sound quality and power, the specs are underrated! great amp! one of the best monos out there! you will be impressed as i am

By Mantley on March 17, 2011

7

found this helpful.

High-end quality at an afforable price.

I own the Diamond Audio D3600.1 and it pushes 2 JL Audio W3V2 12" 4ohm DVC subs. I operate this amp @ 1ohm and the clarity, as well as the output power is excellent. It does not overheat even after hours of pushing it. It has variable crossover settings, subbass freq. control(great if you run vented/ported enclosures), and phase settings. These amps are very efficient, and produce their rated power and then some. You will not find a more efficient mono amp on the market, that is quality built, in this price range. Definately an audiophile quality amplifier.

By John on May 7, 2005

9

found this helpful.
