Name: VIBE Audio DEATHBOXS4-V1 Open Box
Brand: VIBE
SKU: LS-deathboxs4v1-OB
Price: 99.99 USD
Availability: Discontinued

by VIBE

About
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

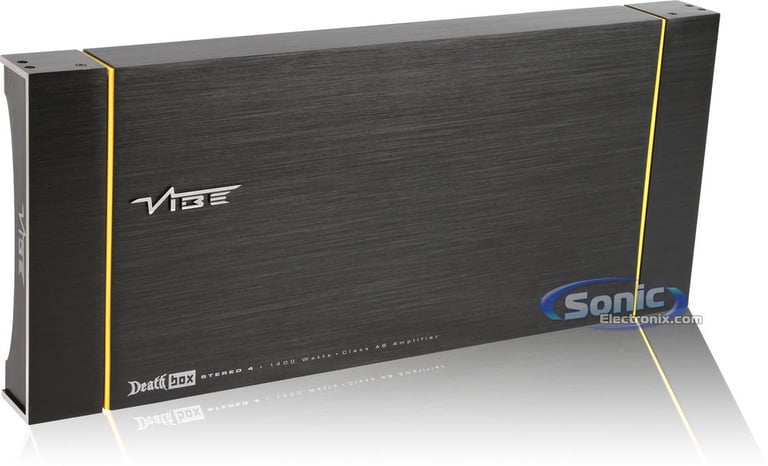

VIBE Audio DEATHBOXS4-V1 Open Box Image 1 — VIBE Audio DEATHBOXS4-V1 Open Box

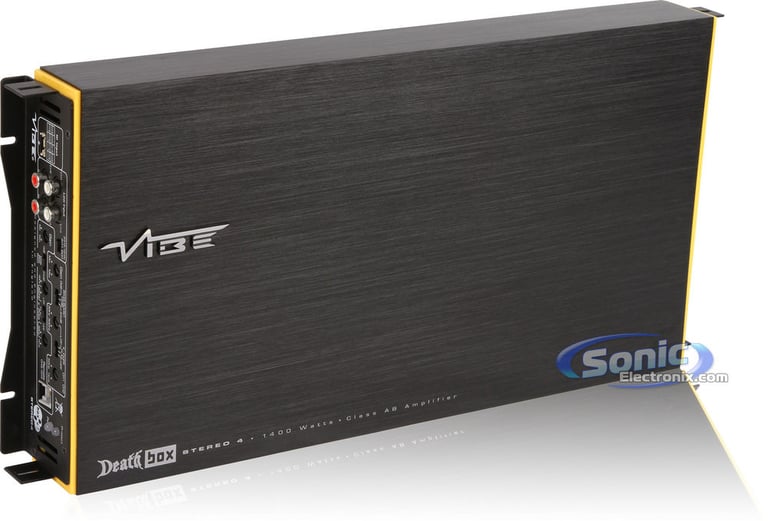

VIBE Audio DEATHBOXS4-V1 Open Box Image 2 — VIBE Audio DEATHBOXS4-V1 Open Box

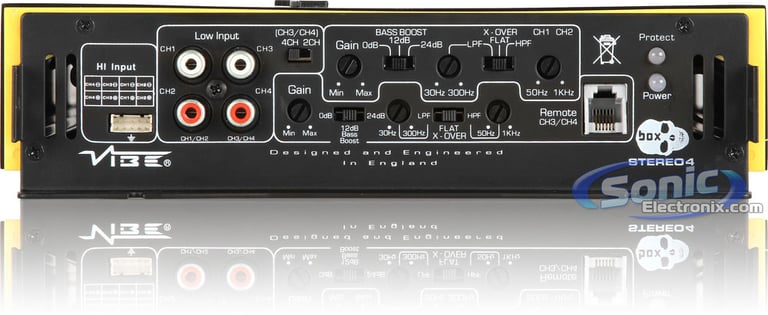

VIBE Audio DEATHBOXS4-V1 Open Box Image 3 — VIBE Audio DEATHBOXS4-V1 Open Box

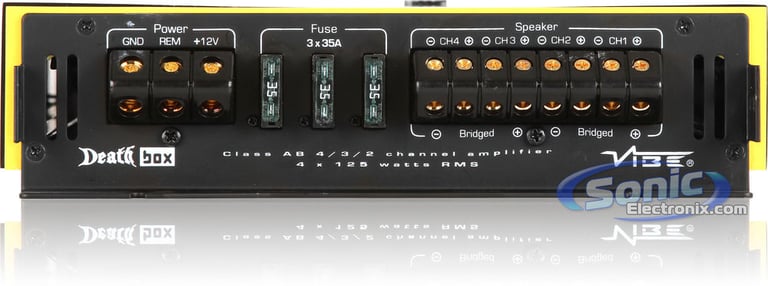

VIBE Audio DEATHBOXS4-V1 Open Box Image 4 — VIBE Audio DEATHBOXS4-V1 Open Box

VIBE Audio DEATHBOXS4-V1 Open Box Image 5 — VIBE Audio DEATHBOXS4-V1 Open Box

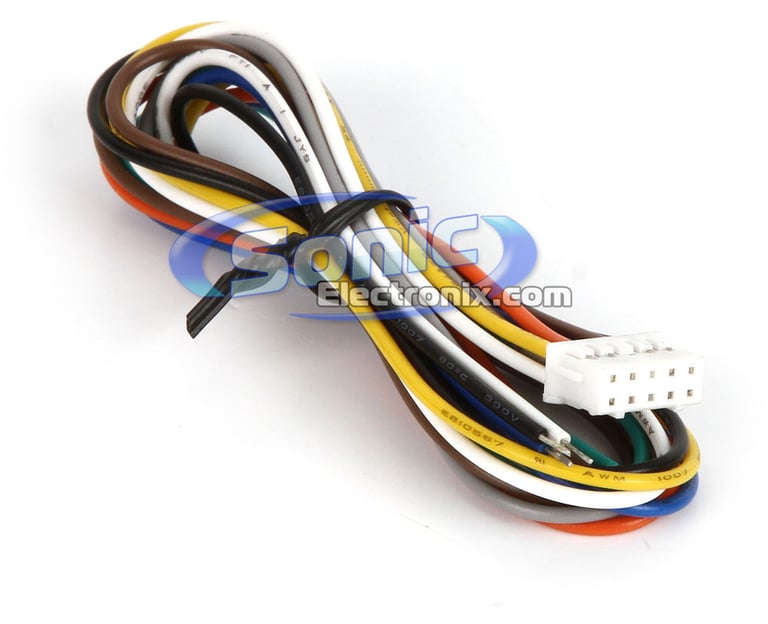

VIBE Audio DEATHBOXS4-V1 Open Box Image 6 — VIBE Audio DEATHBOXS4-V1 Open Box

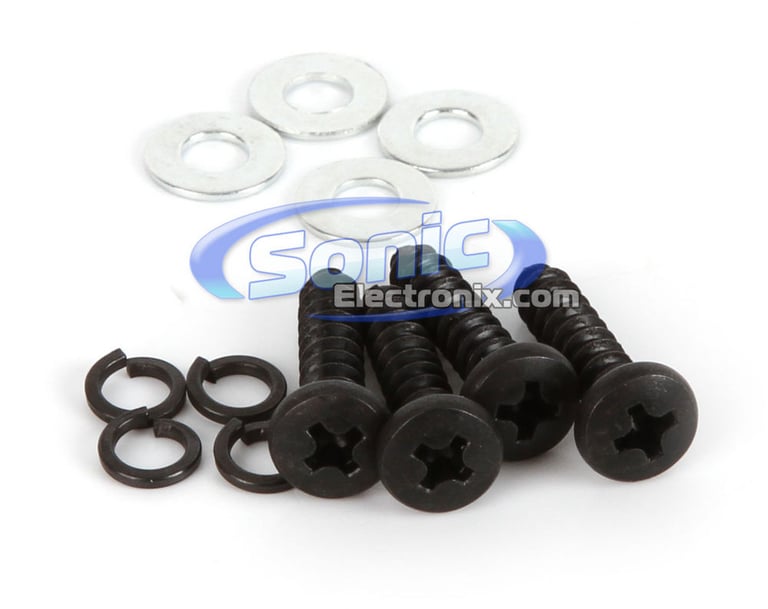

VIBE Audio DEATHBOXS4-V1 Open Box Image 7 — VIBE Audio DEATHBOXS4-V1 Open Box

VIBE Audio DEATHBOXS4-V1 Open Box Image 8 — VIBE Audio DEATHBOXS4-V1 Open Box

VIBE Audio DEATHBOXS4-V1 Open Box Image 9 — VIBE Audio DEATHBOXS4-V1 Open Box

Product videos

Product highlights

Death Box Series 4-Channel Class A/B Car Amplifier • 1400W Max • 175W x 4-Chan. @ 2 Ohm • Speaker-Level Inputs • 0 To +24 dB Bass Boost • Piano Black Finish • Gold Plated Speaker Terminals

Learn more about the LS-deathboxs4v1-OB

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Death Box Series 4-Channel Class A/B Car Amplifier
RMS Power Rating:
- 4 ohm: 125 watts x 4 chan.
- 2 ohm: 175 watts x 4 chan.
- Bridged, 4 ohm: 350 watts x 2 chan.
Max power output: 1400 watts
Low noise minimal distortion class AB circuitry
MOSFET power supply with high switching speed and greater stability
Remote bass level input (remote level control sold separately)
LED power (blue) and protect (red) indicators
Variable Bass Boost (0 to +24 dB bass boost at 45 Hz)
Soft Start Turn-on
4/3/2 channel operation
Speaker-level inputs with signal sensing for automatic turn-on
Input mode switch allows 4 channels to be driven with only a 2 channel input
3-Way System Protection circuitry (thermal, overload, and speaker short protection)
Internal convection cooling technology allows for a contemporary heatsink design as cooling fins are inside the amplifier
Heavy duty aluminum alloy piano black heatsink for extreme heat dissipation
ABS linking plate allows 2 or more amplifiers to be joined to look like one big amplifier
Gold-plated RCA level inputs
Gold-plated screw terminals
Input sensitivity:
- Level: 250mV-5V
Variable high-pass filter (50-1,000 Hz, 24 dB/octave)
Variable low-pass filter (30-300 Hz, 24 dB/octave)
Frequency response: 9-35,000 Hz
Dimensions: 8-13/16"L x 20-3/8"W x 2-1/4"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
30-Day Sonic Electronix warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

125 watts x 4 channel

RMS Power @ 2 ohms

175 watts x 4 channel

RMS Power @ 1 ohm

Not Stable

Bridged RMS Power

350 watts x 2 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

4-Channel

Total Peak Power Output

1400 watts

Total RMS Power Output

700 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.01%

Speaker Level Inputs

Yes - with included adapter

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 1,000 Hz

Low-Pass Crossover Frequency

30 - 300 Hz

Signal-to-Noise Ratio

97 dB

Channel Separation

56 dB

Bass Boost

0 - 24 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

Fuse Rating

35A x 3

Warranty and Return Policy

Parts Warranty Duration

30 days

Labor Warranty Duration

30 days

Warranty Provider

Sonic Electronix
