VIBE Audio DELTABOX

3 Way Line Driver - Revolutionary, One of a Kind Product!

VIBE
Shop all VIBE
highlight-star-icon

3 Channel Line Driver • 0-20 dB Adjustments • 9V RMS Output • 100+ dB S/N Ratio

Learn more about the deltabox

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
C2-650 main

JL Audio C2-650

200W RMS 6.5" C2 Series 2 Way Component 4-ohm Speakers

21
-22.73%

$254.99

List price $329.99

Limited time!
Kappa 603CF main

Infinity Kappa 603CF (INFSPKKA603CFAM)

660W Peak (220W RMS) 6.5" Kappa Series 2 Way 3-ohm Component Speaker System

6
-28.00%

$359.95

List price $499.95

Description


VIBE brand icon

Authorized dealer

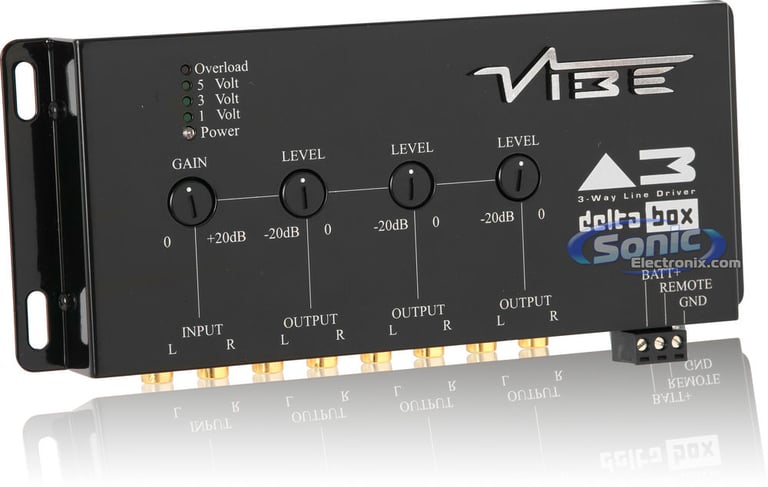

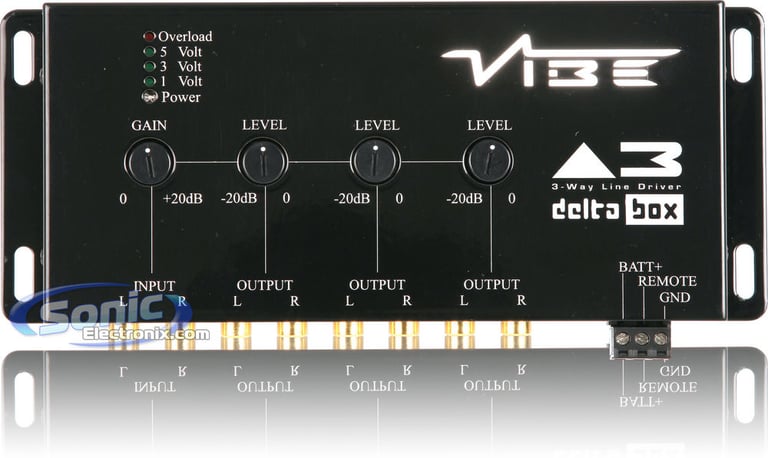

The DeltaBox line driver from VIBE is the first product of its type on the market. It is a one into three line driver. This can be of great use to you if you are building an install with more than one amplifier involved. The idea behind the Deltabox is that you can take a single stereo input from a head unit and split it 3 ways without any loss of signal at all. If using a more serious level of amplifier and you are looking to get more out of it then consider what you are putting in? The amplifier will only be able to produce a signal as good as the input that it is provided with. The Deltabox allows you to seriously increase the input voltage that you are putting into the amplifier thus increasing the output that you get from the amplifier.

Product Specifications:
  • Gain: 0 to +20 dB
  • Level 1: 0 to -20 dB
  • Level 2: 0 to -20 dB
  • Level 3: 0 to +20 dB
  • Signal-to-Noise Ratio: >100 dB @ 1V
  • Frequency Response: <10 to >50,000 Hz (+/- 1dB)
  • Maximum Output Voltage: 9V RMS
  • THD: 0.015%
  • Input Impedance: 20,000 ohm
  • Stereo Separation: 85 dB / 1,000 Hz
  • Operating Voltage: 11-15V (Negative ground)
  • Output Impedance: 30 ohm
  • Dimensions: 1" H x 8-1/8" W x 3-3/8" D
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
