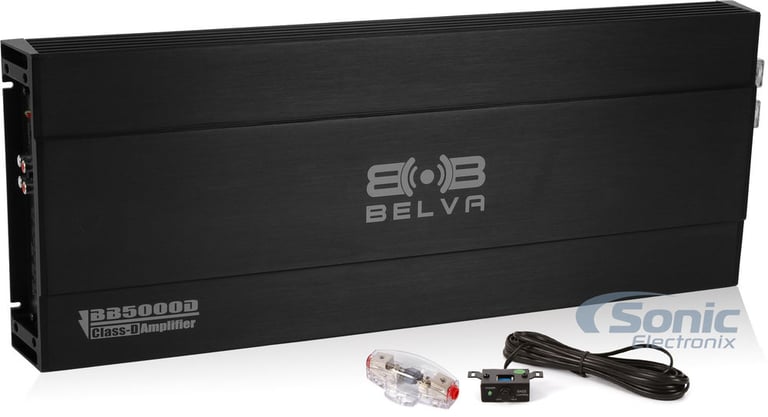

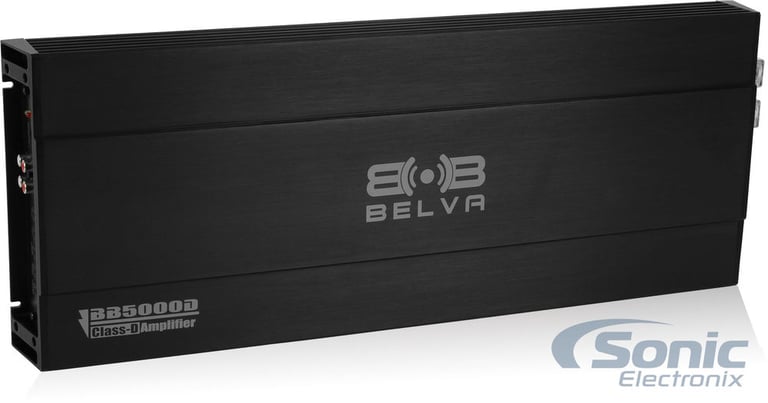

Belva BB5000D

5000W (3000W RMS) Class D Monoblock BB Series Car Amplifier

Belva
Shop all Belva
Product videos
highlight-star-icon

• RMS: 1200W x 1 @ 4 ohm, 1800W x 1 @ 2 ohm, 3000W x 1 @ 1 ohm
• Total Peak Power: 5000W
• 1 Pair of Preamp Outputs
• Bass Boost 0-12 dB from 30-80 Hz
• Subsonic Filter from 20-50 Hz
• Dimensions: 20-3/8"W x 8-1/4"D x 2-1/4"H

Learn more about the bb5000d

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

bb5000dv2 thumbnail

Belva BB5000Dv2 (BB5000D v2)

OUR PRICE: $239.95

View item

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Product Highlights


• RMS: 1200W x 1 @ 4 ohm, 1800W x 1 @ 2 ohm, 3000W x 1 @ 1 ohm
• Total Peak Power: 5000W
• 1 Pair of Preamp Outputs
• Bass Boost 0-12 dB from 30-80 Hz
• Subsonic Filter from 20-50 Hz
• Dimensions: 20-3/8"W x 8-1/4"D x 2-1/4"H

Description


Belva brand icon

Authorized dealer

BB Series: Product Overview

The BB Series by Belva are designed to get loud! These monoblock beasts are exceptional performance amps engineered to output maximum power. If you need an amplifier that can output heavy power levels without a problem, the Belva BB Series monoblock amplifiers are right for you!

High Quality, High Power Output

These amplifiers are built with a high quality, organized circuit board. Every amplifier in the BB Series has high power output. The BB3000D is capable of outputting 1800 watts of RMS power. This amount of power is sure to be able to adequately supply most subwoofer systems with the proper amount of wattage. Belva amplifiers will keep your woofers pumping out deep bass with honest sound reproduction and reduced distortion.



General Features:

  • BB Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 1200 watts x 1 chan.
    • 2 ohm: 1800 watts x 1 chan.
    • 1 ohm: 3000 watts x 1 chan.
  • Max power output: 5000 watts

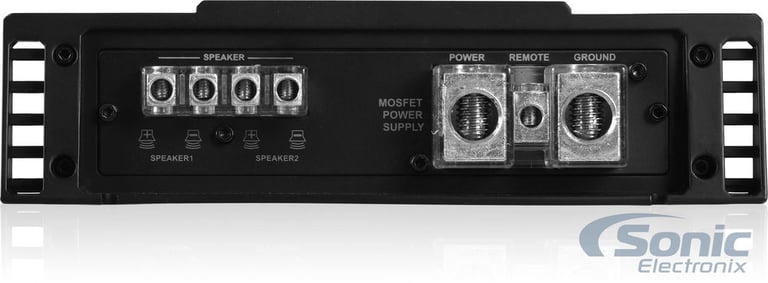

  • Pulse Width Modulated MOSFET power supply

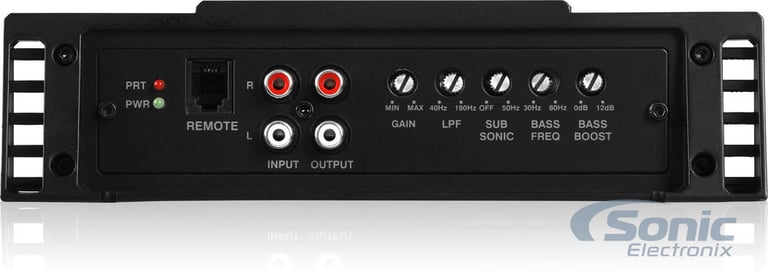

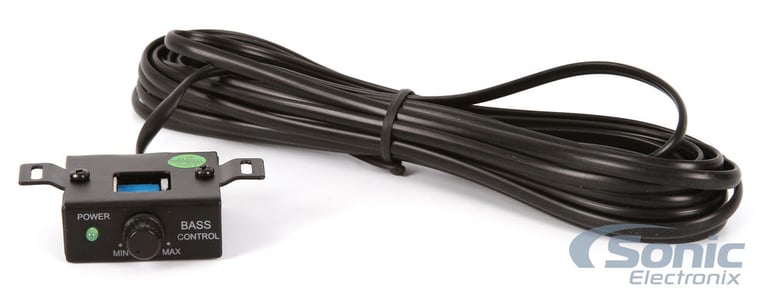

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost adjustable between 30-80 Hz)
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Low level: 100mV-6mV
  • Variable low-pass filter (40-180 Hz, 12 dB/octave)
  • Subsonic filter (12 dB variable from 20Hz - 50 Hz)
  • Frequency response: 20-30,000 Hz

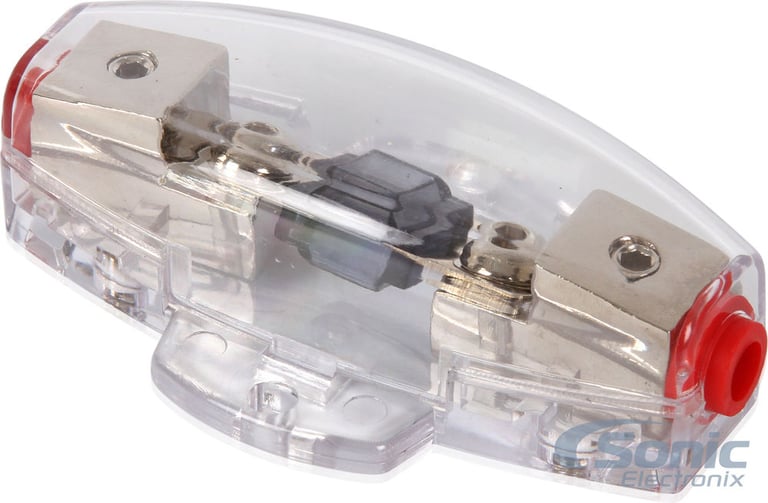

  • 200-240 Amp in-line fuse required, see our selection of recommended fuse holders
  • Depending on operating impedance, 1/0 or 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 20-3/8"W x 8-1/4"D x 2-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Note: Internal fuses are not included, so an external 200-240 Amp ANL Fuse is required to safely operate this amplifier.

Product history:

Belva BB5000Dv2 thumbnail
(newest, current model)
Belva BB5000D thumbnail
(previous model, replaced by Belva BB5000Dv2 (BB5000D v2))

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1200 watts x 1 channel
RMS Power @ 2 ohms
1800 watts x 1 channel
RMS Power @ 1 ohm
3000 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
2400 watts x 1 channel
Peak Power @ 2 ohms
3600 watts x 1 channel
Peak Power @ 1 ohm
5000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
5000 watts
Total RMS Power Output
3000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 180 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BB5000D

Weight:

15.00lbs

Internal SKU:

bb5000d

Internal Product ID:

65813

Product and How-to Videos


Customer Ratings & Reviews


Belva BB5000D thumbnail image

5 star
64%
4 star
28%
3 star
6%
2 star
2%
1 star
0%



Durability
4.4
Value
4.7
Features
4.4
Design
4.6
Usability
4.7

Customer Reviews

Sort by:

Loading...

Big Bang

I've this amp for 6 mths now and its got a lot of power! It is pushing 4 Hifonics HFX12D4 at 2ohm, they be about to jump out the box. Good amp for the price but make sure you upgrade your electrical system before you hook it up. I got Big 3 upgrade,1/0 power and ground on everything, battery and cap.

By Tyrone on November 16, 2014

52 found this helpful


Excellent product

This is a quality product for great value sonicelectronix provides a top quality service, which is very hard to beat

By Joseph on July 18, 2014

53 found this helpful


Great Amp

Pushing 2 RE SE 12's in a ported pro box ALMOST BROKE THE SPOILER OFF MY CAR!!!!

By TRIPLE M on May 20, 2014

52 found this helpful


Good buget amp!

This is really good budget amlifier for this price.

True Rms at 1 ohm 3000 wrms.
Its doesnt matter this amp are not top class band in line, but make the shine and you will be proud!

Go check my Belva 5000 D,

Unboxing video - http://www.youtube.com/watch?v=8Gpvqqw1dDw

By Evoninety on September 17, 2013

50 found this helpful


well the 2nd one just died in a odd way

i have reviews up for this amp about how i got a DOA and Sonic went above and Beyond to help me swap it in time for a show back on September 20, 2013. well on my way home from work today it died just shut off nothing fancy has a green light no sound checked all the cables and then plugged the remote bass control in "BAD IDEA" the 2nd i turned my car on it dumped full power in to my subs and tripped my breakers. (i have a pair of 40amp slow pop breakers inline with my subs just to be safe they saved me this time)
killed power pulled amp tossed on my bench hooked up a small 12Ah batt to it feed clean audio to amp still has green light On gain set at 1/2 O-scope sees a clean 1.31v DC on the out put with a 4ohm test load DC is bad..... power it off plugged remote boost back in powered it on amp dumped 133.7V DC in to the load for 4sec before batt died ate 10Ah in 4~5 sec.

i took off cover to test for bad mosfet's and guess what ALL GOOD it's in the Class D ADC controller lol
it has no protect light just dumps raw DC


all in all the Amp Rocked when it worked Benched tested at 2898.4 into a static 1ohm load at 13.38V way more then most for the money
just wished they did a little better soldering them and i think it has a lot to do with them dieing most of the joints seam dry.
wish me luck I'm going to try and get in touch with Belva lost time i never got a response
ah 2nd star is only because Sonic was so bad ass
about the first go around. i always send my family to sonic for gear even before they came to cali

By TechMasterJoe on November 29, 2013

47 found this helpful


this is a beast

this is a beast amp im running mines at 4 ohms to a quantum audio
12
this amp dont use a lot of power to get loud
i would tell anyone looking for the best bang fo buck to get this sounds
so good to
check my vid on youtube
http://www.youtube.com/watch?v=LzoqXbgnhPA
an see how it bangs

By moochdogg on April 15, 2013

47 found this helpful


great value

Great sound. Easy to install and use great product do recommend.

By Chris on December 29, 2014

46 found this helpful


The greatest amp I ever owned .

This is by far the best amp I have ever owned. I have it pushing 3 Alpine type r 15 wire a 1.34 ohms. I have it wire to a yellow top battery and it slams so hard. In my town I am the king of the streets with my system .

By cassanova on February 18, 2014

46 found this helpful


Great amp for the price

For the price this amp is great I love it! I got it running 2 12inch Memphis mojo 5 and it puts out a great amount of power and sounds clean. The only thing I don't like about it is the bass remote knob, it's to small u have to like pinch the knob to turn it up it's not bad though, other than that I recommend it if you're looking for cheap reliable amp.

By Joseph on January 24, 2014

46 found this helpful


My best choice

The belva was a great choice I play it all day and it stands in the paint. It don't cut off from getting hot.

By Myzfyt on June 29, 2014

46 found this helpful




DMDX6925C small

Diamond Audio DMDX6925C

390W Peak (130W RMS) 6x9" DMD Series 3-Way Component 4-ohm Speakers

$429.99

List price $429.99

APH-GM02 small

PAC APH-GM02

19" Speaker Connection Harnesses for select 2014-2019 vehicles from Chevrolet, GMC, Cadillac with Amplified Systems

(5)

$49.99

List price $109.00

ZXI8.4D small

DS18 ZXI8.4D

1200W Peak (600W RMS) 8" ZXI Series Dual 4-ohm High Excursion Subwoofer

$203.95

List price $203.95

iLX-W670 small

Alpine iLX-W670

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

(63)

$349.95

List price $420.00

No picture

Cerwin-Vega IOEMREM

Remote Level Controller for Cerwin Vega IOEM Line Out Converters

$29.99

List price $29.99

SRX10D2 small

RE Audio SRX10D2

300W 10" SRX Series Dual 2 ohm Subwoofer

(8)

$89.99

List price $204.99

99-3304 small

Metra 99-3304 Dash Kit

Install a new Single-DIN car stereo in select 2005-2013 vehicles from Chevrolet, Hummer, Buick (Matte Black)

(1)

$18.99

List price $32.99

KTE-8G.3 small

Alpine KTE-8G.3

Mesh Grille for Alpine 8" R2 and S2 Subwoofers (Black)

$39.95

List price $50.00

V754 small

Phoenix Gold Ryval V754

1000W Max, 4-Channel Amplifier (Rival)

(2)

$124.99

List price $269.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2016 BMW Z4

2009 Kia Optima

1998 Suzuki Esteem

2007 Lexus RX350

1983 Subaru DL

2023 Ford Explorer ST

2014 Audi RS7

2018 Audi RS5

2017 Mazda CX-5

2011 Ford Explorer

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
