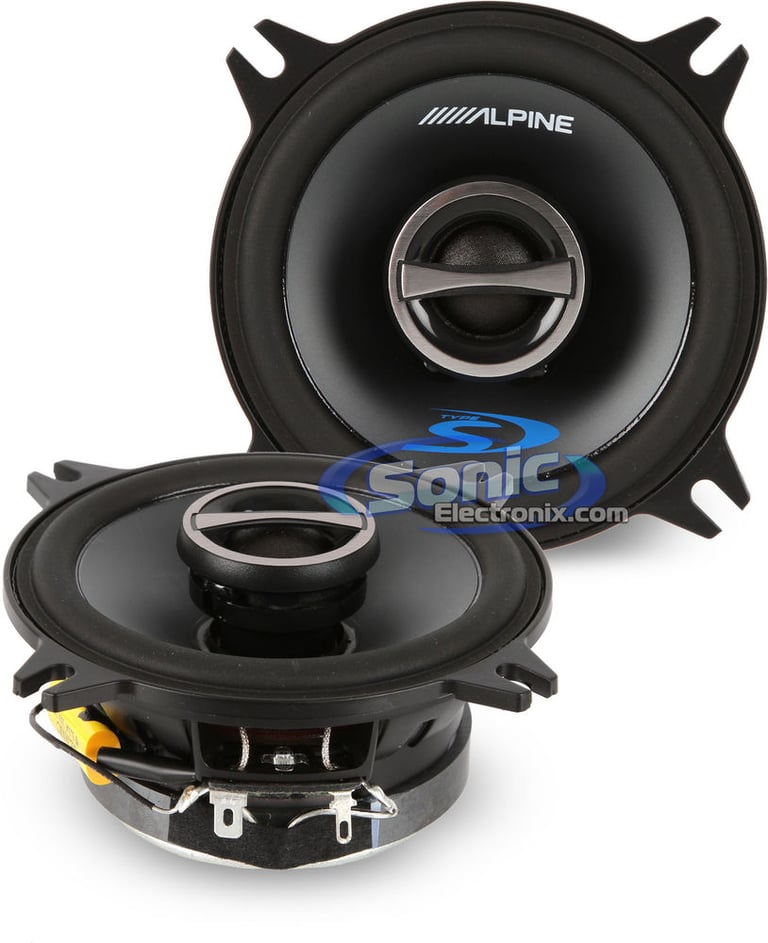

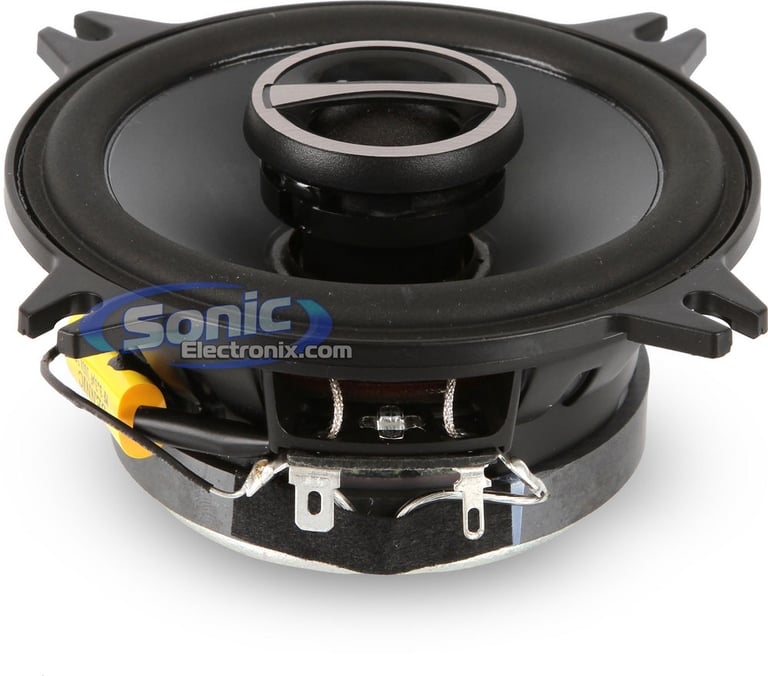

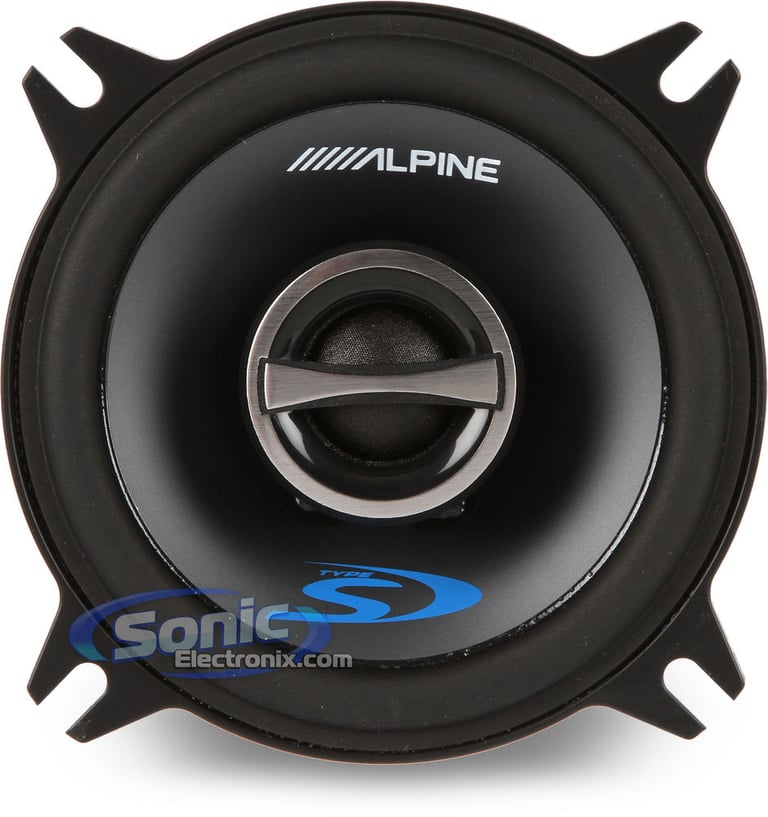

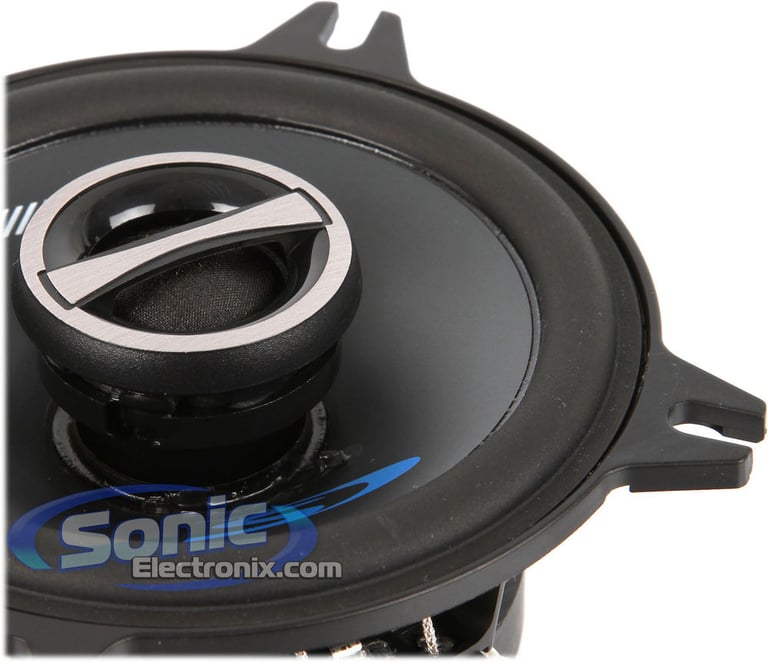

Alpine Type-S SPS-410

280 Watt 4" 2-Way Type-S Series Coaxial Car Audio Speakers

Alpine
Shop all Alpine
highlight-star-icon

• Peak Power: 280W
• RMS Power: 90W
• 3/4" Silk Soft Dome Tweeter
• Mounting Depth: 1-21/32''
• Polymer/Mica Composite Woofer Cone
• 4 Ohm Impedance
• Sensitivity: 87dB

Learn more about the sps410

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

s2s40 thumbnail

Alpine S2-S40

OUR PRICE: $109.95

View item

Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

28
-28.13%

$22.99

List price $31.99

82-5602 main

Metra 82-5602

6X9" Speaker Adapter for select 2011-2020 Explorer and F-Pace

2
-47.51%

$20.99

List price $39.99

99-5858CH main

Metra 99-5858CH Dash Kit

[Single DIN and Double DIN Stereo Dash Kit and Harness for select 2011-2019 Explorer with Factory 8" Screens

-33.91%

$379.99

List price $574.99

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

47
-42.51%

$22.99

List price $39.99

Limited time!

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
-12.50%

$69.99

List price $79.99

P1692 main

Rockford Fosgate Punch P1 P1692

300W Peak (150W RMS) 6x9" Punch Series 2 Way Coaxial 4-ohm Speakers

81
FRING65 main

NVX FRING65

Universal 6.5" or 6.75" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

43
-10.01%

$17.99

List price $19.99

43DSC69304 main

Kicker DSC6930 (43DSC69304)

720W Peak (180W RMS) 6x9” DS Series 3-way 4-ohm Coaxial Car Speakers with Integrated Midrange

33
-14.29%

$119.99

List price $139.99

BE9ACP.X main

Boss Elite BE9ACP.X

9" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

1

Description


Alpine brand icon

Authorized dealer

General Features:
  • 4" Type-S Series Car Speakers
  • Power Handling:
    • Peak: 280 watts per set / 140 watts each side
    • RMS: 90 watts per set / 45 watts each side
  • Tuned poly-mica cone woofer
  • Butyl rubber surround for natural response and stability
  • 3/4" Wide-Range Silk dome tweeter
  • Optimized air-flow design
  • Progressive Aramid Fiber Spider with optimized shape for deep bass and linearity
  • HD Polymer frame
  • Affordable premium quality upgrade to your factory audio system
  • FEA optimized motor structure

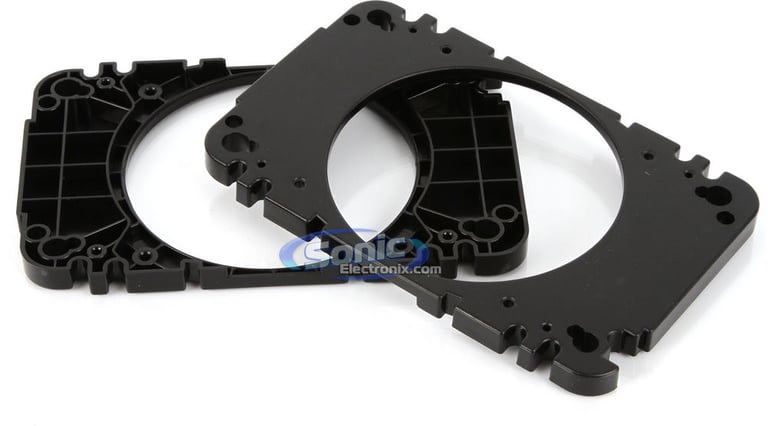

  • 4" x 6" Mounting adapters included
  • Great power-efficient speakers
  • Swivel-mount tweeter
  • 4 ohm impedance
  • Square-wire short voice coil
  • New cone design allows for faster energy transfer & clarity
  • Aramid reinforced TIL bobbin holds voice coil wire very rigid
  • High grade network components

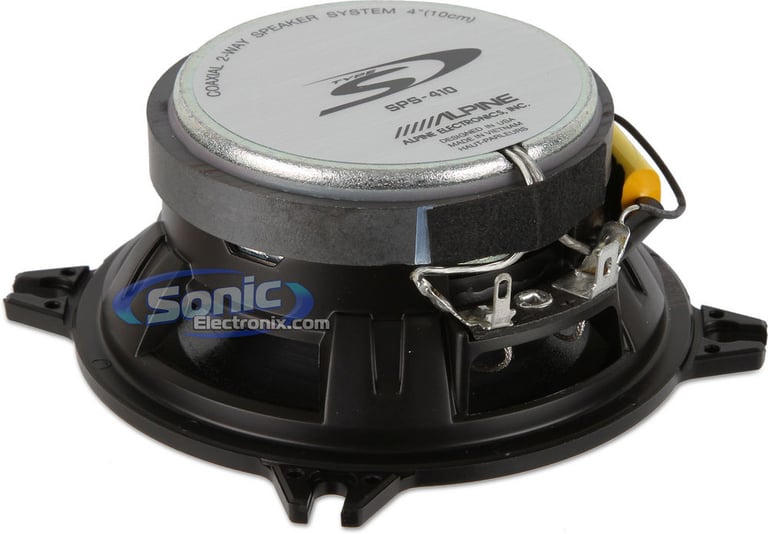

  • Neodymium tweeter magnet structure
  • Low distortion strontium woofer magnet
  • Top-mount depth: 1-21/32"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty


PROP 65 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov


Alpine Type S Technologies
1) 3/4" Wide Range Silk Dome
  • Soft silk dome diaphragm with rigid aluminum provides high resolution and wide-band response
  • Optimized magnet circuit drives CCA wire and soft silk diaphragm with high efficiency
  • 6" x 9" Version Type-S as soft dome & horn loaded hard dome
2) Swivel Tweeter
  • More than 10 degree swivel for sound tuning
3) High Grade Network Components
  • Less restriction results in dynamic, open sound character
4) High Excursion Suspension (Surround)
  • Butyl rubber surround for natural response and stability
5) High Excursion Suspension (Spider)
  • Progressive Aramid Fiber Spider with optimized shape for deep bass, linearity and break-up mode control at high dive levels
6) FEA Optimized Motor Structure
  • Yoke shaped reduces magnetic leakage
  • High-grade strontium magnet
  • Maximize linearity and motor strength
7) High Power Handling
  • Large diameter voice coil (30mm diameter)
  • >250 watts peak power
8) Stable Voice Coil Structure
  • Rigid & strong voice coil structure contributes to clear sound with high efficiency
  • Tightly packed square wire structure puts more turns in the gap and adds strength
  • Aramid reinforced TIL bobbin holds wire very rigid
  • Square VC wire + strong magnet = High efficiency with low distortion
9) Tuned Poly/Mica Cone
  • New cone structure with strong mica results in faster energy transfer & clarity

Priced Per Pair

Product history:

Alpine S2-S40 thumbnail
(newest, current model)
Alpine S-S40 thumbnail
(previous model, replaced by Alpine S2-S40)
Alpine SPS-410 thumbnail
(previous model, replaced by Alpine S-S40)
Alpine SPS-400 thumbnail
(previous model, replaced by Alpine Type-S SPS-410)
Alpine SPS-10C2 thumbnail
(previous model, replaced by Alpine SPS-400)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00


Best selling similar products

TS-A1081F small

Pioneer TS-A1081F

• 230 watts Peak Each, 50 watts RMS Each
• 1" PEI (Polyetherimide) Hard Dome tweeters
• Carbon and Mica Reinforced Injection Molded Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(3)

$90.00

List price $110.00

OS-BMW4RV2 small

Metra OS-BMW4RV2

• 180 watts Peak Each, 60 watts RMS Each
• 1" Silk Dome tweeters
• Impedance: 4 ohm
• Sensitivity: 89 dB
• Direct fit for

$191.99

List price $213.99

51KSC404 small

Kicker KSC4 (51KSC404)

• 150 watts Peak Each, 75 watts RMS Each
• 1/2" Silk Balanced Dome Tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

(3)

$99.99

List price $119.99

DB402 small

Polk Audio DB402 (DB 402)

• 135 watts Peak Each, 45 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(4)

$90.00

List price $99.99

H40 small

Cerwin-Vega H40

• 150 watts Peak Each, 50 watts RMS Each
• 1" PEI (Polyetherimide) Balanced Dome Tweeters
• UV-Treated Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 84 dB

$79.99

List price $95.99

C1-400x small

JL Audio C1-400x

• 35 watts RMS Each
• 3/4" Silk-Suspended Aluminum Edge Driven Dome tweeters
• Mineral-Filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 84.5 dB

(8)

$94.99

List price $94.99

R14X2 small

Rockford Fosgate Prime R14X2

• 60 watts Peak Each, 30 watts RMS Each
• 1/2" Silk Dome tweeters
• Vacuum polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 85 dB

(14)

$59.99

List price $64.99

ZXI-44 small

DS18 ZXI-44

• 150 watts Peak Each, 50 watts RMS Each
• 1" PEI (Polyetherimide) Dome tweeters
• Glass Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

$80.95

List price $80.95

Club 44F small

JBL Club 44F (JBLSPKCB44F)

• 105 watts Peak Each, 35 watts RMS Each
• Silk Edge Driven Dome Tweeters
• UV-Resistant Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 90 dB

$99.95

List price $129.95

C2-400X small

JL Audio C2-400x

• 35 watts RMS Each
• 3/4" Silk Dome tweeters
• Mica Injected Polypropylene - MIPP cone material
• Impedance: 4 ohm
• Sensitivity: 84.5 dB

(9)

$189.99

List price $189.99

Specifications & Details


Speaker Specifications
Series
S Series
Priced Per
Pair
Number of Speakers
2
Speaker Size
4"
Design
2-way Coaxial
Tweeter Design
Dome
Tweeter Composition
Silk
Woofer Composition
Polymer/Mica Composite
Woofer Surround
Rubber
Peak Power Handling
140 watts
RMS Power Handling
45 watts
Sensitivity
87 dB
Frequency Response
97 - 22,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
Yes
Top-Mount Depth (Mounting Depth)
1-21/32"
Cutout Dimensions
5-1/16" x 5-1/16"
General specifications
Marine Certified
No
Hi-Res Certified
No
Color
Black
Speaker Grilles
No
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Speakers
Speakers (2)

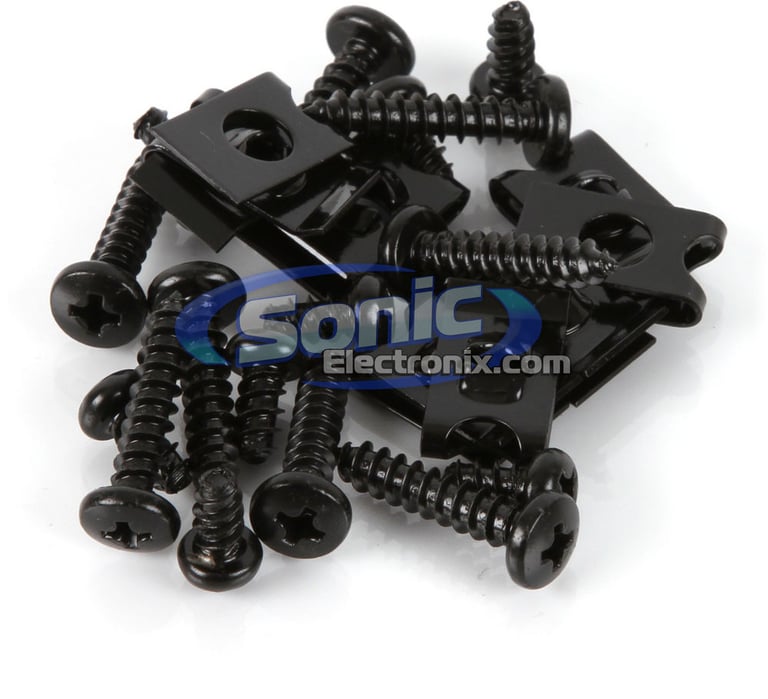

Mounting screws (8)
Mounting clips (8)

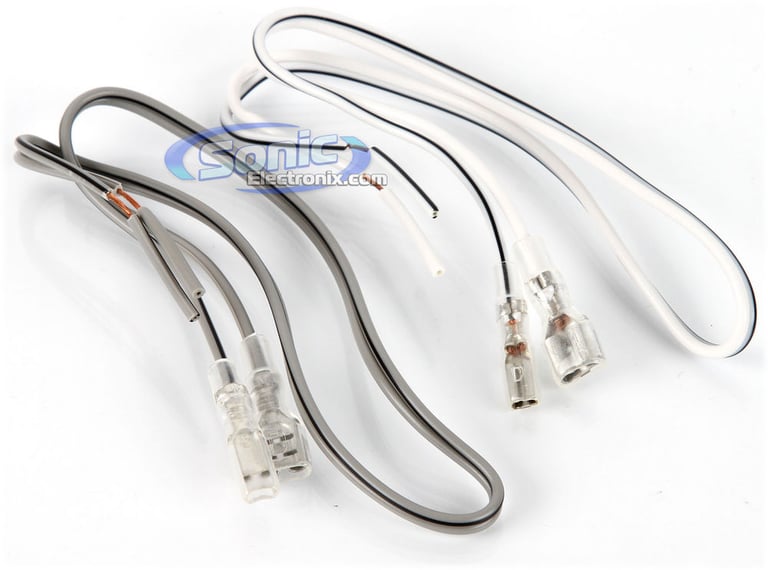

Speaker connection cables (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SPS-410

Weight:

4.00lbs

Internal SKU:

sps410

Internal Product ID:

34379

Customer Ratings & Reviews


Alpine Type-S SPS-410 thumbnail image

5 star
79%
4 star
16%
3 star
5%
2 star
0%
1 star
0%



Durability
4.6
Value
4.9
Features
4.7
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

Okay for a month.

I had these for maybe a month or so they starting sounding crackly. So I got rid of them and got JL Audio 4" speakers. Way better sound quality and clarity.

By Charlie on January 23, 2013

63 found this helpful


Very nice speakers.

For the size they are a very clear sounding speaker even at higher volumes. I would recomend them for any upgrade.

By caddy on January 2, 2012

63 found this helpful


Great fit for BMW x3

I had the stock, Business version audio installed in my x3 and the tiny Philips speakers were pitiful. Replaced all four door speakers with SPS-410 and the sound is 5 times better at least. The stock speakers were exactly half the weight of the 410s. Plenty of YouTube video instructions on how to do it. Changing the speakers alone was no more than an hour job. In my case it took several hours since the glue holding the door panel attached was old and dried out, so half of them came off. Keep some gorilla glue handy - it will fix them in no time. Very good deal.

By AllThumbs on October 8, 2014

62 found this helpful


Amazing Mid Speakers

Did a complete overhaul in my Infinti g37 coupe, got rid of the bose in with all Alpine factory. Bose had 4 3.5" mid speakers replaces with these 4" sps they reproduces vocals very accurately, i have them hooked up to one pdx m4 with 6 type r components and the HUX-800 audio processor the manage the sound and i am getting crystal clear sound using factory infiniti head unit.

By vishaal on February 25, 2014

61 found this helpful


Alpine Type S 4 inch

It really sucks if your car takes 4" front speakers because you cant expect much from such small speakers. But this was my case so i ordered them and they sound pretty clear and took a lot for them to distort so i was happy with my purchase. Do not expect any bass from these speakers because you wont get any nor is that what they were designed for. I now own a pair of 5.25" Alpine Type R's and they sound much better and have some bass so if your car has 4 inch factory speakers id reccomend trying to fit 5.25 inch speakers, its a big difference even though they are considerably more expensive.

By Gil on March 19, 2013

58 found this helpful


Excellent Factory Replacement

Great to replace factory speakers. Very clear and crisp. Not very good with bass but It's a 4" speaker so dont expect that much.

By andre on January 16, 2012

59 found this helpful


Excellent!

These sound better than my $150 Hertz speakers. They sound so good off an Alpine deck and the mid bass is exceptional.

By Justin on March 25, 2011

60 found this helpful


Great Replacement

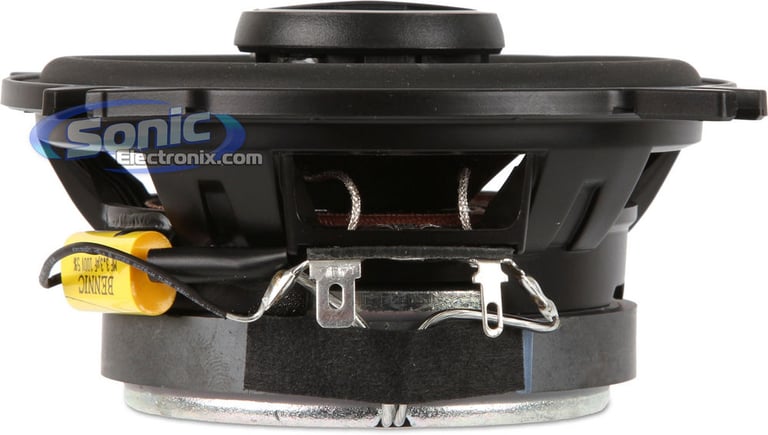

I would defintely recommend these speakers (and have many times). I had a pair of the SPS-400's that went bad under warranty and Sonic replaced them with the new SPS-410's. They have great spatial imaging, are not bright (no intense highs that are tinnny), they handle the power from my Alpine amp nicely, and the price cant be beat. I regularly post on BMW fanzines and have done many installations on the BMW X3. These fit right in and sound great.

By Evlengr on December 4, 2011

59 found this helpful


Very happy with these speakers

I replaced the 28 year old paper cone speakers in my 1986 Jaguar with four of these 4" two-way speakers. They're the biggest that would fit without modification. Being 4 ohm rather than the old 8's they're only getting about 10W each from the original head unit (Jaguar-branded Alpine). Nevertheless, my "system" now sounds fresh and crisp throughout the volume range and right down to the lowest frequencies these can produce, about 100Hz. So I can hear the bass being played but I sure can't feel it the way we're used to these days.

Therefore my next step is to add a head unit that can give me pre-amp out to a small sub such as the Kenwood KSC-SW11. That should be a perfect match for the Alpine SPS-410 speakers.

By Greg on July 14, 2014

57 found this helpful


Perfect speakers !

I would definitely recommend these speakers to anyone. Built well,great price,and they're Alpines!

By Tim on November 8, 2013

55 found this helpful




XWS12100 small

NVX XWS12100

100 ft 12-Gauge EnvyFlex 100% Oxygen Free Copper Speaker Wire (Blue/Gray)

(8)

$74.99

List price $89.99

A6005DN small

Audiobahn A6005DN

600W Max, Intake Series Class D Monoblock Amplifier

(1)

$109.99

List price $299.99

MPS-C03 small

Metra MPS-C03

1-3/16" Aluminum Roll Bar Mount for LED Lightbars in Powersports Applications

$13.99

List price $25.00

KMMTESW small

Kicker KMMTESW (40KMMTESW)

Empty Single 4" Marine Tower Speaker Enclosures in Gloss White

$199.99

List price $219.99

RGBW2-S1 small

Metra RGBW2-S1

Single 3-Pod RGBW LED Rock Light Strip Kit

$38.99

List price $43.99

MPS-B07 small

Metra MPS-B07

Side Pillar Light Brackets for 2" to 4" Cube and Round Work Lights in select 2016-2017 vehicles from Yamaha

$24.99

List price $42.00

GTO14001 small

JBL GTO14001

1500W RMS, Monoblock Grand Touring Series Amplifier

(9)

$449.95

List price $699.95

SPF5680 small

Stinger SPF5680

3-Pack of 80 Amp Maxi Fuses

(9)

$9.99

List price $19.00

HMP 4D small

Hertz HMP 4D

600W Peak (260W RMS) Class D 4 HMP Series 4-Channel Full Range Motorcycle and Powersports Amplifier

$379.99

List price $415.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2011 Ford Explorer

1991 Dodge Stealth

2011 Kia Optima

2008 Ford Ranger

2005 Saab 9-7X

2003 Saab 9-3

2009 Ford Expedition

2016 GMC Canyon

1998 Chevrolet Corvette

1995 Ford Explorer

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
