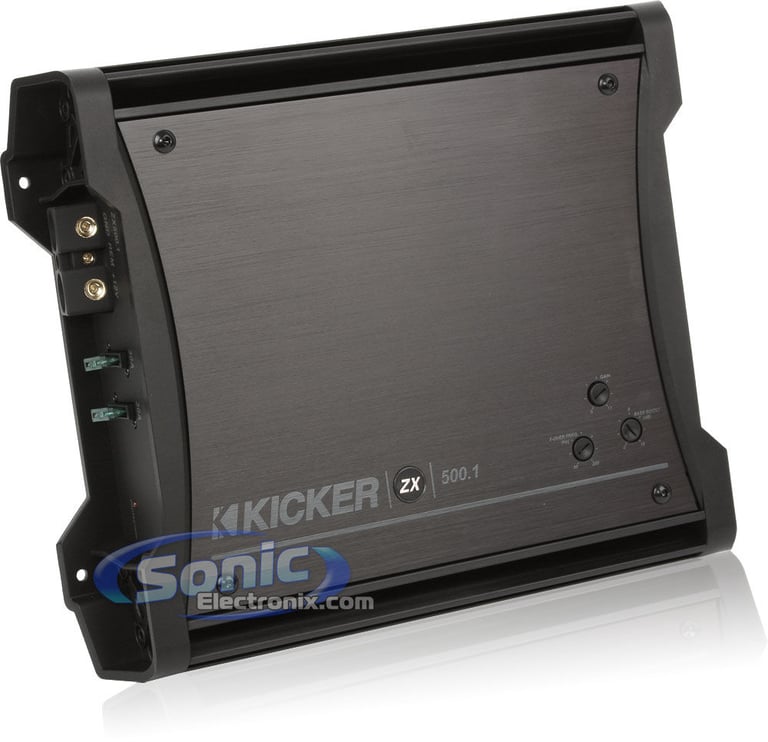

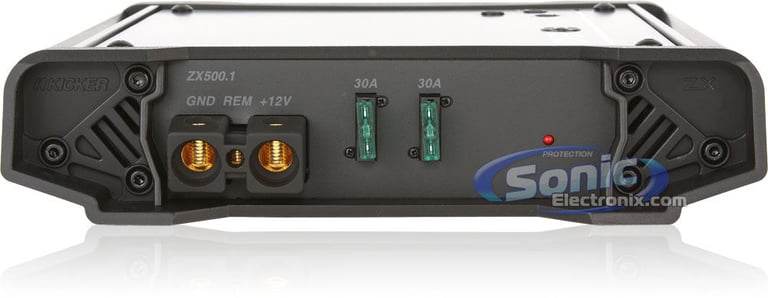

Kicker ZX500.1 (11ZX500.1)

500W RMS Class D Monoblock ZX Series Amplifier

Kicker
Shop all Kicker
Product videos
highlight-star-icon

• RMS: 250W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Bass Boost: 0-18 dB at 40 Hz
• Optional Vinyl Skins For Personalization
• Dimensions: 12"L x 9-5/8"W x 2-1/8"H

Learn more about the 11zx5001

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

48
-42.51%

$22.99

List price $39.99

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

TS-A6991F main

Pioneer TS-A6991F

1400W Peak (240W RMS) 6x9" A-Series 5-Way Coaxial 4-ohm Speakers

10
-13.34%

$129.99

List price $150.00

H752 main

Cerwin Vega H752

550W Peak (80W RMS) 5.25” HED Series 2-Way Coaxial 4-ohm Speakers

5
-16.67%

$69.99

List price $83.99

Pioneer AVIC-W8600NEX

7" Double DIN Touchscreen DVD Receiver with Bluetooth, Built-in Navigation, Wireless Apple CarPlay and Android Auto

3
-16.67%

$1,499.99

List price $1800.00

NVX XSP69KIT

600W Peak (300W RMS) 6x9" X-Series 2 Way Component Car Speakers

5
-16.67%

$169.99

List price $203.99

Product Highlights


• RMS: 250W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Bass Boost: 0-18 dB at 40 Hz
• Optional Vinyl Skins For Personalization
• Dimensions: 12"L x 9-5/8"W x 2-1/8"H

Description


Kicker brand icon

Authorized dealer

Why Choose Kicker Amplifiers:

Kicker Always Exceeds Rated Power

Kicker Performance Audio has been around since 1980 and has been producing amazing products since then. Kicker’s drive to consistently produce products that not only are great but also push the standards of the car audio industry is very apparent in all series of their amplifiers. All Kicker amplifiers are CEA-2006 Compliant, assuring you are receiving a continuous certified RMS power rating. Kicker will always exceed the rated power because Kicker is notorious for under rating their amplifiers. So really you will be getting more power than you actually pay for, which is not true for other lower end performance amplifiers that generally over rate their amplifiers. Kicker amplifiers will provide a choice of three automatic turn-on modes; remote, DC offset, or signal sense, which make them compatible with any car audio system. Along with their high-density convection heat sink for extreme heat dissipation and high efficiency MOSFET power supply, Kickers amplifiers are great way to go when selecting the perfect amplifier for your car audio system.

Kicker FIT Fail Safe Integration Technology

Kicker Fail Safe Technology (FIT):

Kicker has manufactured a new Fail-Safe Integration (FIT) technology into all of their amplifiers. The FIT technology uses isolated differential inputs in order to reject noise or electrical interferences, caused by engines, alternators or any other audio or video component throughout your vehicle. The differential inputs will use a muting circuit that will block out any additional noise that may stream down the line. The FIT technology will help created the cleanest and purest sound possible for any audio system. The Kicker FIT technology is setting the standard for high quality sound.

  • ZX Series Class D Monoblock Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 250 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
  • High efficiency MOSFET power supply
  • LED power and protection indicators
  • FIT (Fail-Safe Integration Technology) utilizes differential inputs to reject noise and electrical interference for the quietest operation possible and ultimate audio clarity
  • Remote bass level input (Kicker 10ZXRC remote level control sold separately)
  • Tuned Bass EQ (0-18 dB bass boost at 40 Hz)

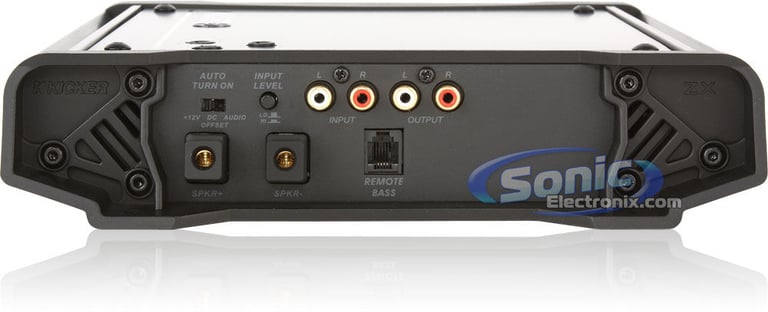

  • Preamp RCA outputs
  • Muting circuit cancels out unwanted noise

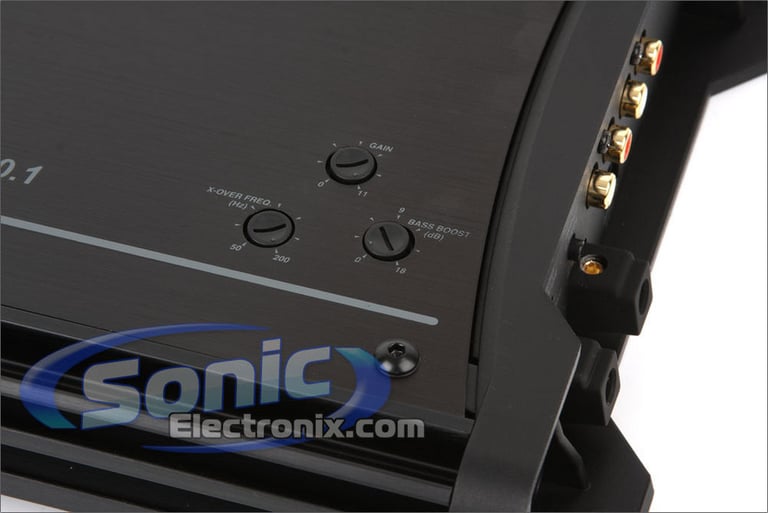

  • Boost, gain, and crossover frequencies are top-mounted for easy access
  • Balanced differential inputs for noise elimination and factory-radio compatibility
  • 3 Automatic turn-on modes (remote, DC offset, signal sense)
  • Optional edgy vinyl skins for personalizing heat sinks available
  • Optional Kicker 08ZXEC endcaps are available for all ZX amplifier models
  • High-density convection heat sink for extreme heat dissipation
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Input sensitivity:
    • Low level: 125mV-5V
    • High level: 250mV-10V
  • Variable low-pass filter (50-200 Hz, 24 dB/octave)
  • High-pass subsonic filter (24 dB at 25 Hz)
  • CEA-2006 compliant amplifier
  • Frequency response: 25-200 Hz
  • Dimensions: 12"L x 9-5/8"W x 2-1/8"H

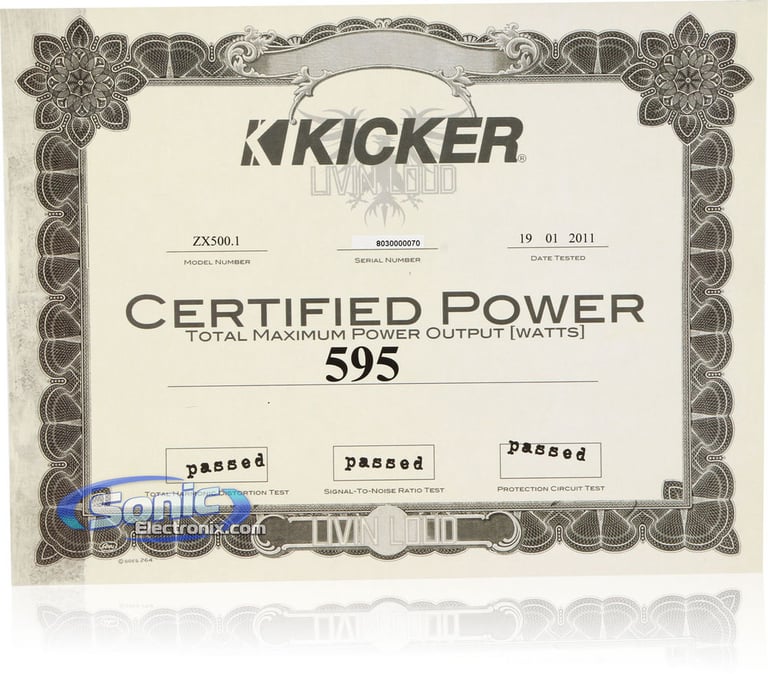

  • Actual power exceeds rated power, documented inside each carton
  • 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Authorized Internet Dealer
  • 2-year Manufacturer's warranty

Extend your Kicker warranty to 3 Years when you install your new Kicker amplifier with a compatible Kicker power kit! For a limited time, you can register your Kicker amplifier and power kit to qualify for an additional year of coverage. This offer is only available through official Kicker dealers and will only last for a limited time. With this amplifier, the following power kits will qualify for the extended warranty program: Kicker 09PK4, Kicker 05CK4, Kicker 09ZCK4, and Kicker 09PKD1.

2011 Kicker Authorized Online Dealer and eBay Seller

Product history:

Kicker 11ZX5001 thumbnail
(newest, current model)
Kicker 10ZX500.1 thumbnail
(previous model, replaced by Kicker ZX500.1 (11ZX500.1))
Kicker 08ZX500.1 thumbnail
(previous model, replaced by Kicker ZX500.1 (10ZX500.1))

Loading...
DRQC20AC-TN main

MTX Audio Thunderform DRQC20AC-TN (Charcoal, Amplified)

select 2002-2018 vehicles from Ram, Dodge Amplified 2 10" 4 ohm Vehicle Specific Thunderform Subwoofer Enclosure

2
DRQC20C-TN main

MTX Audio Thunderform DRQC20C-TN (Charcoal, Loaded)

Two 10" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure for select 2002-2018 vehicles from Ram, Dodge

Lowest price in 30 days
THUNDER52,THUNDER693,DRQC20AC-TN main

2002-2013 Dodge Ram Quad/Crew Cab Powered Dual 10" MTX Subs+Box+(4) MTX Speakers

Amplified 2 10" 4 ohm Vehicle Specific Thunderform Subwoofer Enclosure Package for 2002-2013 Dodge Ram Quad/Crew Cab

6
-18.95%

$901.96

List price $1112.85

82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.13%

$211.72

List price $232.98

DRQC20AC-TN main

Dual 10" MTX Powered Subwoofers+Enclosure Box For 02-16 Dodge Ram Quad/Crew Cab

Amplified 2 10" 4 ohm Vehicle Specific Thunderform Subwoofer Enclosure Package for select 2002-2018 vehicles from Ram, Dodge

2

$764.96

List price $802.95

Lowest price in 30 days
THUNDER52,THUNDER693,DRQC20C-TN main

Dual 10" MTX Subwoofers+Box+(4) MTX Speakers For 2002-16 Dodge Ram Quad/Crew Cab

Two 10" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure Package for 2002-16 Dodge Ram Quad/Crew Cab

4
-13.37%

$821.08

List price $947.85

KAPPA103WDSSI_AFG20210 main

Infinity Kappa 103WDSSI + Atrend AFG-202-10

1350W Peak (450W RMS) 10” Kappa Series Single 2-or 4-ohm Car Subwoofer with Empty Dual 10" Sealed Enclosure

-37.71%

$759.89

List price $1219.89

(2)SMW10D4_AFG20210 main

Atrend AFG-202-10 with NVX SMW10D4 for Select 2002 and Up Dodge Ram Quad Cab

350W RMS Shallow-Mount 10" Dual 4-Ohm Subwoofer + Dual 10" Sealed Subwoofer Enclosure

6
-5.41%

$699.97

List price $739.97

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
250 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Subsonic Filter
25 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
60A x 1
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

11ZX5001

Weight:

10.50lbs

Internal SKU:

11zx5001

Internal Product ID:

31880

Product and How-to Videos


Customer Ratings & Reviews


Kicker ZX500.1 (11ZX500.1) thumbnail image

5 star
75%
4 star
0%
3 star
25%
2 star
0%
1 star
0%



Durability
5
Value
4.5
Features
4.3
Design
4.8
Usability
4.5

Customer Reviews

Sort by:

Loading...

Good Product

This amp is powerful and makes my 10" alpine subs sound very good. The bad news is the amp is supposed to have an automatic turn on feature that turns the amp on without having to use a remote turn on wire. This was one of the reasons I bought this particular amp because I didn't want to have to pull my head unit back out to hook up the remote turn on wire. While the amp works good the automatic turn on feature did not work. I had to pull head unit to run wire anyway. I can not give it 5 stars for this reason.

By Eric on September 19, 2013

23 found this helpful


Straight thunder!

Kicker nailed it with this amp! It will put almost any 750 watt amp on the market to shame. I blew 4 subs that were rated for 600 watts rms!! I finally forked over the 450 for a 1200 watt memphis 12 and its absolutely perfect. Take my advice, get a much higher rated sub for this beast!

By Jacob on September 1, 2012

18 found this helpful


Great AMP!

Kicker amps are the best. Underrated pushing 500+ watts. Paired with Earthquake Sound DBXI-12D - this thing slaps. Had for about a year, still working like brand new.

By Ant on February 28, 2013

15 found this helpful


legit

paired with a kicker cvr 15 and it bumps pretty good, went from an alpine type r 12 and it could push both pretty effin good

By DO3SHA on March 28, 2012

16 found this helpful




JD1000/1, XKIT42 small

JL Audio JD1000/1 with Amplifier Wiring Kit

1000W RMS Class-D Monoblock Subwoofer Amplifier

(152)

$484.98

List price $573.98

AVH-P6800DVD small

Pioneer AVH-P6800DVD

Double-DIN 7" TFT-LCD Motorized In-Dash 6-Disc DVD/CD Multimedia AV Receiver with Remote

(4)

$949.99

List price $1399.99

4003 small

Avital 4003 (4003L)

Add-On Remote Start Module System

(1)

$53.99

List price $159.99

15-20-FORD-F-150-EFSPK small

NVX E-Series Front Speaker Upgrade Kit

Fits select 2015-2020 F-150 ; Includes Speakers Harness and Speaker Wire Adapters

(16)

$134.93

List price $177.97

JBE02 small

Aliph Jawbone JBE02 - Red Dot

Portable Jambox Speakerphone Speaker System w/ Wireless Bluetooth Connection (Retail Packaging)

$149.00

List price $199.95

No picture

Belva BXA15001 (Open Box, Great)

1500W Peak BX-Series Class-AB Monoblock Car Amplifier with Bass Remote

(2)

$65.99

List price $149.95

m5lv615d7 small

DC Audio Level 6 15M5D.7 (M5LV615D.7)

8000W Peak (4500W RMS) 18" Level 6 Series M5 Version Dual 0.7-ohm Car Subwoofer

$1299.99

List price $1759.99

S 300 S4 small

Hertz S 300 S4

1000W Peak (250W RMS) 12" Uno Series Single 4-ohm Car Subwoofer

$99.99

List price $110.00

M7-12SGI-S-Gm small

JL Audio M7-12SGI-S-Gm

Grille Insert for JL Audio 12" M7 Marine Subwoofers (Gray)

$42.99

List price $42.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2011 Lexus LS460

2002 Dodge Ram 3500

2001 Lexus GS430

2007 Hummer H2

2015 Fiat 500

2011 BMW 740i

2011 Dodge Caliber

2001 Ford Escape

2003 Mazda B3000

2015 Ford Expedition

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
