Name: RE Audio DTS-500.4 R/B
Brand: RE Audio
SKU: LS-dts5004-RB
Price: 54.95 USD
Availability: Discontinued

by RE Audio

About
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

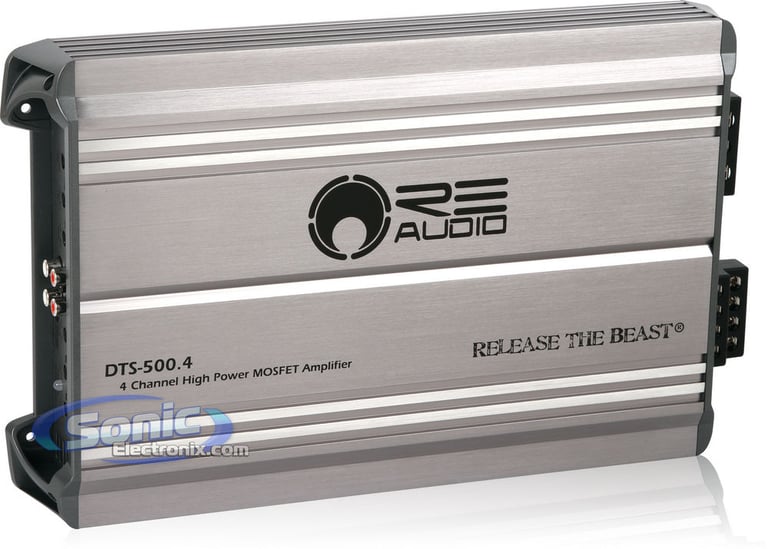

RE Audio DTS-500.4 R/B Image 1 — RE Audio DTS-500.4 R/B

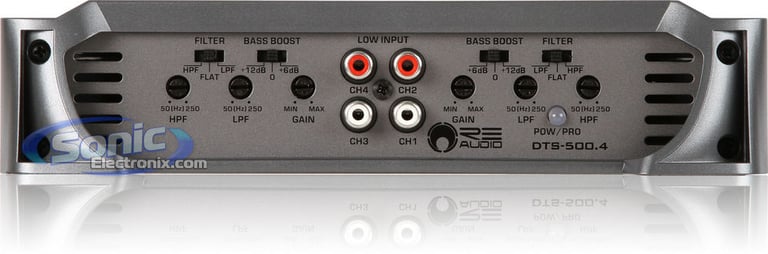

RE Audio DTS-500.4 R/B Image 2 — RE Audio DTS-500.4 R/B

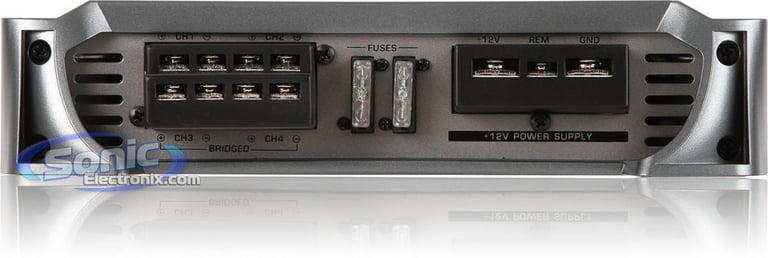

RE Audio DTS-500.4 R/B Image 3 — RE Audio DTS-500.4 R/B

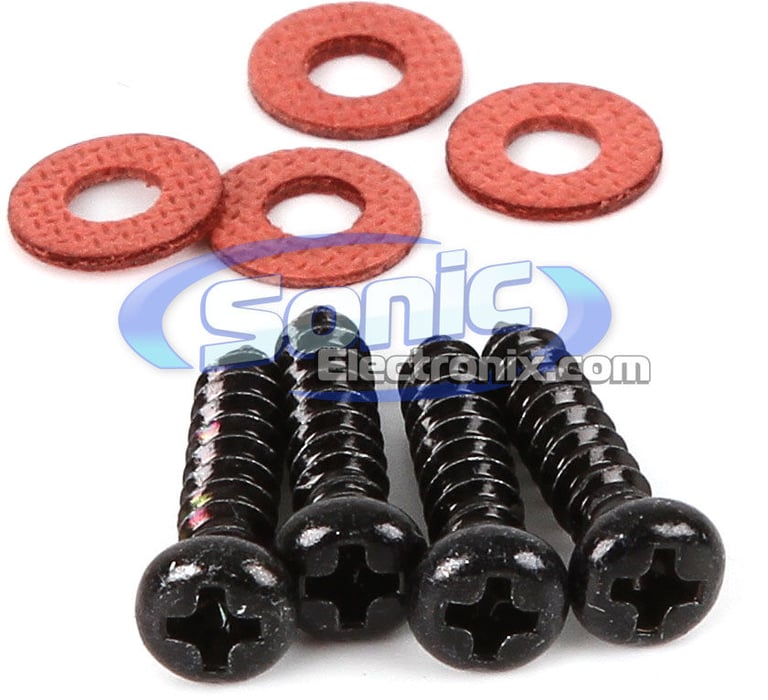

RE Audio DTS-500.4 R/B Image 4 — RE Audio DTS-500.4 R/B

RE Audio DTS-500.4 R/B Image 5 — RE Audio DTS-500.4 R/B

RE Audio DTS-500.4 R/B Image 6 — RE Audio DTS-500.4 R/B

Product videos

Product highlights

DTS Series 4-Channel Class A/B Car Amplifier • 400W Dynamic • 2-Way System Protection • Brushed Aluminum Alloy Convection Cooled Heatsink • Variable High/Low-Pass Filter • Selectable Bass Boost

Learn more about the LS-dts5004-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

DTS Series 4-Channel Class A/B Car Amplifier
RMS Power Rating (14.4V)):
- 4 ohm: 50 watts x 4 chan.
- 2 ohm: 80 watts x 4 chan.
- Bridged, 4 ohm: 160 watts x 2 chan.
Dynamic power output: 400 watts
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Selectable bass boost (0, 6, 12 dB at 45 Hz)
4/3/2 channel operation
2-Way System Protection circuitry (thermal and short circuit)
Heavy duty brushed aluminum alloy convection cooled heatsink for efficient heat dissipation
Nickel-plated RCA level inputs
Nickel-plated 12AWG screw terminals
Input Impedance: 22 K-Ohm
Input sensitivity:
- Low level: 200mV-2V
Variable high-pass filter (50-500 Hz, 24 dB/octave)
Variable low-pass filter (50-500 Hz, 24 dB/octave)
Effective damping factor: 300 @ 4 ohm
Frequency response: 20-36,000 Hz
Dimensions: 13-1/2"L x 8-11/16"W x 2"H
8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
90-Day Sonic Electronix warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

50 watts x 4 channel

RMS Power @ 2 ohms

80 watts x 4 channel

Bridged RMS Power

160 watts x 2 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

4-Channel

Total Peak Power Output

400 watts

Total RMS Power Output

320 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

50 - 500 Hz

Low-Pass Crossover Frequency

50 - 500 Hz

Signal-to-Noise Ratio

90 dB

Bass Boost

0dB, 6dB, 12dB

Remote bass/level controller

Fuse Rating

25A x 2

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
