RE Audio DTS-800.1

800W Monoblock Class D DTS Series Car Amplifier

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

DTS Series Monoblock Class D Car Amplifier • 800W Dynamic • Wired Remote Bass Level Control • Preamp RCA Outputs • Variable Low-Pass Filter • Subsonic Filter • Variable Bass Boost

Learn more about the dts8001

We apologize

This item has been discontinued


Loading...
AXABH-LX1 main

Axxess AXABH-LX1

Amplifier Bypass Harness for select 2012-2025 vehicles from Subaru, Lexus, Toyota

1
-11.77%

$29.99

List price $33.99

DCX 165.3 main

Hertz DCX 165.3 (DCX165.3)

240W Peak (120W RMS) 6.5" Dieci Series 2-Way Coaxial 4-ohm Car Speakers

4
-13.34%

$129.99

List price $150.00

DS18 PRO-GM6.4B (Sold Individually)

480W Peak (140W RMS) 6.5" PRO-GM Series 4-ohm Midrange Bullet Loudspeaker

12
-14.19%

$29.99

List price $34.95

Product Highlights


DTS Series Monoblock Class D Car Amplifier • 800W Dynamic • Wired Remote Bass Level Control • Preamp RCA Outputs • Variable Low-Pass Filter • Subsonic Filter • Variable Bass Boost

Description


RE Audio brand icon

Authorized dealer

  • DTS Series Monoblock Class D Car Amplifier
  • RMS Power Rating (14.4V)):
    • 4 ohm: 162 watts x 1 chan.
    • 2 ohm: 280 watts x 1 chan.
    • 1 ohm: 400 watts x 1 chan.
  • Dynamic power output: 800 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply

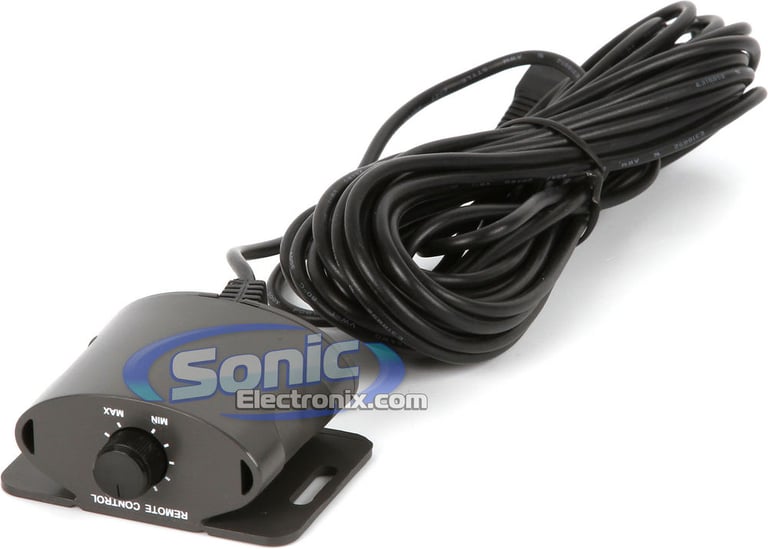

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Bridgeable with multi link technology (MLT)
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 2-Way System Protection circuitry (thermal and short circuit)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty brushed aluminum alloy convection cooled heatsink for efficient heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated 12AWG screw terminals
  • Input Impedance: 20 K-Ohm
  • Input sensitivity:
    • Low level: 100mV-6V
  • Variable low-pass filter (40-180 Hz, 24 dB/octave)
  • Subsonic filter (17-50 Hz, 24 dB/octave)
  • Bass frequency (30-80 Hz)
  • Effective damping factor: 150 @ 4 ohm
  • Frequency response: 17-180 Hz
  • Dimensions: 8-1/16"L x 8-11/16"W x 2"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
