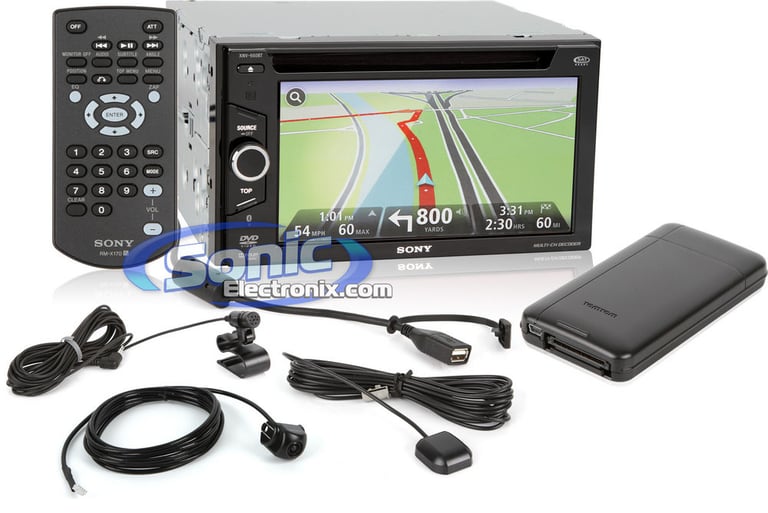

Sony XNV-660BT + XA-R800C Rear View Camera

In-Dash Double DIN DVD, CD, MP3 and GPS Navigation Receiver with 6.1" Touchscreen LCD Monitor + Back Up Camera

Sony
Shop all Sony
EXCLUSIVE
Product videos
highlight-star-icon

6.1" In-dash DVD GPS Navigation • TomTom Navigation • Built-In Bluetooth • SenseMe Audio Application • 52W x 4 Chan Max • 17W x 4 Chan RMS • 3 Sets of 4V Preamp Outputs • 7-Band EQ • 24-bit DAC • Advanced Sound Engine• Includes Sony XA-R800C Back-Up Camera

Learn more about the xnv660bt_xar800c

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

T2652-S main

Rockford Fosgate Power T2 T2652-S

400W Peak (200W RMS) 6.5" Power Series 2 Way Component 4-ohm Speaker System

42

Product Highlights


6.1" In-dash DVD GPS Navigation • TomTom Navigation • Built-In Bluetooth • SenseMe Audio Application • 52W x 4 Chan Max • 17W x 4 Chan RMS • 3 Sets of 4V Preamp Outputs • 7-Band EQ • 24-bit DAC • Advanced Sound Engine• Includes Sony XA-R800C Back-Up Camera

Description


Sony brand icon

Authorized dealer

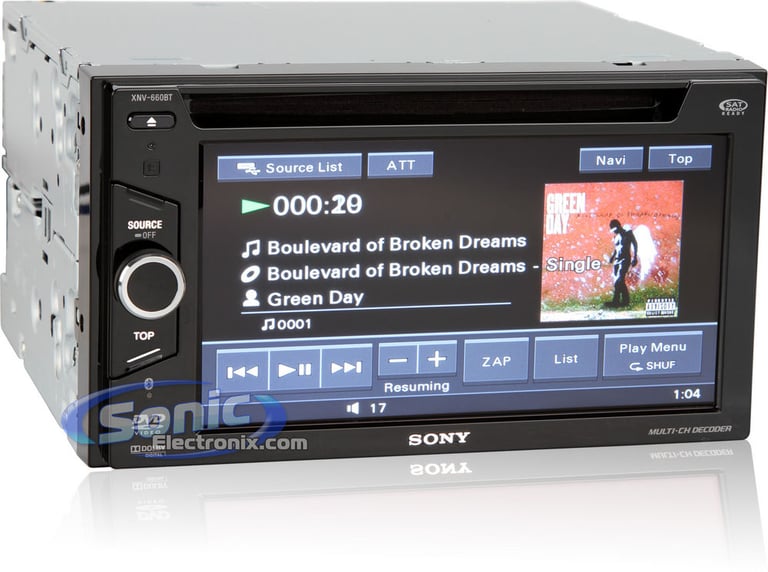

Crystal Clear 6.1” Display
The Sony XNV-660BT has a screen unlike any other. Just like the XAV-60 display did when it was released in 2010, this 6.1” display is beautiful, crisp, and clear. Sony’s reputation of high end displays is shown here with this double DIN car stereo. The large 6.1” means the user has plenty of room to watch movies, perform all the operation controls with ease, and retain a fixed front panel. That fixed front face means there are no moving parts and the CD slot that is fast and easy to use. Trust Sony to have a display unlike anything else you have ever seen!

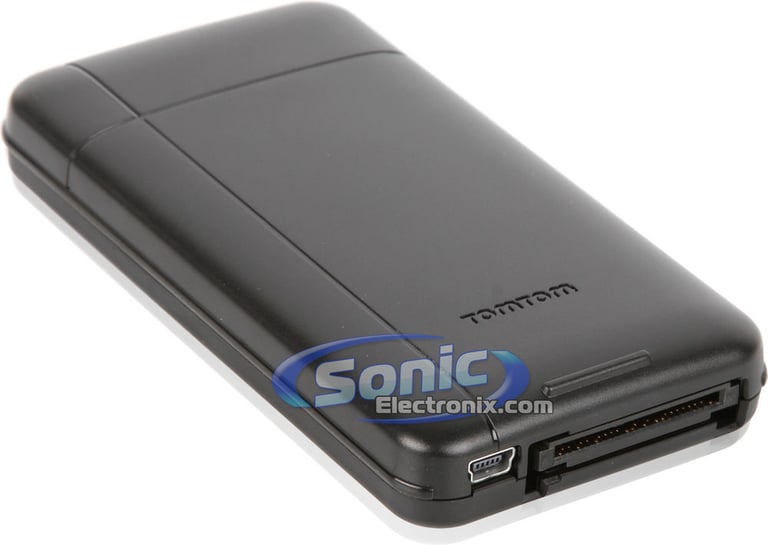

Advanced GPS Navigation from TomTom
Introducing the first units that Sony has released with the TomTom GPS navigation interface, the Sony XNV-770BT and the XNV-660BT. The advanced TomTom navigation system features map updates, real-time feedback, text-to-speech spoken street names, my TomTom software, and more! IQ Routes evaluates routes based on the actual speed of traffic and will then recommend the fastest route. The result is a more accurate, faster way to travel. The lane guidance informs the driver what lane they need to be in order to make the right turns at the right time. The Quick GPSFix system will predict satellite positions for a quicker GPS pick-up and faster starts. Trust Sony and TomTom for accurate and fast navigation to your destination.

Integrated Bluetooth Technology
Take calls and stream audio with ease! The Sony Sony XNV-660BT makes connecting a Bluetooth device easy. After the fast and easy pairing process, you will be able to make and receive calls. Included in the box is a wired microphone that can be installed to the position in the car that will be the best. Phone books are transferred to the unit to make it easy to make calls from the stereo. If you have an media device that can stream audio using A2DP, the Bluetooth connection will allow that music to stream wirelessly directly to the stereo.

Seamless iPod/iPhone Integration
Connect an iPod or an iPhone to the Sony Sony XNV-660BT and you will experience the ultimate in iPod integration. Fast and seamless playback of audio files is standard, as well as video files with the correct video cable. The EQ7 and advanced sound engines tune the music to perfection so you can hear the music the way it should be heard. Switch over to the SensMe application and let it choose the music for you. Along with the seamless iPod connection, Sony incorporates high-end audio processing into this unit. The Center Speaker Optimizer (CSO) shapes the sound in the vehicle to create a virtual center speaker. A 24-bit Digital-to Analog converter ensures higher quality sound processing of the music. And if that isn’t enough, Dolby Digital support comes standard on this unit to make your movies experience that much better.











General Features:

  • In-dash DVD, AM/FM, CD, MP3, WMA player with Remote

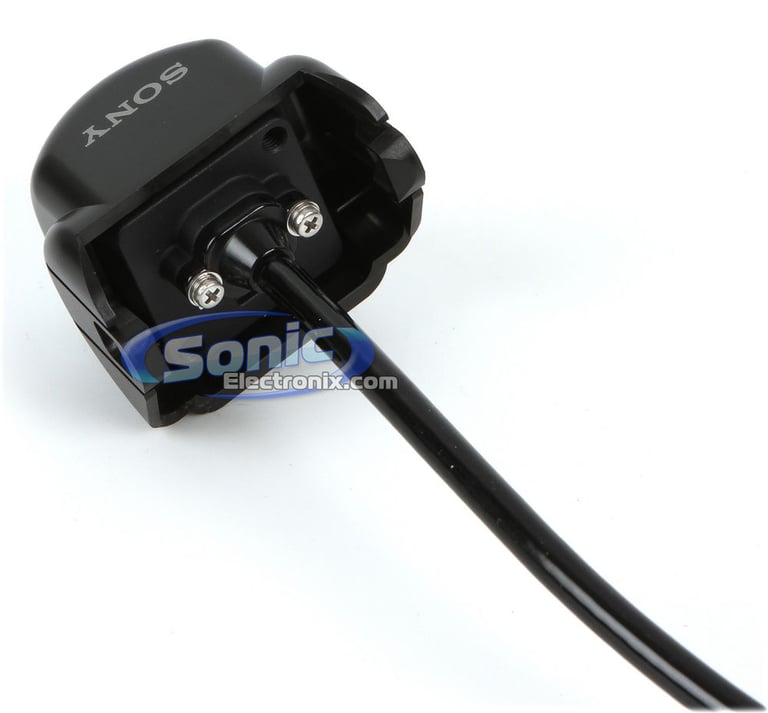

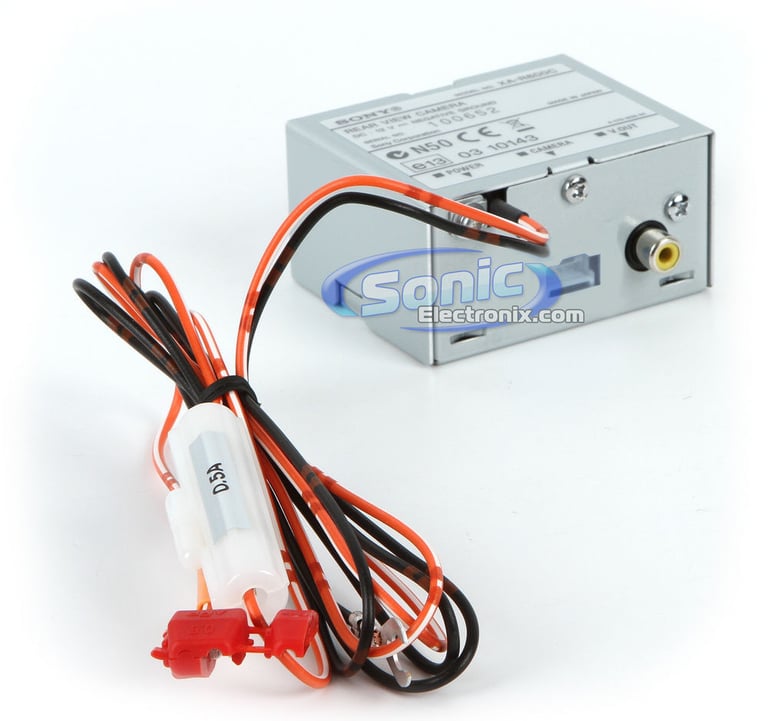

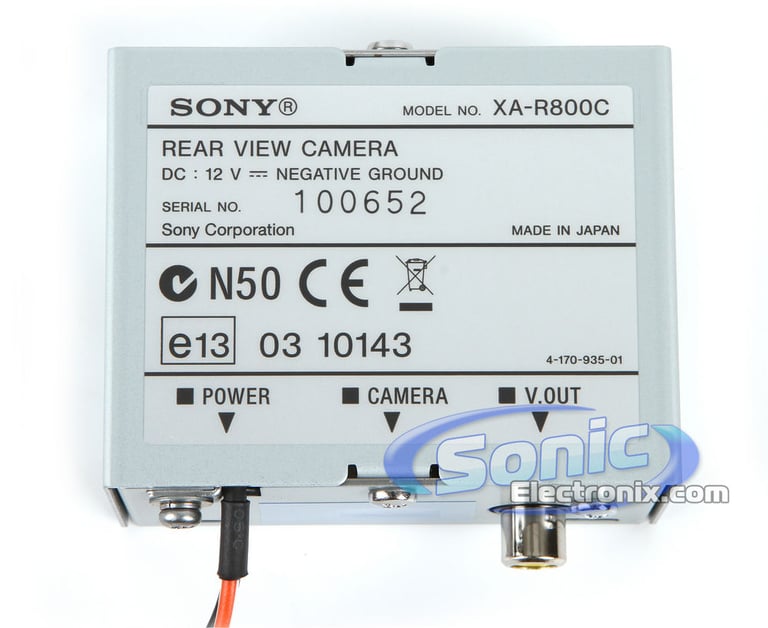

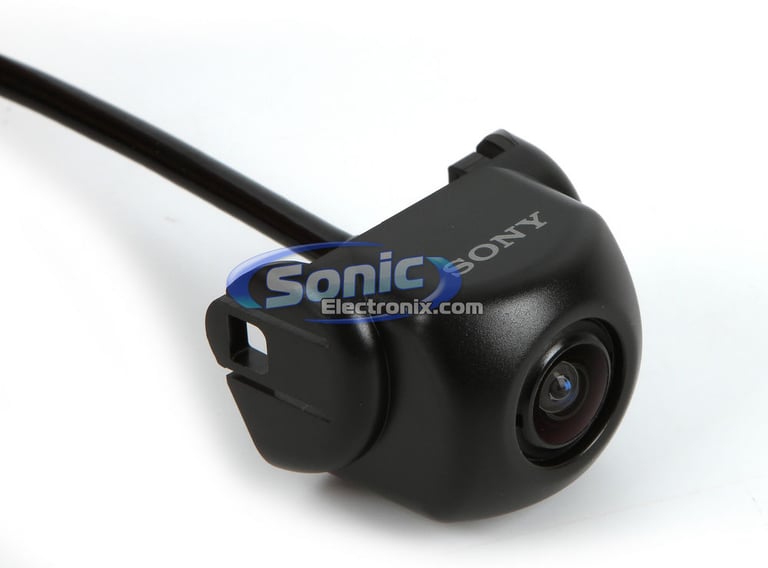

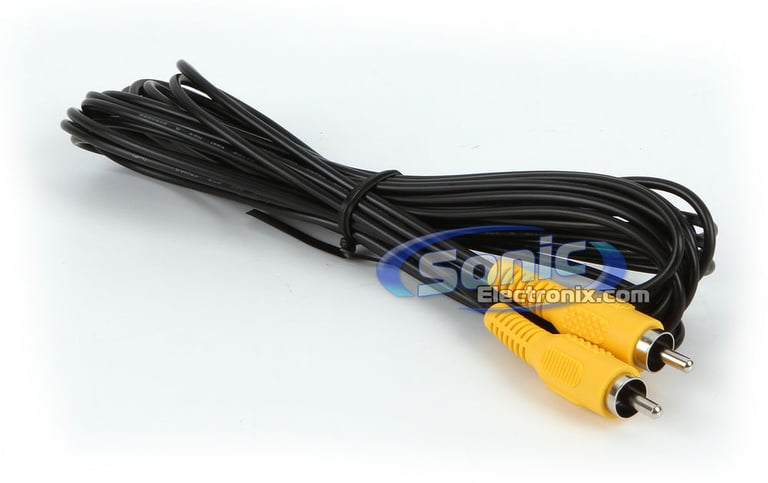

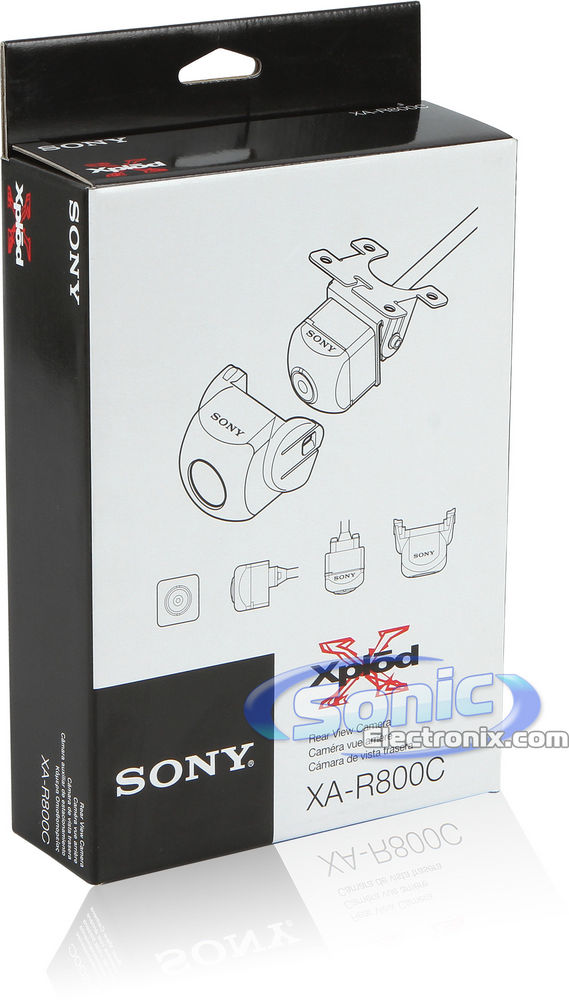

  • Combo includes the Sony XA-R800C Backup Rearview Camera

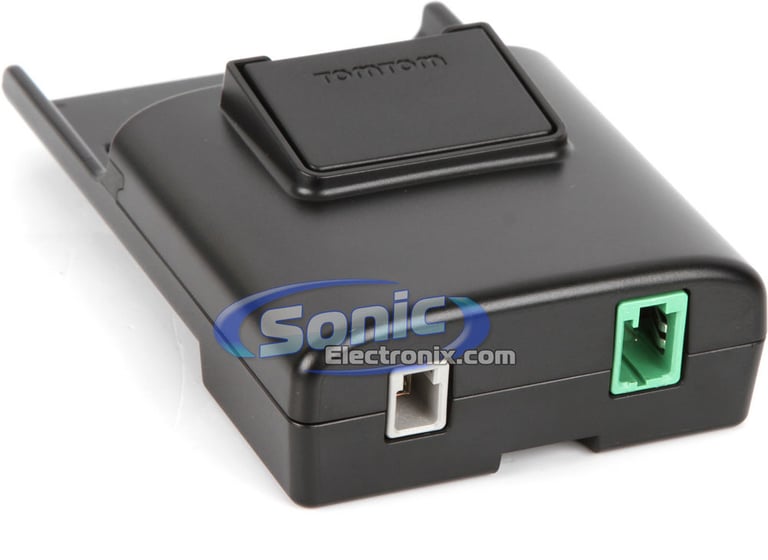

  • Built-in GPS Navigation from TomTom
  • Integrated Bluetooh technology for taking calls and streaming audio
  • SensMe intuitive music application with 12 Tone Analysis and Gracenote support
  • Fixed front face with CD slot
  • Full color display
  • 6.1" Full color display

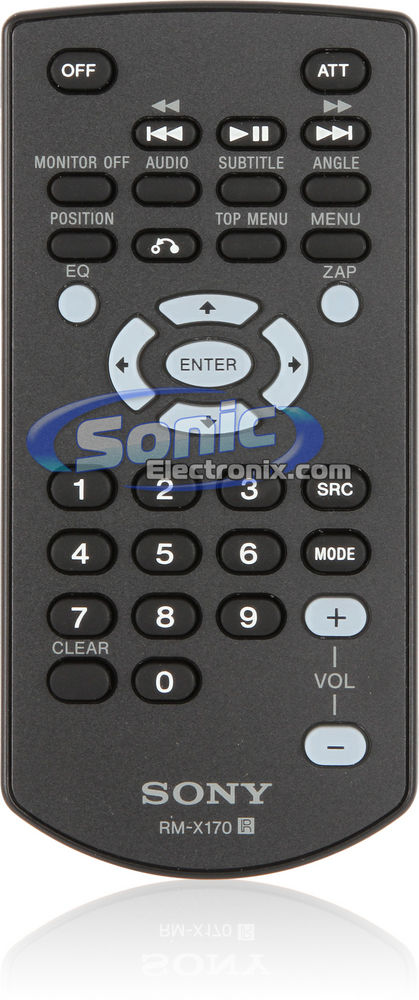

  • Wireless remote control included
  • White button lighting

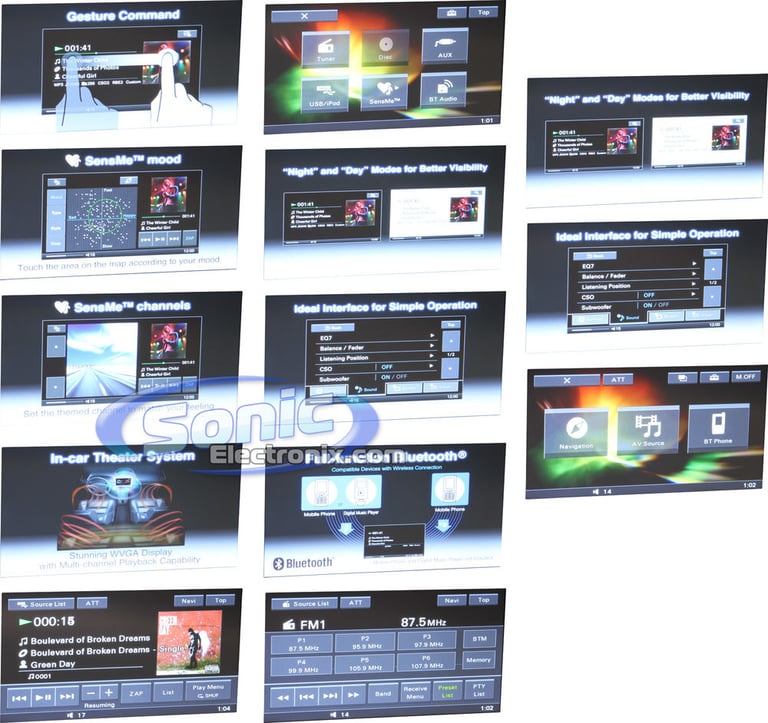

  • Gesture commands allow the user to operate the unit with command stroke on the display
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 52 watts x 4 channels
    • RMS: 17 watts x 4 channels
  • CD Text Display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • 1-year SonicElectronix.com warranty

Playback and Audio Features:

  • Playback of DVD, DVD-R, DVD-RW, DVD+R, DVD+RW, MPEG-4, CD, CD-R, CD-RW, MP3, WMA, AAC, JPEG
  • Playback of Region 1 DVD discs
  • SSIR-EXA tuner with 18FM/12AM presets
  • Multi-channel audio decoder with Dolby Digital support
  • 24-bit Digital-to-analog converter for higher quality sound
  • EQ7: 7-band parametric equalizer with 8 tone curves (7 presets and 1 custom)
  • Center Speaker Optimizer (CSO) creates a virtual 5.1 listening experience
  • Advanced Sound Engine (ASE) with Intelligent Time Alignment (ITA) for incredible sound reproduction
  • Rear Bass Enhancer (RBE) places a low-pass filter on the rear speaker to allow the rear speaker to act as a subwoofer
  • Radio Data System (RDS) displays music track information when listening to compatible radio stations
  • Zappin plays music in 6, 9, or 30-second clips until you find the song you're looking for

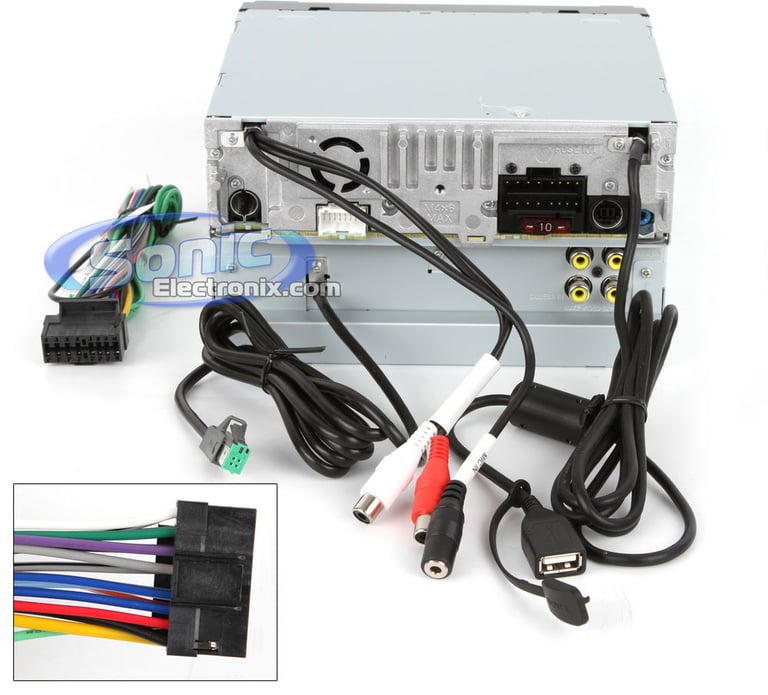

Expandability Options:

  • 3 Sets of 4V preamp outputs (front, rear and mono-subwoofer)
  • SIRIUS Satellite Radio Ready: SIRIUS Radio Package required and sold separately
  • HD Radio Ready: Sony XT-100HD required and sold separately
  • Bluetooth Ready: Built-in Bluetooth technology and included microphone for hands-free talking and audio streaming
  • iPod/iPhone Ready:
  • Rear auxiliary input: 3.5mm (headphone jack) allows connection to portable media devices such as MP3 players, etc.
  • Rear view camera ready: Sony XA-R800C Included with purchase!

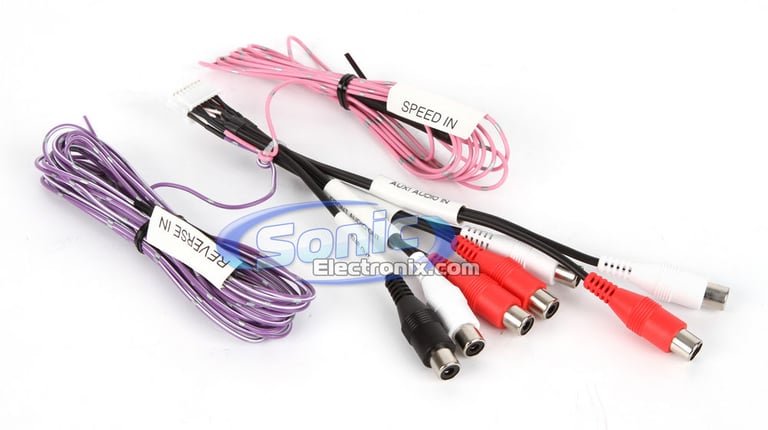

  • Rear auxiliary input: RCA Audio Input

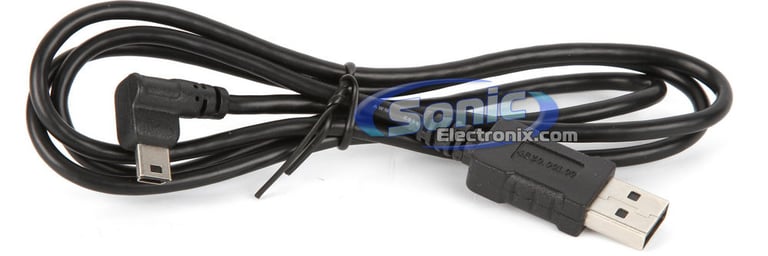

  • Rear USB port
  • Steering wheel remote ready: PAC SWI-PS or the Axxess ASWC required and sold separately

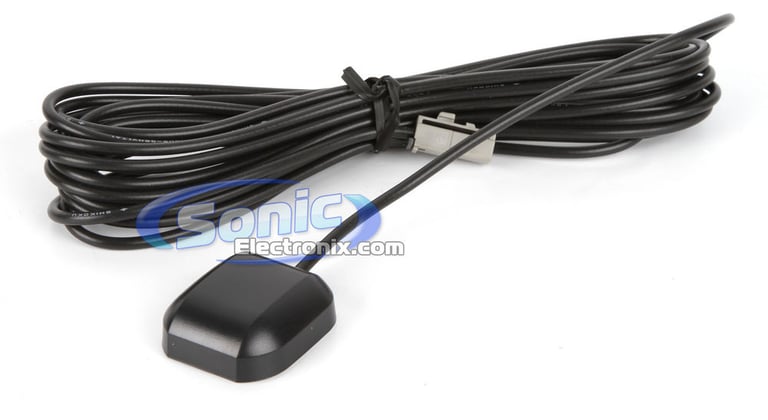

Navigation Features:

  • Powerful Navigation from TomTom
  • Maps of the Complete USA and Canada
  • Latest map guarantee
  • Always up-to-date with TomTom HOME
  • Advanced lane guidance
  • TomTom Map Share
  • IQ Routes
  • Speed camera radar locations on map
  • Convenient "Help Me" menu
  • Spoken street names and turn-by-turn navigation
  • 2D and 3D map options

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Bluetooth version 2.0 +EDR certified
  • Bluetooth range up to 32.8 ft.
  • Supports A2DP audio streaming
  • Pairs with up to 9 phones
  • Bluetooth profiles supported:
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
    • OPP: Object Push Profile for sending basic "objects" such as pictures and other virtual material
  • Works with most Bluetooth enabled cell phones

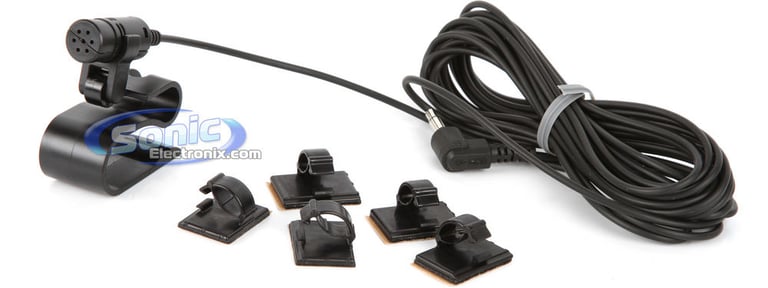

  • Includes a external wired microphone for clear, distortion-free talking

Best selling similar products

D9-MST2015L-64GB small

Dynavin D9-MST2015L-64GB

• Replaces the 4" factory screen with a 10" touchscreen
• Custom Fit In-Dash Bluetooth Digital Multimedia Receiver
• 10.1" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• Built-in Navigation
• 3 sets of 3 volts preamp outputs
• 16-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready
• Integrated CANBUS for steering wheel controls

(2)

$899.99

List price $899.99

D9-SP-MOST-64GB small

Dynavin D9-SP-MOST-64GB

• Custom Fit In-Dash Bluetooth Digital Multimedia Receiver
• 10.1" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• Built-in Navigation
• 3 sets of 3 volts preamp outputs
• 16-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready
• Integrated CANBUS for steering wheel controls

(1)

$769.99

List price $699.99

D9-SLK small

Dynavin D9-SLK

• Custom Fit Bluetooth Digital Multimedia Receiver
• Compatible with select 2004-2010 vehicles from Mercedes-Benz
• 7" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• Built-in Navigation via Dynaway
• 3 sets of 3 volts preamp outputs
• 16-Band Equalizer

$935.99

List price $799.99

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Double DIN
Anti-Theft Security
Security Code
Wireless Remote
Yes
Peak Power Output
52 watts x 4 channel
RMS Power Output
17 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
4 volts
Built-In Equalizer
EQ7: 7-band parametric equalizer with 8 tone curves (7 presets and 1 custom)
Display Type
TFT-LCD Display
Touchscreen
Yes
Expandability Features
Inputs
Audio/Video (Rear)
Backup Camera
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
12
Navigation Features
Map Database
TomTom
Maps
Complete 50 USA
Canada
Map Dimensional Display
2D
3D
Points of Interest
6 Million
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

XNV-660BT_XA-R800C

Weight:

11.00lbs

Internal SKU:

xnv660bt_xar800c

Internal Product ID:

32468
