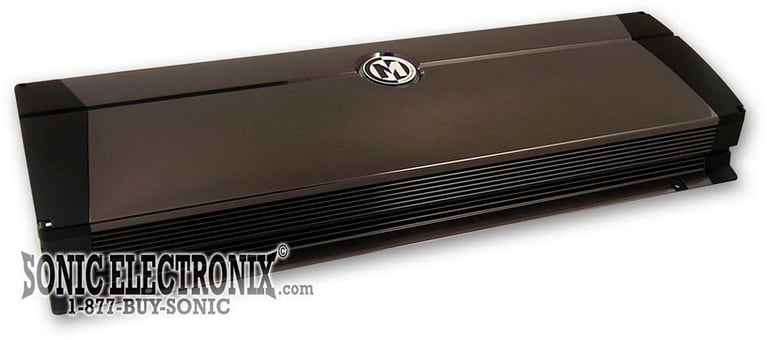

Memphis Belle 16-MCH600 R/B Image 1 — Memphis Belle 16-MCH600 R/B

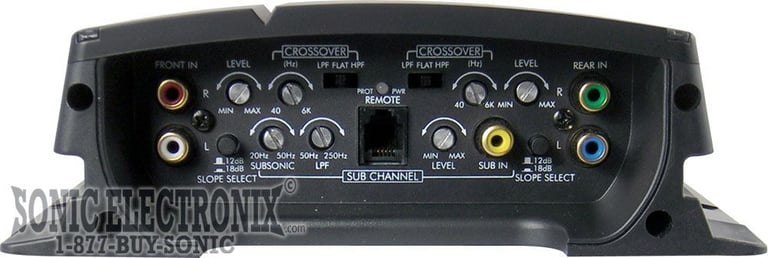

Memphis Belle 16-MCH600 R/B Image 2 — Memphis Belle 16-MCH600 R/B

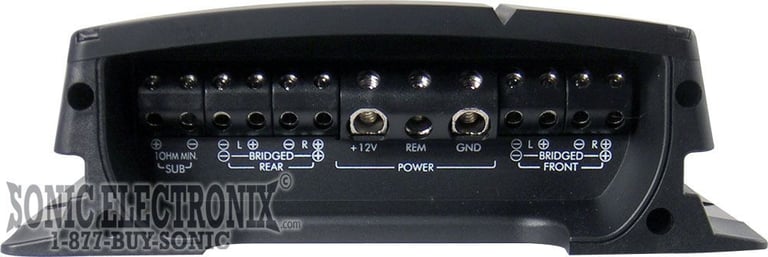

Memphis Belle 16-MCH600 R/B Image 3 — Memphis Belle 16-MCH600 R/B

Memphis Belle 16-MCH600 R/B Image 4 — Memphis Belle 16-MCH600 R/B

Product videos

Product highlights

5-Channel Memphis Belle Hybrid Amplifier • 55W RMS x 4 + 100W x 1 @ 4 • 75W RMS x 4 + 200W x 1 @ 2 • 1 Ohm Stable Subwoofer Channel: 400W RMS x 1 • Adjustable Input Sensitivity • Compact Aluminum Chassis with Black Pearl Finish • Built-in Crossover • Full MOSFET Design

Learn more about the LS-16mch600-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

5-Channel MClass Series Amplifier
RMS Power Ratings:

4 ohm: 55 watts x 4 chan. / 100 watts x 1 chan.
2 ohm: 75 watts x 4 chan. / 200 watts x 1 chan.
1 ohm (5th Channel Only): 400 watts x 1 chan.

Class-AB / Class-D Hybrid Amplifier
Compact Aluminum Chassis with Custon Black Pearl Finish
Gold Plated RCA Connectors
Full MOSFET Design
Fully Variable Crossover: HP/LP (40 Hz - 6 kHz) (Channels 1-4)
Fully Variable Crossover: LP (50 Hz - 250 Hz), Subsonic (20 - 50 Hz) (Channel 5)
4-Way Protection Circuitry
Platinum Finish Wire Connections
Accepts 4 Gauge Power and Ground Wire
Optional Wired Remote Gain Control
Adjustable Input Sensitivity: 200mV - 4V
Dimensions: 20.85" L x 7.6" W x 2.4" H
90 Days SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

55 watts x 4 chan. + 100 watts x 1 chan.

RMS Power @ 2 ohms

75 watts x 4 chan. + 200 watts x 1 chan.

RMS Power @ 1 ohm

400 watts x 1 channel for the 5th channel (Channels 1-4 Not Stable)

Bridged RMS Power

150 watts x 2 channel

Amplifier Specifications

Amplifier Class

Channels 1-4: A/B, Channel 5: D

Number of Channels

5-Channel

Total RMS Power Output

700 watts

Minimum Impedance Unbridged

2 ohms (Channels 1-4), 1 ohm (Channel 5)

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.03%

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

40 - 6000 Hz

Low-Pass Crossover Frequency

Channels 1-4: 40-6000Hz and Channel 5: 50-250Hz

Subsonic Filter

20 - 50 Hz

Signal-to-Noise Ratio

95 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

Memphis 16-MCRG

Fuse Rating

25A x 3
