Pioneer TS-W309S4

12" Single 4 ohm Champion Series Car Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

12" Champion Series Subwoofer • Single 4 ohm • 1400 Watts Max • 400 Watts RMS • IMPP Cone • Dual Layer Elastic Polymer Surround • Large Double Stacked High Energy Magnets • Spring Loaded Push Terminals

Learn more about the tsw309s4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

tsw311s4 thumbnail

Pioneer TS-W311S4

OUR PRICE: $68.99

View item

Loading...
MPR2110 main

Jensen MPR2110

Single DIN Digital Media Receiver with Bluetooth

13
Limited time!
CELEBRITY 100 main

JBL CELEBRITY 100 (JBLCELEBRITY100)

Single DIN Digital Audio Receiver with Bluetooth

2
-42.89%

$39.95

List price $69.95

43DSC504 main

Kicker DSC50 (43DSC504)

400W Peak (100W RMS) 5.25" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC504)

17
-11.77%

$74.99

List price $84.99

Limited time!
TS-G1320S main

Pioneer TS-G1320S

500W Peak (70W RMS) 5.25" G-Series 2-way 4-ohm Coaxial Car Speakers

7
-30.78%

$44.99

List price $65.00

P152 main

Rockford Fosgate Punch P1 P152

160W Peak (80W RMS) 5.25" Punch Series 2 Way Coaxial 4-ohm Speakers

27
Limited time!
Kappa 683XF main

Infinity Kappa 683XF (INFSPKKA683XFAM)

600W Peak (200W RMS) 6x8" Kappa Series 2-Way Coaxial 3-ohm Car Speakers

3
-32.13%

$223.95

List price $329.95

C1-525x main

JL Audio C1-525x

100W RMS 5.25" C1 Series 2 Way Coaxial 4-ohm Car Speakers

6
ZS525CX main

Hifonics ZS525CX

400W Peak (60W RMS) 5.25” Zeus Series 2-way 4-ohm Coaxial Car Speakers

7
-31.05%

$19.99

List price $28.99

550B main

Boss Elite 550B

Single DIN CD Receiver with Bluetooth (Black)

2
S2-S50 main

Alpine S2-S50

340W Peak (110W RMS) 5.25" S-Series Hi-Res 2-Way Coaxial 4-ohm Car Speakers

2
-18.78%

$129.95

List price $160.00

Product Highlights


12" Champion Series Subwoofer • Single 4 ohm • 1400 Watts Max • 400 Watts RMS • IMPP Cone • Dual Layer Elastic Polymer Surround • Large Double Stacked High Energy Magnets • Spring Loaded Push Terminals

Description


Pioneer brand icon

Authorized dealer

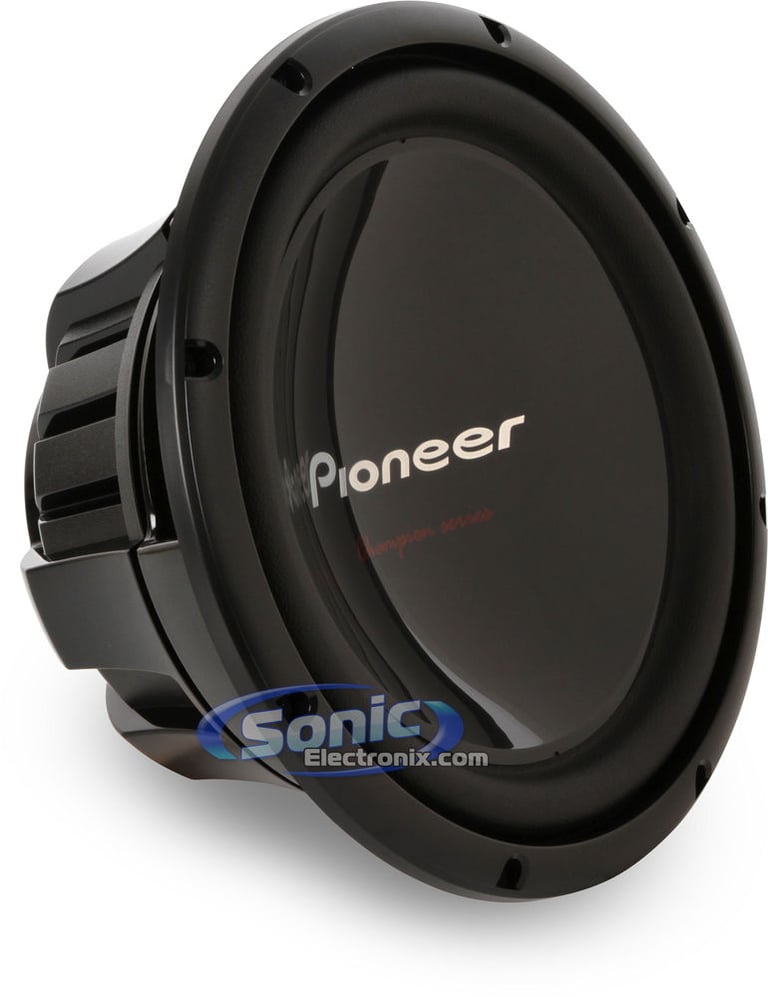

  • 12" Single 4 ohm Champion Series Subwoofer
  • Power Handling:
    • Peak: 1,400 watts
    • RMS: 400 watts
  • Impedance: Single 4 ohm

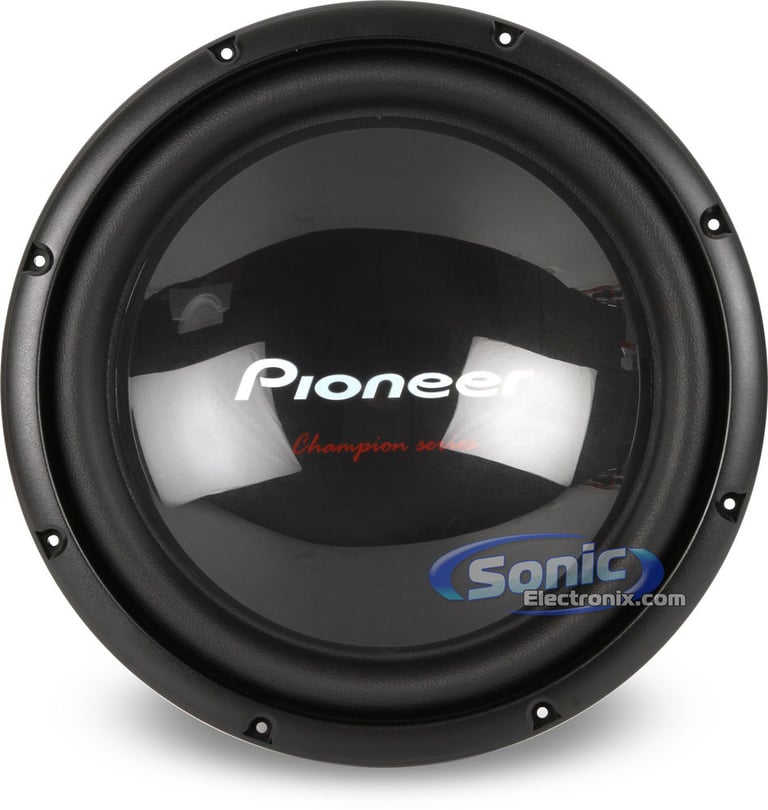

  • Seamless Injection Molded Polypropylene (IMPP) composite cone

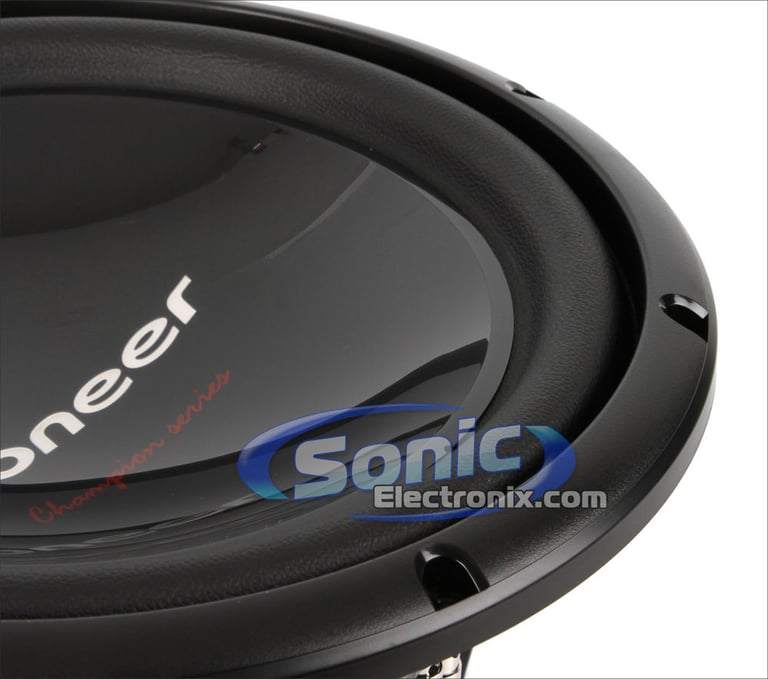

  • Dual layer, fiber reinforced elastic polymer surround

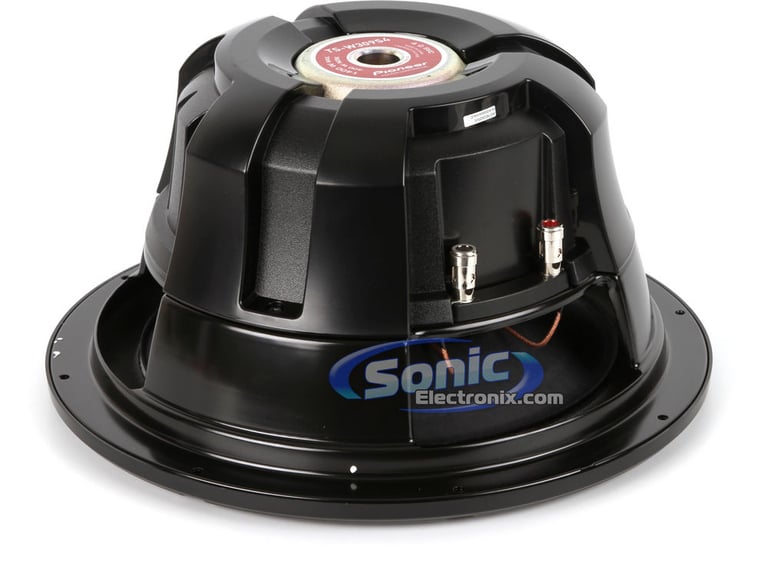

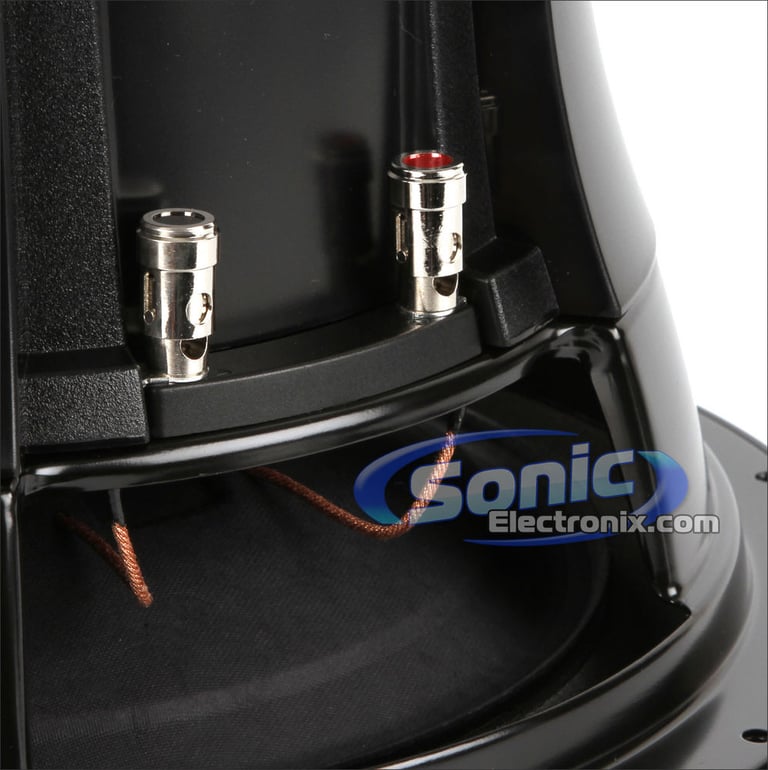

  • Large spring loaded, push style binding posts
  • High temperature voice coil
  • Large double stacked high energy magnets
  • Designed for sealed, ported, or bandpass enclosures
  • Recommended enclosure volume:
    • Sealed: 1.25 cu. ft
    • Ported: 1.5 cu. ft
    • Bandpass: 0.9 cu. ft in front / 0.9 cu. ft in rear
  • Frequency response: 20-220 Hz
  • Sensitivity: 94 dB
  • 1-year SonicElectronix.com warranty

Product history:

Pioneer TS-W311S4 thumbnail
(newest, current model)
Pioneer TS-W310S4 thumbnail
(previous model, replaced by Pioneer TS-W311S4)
Pioneer TS-W309S4 thumbnail
(previous model, replaced by Pioneer TS-W310S4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W309S4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W309S4 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W309S4 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W309S4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(1)

$599.99

List price $719.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Champion Series
Subwoofer Size
12"
Peak Power Handling
1400 watts
RMS Power Handling
400 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 220 Hz
Sensitivity
94 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Elastic Polymer
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.85 cubic feet
Maximum Sealed Box Volume
1.75 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
6"
Cutout Diameter
11-1/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W309S4

Weight:

15.00lbs

Internal SKU:

tsw309s4

Internal Product ID:

32835

Product and How-to Videos


Customer Ratings & Reviews


Pioneer TS-W309S4 thumbnail image

5 star
77%
4 star
21%
3 star
2%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.6
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

Fantastic!

The following review is for TS-W310S4, which is a part of the bundle you are viewing.

For being mid level subs they sound great. I definitely recommend buying.

By Durango on February 11, 2014

23 found this helpful


3x12 in Ruby92

The following review is for TS-W310S4, which is a part of the bundle you are viewing.

Audio heads world wide, I'm writing this review to let it be known that THESE PIONEER SUBS QUAKE!!!! Not gonna geek up your head but, on a serious note, I own 3 of these BASS vibrators in a sealed box ran off a Hifonics Brutus 1100.1 @ a stable, YES, STABLE 1ohm! Doesn't get hot even after lenghthy playback. It's been cold here in the Midwest so will see what happens in the summer. Don't get me wrong, THEY QUAKE!!! Even @ volume 20 with the gain not even 1/2 way up. only thing like the previous guy said, after a while of Bass Ballin', lol, you will smell the coils. I personally think that it's my coaxial voice coils that I smell from time to time but, not a damn is given when I'm in my vibe. I don't have my 6.5s & 6x9s amplified yet so that may be why @ times I smell coil. And not only that without audio adjustments to the coaxials, they tend to sound muddy. They will try to produce the same bass output as the subs. So you have to make some type of adjusting (TO YOUR LIKING OF COURSE) to make it sound good. I drive a VERY CLEAN Ruby Red 1992 Chrysler New Yorker Salon. NOT EVEN 40K ON THE DASH & these subs SUB!!! Optima Yellow Top, brand new alternator, Pioneer Head Unit, coaxials & subs. My lights dim a tad when the low notes hit but a high output alternator is definitely on the way. Saying all that to say GET YOU A PAIR OF THESE, maybe even 3 or 4 just for starters. And when it's hooked up the right way come back and write a review on 'em. GAURANTEED THEY'RE WORTH EVERY WATT. Oh, 1 more thing, if you're even in the 2nd City, the GREATEST CITY, CHICAGO, check out Safe & Sound Audio!!! They're responsible for my immaculate setup. Steve & the guys are located on the Southside @ 317 w. 79th St. In between Harvard and Princeton. HAPPY SUB'N!!!!

By Charlie on February 27, 2014

21 found this helpful


Great value!

The following review is for TS-W310S4, which is a part of the bundle you are viewing.

Behaves much better than the previous TS-W309S4. I am running 1 of these with a PPI S580.2, and it bangs!!! Hits low bass very well. Great price for what you get.

By ken on August 5, 2013

20 found this helpful


Best bang for your buck!

The following review is for TS-W310S4, which is a part of the bundle you are viewing.

This bad boy slams, with the dual stacked magnet, and deep cone it just hit so hard and deep with just one of these on a 500 watt amp you will be waking the block!. Pair this with another TS-w310S4 and you will love your system, go ahead and start banging today with this, pair it with the rockford fosgate 1200.2 punch amp and kiss those other systems good bye.

By Griffin Crunk on May 23, 2014

19 found this helpful


Pioneer TS-W310S4 12" subs

The following review is for TS-W310S4, which is a part of the bundle you are viewing.

The speakers have performed well and I look forward to enjoying them for a long time to come. Good old deep, teeth rattling, ear tickling, hair buzzing BASS! Thanks.

By ShawnJohn on October 4, 2013

18 found this helpful


Great sounding Speakers

The following review is for TS-W310S4, which is a part of the bundle you are viewing.

Speakers sound Amazing...these speakers are a real Bargain Deal

By ronnie on January 12, 2015

16 found this helpful


Slammin'!

2 of these setup in my Samurai powered by 750RMS amp. Anything past 50% will make everything rattle! Get some dampener if you have a strip rig. I'd recommend it all day. If you have the extra 10 bucks, get the DVC thou so you can run it at 1 ohm (with compatible amp).

Just buy this and dont look back.

By Chopstix on May 3, 2012

16 found this helpful


superb quality

The following review is for TS-W310S4, which is a part of the bundle you are viewing.

insane quality and tight and deep bass with bass that beats while doing a deep constant note which I like

2x dual vented not shared 1.8 cu chamber with KAC-9106D

sonic electronix is the best

By Anthony on May 22, 2014

14 found this helpful


Good for the price

The following review is for TS-W310S4, which is a part of the bundle you are viewing.

In all honesty, I would go for a little bit pricier sub than this. I was running this off a Hifonics Brutis 1100.1D amp, 800watts RMS at 2 ohms and don't get me wrong, it bumps, but not as good as other subs. After awhile of slamming them hard I could smell the voice coils burning and had to lower my settings which took a lot of vibration out, you could still hear it but not quite feel it as much, I have it in a 3cub shared vented box so that isn't a problem.

By Jason on October 2, 2013

15 found this helpful


Great subs for the price

I have 2 of these hooked up to a 1000 rms monoblock amp running at 2ohms. They are in a ported box in my 1995 Nissan Maxima and these things pound. People at my school hear me coming. Would recommend these to anyone looking for lots of bass without breaking your budget.

By Jake on December 16, 2012

14 found this helpful




M400-4D small

Rockford Fosgate M400-4D

400W RMS Prime Series 4-Channel Full Range Class D Marine Amplifier

(6)

$329.99

List price $428.99

R600X5 small

Rockford Fosgate R600X5-REFURBISHED

600W RMS 5-Channel Class AB/D Prime Series Amplifier

$224.99

List price $449.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1992 Dodge Dakota

2020 Ford Ranger

1987 Dodge Diplomat

1991 Ford Escort

1987 GMC P2500

2025 Genesis G70

1996 Toyota 4Runner

2023 Lexus ES250

1990 Dodge Daytona

1993 Dodge B350

Vehicle
Store
Delete

2016 Can-Am Commander Max 1000 DPS

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
