Pioneer TS-W310S4

400W 12" Champion Series Single 4-Ohm Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• 1400W Peak
• 400W RMS
• Composite Seamless Cone
• Dual-Layer Elastic Polymer Surround
• 4-Layer Copper Voice Coil with Aluminum Former

Learn more about the tsw310s4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

tsw311s4 thumbnail

Pioneer TS-W311S4

OUR PRICE: $68.99

View item

Loading...
Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

16
-30.71%

$51.96

List price $74.99

Product Highlights


• 1400W Peak
• 400W RMS
• Composite Seamless Cone
• Dual-Layer Elastic Polymer Surround
• 4-Layer Copper Voice Coil with Aluminum Former

Description


Pioneer brand icon

Authorized dealer

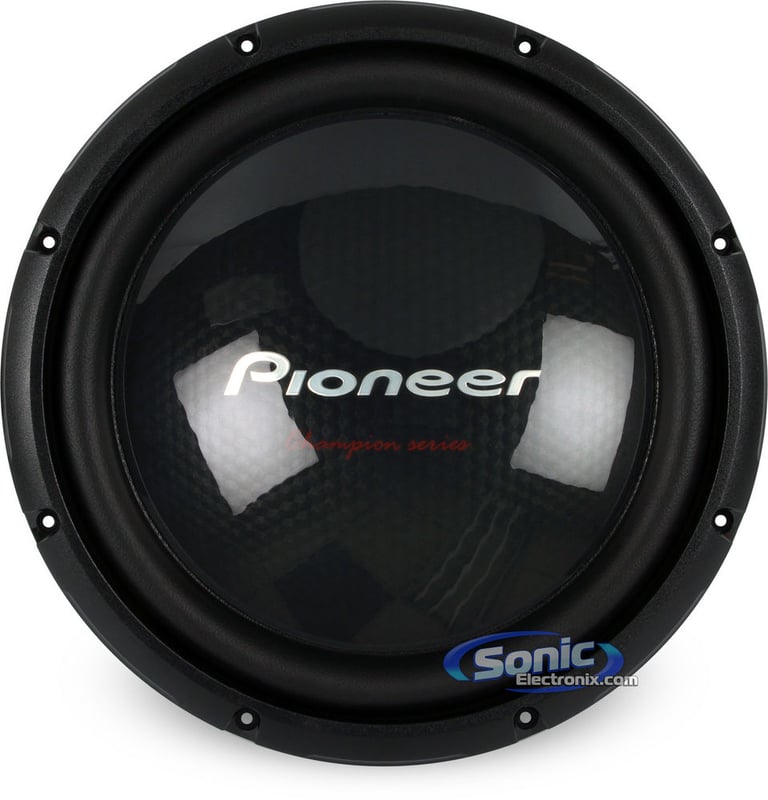

IMPP Composite Seamless Cone

An extremely durable, yet lightweight cone is vital to prevent cone failure at high sound pressure levels. Pioneer’s New IMPP Composite Seamless Cones meet this need perfectly while delivering accurate yet powerful bass.

Dual-Layer Elastic Polymer Surround

Another world's first from Pioneer. Dramatically improves durability and lightness for superior response, especially for louder volume.

Large Surface Area

A speaker cone is essential for air to vibrate and carry sound to listeners’ ears. Our Champion Series subwoofer cones have 14% more surface area than conventional subwoofer cones, for louder, better bass reproduction.

Single/Dual Voice Coil Design

Pioneer offers single voice coil and dual voice coil designs. The Dual 4 ohm subwoofer has the flexibility to be wired at 2 or 8 ohms, to get the most from the amplifier. To simplify installation even further, all speaker terminals have been placed on one side of the subwoofer rather than on opposite sides.

Air Vent

The movement of air within the subwoofer is smoothly channeled for optimal ventilation to ensure a quick response and clear reproduction of bass.

General Features:

  • 12" Single 4-Ohm Champion Series Subwoofer
  • Power Handling:
    • Peak: 1,400 watts
    • RMS: 400 watts
  • Impedance: 4 ohm
  • Composite Seamless Cone
  • Dual-Layer Elastic Polymer Surround
  • 4-Layer Copper voice coil with aluminum former
  • Frequency response: 20-250 Hz
  • Resonance Frequency (Fs): 35 Hz
  • Top-mount depth: 6"
  • Sensitivity: 95dB
  • 1-year Sonic Electronix Warranty

Product history:

Pioneer TS-W311S4 thumbnail
(newest, current model)
Pioneer TS-W310S4 thumbnail
(previous model, replaced by Pioneer TS-W311S4)
Pioneer TS-W309S4 thumbnail
(previous model, replaced by Pioneer TS-W310S4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W310S4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W310S4 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W310S4 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W310S4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
Champion Series
Subwoofer Size
12"
Peak Power Handling
1,400 watts
RMS Power Handling
400 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 250 Hz
Sensitivity
95 dB
Xmax (millimeters)
9.9 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene Composite
Woofer Surround
Elastic Polymer
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.85 cubic feet
Optimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
1.75 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Optimum Ported Box Volume
1.5 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
6"
Cutout Diameter
11-1/8"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
35 Hz
Equivalent Compliance (Vas)
35.4 liters
Total Speaker Q Value (Qts)
0.63
Electrical Q Value (Qes)
0.67
Electrical Resistance of Voice Coil (Re)
2.9 ohm
Mechanical Q Value (Qms)
11.93
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W310S4

Weight:

15.00lbs

Internal SKU:

tsw310s4

Internal Product ID:

63983
