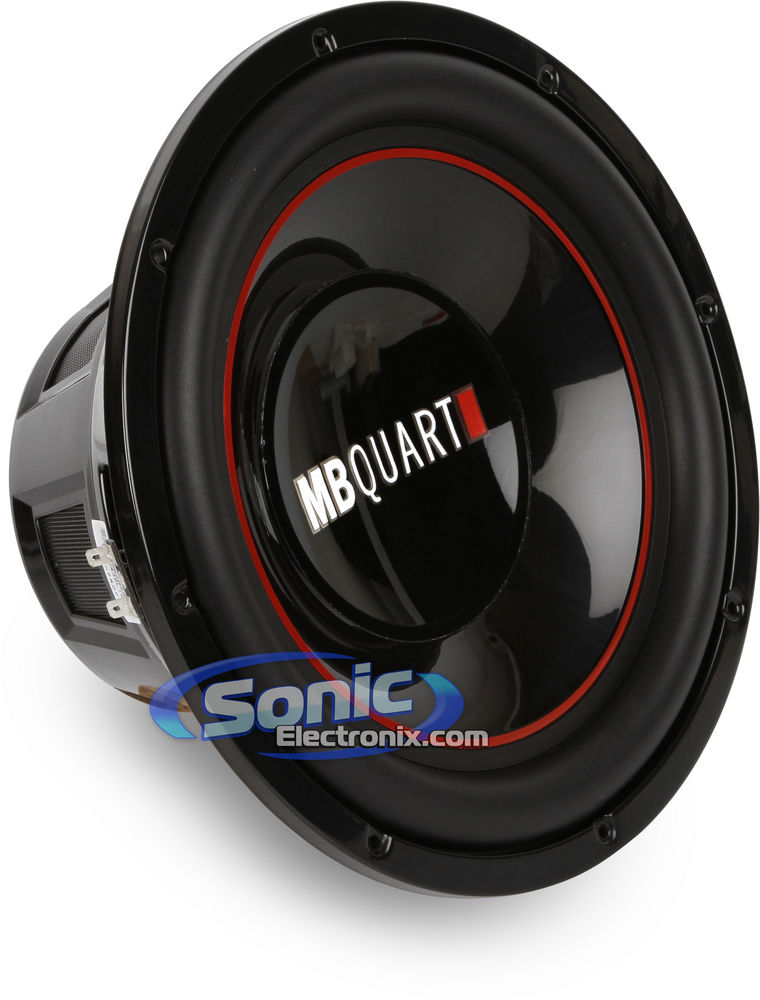

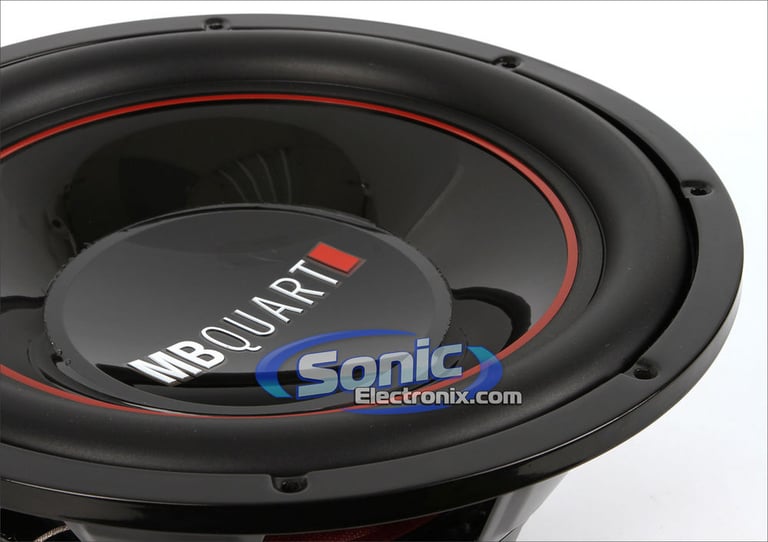

MB Quart ONX302

12" Dual 2 ohm ONYX Series Car Subwoofer

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

12" ONYX Series Subwoofer • Dual 2 ohm • 800W Max • 400W RMS • Gloss Black Polypropylene Cone • NBR Surround • Spider Woven Tinsel Leads • Illuminated Dust Cap

Learn more about the onx302

We apologize

This item has been discontinued


Loading...
AXLOC-CH5 main

Axxess AXLOC-CH5

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ram, Dodge, Jeep with Non-Amplified Systems

10
-10.48%

$93.99

List price $104.99

APSUB-CH41 main

PAC APSUB-CH41

Amplifier and Subwoofer Integration Interface for select 2013-2024 vehicles from Ram, Jeep, Dodge

-27.36%

$239.00

List price $329.00

72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

RVCCH-75D main

Crux RVCCH-75D

Rear-View Integration System for select 2013-2017 1500 and 2500 and 3500 (Handle Mount Backup Camera Included)

1
-35.71%

$303.75

List price $472.50

AXABH-CH2 main

Axxess AXABH-CH2

Amplifier Bypass Harness for select 2007-2021 vehicles from Ram, Dodge, Jeep

2
-11.77%

$29.99

List price $33.99

40-EU55 main

Metra 40-EU55

Antenna Adapter for select 2000-2026 vehicles from Audi, Chevrolet, Volkswagen

49
-13.05%

$19.99

List price $22.99

DRQC20AC-TN main

MTX Audio Thunderform DRQC20AC-TN (Charcoal, Amplified)

select 2002-2018 vehicles from Ram, Dodge Amplified 2 10" 4 ohm Vehicle Specific Thunderform Subwoofer Enclosure

2
72-6514-12 main

Metra 72-6514-12 Speaker Harness for 1999-2026 Dodge, Ram, Jeep

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

7
-14.30%

$11.99

List price $13.99

95-6518B main

Metra 95-6518B

Double DIN Stereo Dash Kit and Harness for select 2013-2022 vehicles from Ram, Jeep, Chrysler

15
-44.75%

$20.99

List price $37.99

72-7902 main

Metra 72-7902 Speaker Harness for 1990-2024 Ram, Dodge, Jeep

Install New Speakers in select 1990-2024 vehicles from Ram, Dodge, Jeep

20
-28.59%

$9.99

List price $13.99

Product Highlights


12" ONYX Series Subwoofer • Dual 2 ohm • 800W Max • 400W RMS • Gloss Black Polypropylene Cone • NBR Surround • Spider Woven Tinsel Leads • Illuminated Dust Cap

Description


MB Quart brand icon

Authorized dealer

The Key to a Complete Onyx Audio System

New for 2011, the ONYX series of subwoofers are now available! These subwoofers are the perfect compliment to a set of MB Quart ONYX speakers and now allow for the installation of a complete ONYX audio system. With a variety of different configurations and sizes, you will be able to find the subwoofer that is right for you. Each feature a high gloss piano black finish and an optional illuminated dust cap. The MB Quart logo on the cone can be illuminated once the optional power/ground wires are connected near the speaker terminals. The finish of the woofers was designed to match that of the speakers and the amplifiers within the ONYX line. Get more bang for your buck with the MB Quart ONYX subwoofers.

  • 12" Dual 2 ohm ONYX Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Impedance: 2 ohm

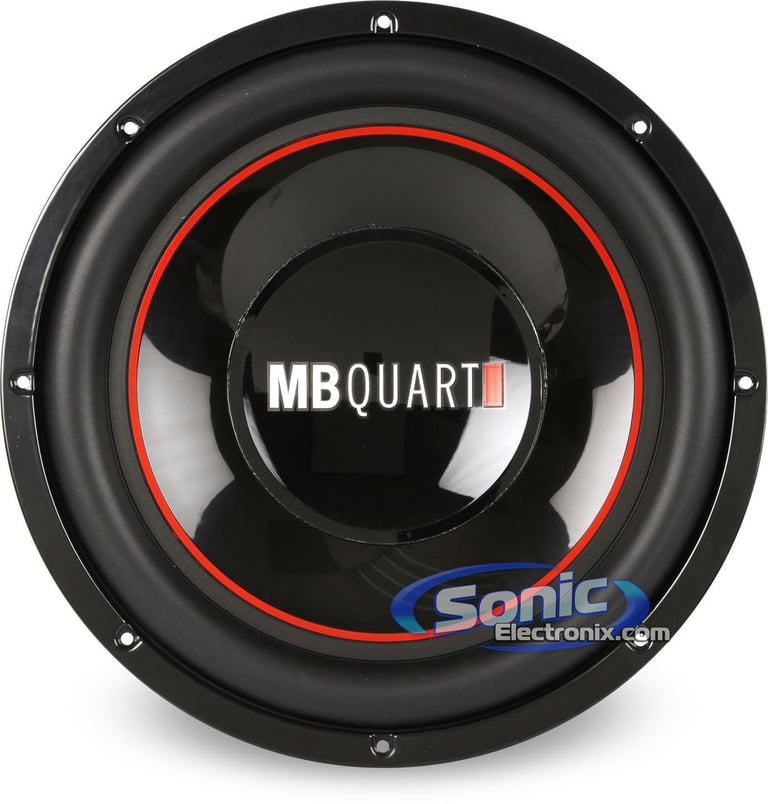

  • Gloss black polypropylene cone
  • NBR surround
  • Red NOMEX spider woven tinsel leads

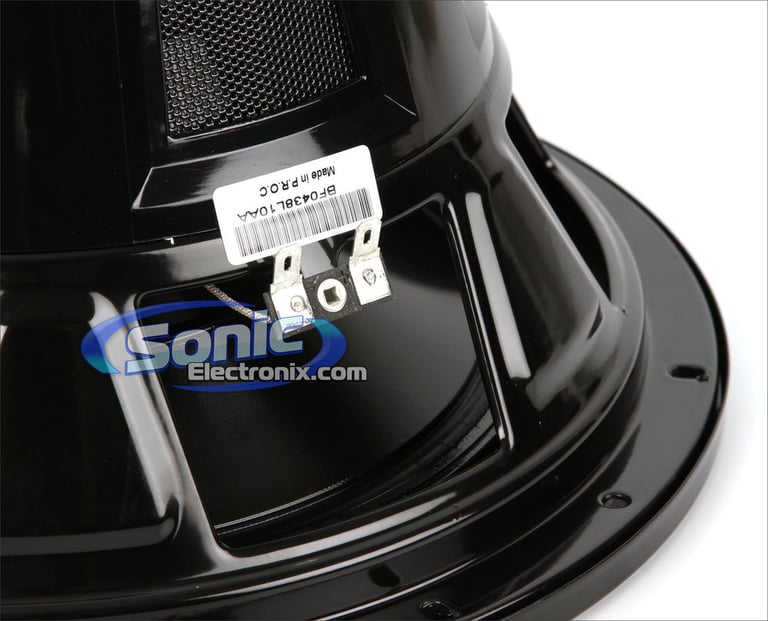

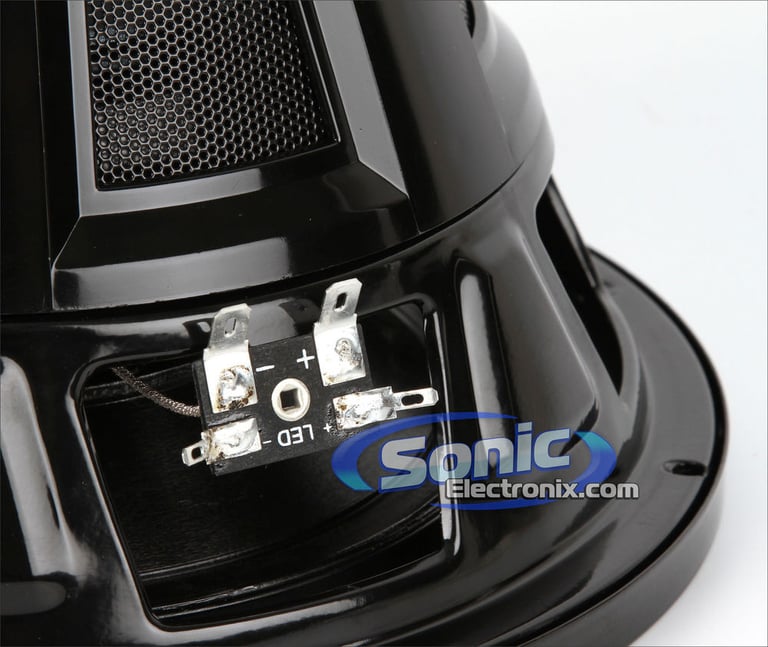

  • Spade speaker terminals

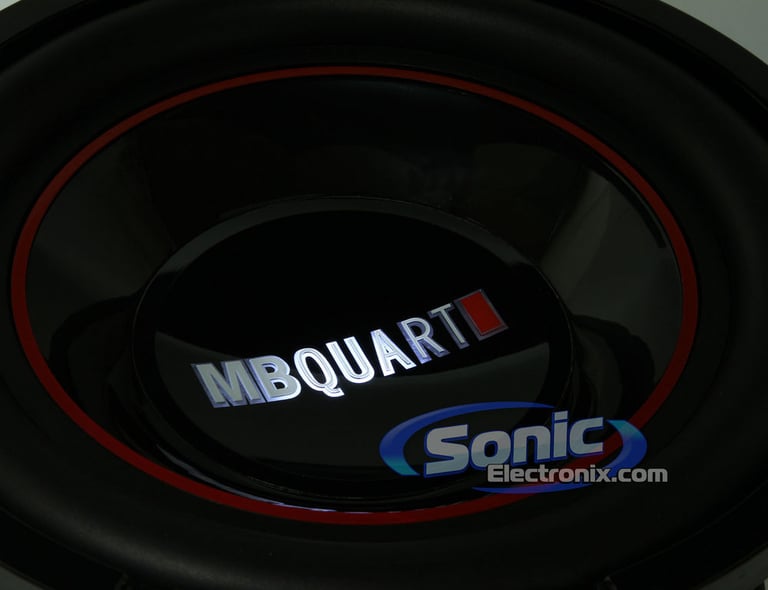

  • Illuminated dust cap

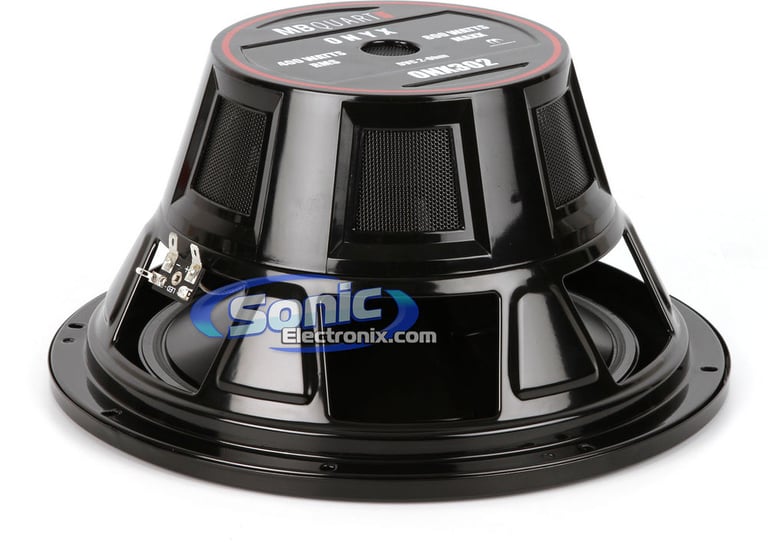

  • Black steel frame
  • High energy magnet structure
  • Heat dispersing vented pole plate
  • Anti-Resonant ABS magnet cover
  • 2-1/2" Voice coil
  • Frequency Response: 25-150 Hz
  • Sensitivity: 85 dB
  • Mounting Depth: 5-11/16"
  • Cutout Diameter: 10-15/16"
  • Xmax: 9mm
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 MB Quart ONX302 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 MB Quart ONX302 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 MB Quart ONX302 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 MB Quart ONX302 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
51KRDL7T102 main

Kicker KRDL7T10 (51KRDL7T102)

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2002-2024 vehicles from Ram, Dodge

1
-10.53%

$849.99

List price $949.99

DRQC20AC-TN main

MTX Audio Thunderform DRQC20AC-TN (Charcoal, Amplified)

select 2002-2018 vehicles from Ram, Dodge Amplified 2 10" 4 ohm Vehicle Specific Thunderform Subwoofer Enclosure

2
51KTDL7T102 main

Kicker 51KTDL7T102

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2011-2024 2500 and 3500 and 1500 Classic

-10.53%

$849.99

List price $949.99

SB-D-QDRAM/10W3v3 main

JL Audio Stealthbox® SB-D-QDRAM/10W3v3 (Open Box, Like New)

Custom fit subwoofer enclosure for select 2002-2024 vehicles from Ram, Dodge

1

$1,249.99

DRQC20C-TN main

MTX Audio Thunderform DRQC20C-TN (Charcoal, Loaded)

Two 10" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure for select 2002-2018 vehicles from Ram, Dodge

1
SB-D-QDRAMD/10TW1 main

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

Custom fit subwoofer enclosure for select 2002-2024 vehicles from Ram, Dodge

3

$1,699.99

LVE-DOD-RAMQCCG3-D12S main

NVX Loaded BOOST Box - 2002-2018 Ram Quad, Crew Cab - LVE-DOD-RAMQCCG3-D12S

For select 2002-2018 1500 and Ram 1500 Quad and Crew Cab - Dual 12" 800W RMS Loaded BOOST Sealed Truck Enclosure

-18.98%

$349.99

List price $431.99

LVE-DOD-RAMQCCG3-S10S main

NVX Loaded BOOST Box - 2002-2018 Ram Quad, Crew Cab - LVE-DOD-RAMQCCG3-S10S

For select 2002-2018 1500 and Ram 1500 Quad and Crew Cab - Single 10" 350W RMS Loaded BOOST Sealed Truck Enclosure

-20.64%

$199.99

List price $251.99

51K5RDL7T102 main

Kicker 51K5RDL7T102

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2002-2024 vehicles from Ram, Dodge

-10.53%

$849.99

List price $949.99

LVE-DOD-RAMQCCG3-D10S main

NVX Loaded BOOST Box - 2002-2018 Ram Quad, Crew Cab - LVE-DOD-RAMQCCG3-D10S

For select 2002-2018 1500 and Ram 1500 Quad and Crew Cab - Dual 10" 700W RMS Loaded BOOST Sealed Truck Enclosure

-19.12%

$329.99

List price $407.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

Specifications & Details


Subwoofer Specifications
Series
ONYX Series
Subwoofer Size
12"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
25 - 150 Hz
Sensitivity
85 dB
Xmax (millimeters)
9 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Nitrile Butadiene Rubber NBR
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.00 cubic feet
Maximum Sealed Box Volume
1.00 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.8 cubic feet
Top-Mount Depth (Mounting Depth)
5-11/16"
Cutout Diameter
10-15/16"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ONX302

Weight:

9.50lbs

Internal SKU:

onx302

Internal Product ID:

33009
