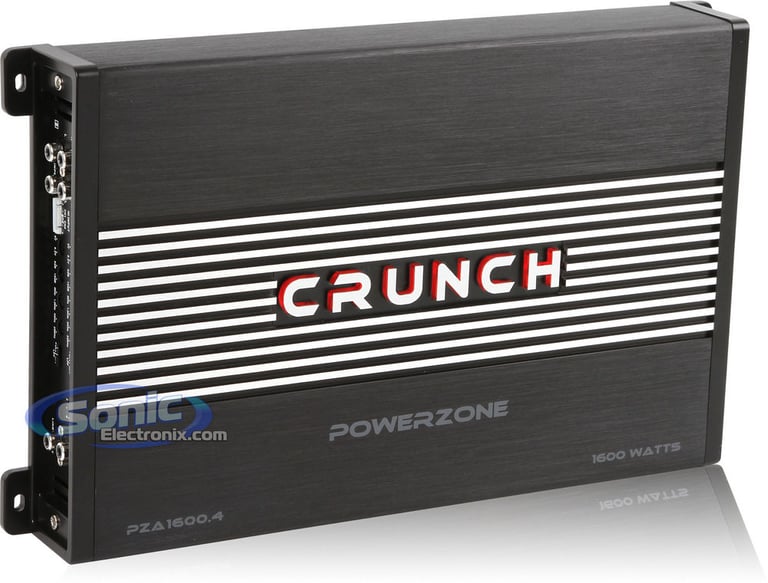

Name: Crunch PZA1600.4 (Factory Refurbished)
Brand: Crunch
SKU: LS-pza16004-RBC
Price: 54.99 USD
Availability: Discontinued

by Crunch

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

Crunch PZA1600.4 (Factory Refurbished) Image 1 — Crunch PZA1600.4 (Factory Refurbished)

Crunch PZA1600.4 (Factory Refurbished) Image 2 — Crunch PZA1600.4 (Factory Refurbished)

Crunch PZA1600.4 (Factory Refurbished) Image 3 — Crunch PZA1600.4 (Factory Refurbished)

Crunch PZA1600.4 (Factory Refurbished) Image 4 — Crunch PZA1600.4 (Factory Refurbished)

Crunch PZA1600.4 (Factory Refurbished) Image 5 — Crunch PZA1600.4 (Factory Refurbished)

Crunch PZA1600.4 (Factory Refurbished) Image 6 — Crunch PZA1600.4 (Factory Refurbished)

Crunch PZA1600.4 (Factory Refurbished) Image 7 — Crunch PZA1600.4 (Factory Refurbished)

Crunch PZA1600.4 (Factory Refurbished)-video

Product videos

Product highlights

4-Channel Power Zone Series Amplifier • Bass Boost (0-12 dB @ 45Hz) • Preamp RCA Outputs • 4-Way System Protection Circuitry • Heavy Duty Aluminum Alloy Heatsink • Fully Adjustable 12 dB Crossover • Nickle-Plated RCA Level Inputs

Learn more about the LS-pza16004-RBC

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Item Condition: Factory Refurbished

General Features

4-Channel PowerZone Series Amplifier
Max Power Rating:

4 ohm: 200 watts x 4 chan.
2 ohm: 400 watts x 4 chan.
Bridged, 4 ohm: 800 watts x 2 chan.

Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Silver-plated RCA level inputs
Silver-plated screw terminals
4/3/2 channel operation
Speaker-level (high-level) inputs
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
3-way protection circuitry (thermal, overload, and speaker short protection)
Input sensitivity: 200mV - 5V
Frequency Response: 10 - 45,000 Hz
Total Harmonic Distortion (THD): <0.05%
Signal to Noise Ration: >90 dB
Selectable crossover modes: FULL / LPF / HPF
Variable low-pass filter: 30 - 250 Hz
Variable high-pass filter: 60 - 1200 Hz
Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
Fuse Rating: 25A x 2
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 12-3/4"L x 8-7/10"W x 2-1/8"H
Authorized Internet Dealer
90 Day Sonic Electronix Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

50 watts x 4 channel

RMS Power @ 2 ohms

100 watts x 4 channel

Bridged RMS Power

200 watts x 2 channel

Power Specifications - Full Range Channels

Peak Power @ 4 ohms

200 watts x 4 channel

Peak Power @ 2 ohms

400 watts x 4 channel

Bridged Peak/Max Power

800 watts x 2 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

4-Channel

Total Peak Power Output

1600 watts

Total RMS Power Output

Not specified by manufacturer

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

Not specified by manufacturer

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

60 - 1200 Hz

Low-Pass Crossover Frequency

30 - 250 Hz

Signal-to-Noise Ratio

>90 dB

Channel Separation

>80 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Fuse Rating

25A x 2

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
