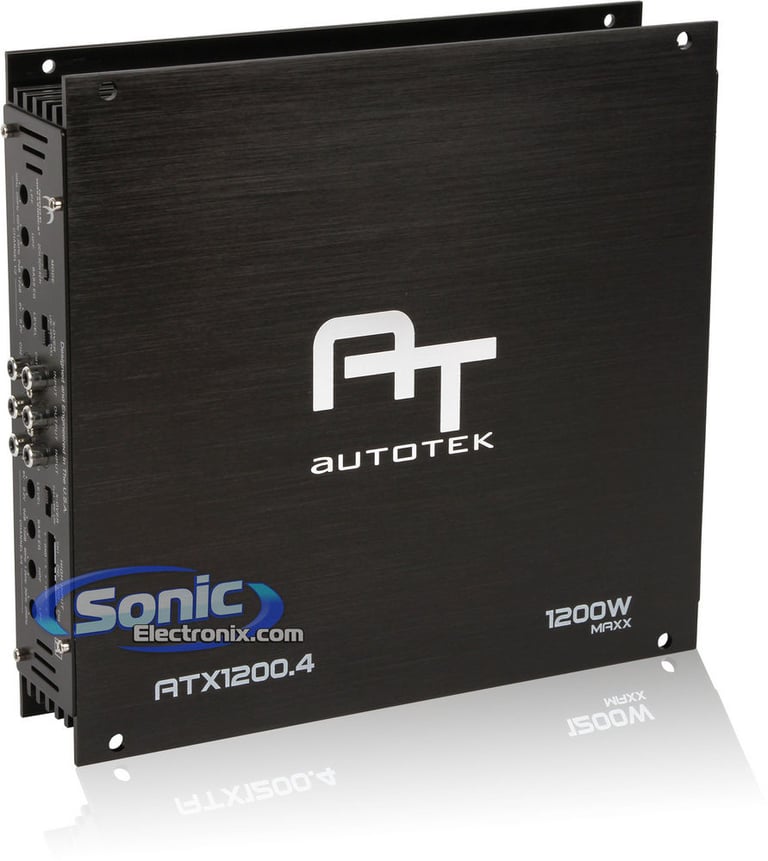

Name: Autotek ATX1200.4 (Factory Refurbished)
Brand: Autotek
SKU: LS-atx12004-RBC
Price: 49.95 USD
Availability: Discontinued

by Autotek

About
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

Autotek ATX1200.4 (Factory Refurbished) Image 1 — Autotek ATX1200.4 (Factory Refurbished)

Autotek ATX1200.4 (Factory Refurbished) Image 2 — Autotek ATX1200.4 (Factory Refurbished)

Autotek ATX1200.4 (Factory Refurbished) Image 3 — Autotek ATX1200.4 (Factory Refurbished)

Autotek ATX1200.4 (Factory Refurbished) Image 4 — Autotek ATX1200.4 (Factory Refurbished)

Autotek ATX1200.4 (Factory Refurbished) Image 5 — Autotek ATX1200.4 (Factory Refurbished)

Autotek ATX1200.4 (Factory Refurbished) Image 6 — Autotek ATX1200.4 (Factory Refurbished)

Autotek ATX1200.4 (Factory Refurbished)-video

Product videos

Product highlights

ATX Series 4-Channel Class A/B Car Amplifier • 1200 Watts Max • 300 Watts x 4 Chan @ 2 Ohm • Military Grade PCB Design • 0 to +12 dB Bass Boost • Speaker-Level Inputs • Preamp RCA Outputs

Learn more about the LS-atx12004-RBC

Product Highlights

ATX Series 4-Channel Class A/B Car Amplifier • 1200 Watts Max • 300 Watts x 4 Chan @ 2 Ohm • Military Grade PCB Design • 0 to +12 dB Bass Boost • Speaker-Level Inputs • Preamp RCA Outputs

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Item Condition: Factory Refurbished

ATX Series 4-Channel Class A/B Car Amplifier
MAXX Power Rating:
- 4 ohm: 150 watts x 4 chan.
- 2 ohm: 300 watts x 4 chan.
- Bridged, 4 ohm: 600 watts x 2 chan.
Max power output: 1200 watts
Pulse Width Modulated MOSFET power supply
Military grade PCB design
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
Soft Start Turn-on
4/3/2 channel operation
Speaker-level (high-level) inputs with signal sensing for automatic turn-on
Preamp RCA outputs to daisy chain multiple amps
3-Way System Protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heatsink for extreme heat dissipation
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Input sensitivity:
- Low level: 200mV-5V
Variable high-pass filter (60-1,200 Hz, 12 dB/octave)
Variable low-pass filter (30-250 Hz, 12 dB/octave)
Frequency response: 30-45,000 Hz
Dimensions: 10-1/4"L x 9-3/4"W x 2-3/16"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
90-day Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

100 watts x 4 channel

RMS Power @ 2 ohms

150 watts x 4 channel

RMS Power @ 1 ohm

Not Stable

Bridged RMS Power

300 watts x 2 channel

Amplifier Specifications

Series

ATX Series

Amplifier Class

A/B

Number of Channels

4-Channel

Total Peak Power Output

1200 watts

Total RMS Power Output

600 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

<0.05%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

60 - 1200 Hz

Low-Pass Crossover Frequency

30 - 250 Hz

Signal-to-Noise Ratio

>95 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Fuse Rating

25A x 2

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
