Name: Autotek ATX2000.1
Brand: Autotek
SKU: atx20001
Price: 109.95 USD
Availability: Discontinued
Rating: 4.5000 (4 reviews)

Shop all Autotek

by Autotek

About
Similar Products
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

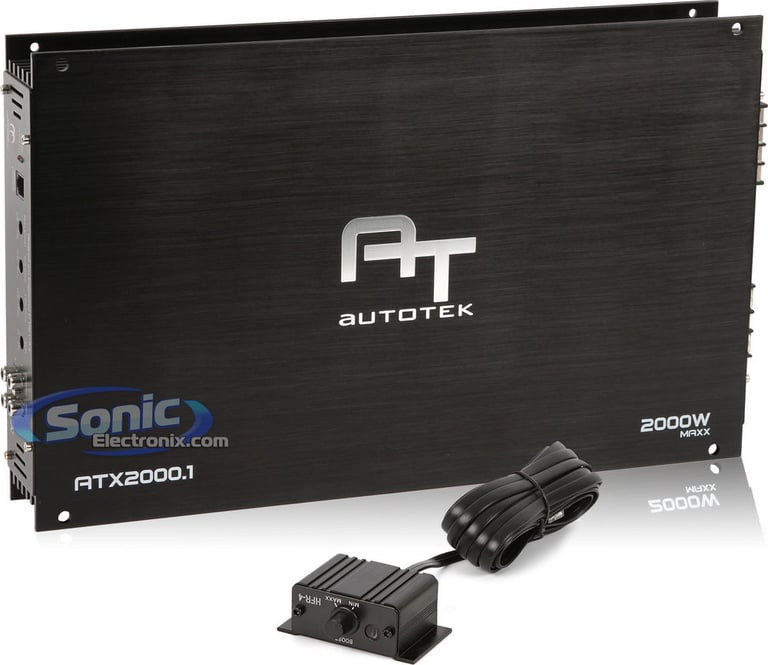

Autotek ATX2000.1 Image 1 — Autotek ATX2000.1

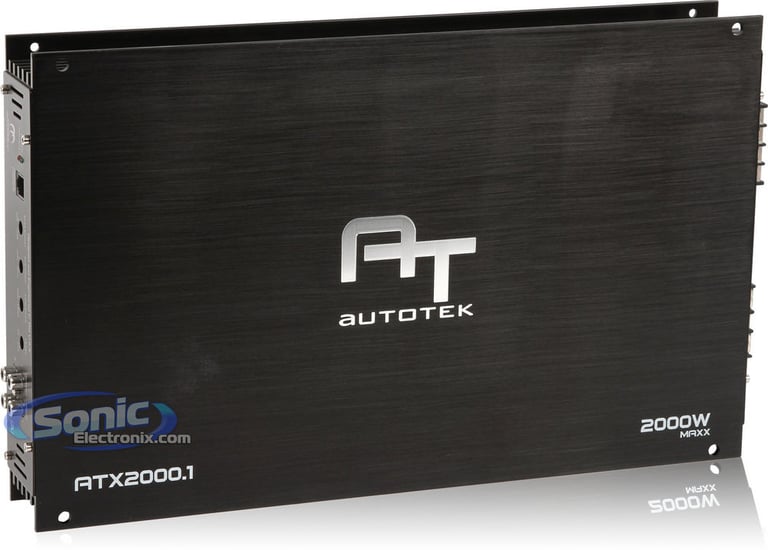

Autotek ATX2000.1 Image 2 — Autotek ATX2000.1

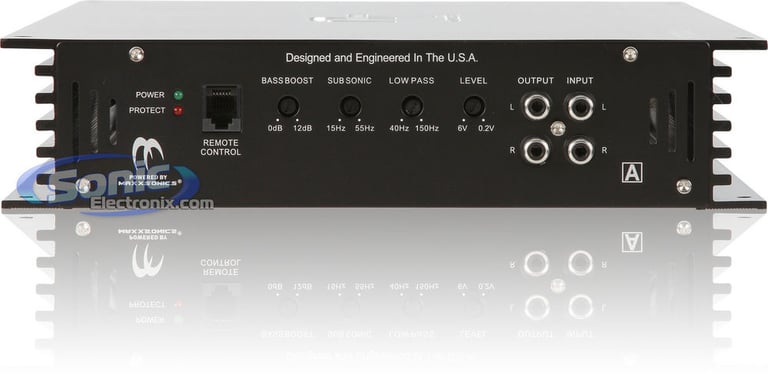

Autotek ATX2000.1 Image 3 — Autotek ATX2000.1

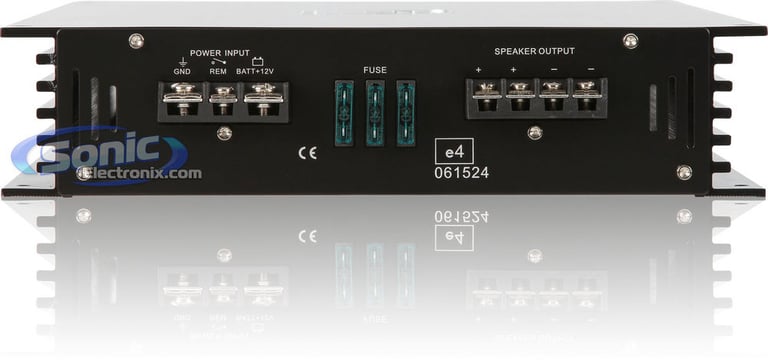

Autotek ATX2000.1 Image 4 — Autotek ATX2000.1

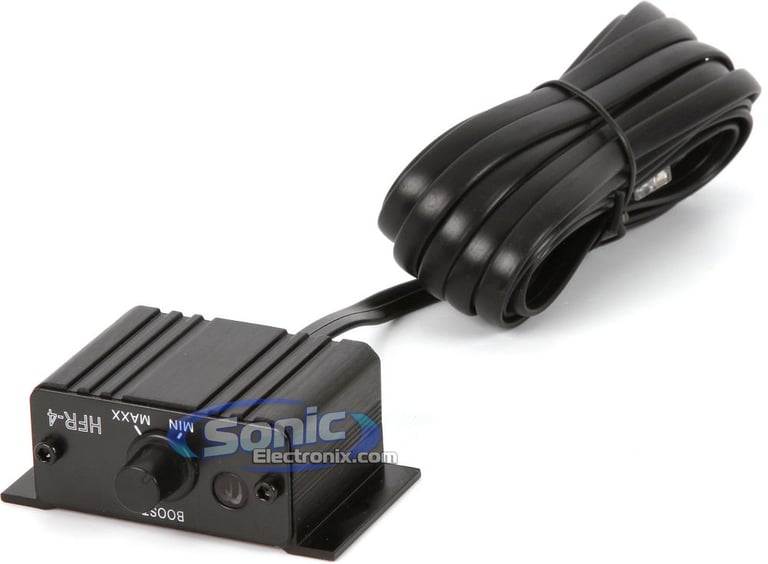

Autotek ATX2000.1 Image 5 — Autotek ATX2000.1

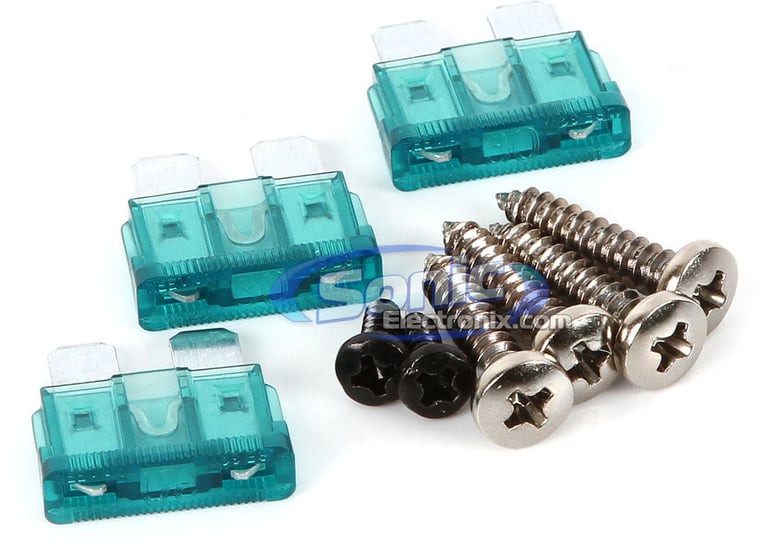

Autotek ATX2000.1 Image 6 — Autotek ATX2000.1

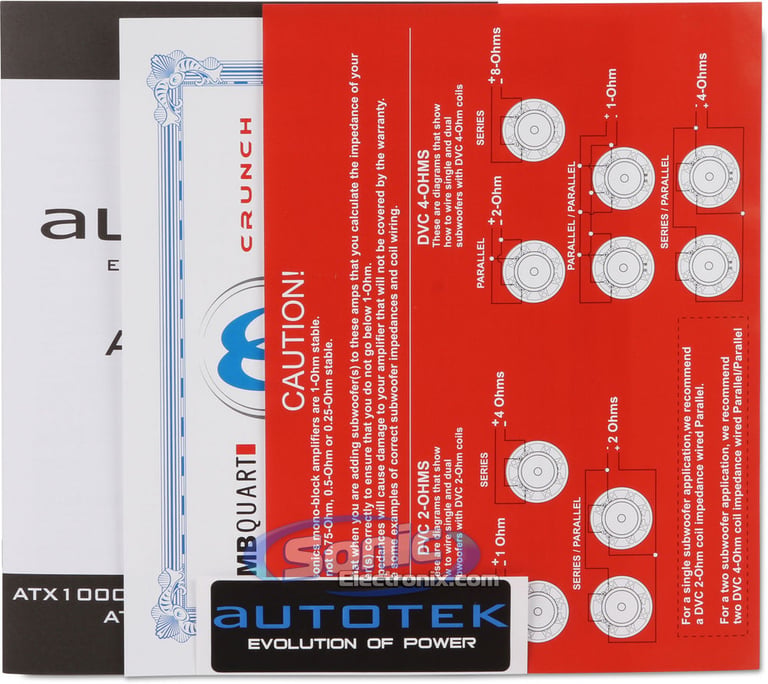

Autotek ATX2000.1 Image 7 — Autotek ATX2000.1

Autotek ATX2000.1 Image 8 — Autotek ATX2000.1

Product videos

Product highlights

Monoblock Class AB ATX Series Car Amplifier • PWM MOSFET Power Supply • Bass Boost • Soft Start Turn-On • High Level Inputs • Preamp RCA Outputs • 4-Way System Protection Circuitry • Flat Panel Heatsink Design • Subsonic Filter

Learn more about the atx20001

Product Highlights

Description

Authorized dealer

Autotek ATX2000.1 Monoblock ATX Series Amplifier

Sonic Electronix is now carrying the new 2011 line of Autotek ATX Series Amplifiers. These amps come in Monoblock, 2-Channel, and 4-Channel configurations as well as numerous different power ratings. Each one these Autotek ATX amplifiers feature a flat panel heatsink design, soft turn on circuit, 4-way protection circuitry, LED power & protect indicators, and much more.

The ATX2000.1 version has an MAXX power rating of 500 watts x 1-channel wired at 4 ohms and 1000 watts x 1-channel wired at 2 ohms. It is equipped with nickel plated RCA level inputs & screw terminals and is powered by a MOSFET power supply. The ATX Series amps have a wide variety of power and channel configurations for you to chose from.

Product Features

Monoblock Class AB ATX Series Car Amplifier
MAXX Power Rating:
- 4 ohm: 500 watts x 1 chan.
- 2 ohm: 1000 watts x 1 chan.
- 1 ohm: 2000 watts x 1 chan.
Pulse Width Modulated MOSFET power supply
Bass boost remote control module included
LED power green and protect red indicators
Bass Boost (0-12 dB @ 45 Hz)
Soft Start Turn-on
Mono channel operation
Preamp RCA outputs to daisy chain multiple amps
4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
Flat panel heatsink design for extreme heat dissipation
Phone jack for remote control
Nickel-Plated RCA level inputs
Nickel-Plated screw terminals
Variable Low-Pass Filter (40-150 Hz)
Variable Subsonic Filter (15-55 Hz)
Signal-to-Noise Ratio: >95 dB
Damping Factor: >200
THD (Total Harmonic Distortion): <0.10%
Variable Input Level Control: 0.2V-6V
Fuse Rating: 3 x 25 Amp
Frequency Response: 15-300 Hz
Dimensions: 15-3/4"L x 9-3/4"W x 2-3/16"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's warranty

Product history:

	Autotek ATA2000.1 (newest, current model)
	Autotek ATX2000.1 (previous model, replaced by Autotek ATA2000.1)

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

Not specified by manufacturer

RMS Power @ 2 ohms

Not specified by manufacturer

RMS Power @ 1 ohm

Not specified by manufacturer

Bridged RMS Power

Not specified by manufacturer

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

1 - Mono

Total Peak Power Output

2000 watts

Total RMS Power Output

Not specified by manufacturer

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

Not specified by manufacturer

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

40 - 150 Hz

Subsonic Filter

15 - 55 Hz

Signal-to-Noise Ratio

>95 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Yes

Fuse Rating

3A x 25

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer

Customer Ratings & Reviews

Overall rating distribution

5 star		50%
4 star		50%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4
Value		4.3
Features		4.8
Design		4
Usability		4.5

Customer Reviews

Sort by:

Good amplifier for the money

Great amplifier pound for pound, dollar for dollar!!!! Hits hard, very stable at 2 ohms when bridged with a compatible subwoofer. Seems to hold up well under extreme condition!!!! Looking to buy several more of these amplifiers for an upcoming project.

By batwing on January 1, 2012

5 found this helpful

Report abuse

decent

i had this on 2 12 inch kicker comps in a 95 stratus and it was very decent at 2 ohms. i metered 140.8db on an audio control meter.

By april on February 22, 2013

4 found this helpful

Report abuse

Underrated

this amp dos the job. the Autotek amps are underrated. It powers my subs wonderfully. good amp. and if your looking to save $ this is the amp too go with. i got this amp at a local audio store and the price for the 1600.2 amp was cheap. sonic electonix is the best.

By freddy on December 1, 2012

2 found this helpful

Report abuse

autotek 2000.1

I'm pushing 4 cvr's i have 2 2000.1's one on each set you can hear me six blocks away coming. People get one or two if you like big bass for a great price.

By M.V.P on September 25, 2012

2 found this helpful

Report abuse
