JL Audio PWM110-WXJX

One 10WX-4 in a Sealed Enclosure, Rear-Firing, Gray Carpet Finish. Includes JX-250/1 amplifier.

JL Audio
Shop all JL Audio
highlight-star-icon

Loaded Single 10" Sealed Rear Firing Subwoofer Enclosure • 400W Peak • 200W RMS • Single 4 Ohm • One 10" WX Series Subwoofer Included • Durable Dark Gray Carpet • High Quality MDF Construction • Built-In 175W Amplifier

Learn more about the pwm110wxjx

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

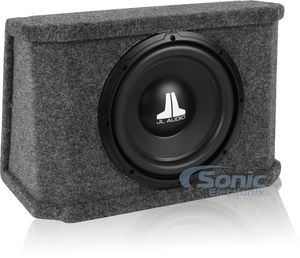

pwm110jxwxv2 thumbnail

JL Audio PWM110-JXWXv2

OUR PRICE: $329.95

View item

Description


JL Audio brand icon

Authorized dealer

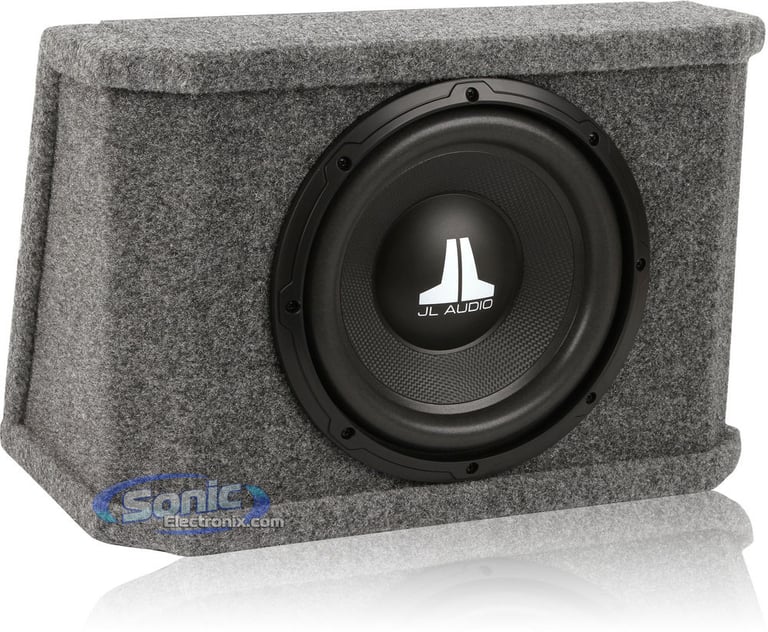

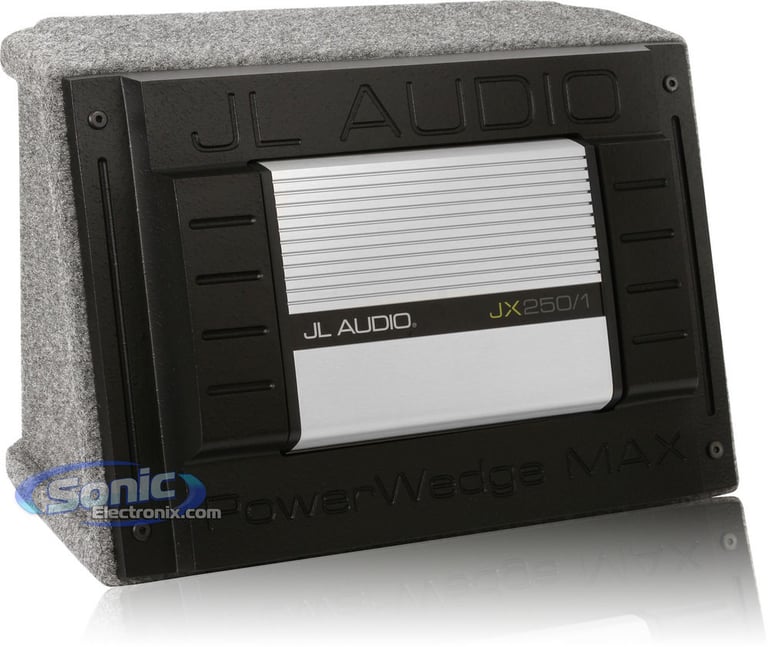

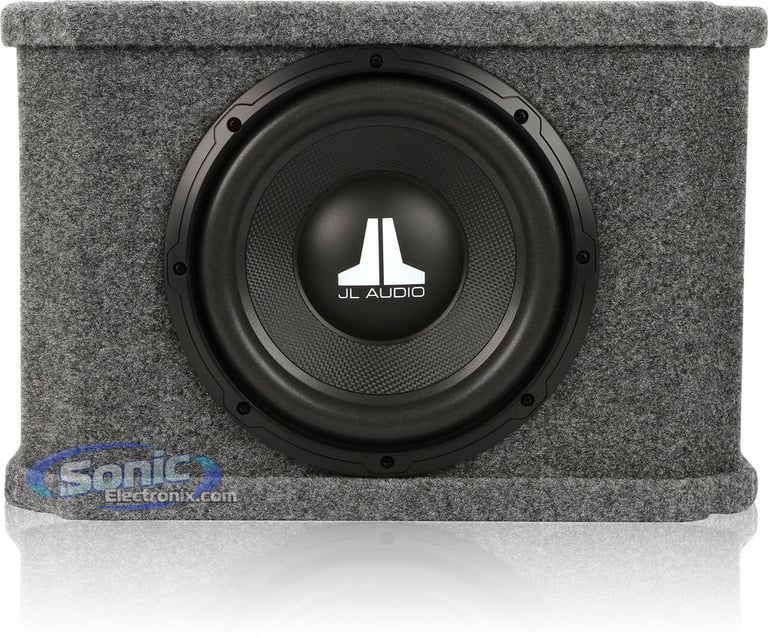

JL Audio PWM110-WXJX 10" Loaded Enclosure

JL Audio's single 10" sealed rear-firing subwoofer enclosure has a peak power rating of 400 watts and an RMS rating of 200 watts. This enclosure comes equipped with one JL Audio 10WX-4 single subwoofer and a built-in 175W 4 ohm amplifier. The subwoofers are loaded into high quality MDF sealed enclosure that is covered in durable dark gray carpet. This package will enhance your cars audio system immensely.

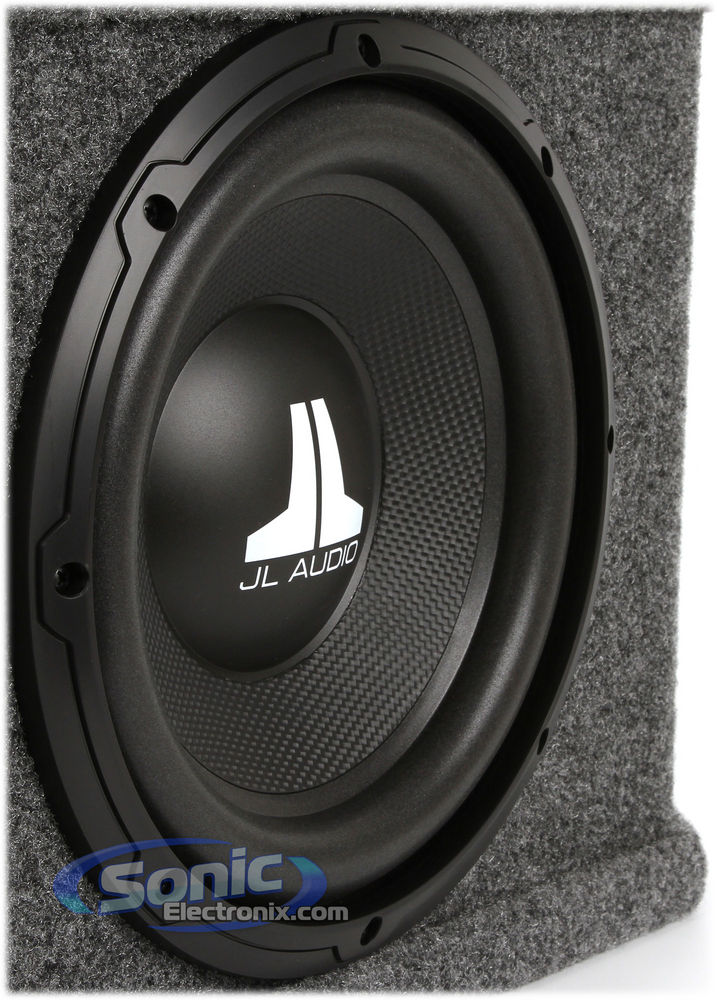

Subwoofer Features:
  • 10" Single 4 Ohm WX Series Subwoofer
  • Power Handling:
    • Peak: 400 watts
    • RMS: 200 watts
  • Impedance: 4 ohm
  • Polypropylene woofer cone material
  • Foam woofer surround type
  • Proprietary dynamic motor analysis (DMA) improves motor behavior
  • Elevated frame cooling delivers cold air above the top plate to the voice coil
  • Resists breakdown under extreme conditions
  • Integrated foam rear gasket which provides an optimal seal
  • Great application flexibility with small or medium enclosures
  • Frequency Response: 25-250 Hz
  • Sensitivity: 86.06 dB
  • 1-year Sonic Electronix warranty

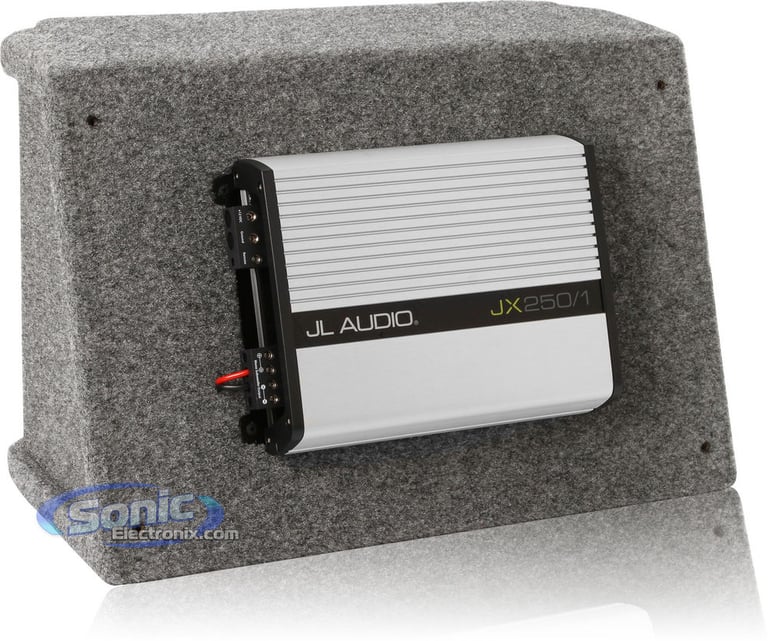

Enclosure Features:
  • Single 10" Sealed Rear Firing Enclosure
  • Built-In 175W @ 4 ohm amplifier
  • Includes one JL Audio 10WX-4
  • Durable dark gray carpet
  • High quality MDF construction
  • 4 ohm mono final impedance
  • Dimensions: 11-1/2”D x 18-3/4”W x 12-1/2”H

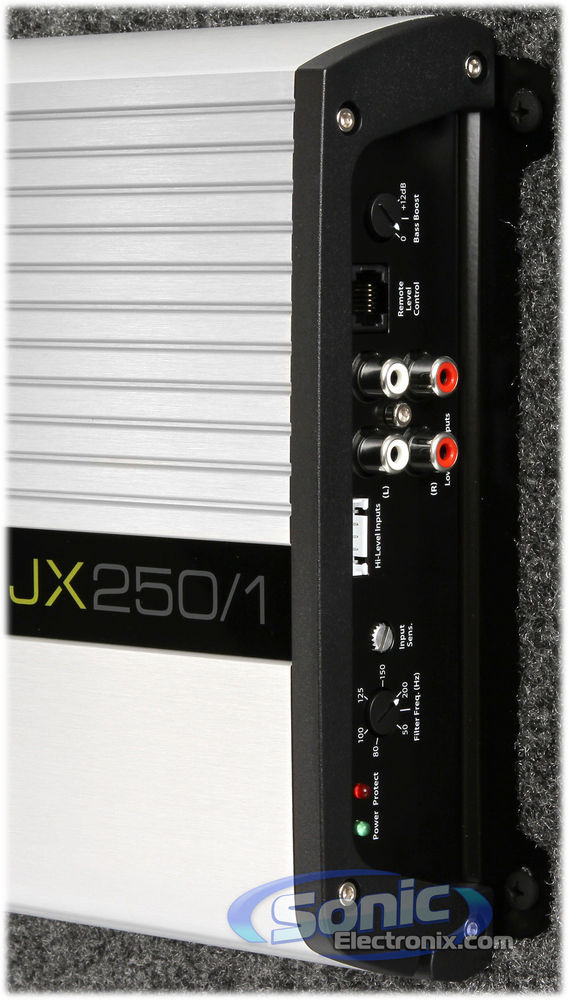

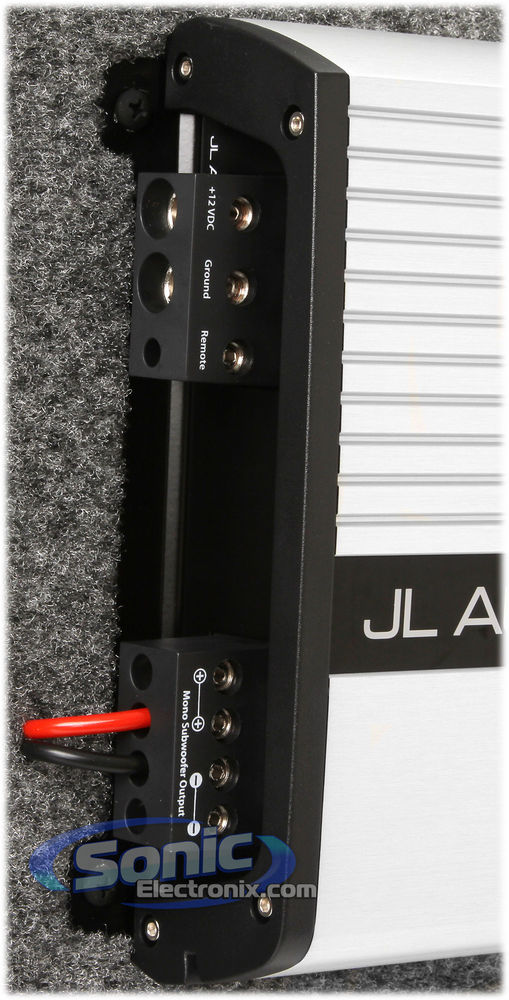

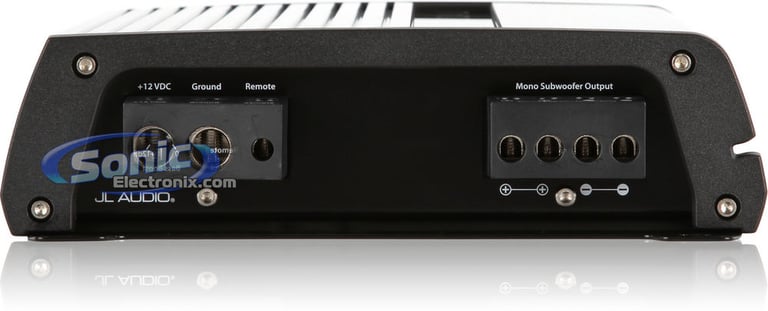

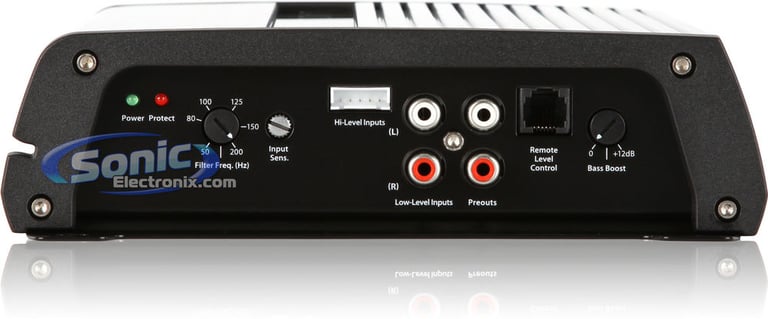

Amplifier Features:
  • JX Series 1-Channel Class A/B Car Amplifier
  • RMS Power Rating (@ 14.4V):
    • 4 ohm: 175 watts x 1 chan.
    • 3 ohm: 210 watts x 1 chan.
    • 2 ohm: 250 watts x 1 chan.
  • RMS Power Rating (@ 12.5V):
    • 4 ohm: 130 watts x 1 chan.
    • 3 ohm: 170 watts x 1 chan.
    • 2 ohm: 210 watts x 1 chan.
  • Unregulated PWM switching type power supply
  • Remote bass level input (JL Audio RBC-1 sold separately)
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost centered at 45 Hz)
  • Soft start turn-on prevent clicking and popping when system turns on
  • 1 channel operation
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, low impedance, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for effective heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 200mV-4V
    • High level: 2.0V-10V
  • Variable low-pass filter (50-200 Hz, 12 dB/octave)
  • Damping factor: >160 @ 4 ohm / >80 @ 2 ohm
  • Frequency response: 10-150 Hz (+/– 1 dB)
  • Dimensions: 11L x 7-3/4"W x 2-1/8"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Product history:

JL Audio PWM110-JXWXv2 thumbnail
(newest, current model)
JL Audio PWM110-WXJX thumbnail
(previous model, replaced by JL Audio PWM110-JXWXv2)

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
175 watts x 1 channel
RMS Power @ 2 ohms
250 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Peak Power Output
Not Specified
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
87 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
200 watts
Total RMS Power Handling
200 watts
Peak Power Handling
400 watts
Total Peak Power Handling
400 watts
Woofer Surround
Foam
Woofer Composition
Polypropylene
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
86.06 dB
Frequency Response
25 - 250 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Hatchback Style, Angled Back
Height
12-1/2"
Width
18-3/4"
Depth
11-1/2"
Second Width
7-3/8"
Wood Thickness
Not specified by manufacturer
Number of Terminals
1
Terminal Type
Not specified by manufacturer
Box Exterior Color
Gray
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

PWM110-WXJX

Weight:

34.00lbs

Internal SKU:

pwm110wxjx

Internal Product ID:

33516
